Name: Hwashi Customized high-power products Seam/Roll Welding Machine,Can be customized according to the product
Brand: Guangdong Hwashi Technology inc.
SKU: WL-AMF-160K
Price: 225,000.00 USD
Availability: InStock

Home > products > Seam Welding Machine >

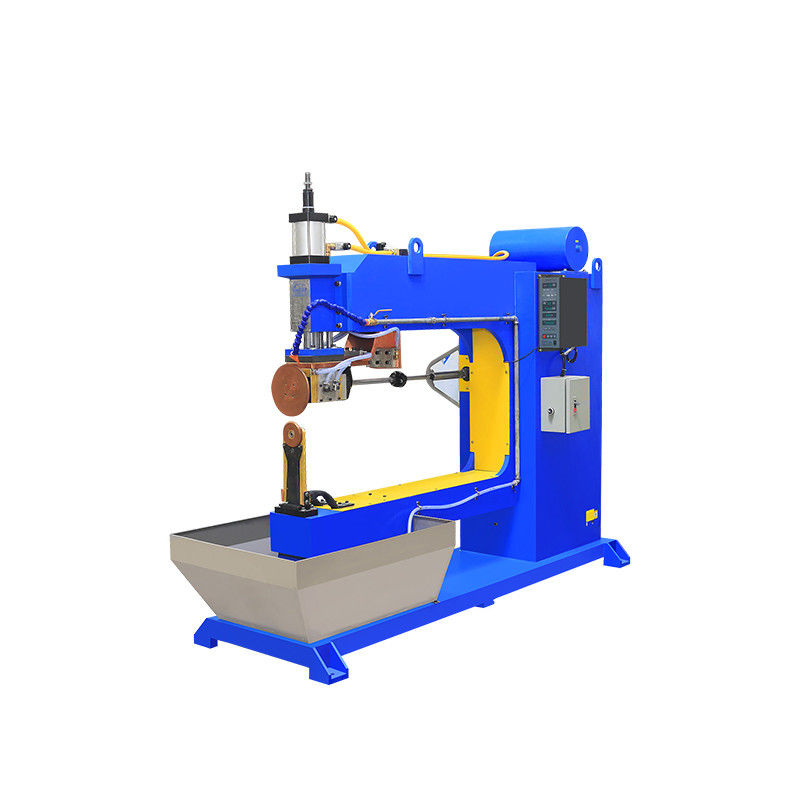

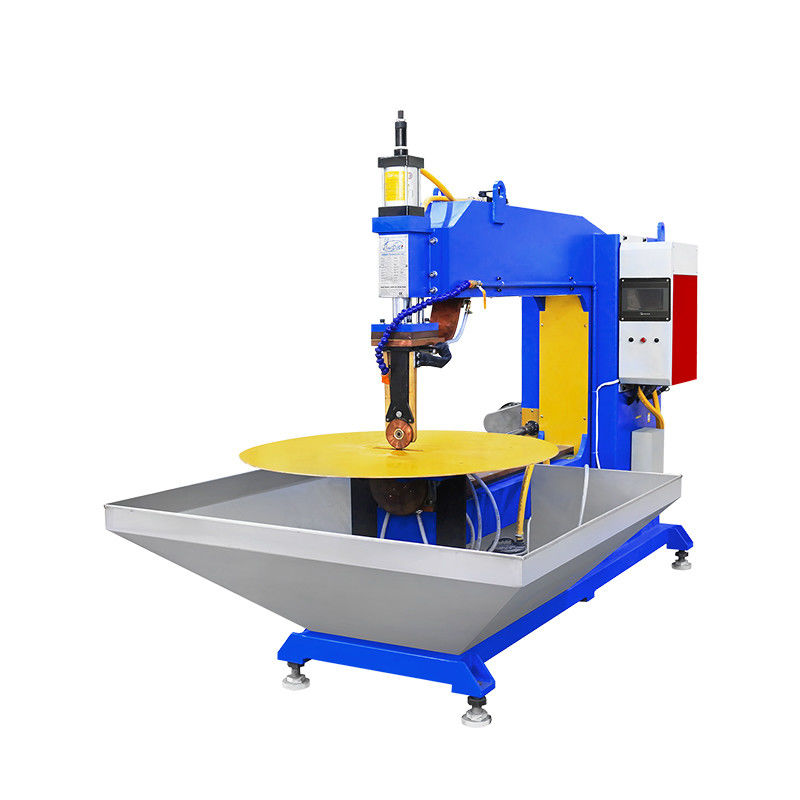

Hwashi Customized high-power products Seam/Roll Welding Machine,Can be customized according to the product

Place of Origin:

China

Brand Name:

Hwashi

Certification:

CE,CCC,ISO

Model Number:

WL-AMF-160K

Request A Quote

Product Details

Product Name:

Hwashi High Quality Stainless Steel Automatic Double Station Circular Rolling Seam Welding Machine Manufacturer For Oil Tank

Condition:

New

Abrasive Belt Width:

50mm

Welding Speed:

0.5-5m/min

Welding Material:

Carbon Steel/Stainless Steel

Weight:

300kg

Control System:

PLC

Welding Width:

5-20mm

Minimum Welding Thickness:

0.2mm

Voltage:

380V,2 Phase,50/60Hz

Machine Type:

Resistance Welding Machine

Service Life:

8-10 Years

Welding Mode:

Continuous/Intermittent

Duty Cycle Rate:

20%

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

T/T, L/C

Supply Ability

50 sets per month

Hwashi High Quality Stainless Steel Automatic Double Station Circular Rolling Seam Welding Machine Manufacturer for Oil Tank

Get Best Price

Video

Hwashi Automobile Shock Absorber Automatic Seam Welding Machine

Get Best Price

Video

Automatic Circular Seam Welding Machine For Aluminum Fuel Tank

Get Best Price

Video

Hwashi Shock Absorber Automatic Seam Welding Machine Manufacturers Minimum Thickness 0.2mm

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

Hwashi Customized high-power products Seam/Roll Welding Machine,Can be customized according to the product

Product Description

The seam (roll) welding special machine is the evolution of spot welder. It uses the roller electrode to replace the cylindrical electrode of spot welding and as the welding work piece moves between the rolling plates, the seal welding will generate weld nuggets which will overlap with each other so as to achieve welding effect. AC pulse current will be adopted. Roll welding is widely applied to light gauge welding of sealed container of oil drum, can, heating radiator, airplane and fuel tank, rocket and missile.

Product Features

1. This machine is of reasonable design, beautiful appearance, stable welding performance.

2. It adopts intelligent micro-computer controller which can set different kinds of welding specification. Multi-segment electrification method has the functions of soft start welding and ending welding.It adopts subprime constant current feedback control mode which will do auto compensation when the voltage is unsteady in order to ensure the stable welding current.

3. It adopts high power welding transformer with all-round water cooling, which can complete different kinds of product's welding efficiently to guarantee welding quality.

4. This welding machine is widely applied to various kinds of stainless steel products and it can achieve multifunction usage.

Application

ApplicationIt is widely applied to welding thermosta, battery nickel belt, oil heater, power capacitor, automobile shock absorber, bicycle wheel rim, sieve basket, water pump, can and barrel, etc.

I

Input power	380V,2 Phase,50/60Hz
Rated capacity	50KVA
Welding capacity (mild steel plate)	1.0mm+1.0mm
Cooling water flow	15L/min
Maximum electrode pressure	3900N
Electrode travel	60mm
Temporary load rate	40%
Package volume	120011001900mm
weight	750kg

Model	WL-FS-75K	WL-FS-100	WL-FS-125	WL-FS-160	WL-FS-200	WL-FS-250
Rated Capacity KVA	75	100	125	160	200	250
Voltage V	380*2	380*2	380*2	380*2	380*2	380*2
Duty Cycle Rate%	50	50	50	50	50	50
No Load Voltage V	1.08-7.02	1.12-7.38	1.26-8	1.3-8.5	2.2-9.0	1.3-9.7
Max. Welding Thickness mm	1.2+1.2	1.5+1.5	1.8+1.8	2+2	2.5+2.5	2.5+3
Upper Wheel Stroke mm	20-80	20-80	30-100	30-100	30-100	30-100
Welding Speed m/min	0.6-4	0.5-3.2	0.5-2.8	0.5-1.5	0.5-1.2	0.5-1.2
Max. Pressure KN	6.3	6.3	8.6	8.6	8.6	8.6
Compressed Air Mpa	0.5	0.5	0.6	0.6	0.6	0.6
Cooling Water Consumption L/h	820	960	1080	1080	1080	1080

Machine Composition:

Main Body:Adopt the reinforced special designed steel structure as the main body. Vertical structure, powerful and stable intensity and this machine is equipped with slide way and all-directions water device. The bottom welding electrode is used to fix the cylinder so as to help fixing the mould and welding.

Power Source: It can adopt AC or medium frequency DC resistance welding special transformer energy as welding power supply. Executed standard is GB/15578-2008, magnetic permeability of forced temperature control water cooling silicon steel sheet is above 1200GS, special water cooling and subprime loop, ensuring constant and powerful welding current, providing guarantee for high quality welding spot.

Welding Control System: Adopt the intelligent microcomputer quick response touch controller, all-digital control, simple and clear operational interface. Automatic testing and compensation which could guarantee the situation that the machine will be at work only when the current value is in the preset data so as to ensure the stability of welding effect and effective prevention of undesirable phenomena like loose welding and cold joint. The features of quick response and high precision of control may help you obtain high quality of welding spots.

Welding Electrode: It adopts embedded electrode with superior conductive performance red copper on electric conduction position. It adopts high hardness Beryllium copper cobalt for the welding electrode. Welding wheel diameter can be designed according to weld position ranging from 100mm to 300mm.
