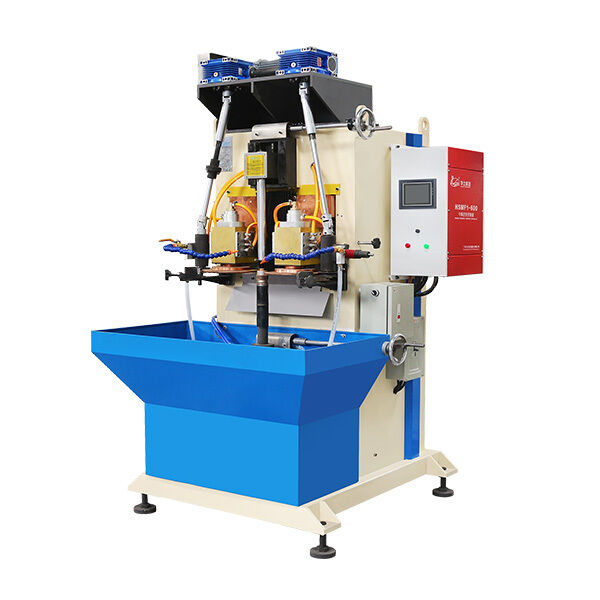

Name: Industrial Stainless Steel Seam Welding Machine with PLC Control and 8-10 Years Service Life
Brand: Guangdong Hwashi Technology inc.
SKU: WL-FS -100K
Price: 225,000.00 USD
Availability: InStock

Home > Products > Seam Welding Machine >

Industrial Stainless Steel Seam Welding Machine with PLC Control and 8-10 Years Service Life

PLC control seam welding machine

stainless steel seam welder

long service life welding machine

Place of Origin:

China

Brand Name:

Hwashi

Certification:

CE,CCC,ISO

Model Number:

WL-FS -100K

Request A Quote

Product Details

Product Name:

Stainless Steel Kitchen Sink Seam Welding Machine

Abrasive Belt Width:

Semi-automatic Sink Welding

Size:

780x1250x1800mm

Control System:

PLC

Welding Width:

5-20mm

Minimum Welding Thickness:

0.2mm

Voltage:

380V,2 Phase,50/60Hz

Machine Type:

Resistance Welding Machine

Service Life:

8-10 Years

Weight (kg):

400KG

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

T/T,L/C

Supply Ability

50 sets per month

CNC X Y Axis Seam Welding Machine Equipped with PLC Control System Ideal for Stainless Steel Flange and Tank Cover Welding

Get Best Price

Video

CNC X Y Axis Seam Welding Machine with PLC Control for Stainless Steel Flange

Get Best Price

Video

CNC X Y Axis Seam Welding Machine with PLC Control System for Stainless Steel Flange

Get Best Price

Video

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

Industrial Stainless Steel Welding Machine, Water Pump Tank Roll Welder

Industries Stainless Steel Water Pump Tank Roll Welder Seam Welding Machine

Product Description

Uses roller electrodes to replace cylindrical spot welding electrodes
Generates overlapping weld nuggets to achieve welding effect
Available with AC pulse current, amplitude modulation current, three (single)-phase rectification, medium frequency, and high frequency DC
Widely applied to light gauge welding of sealed containers including oil drums, cans, heating radiators, aircraft fuel tanks, rockets, and missiles
Typically welds single sheets up to 3mm thickness
Welding seam composed of welding spots
Available as roll spot welding or air-tight seam welding based on melting core overlap
Three-stage forming process: pressurization, heating fusing, and cooling crystallization

Technical Specifications

Model	WL-FS-50K
Input Voltage	380 V
Input Power	50KVA
Weight	500 kg
Current Model	AC, DC, medium/high frequency, capacitor discharge adjustable
Output Current	19500 A
Welding Diameter	100-150 mm
Service Life	8-10 years
Welding Wheel Manner	Horizontal
Dimensions	1600x1250x1800 mm

Applications

Welding of water pump liner and various industrial containers

Material Configuration

SEMIKON (West Germany), IXYS or IR Silicon controlled (United States) - High precision, durable components for stable current control
Motorola integrated circuits (United States) - Quick response and stable performance
Pneumatic parts from Japan or Taiwan - Reliable performance
All devices from imported famous brands with ideal service life and performance

Competitive Advantages

HWASHI - Leading brand in resistance welding industry in China for 20 years
Factory direct sales with competitive pricing
Customized service: Design and develop welding machines according to specific requirements
Genuine products with excellent quality: 12-month warranty, ISO9001:2000 and China Compulsory Certification compliant
8-10 year service life with 100% pre-delivery testing
24-hour technical support via email with professional consulting team
Just-in-time delivery
Prompt customer response and satisfaction-focused service
