Name: CNC X Y Axis Seam Welding Machine with PLC Control for Stainless Steel Flange
Brand: Guangdong Hwashi Technology inc.
SKU: WL-FS
Price: 225,000.00 USD
Availability: InStock

Home > Products > Seam Welding Machine >

CNC X Y Axis Seam Welding Machine with PLC Control for Stainless Steel Flange

Place of Origin:

China

Brand Name:

Hwashi

Certification:

CE,CCC,ISO

Model Number:

WL-FS

Request A Quote

Product Details

Product Name:

Hwashi CNC X，Y Axis Square Tank Cover Seam Welding Machine Welding For Stainless Steel Flange

Condition:

New

Abrasive Belt Width:

50mm

Welding Speed:

0.5-5m/min

Welding Material:

Carbon Steel/Stainless Steel

Weight:

300kg

Control System:

PLC

Welding Width:

5-20mm

Minimum Welding Thickness:

0.2mm

Voltage:

380V,2 Phase,50/60Hz

Machine Type:

Resistance Welding Machine

Service Life:

8-10 Years

Welding Mode:

Continuous/Intermittent

Duty Cycle Rate:

20%

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

T/T,L/C

Supply Ability

50 sets per month

500 Kg Seam Welding Machine Offering PLC Control Mode and Semi Automatic Automation Level Perfect for Consistent Welding

Get Best Price

Semi Automatic Seaming Machine With Welding Thickness Range 0.5 to 5 Mm Perfect for Industrial Seam Welding Applications

Get Best Price

PLC Control Mode Seam Welding Machine Machineweight 500 Kg Customized According Your Requirement Ideal for Precision Welding Tasks

Get Best Price

Continuous Welding Mode Welding Seam Machine Offering Welding Current Range 50-200A Designed for Seam Welding Operations

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

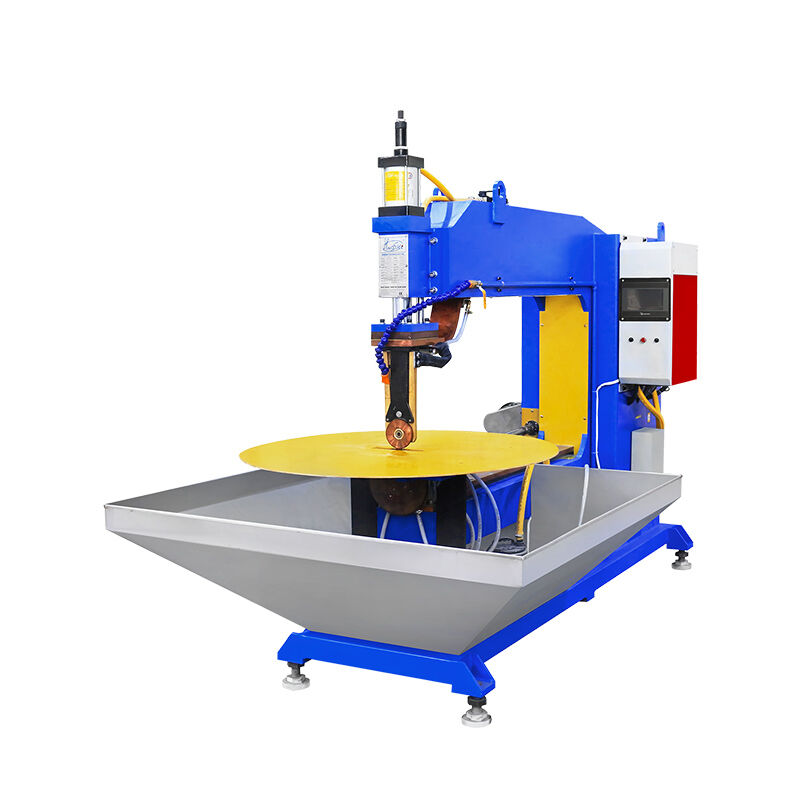

CNC X Y Axis Seam Welding Machine with PLC Control System for Stainless Steel Flange

Hwashi CNC X,Y Axis Square Tank Cover Seam Welding Machine utilizes seam welding technology, replacing spot welding electrodes with circular welding wheels. The system employs a rotation table for workpieces and automated programming for precise welding operations.

Operation Principle

By inputting coordinate data, welding current, and other parameters, the machine automatically completes welding along preset tracks. Operators simply position the workpiece and remove it after welding completion. The system uses AC welding power source with a large flat platform lower electrode and servo motor-driven X and Y axis movement under programmed control.

Horizontal X-axis movement: ≤500mm
Vertical Y-axis electrode movement: ≤300mm
Suitable for tanks within 500x300mm range
Welding material thickness: 0.5-1.5mm
Total welding thickness: 1-3mm

Control System & Structure

Intelligent Welding Control System: Intelligent Touch Screen Controller for parameter input and monitoring. Shape Structure and Welding Method: Custom machine shapes and molds designed according to product specifications with extended welding arms.

Welding Methodology

Utilizes standardized welding electrodes with options for custom electrode molds and welding methods based on specific product requirements.

Key Features

Flexibility: Customizable for different sizes and shapes of steel wire baskets
Strong Stability: High stability for long-term operation with reduced downtime
Reliability: High-quality materials and components for extended service life
Energy Efficiency: Energy-saving power systems and eco-friendly materials

Technical Specifications

Model	WL-FS-75K	WL-FS-100	WL-FS-125	WL-FS-160	WL-FS-200	WL-FS-250
Rated Capacity KVA	75	100	125	160	200	250
Voltage V	380*2	380*2	380*2	380*2	380*2	380*2
Duty Cycle Rate%	50	50	50	50	50	50
No Load Voltage V	1.08-7.02	1.12-7.38	1.26-8	1.3-8.5	2.2-9.0	1.3-9.7
Max. Welding Thickness mm	1.2+1.2	1.5+1.5	1.8+1.8	2+2	2.5+2.5	2.5+3
Upper Wheel Stroke mm	20-80	20-80	30-100	30-100	30-100	30-100
Welding Speed m/min	0.6-4	0.5-3.2	0.5-2.8	0.5-1.5	0.5-1.2	0.5-1.2
Max. Pressure KN	6.3	6.3	8.6	8.6	8.6	8.6
Compressed Air Mpa	0.5	0.5	0.6	0.6	0.6	0.6
Cooling Water Consumption L/h	820	960	1080	1080	1080	1080

Customization & Applications

We provide customized services with technical proposals developed based on your samples or drawings through direct engineering consultation.

Application Industries

Sheet, barrel body, box and sealed thin-wall container welding
Materials: Carbon steel, stainless steel, titanium, nickel and other materials
Automotive fuel tanks, motorcycle dampers
Temperature controller detectors, battery nickel straps
Oil heaters, power capacitors, sieve iron baskets
Water pump manufacturing, tin making, coopery industry

Quality Assurance

Manufactured with certified quality standards and comprehensive factory testing.
