Automatic Glass Lid Steel Belt Strip Spot Welding Machine With CNC Overlap Device

Automatic Glass Lid Steel Belt Strip Spot Welding Machine With CNC Overlap Device

Strip Spot Welding Machine

Spot Welding Machine with CNC Overlap

CNC Spot Welding Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Contact Us
Request A Quote
Product Details
Product Name:
Hwashi Automatic Glass Lid Steel Belt/Strip Spot Welding Machine With CNC Overlap Device
Application:
Welding For Steel Belt/Strip
Size:
According To Your Products
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T, MoneyGram
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Product Description

Hwashi Automatic Glass Lid Steel Belt/Strip Spot Welding Machine with CNC Overlap Device

Automatic Glass Lid Steel Belt Strip Spot Welding Machine With CNC Overlap Device 0

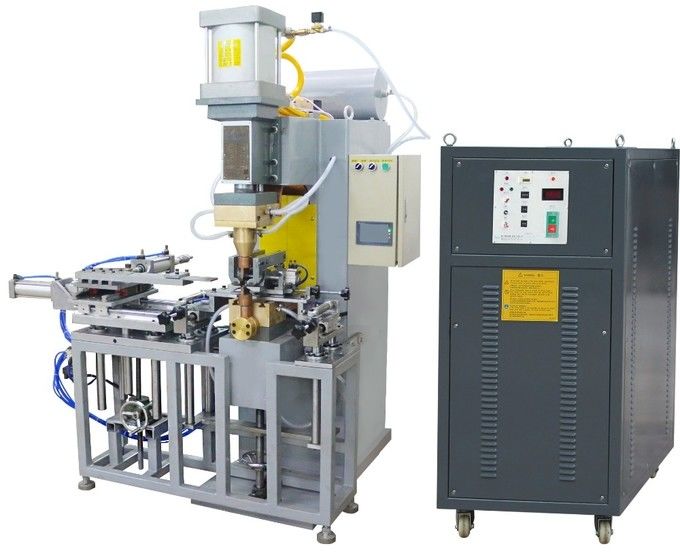

Model 1

Fully Automatic Cookware Glass Lid Belt Welding Machine

1)+ Automatic Overlap Device

2)+ Automatic Electroder Grinder

3) +Steel Belt Feeding and Cutting system No need worker.

Automatic Glass Lid Steel Belt Strip Spot Welding Machine With CNC Overlap Device 1

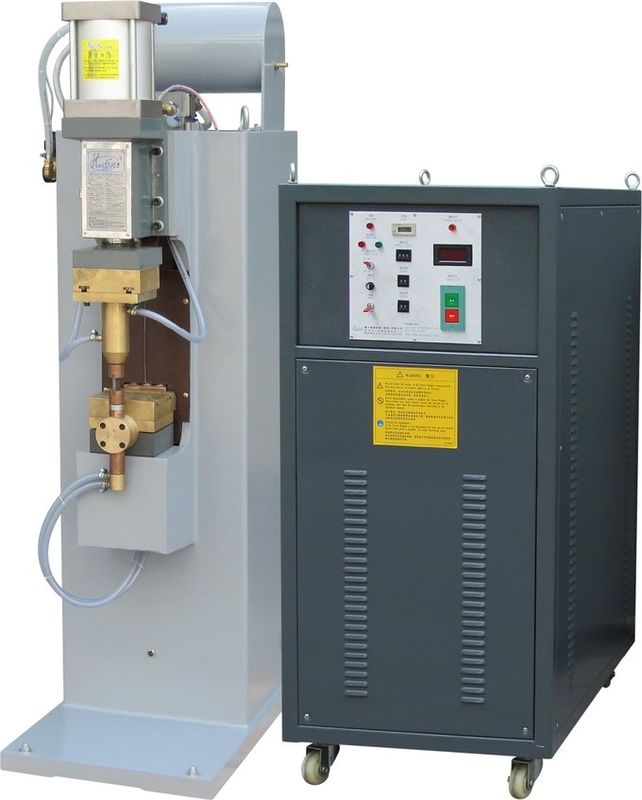

Model 2

Standard Steel Belt Manual Spot Welding Machine

1) + Automatic Overlap Device

2) + Automatic Electrode Grinder

Automatic Glass Lid Steel Belt Strip Spot Welding Machine With CNC Overlap Device 2

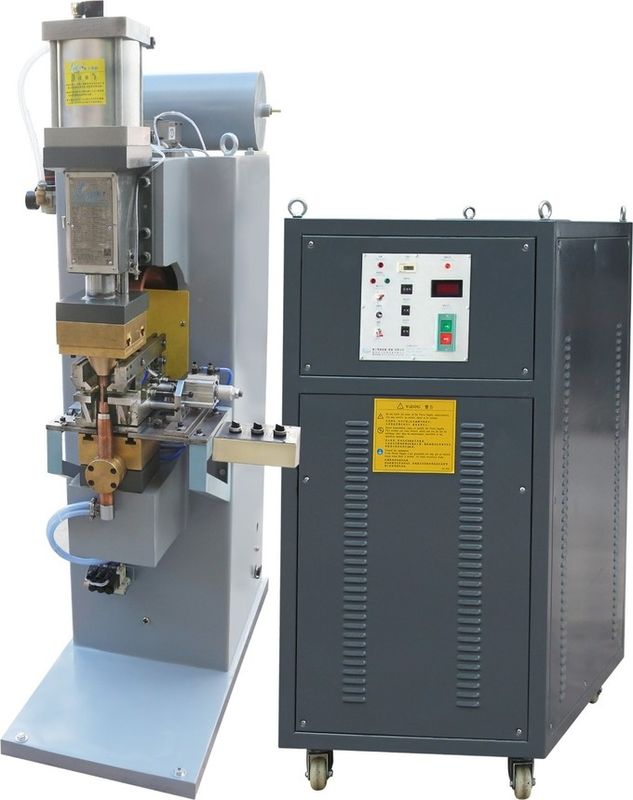

Model 3

Steel Belt Manual Spot Welding Machine+ Automatic overlapping Device

Automatic Glass Lid Steel Belt Strip Spot Welding Machine With CNC Overlap Device 3

Model 4

Standard Steel Belt Manual Spot Welding Machine



Product Description

Glass Lid Steel Strip Spot Welding Machine uses capacitor to store energy and to release instantaneous current. In the meantime, it concentrates large current to pass through a small point and then achieves welding effect (welding process passes through thousands of ampere current within 1/1000 second of time). Therefore, it can minimize the situation that the work piece being oxidized or mechanically deformed due to overheat during the process of welding. The output of the capacitor discharge spot welder that we produce is from 100WS to 18000WS. It is especially suitable for welding metals like stainless steel product.
Our company produces the capacitor discharge spot welding machine which is suitable for steel strip welding within 25mm.



Feature

1. Wide Application: Be able to weld nonferrous metals like stainless steel, aluminum, titanium, silver, etc. Overcome the difficulties in welding dissimilar metals like bronze, aluminum, etc.
2. Firm and Good Looking: Firm welding; No black coating on the welding spots so no polishing process is needed; especially suitable for welding those exporting products which have high requirement on good looking.
3. Electricity and Energy Saving: This machine gets low surge power from the power grid and the power factor is high. Compared with the common AC machine with the same capability, it uses only 1/7 to 1/10 of the power. With a low cost.



Automatic Glass Lid Steel Belt Strip Spot Welding Machine With CNC Overlap Device 4

Intelligent welding control system

Intelligent Touch Screen Controller Input and read welding parameters, Optional Digital Dial Code Type, Intelligent Microcomputer Type, Touch Screen Type.

Automatic Glass Lid Steel Belt Strip Spot Welding Machine With CNC Overlap Device 5

Raw materials made to standard

Thicker Copper Plate or Copper Belt To ensure stable conductivity in welding.

Automatic Glass Lid Steel Belt Strip Spot Welding Machine With CNC Overlap Device 6

Custom processing of electrodes

Customized Electrodes which will be suitable for Welding material like steel, aluminium, silver, stainless Steel, and nickel steel.

Automatic Glass Lid Steel Belt Strip Spot Welding Machine With CNC Overlap Device 7

Shape structure and welding method

Design the right machine shape and mold according to the welding product.



Application and samples

Automatic Glass Lid Steel Belt Strip Spot Welding Machine With CNC Overlap Device 8

We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.Automatic Glass Lid Steel Belt Strip Spot Welding Machine With CNC Overlap Device 9

Automatic Glass Lid Steel Belt Strip Spot Welding Machine With CNC Overlap Device 10Automatic Glass Lid Steel Belt Strip Spot Welding Machine With CNC Overlap Device 11

Automatic Glass Lid Steel Belt Strip Spot Welding Machine With CNC Overlap Device 12
