HWASHI Transformer EI Lamination Core Automatic TIG Welding Machine
Product Description

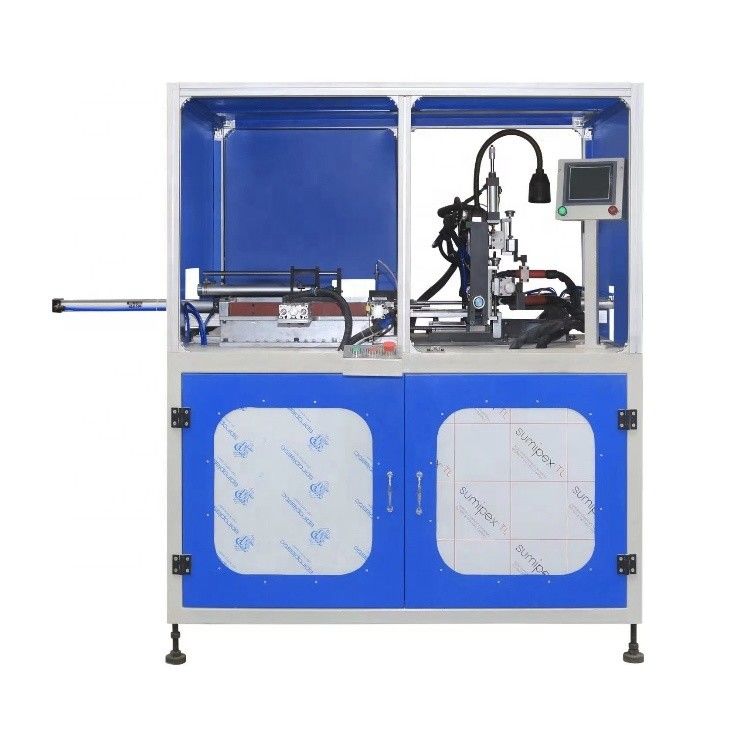

HWASHI Transformer EI Lamination Core Automatic TIG Welding Machine is designed as automatic assembly welding for transformer E, I lamination core. After clamping by the cylinders and being fixed, the welding gun will enter into welding area at constant speed under the effect of servo motor. Then the welding gun will finish the welding process. In order to achieve higher automatic, we designed the machine with automatic loading and unloading conveyer belt. It can help to save more labor force and increase production rate. This proposal is the upgraded version for welding this product. It is designed to use servo motor as the driving force for welding gun. The advantage is: more stable, simple maintenance, easier to control the speed.
Welding Power Source
Adopt 3 sets of Japan Panasonic YC-400TX TIG welder as the welding power source with stable and good welding quality. (or other brand as you request)
Servo Drive Automatic Moving Welding Gun
The welding gun will be driven automatically to complete the straight seam welding on the EI lamination core. The number of the gun required depends on the product.
Automatic Loading and unloading Conveyor
The product will be loaded to the welding position automatically. And after welding, the product will be pushed back and unloaded automatically. So as to achieve full automatic process and save labor force.

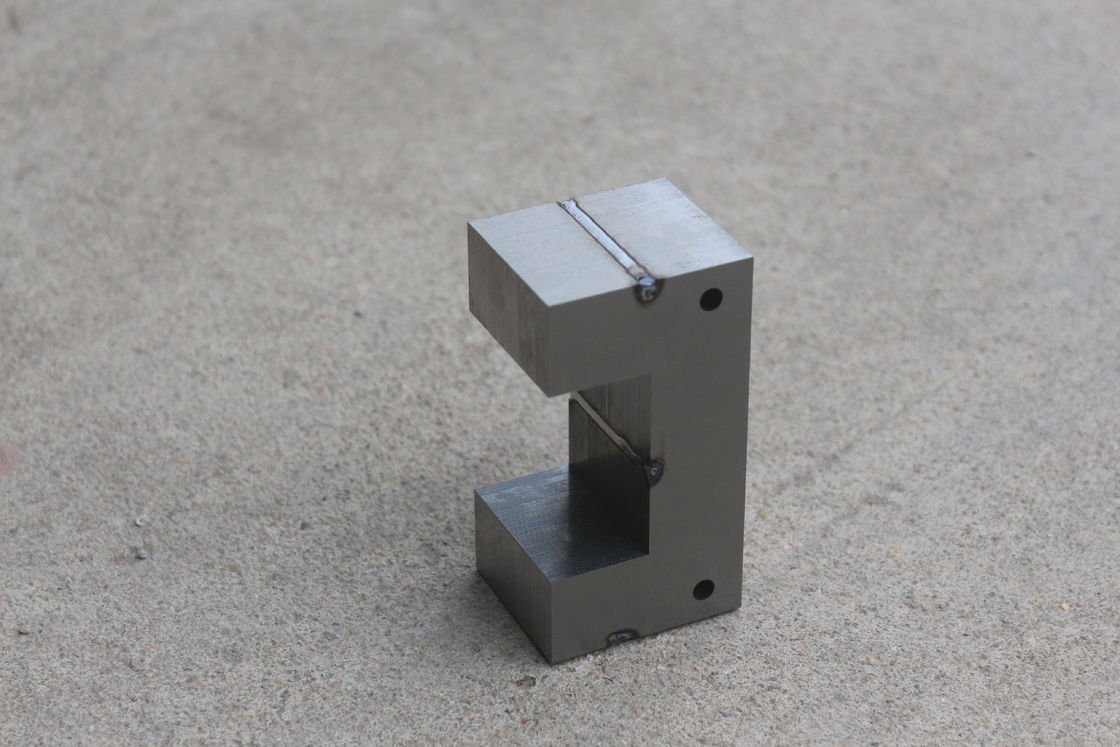

Final EI Lamination Core Sample
There are three welding seams. One time welding with high efficiency. Stable welding quality. No need experienced welding operator. Save labor cost.
Specification
|
No. |
Items |
Data |
|
1 |
TIG Welder Number |
2-3 (as per product drawing) |
|
2 |
Welding Gun Moving Distance |
18-120mm (as per product drawing) |
|
3 |
Cylinder Types |
3 (horizontal, vertical, upper clamping) |
|
4 |
Feeding Conveyor Length |
1200mm |
|
5 |
Welding Speed |
10mm/sec |
We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.
