Full Automatic Rotary Table Spot Welding Machine with 8 Welding Positions and Medium Frequency Inverter for Capacitor Cap

full automatic rotary spot welding machine

medium frequency inverter welding machine

8 position capacitor cap welder

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Request A Quote

Full Automatic Rotary Table Spot Welding Machine with 8 Welding Positions and Medium Frequency Inverter for Capacitor Cap

Product Details

Product Name:

Automatic Rotary Table Spot Welding Machine For Capacitor Cap

Application:

Welding For Nut, Capacitor Welding

Size:

According To Your Products

Condition:

New

Warranty:

12months

Certificate:

CE/CCC/ISO

Service Life:

8-10 Years

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C,T/T,MoneyGram

Supply Ability

50 sets per month

HWASHI EI Lamination Automatic TIG Welding Machine Suitable for Transformer Reactor

Get Best Price

Video

Braided Copper Wire Welder Wire Cutting Machine Round Twisted/Automatic Braided Copper Wire Welding Machine

Get Best Price

Video

Copper Braided Wire Welding And Cutting Machine Automatic Welding Solutions

Get Best Price

Video

Multi Spot Welder For Stainless Steel Pot Handle Spare Parts Spot Welding Machine

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

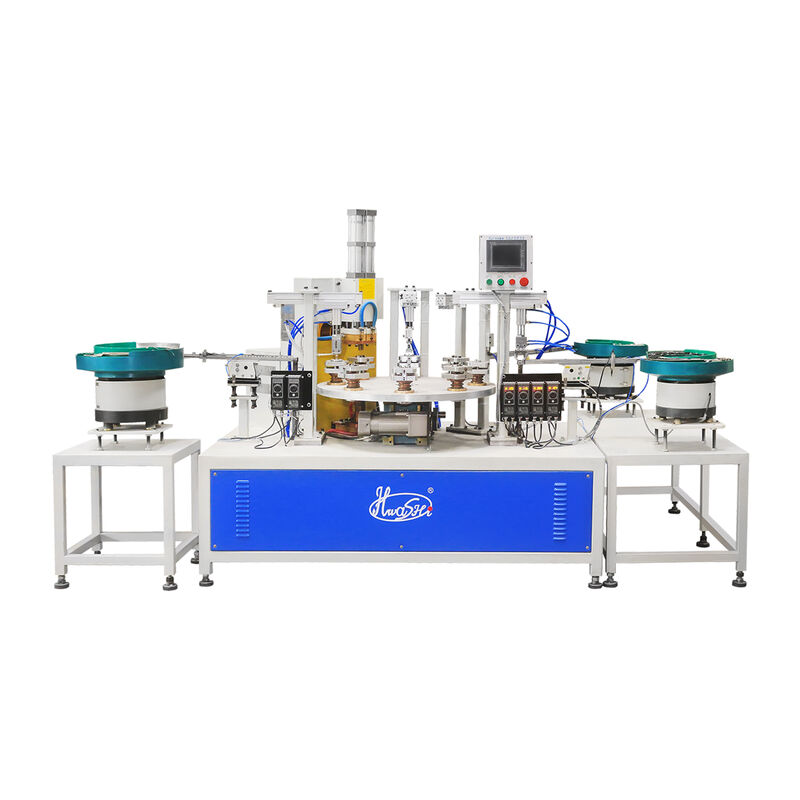

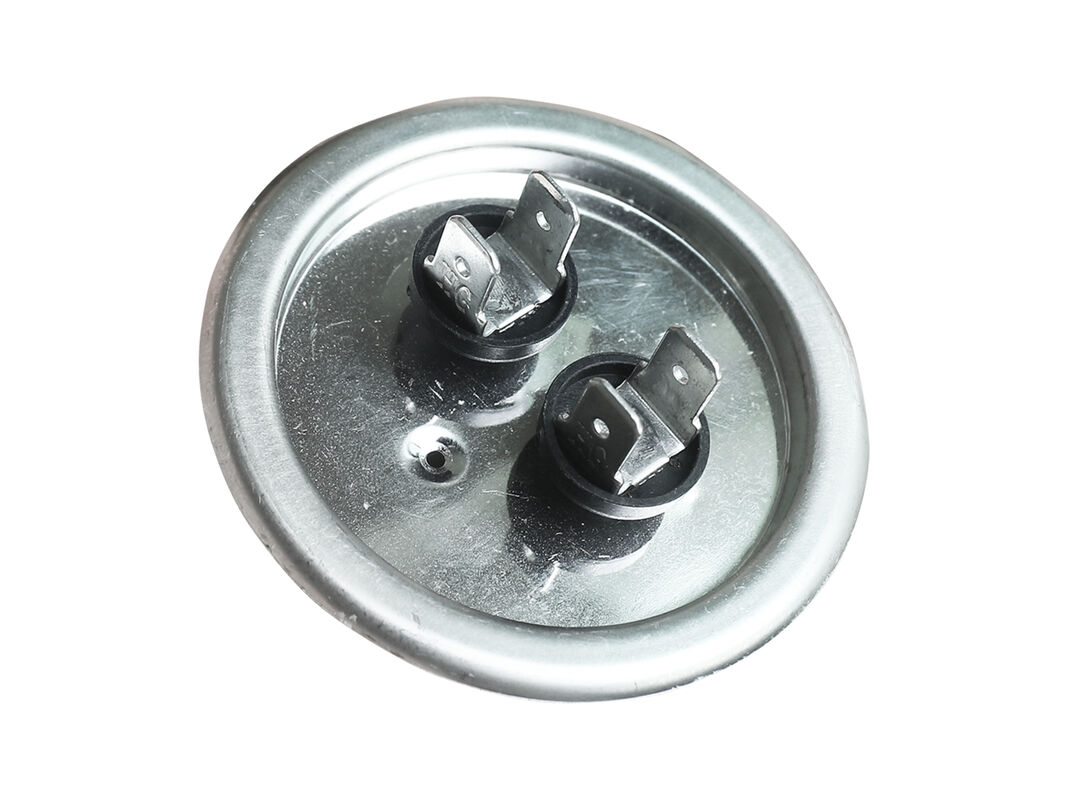

Full Automatic Rotary Table Spot Welding Machine For Capacitor Cap

HWASHI Full Automatic Rotary Table Spot Welding Machine

The HWASHI Full Automatic Rotary Table Spot Welding Machine for capacitor cap welding is designed for automatic welding, rotating, and discharging operations. Featuring 8 welding positions, the machine enables continuous cycle working for efficient production.

The machine utilizes medium frequency inverter power source technology, offering high power factor, energy efficiency, and consistently stable, reliable welding spots. By simply changing the fixtures (welding moulds), the machine can accommodate different product types and dimensions.

Multi-Station Operation

The main welding component is equipped with an automatic rotating device. Operators can load up to 8 work pieces simultaneously. When welding commences, the system automatically processes each piece in sequence - after welding the first piece, the rotating device moves the next piece into position, creating a continuous cycle. Meanwhile, welded pieces are automatically discharged, allowing operators to continuously load new work pieces for uninterrupted operation.

Customized Fixture Design

We design specialized fixtures tailored to your specific product requirements.

Automated Feeding System

Automatic Vibration Feeding Plate - Automatically feeds small parts to the fixture, enabling fully automated assembly and welding processes.

Automated Material Handling

Automatic Loading and Unloading Mechanical Arm - Ensures seamless material transfer throughout the welding process.

Technical Specifications

Parameter	Specification
Input Voltage	380V three-phase
Input Current	150A
Output Voltage	DC11.6V
Max Short Circuit Current	32000A
Welding Models	32 types
Rotary Table Diameter	800mm
Rotary Table Material Positions	6-8 positions
Rotary Table Rotating Speed	0.5m/sec

Customized Solutions

We provide comprehensive customized services. Our engineering team will discuss your specific welding requirements and develop suitable technical proposals based on your samples or drawings.
