Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-AMF-160K

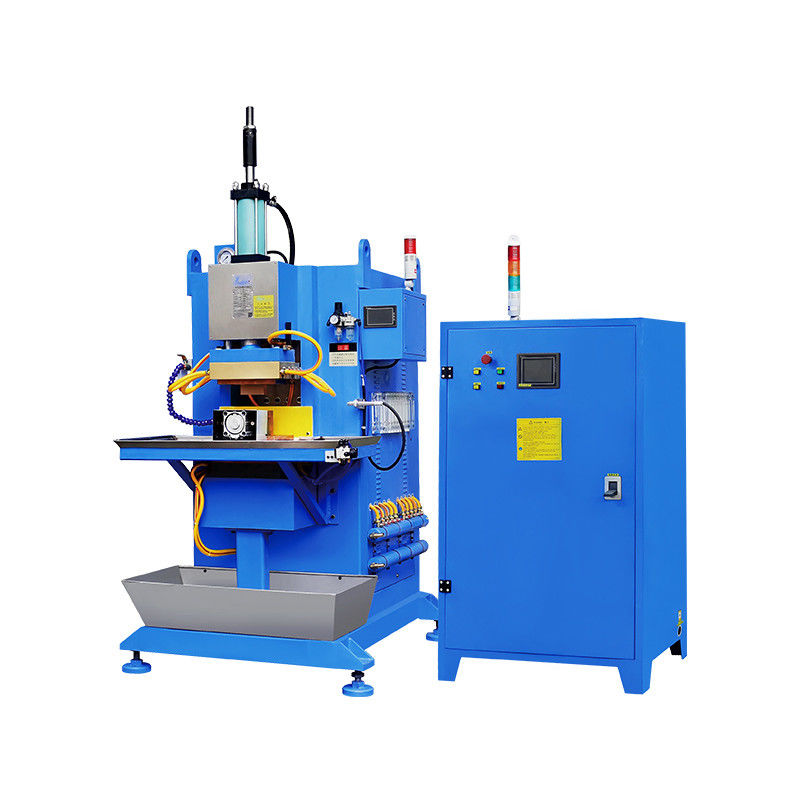

Hwashi Electric Copper Wire Molecular Diffusion Welding Machine
Product description

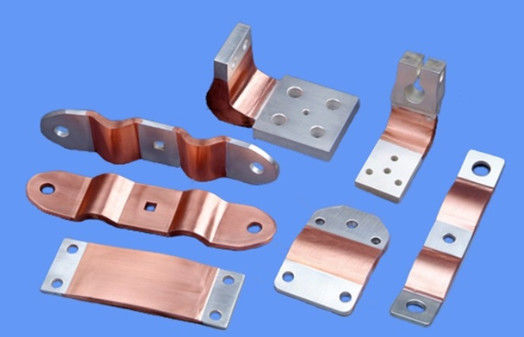

The equipment is composed of main engine and control cabinet,which mainly realizes diffusion welding of materials between moleculse.It is used in the production of bus expansion joint and soft connection conductive belt products,and widely used in soft connection of high-low voltage electrical appliances,vacuum electrical applicances,high-low voltage switchgear,electric furnace and so on.
Good electrical,thermal,corrosion and processing performance.
The size ranging from 50x50x5mm to 150x150x15mm (or customized according to your requirement)
Medium frequency inverter DC spot welder Adopting the latest generation of medium frequency inverter welding controller, it has many advantages such as short power-on time, high thermal efficiency, three-phase DC output, high working frequency and small transformer loss. It is suitable for welding carbon steel, stainless steel, galvanized, copper, aluminum, aluminum alloy, iron, nickel, high strength steel, hot forming steel and other metal materials. Medium frequency spot welding machine can be widely used in auto parts, auto body, aerospace, high and low voltage electrical, household appliances, elevator, hardware and furniture, new energy and other industries.
|
Intelligent welding control system Intelligent Touch Screen Controller |
Raw materials made to standard Thicker Copper Plate or Copper Belt |
|
Custom processing of electrodes Customized Electrodes which will be suitable for |
Shape structure and welding method Design the right machine shape and mold according tothe welding product. |
Features of The Intermediate Frequency Spot Welder
1. Three-phase power supply, grid balance, small impact on the grid The power factor is as high as 0.7-0.9 (power frequency 0.4), which greatly reduces the reactive power loss.
2. Significantly improved welding control accuracy The inverter frequency reaches above 1000Hz, and the welding current control ability and control accuracy are 20 times higher than those of AC welding machines.
3. Great leap in welding quality The current waveform is straight, the size of the nugget is stable, the spatter is less, and the surface quality of the solder joint is good.
4. Save basic investment and save energy The grid power demand is low, only 2/3 of the AC resistance welding machine; the welding time is short and the electrode life is long.
5. Human-computer interface, easy to operate Multiple sets of welding specifications can be stored and called with one key, real-time display of welding current and time, monitoring and alarm functions of welding pressure, cold water flow, and welding current.
We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.
