Full Automatic Rotary Table Spot Welding Machine For Capacitor Cap

Full Automatic Rotary Table Spot Welding Machine For Capacitor Cap

Rotary Table Spot Welding Machine

Spot Welding Machine For Capacitor Cap

Automatic Spot Welding

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Contact Us
Request A Quote
Product Details
Product Name:
Automatic Rotary Table Spot Welding Machine For Capacitor Cap
Application:
Welding For Nut, Capacitor Welding
Size:
According To Your Products
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T, MoneyGram
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Product Description

HWASHI Full Automatic Rotary Table Spot Welding Machine For Capacitor Cap

Full Automatic Rotary Table Spot Welding Machine For Capacitor Cap 0

Product Description

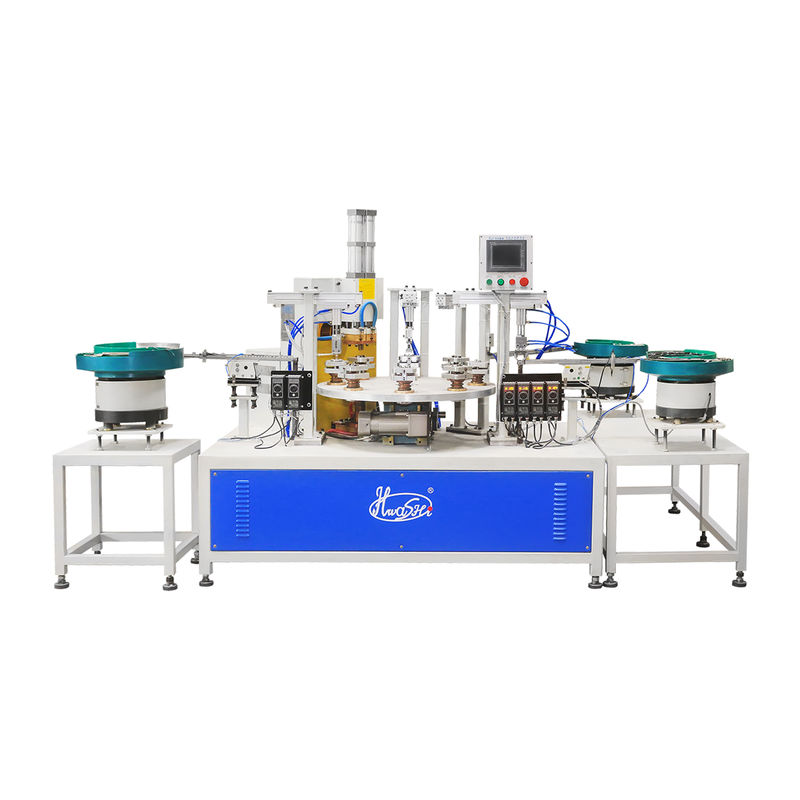

HWASHI Full Automatic Rotary Table Spot Welding Machine for Nut, Capacitor Welding is designed as automatic welding, automatic rotating and automatic discharging. The machine is of 8 welding positions, so it can achieve cycle working and continuous welding. Moreover, medium frequency inverter power source is adopted with features of high power factor, electricity and energy saving, and it can achieve stable and reliable welding spots. Only need to change the fixtures (welding moulds) then the machine can achieve welding different products. The present design could help you weld product with different dimensions. The main welding part of Multi-station CNC Automatic Rotary Spot Welding Machine is equipped with automatic rotating device. The operator only needs to put the work piece onto the rotary device. He can put 8 work pieces at most for one time. Then start “welding”, the main welding body will conduct welding. After welding the No. 1 work piece, the rotating device will rotate, then the No.2 work piece will be moved to the welding position, cycle process will continue. In the meantime, the welded work piece will be discharged automatically in turn and the operator could keep putting new work piece onto the certain position. In such design, the machine is of fast speed and high efficiency.

Full Automatic Rotary Table Spot Welding Machine For Capacitor Cap 1

Multi Station Special Designed Fixture

We will design the fixture according to your actual product.

Full Automatic Rotary Table Spot Welding Machine For Capacitor Cap 2

Automatic Vibration Feeding Plate

It will feed the small parts to the fixture automatically. And the machine will do assembly and welding automatically.

Full Automatic Rotary Table Spot Welding Machine For Capacitor Cap 3

Automatic Loading and Unloading Mechanical Arm

Full Automatic Rotary Table Spot Welding Machine For Capacitor Cap 4

Final Product Quality



HWASHI Full Automatic Rotary Table Spot Welding Machine For Capacitor Cap

1

Input Voltage

380V three-phase

2

Input Current

150A

3

Output Voltage

DC11.6V

4

Max Short Circuit Current

32000A

5

Welding Models

32 types

6

Rotary Table Diameter

800mm

7

Rotary Table Material Positions

6-8 positions

8

Rotary Table Rotating Speed

0.5m/sec

Full Automatic Rotary Table Spot Welding Machine For Capacitor Cap 5

We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.

Full Automatic Rotary Table Spot Welding Machine For Capacitor Cap 6Full Automatic Rotary Table Spot Welding Machine For Capacitor Cap 7

Full Automatic Rotary Table Spot Welding Machine For Capacitor Cap 8
