Copper Braided Wire Welding And Cutting Machine Automatic Welding Solutions

Copper Braided Wire Welding And Cutting Machine Automatic Welding Solutions

Copper Braided Wire Cutting Machine

Wire Welding Cutting Machine

Automatic Welding Solutions

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-AMF-160K

Contact Us
Request A Quote
Product Details
Product Name:
Hwashi Automatic Copper Braided Wire Welding And Cutting Machine
Application:
Welding For Copper Braided Wire
Size:
According To Your Products
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T, MoneyGram
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Product Description

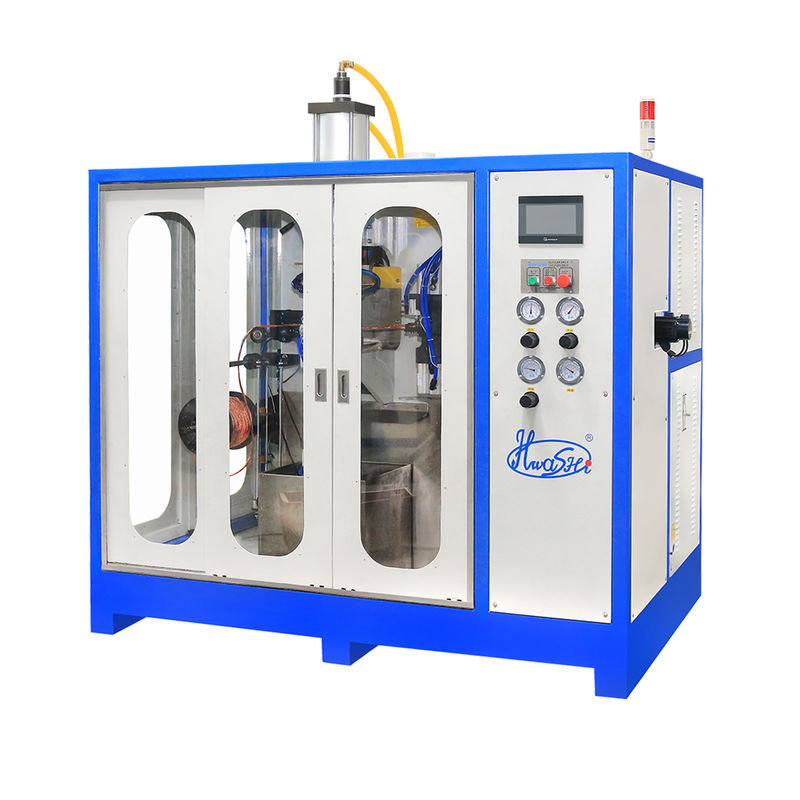

Hwashi Automatic Copper Braided Wire Welding And Cutting Machine

Copper Braided Wire Welding And Cutting Machine Automatic Welding Solutions 0

Product Description For Automatic Copper Braided Wire Welding And Cutting Machine

This machine is designed to complete the welding and shearing automatically. Once adjusting the related parameters, it can change the shape of welding and length of cutting. The welding length is 60-100mm (adjustable). It can weld 4- 14 wires. The dimension of welding (width and length) is maximum 8x10mm and minimum 4x4.5mm (adjustable).

Features For Automatic Copper Braided Wire Welding And Cutting Machine

The Welding spots are good in looking, firm, stable and reliable. Well consistency of welding spots. Wide application. The machine, electricity and other mechanism could be reasonably assembled. It could be used to weld other similar products after relevant modification of microcomputer data program. One machine could serve several purposes.

Technology Description For Automatic Copper Braided Wire Welding And Cutting Machine

Through the feeding system-wire output wheel, the braid wire enters into the welding center to complete the process of feeding wire. Then the wire output system stop working, the welding forming device start working to press the wire on the preset position. The cylinder will press down to complete the welding. Next, the stay wire cylinder start to output the wire to preset length. When reaching the preset value, the cutting device starts cutting the wire. At last, the stay wire cylinder starts to pull out the completed wire and put it into the discharging box.



Copper Braided Wire Welding And Cutting Machine Automatic Welding Solutions 1

1.Feeding system

Through the feeding system-wire output wheel, the braid wire enters into the welding center to complete the process of feeding wire

Copper Braided Wire Welding And Cutting Machine Automatic Welding Solutions 2

2.Welding system

The welding forming device start working to press the wire on the preset position. The cylinder will press down
to complete the welding

Copper Braided Wire Welding And Cutting Machine Automatic Welding Solutions 3

3.Cutting device

The stay wire cylinder start to output the wire to preset length. When reaching the preset value, the cutting device starts cutting the wire

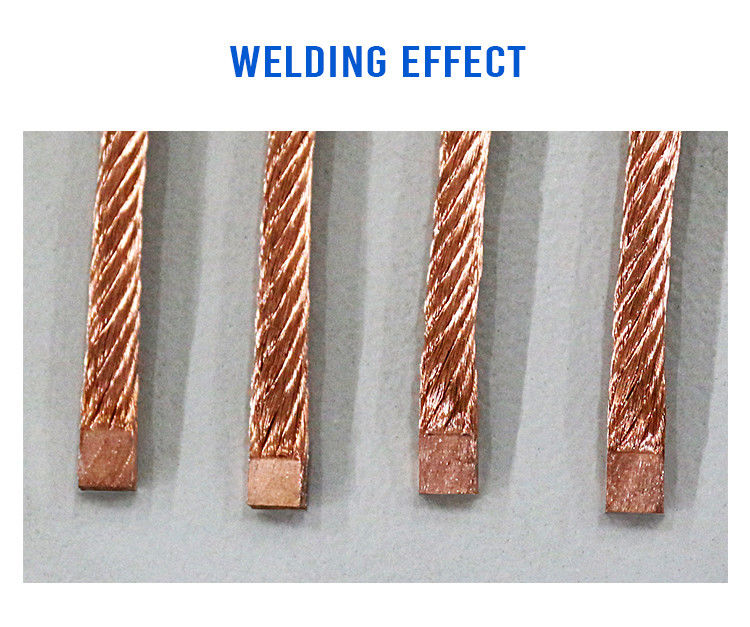

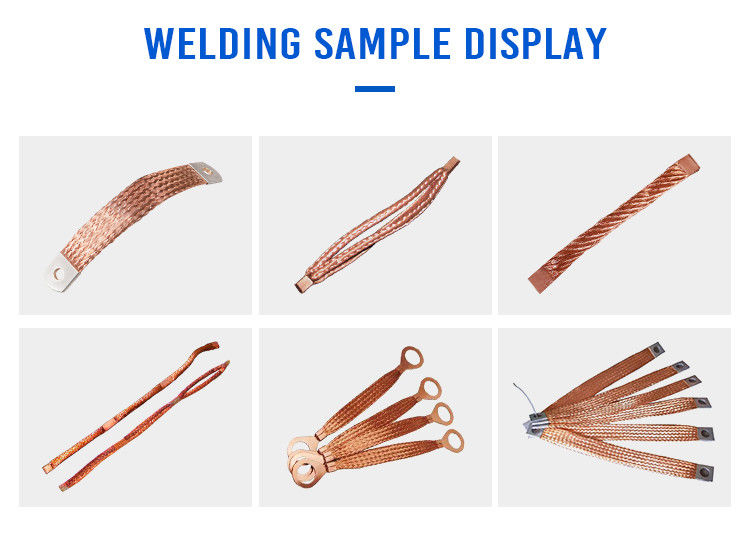

Application and samples For Automatic Copper Braided Wire Welding And Cutting Machine



Copper Braided Wire Welding And Cutting Machine Automatic Welding Solutions 4

We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.

Copper Braided Wire Welding And Cutting Machine Automatic Welding Solutions 5Copper Braided Wire Welding And Cutting Machine Automatic Welding Solutions 6

Copper Braided Wire Welding And Cutting Machine Automatic Welding Solutions 7Copper Braided Wire Welding And Cutting Machine Automatic Welding Solutions 8

Copper Braided Wire Welding And Cutting Machine Automatic Welding Solutions 9
