Longitudinal Seam Welder For Sale Single Head Automatic Moving

Longitudinal Seam Welder For Sale Single Head Automatic Moving

longitudinal seam welder

longitudinal seam welder for sale

Longitudinal Seam Welding Machine

Place of Origin:

China

Brand Name:

Hwashi

Certification:

CE,CCC,ISO

Model Number:

WL-FS

Contact Us
Request A Quote
Product Details
Key Selling Points:
High Efficiency
Condition:
New
Application:
Welding Low Carbon Steel, High Strength Steel, Plated Steel Plate, Stainless Steel Plate, Heat Resistant Alloy, Copper, Aluminum
Weight:
Ccording To Your Product
Control System:
PLC
Service Life:
8-10 Years
Duty Cycle Rate:
20%
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
T/T, L/C
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

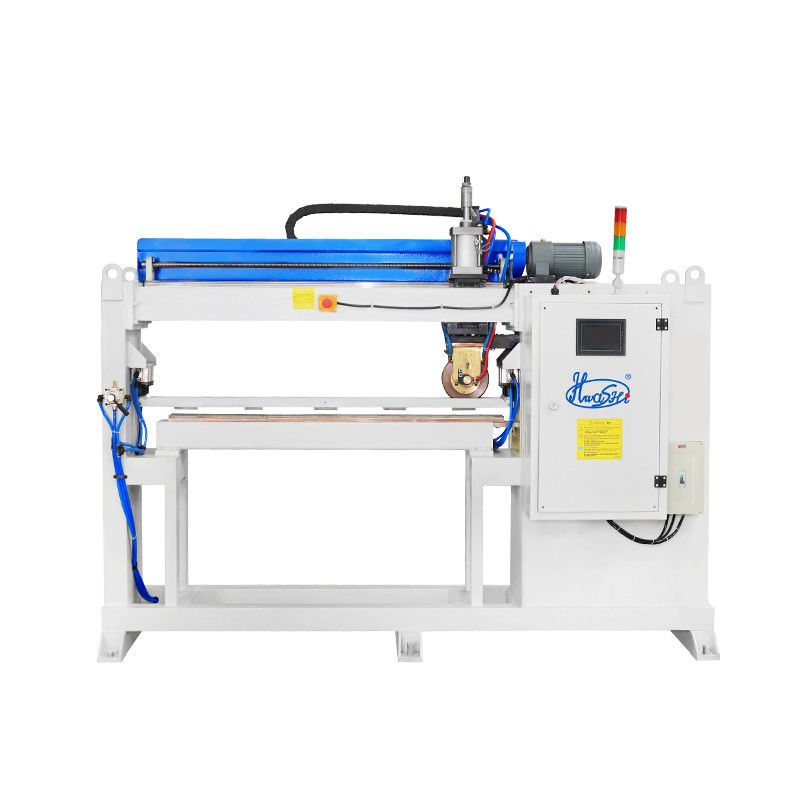

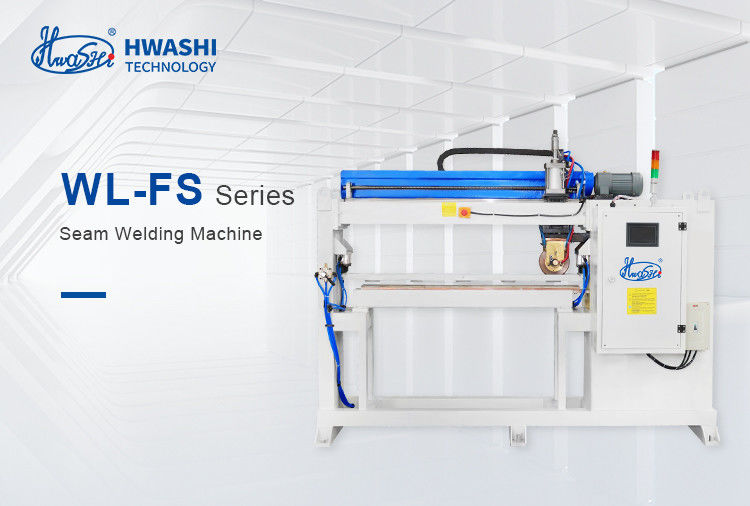

HWASHI Single Head Automatic Moving Longitudinal Seam Welding Machine
Longitudinal Seam Welder For Sale Single Head Automatic Moving 0
Description Of The Moving Longitudinal Seam Welding Machine
The moving longitudinal seam welding machine is the evolution of spot welder. It uses the roller electrode to replace the cylindrical electrode of spot welding and as the welding work piece moves between the rolling plates, the seal welding will generate weld nuggets which will overlap with each other so as to achieve welding effect. We adopts the AC converter type seam welding system with easy operation and stable welding. It can solve the disadvantages of the normal AC and MFDC welding power source.
Longitudinal Seam Welder For Sale Single Head Automatic Moving 1 Longitudinal Seam Welder For Sale Single Head Automatic Moving 2 Longitudinal Seam Welder For Sale Single Head Automatic Moving 3





Intelligent welding control system



Intelligent Touch Screen Controller
Input and read welding parameters





High quality super hard copper alloy welding wheel

Made of excellent material processing, not afraid of high temperature, not afraid of wear and tear, good electrical conductivity.

Shape structure and welding method

Design the right machine shape and mold according tothe welding product and extended welding arms.



Features ​Of The Moving Longitudinal Seam Welding Machine
  • Welding control system: intelligent HS-ACI900 AC frequency conversion controller, full digital touch screen display, the operation interface is simple, clear and convenient.
  • Application scope: welding low carbon steel, high strength steel, plated steel plate, stainless steel plate, heat resistant alloy, copper, aluminum and its alloy, can also welding titanium, niobium, zirconium and other rare metals and multi-layer steel plate, widely used in automotive, aviation, aerospace, atomic energy and radio industries.
  • Welding pressure mechanism: the high quality pressure cylinder is used to drive the welding wheel pressure, welding pressure is adjusted by air combination. It can adapt to different thickness sheet metal by directly adjust the setting. Pressure is more accurate. More convenient operation.
  • Easy to dismantle, install and maintain the whole machine and electrode. The signs of circuit, air circuit and water way are clear and explicit. The arrangement of wire is in order and good looking
Technical Data Of The Moving Longitudinal Seam Welding Machine
No. Items WL-FS-ACI250K
1 Input Power Three-phase 380V±10%/50mm²
2 Rated Capacity 250KVA
3 Rated Input Current 25%
4 Rated Duty Cycle Rate 8.6V
5 Max. Secondary Floating Voltage 30KA
6 Transformer Insualtion Grade F grade
7 Heat adjustment range 15%-99%
8 Welding wheel thickness 5mm(customized)
9 Wheel rotation speed 0-500mm/min stepless speed adjustment
10 Rated Air Pressure 0.5MPa
11 Water Force 0.2Mpa
12 Water Temperature 10-20℃

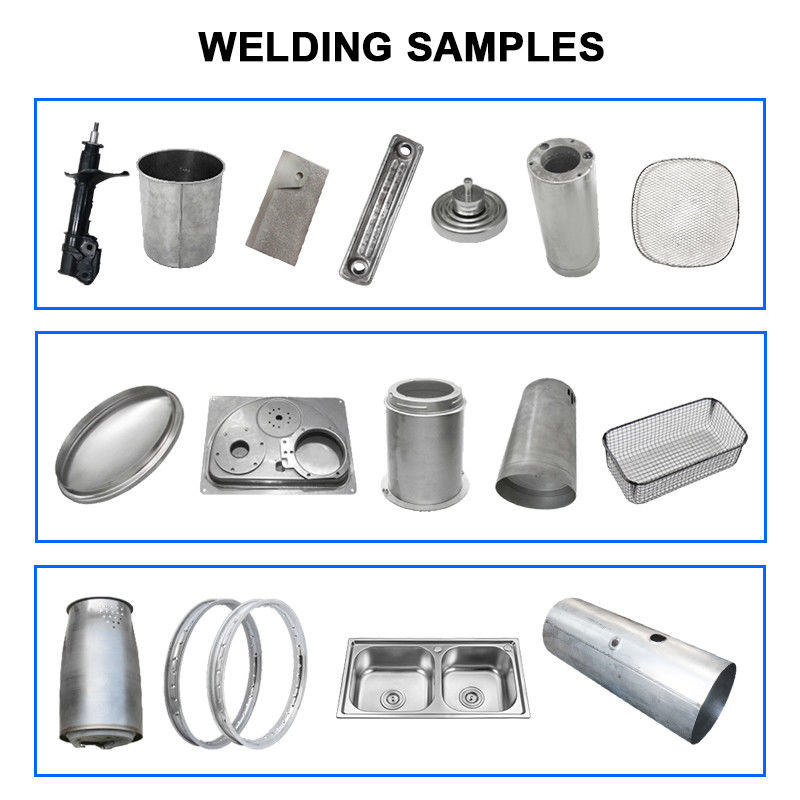

Application and Samples Of The Moving Longitudinal Seam Welding Machine

Suitable for the welding of sheet, barrel body, box and sealed thin-wall container with different material, such as carbon steel, stainless steel, titanium, nickel and other materials. For fuel tank of automobile, damper of motorcycle, detector of temperature controller, nickel strap of battery, oil heater, power capacitor, sieve iron basket, water pump manufacturing, tin making, coopery industry, etc.



Longitudinal Seam Welder For Sale Single Head Automatic Moving 4

We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.

Longitudinal Seam Welder For Sale Single Head Automatic Moving 5Longitudinal Seam Welder For Sale Single Head Automatic Moving 6

Longitudinal Seam Welder For Sale Single Head Automatic Moving 7Longitudinal Seam Welder For Sale Single Head Automatic Moving 8Longitudinal Seam Welder For Sale Single Head Automatic Moving 9
