Shock Absorber Roller Seam Welder Machine Intelligent Touch Screen Control

Shock Absorber Roller Seam Welder Machine Intelligent Touch Screen Control

roller seam welding machine

Seam Welding Machine Intelligent

seam welder machine

Place of Origin:

China

Brand Name:

Hwashi

Certification:

CE,CCC,ISO

Model Number:

WL-FS

Contact Us
Request A Quote
Product Details
Key Selling Points:
High Efficiency
Condition:
New
Application:
Repair Shock Absorber
Weight:
Ccording To Your Product
Control System:
PLC
Service Life:
8-10 Years
Duty Cycle Rate:
20%
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
T/T, L/C
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

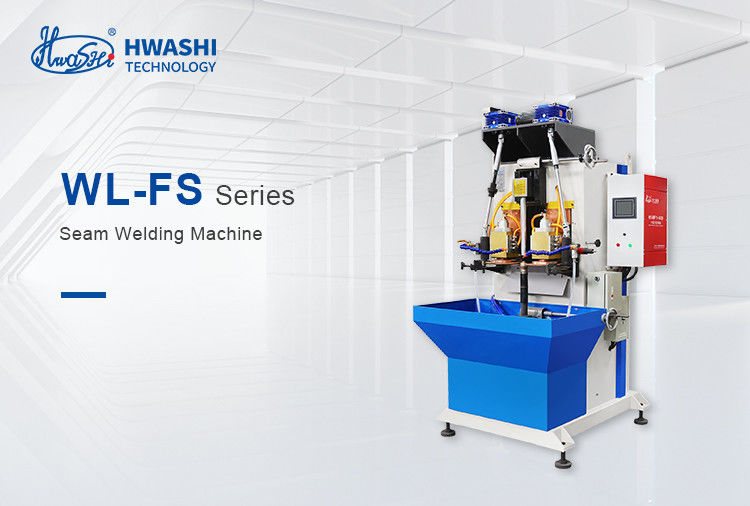

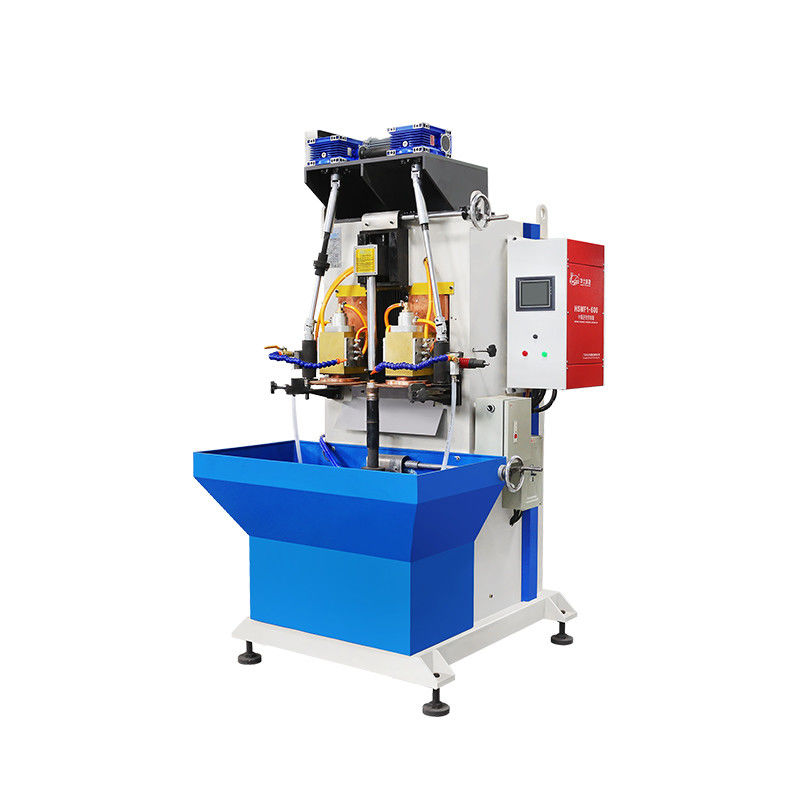

HWASHI Repair Shock Absorber Seam Welding Machine Intelligent Touch Screen Control
Shock Absorber Roller Seam Welder Machine Intelligent Touch Screen Control 0
Description Of The Repair Shock Absorber Seam Welding Machine
The repair shock absorber seam welding special machine is the evolution of spot welder. It uses the roller electrode to replace the cylindrical electrode of spot welding and as the welding work piece moves between the rolling plates, the seal welding will generate weld nuggets which will overlap with each other so as to achieve welding effect. AC pulse current or amplitude modulation current will be adopted, but three-phase medium frequency DC are also available.


Shock Absorber Roller Seam Welder Machine Intelligent Touch Screen Control 1       Shock Absorber Roller Seam Welder Machine Intelligent Touch Screen Control 2  Shock Absorber Roller Seam Welder Machine Intelligent Touch Screen Control 3


Intelligent Touch Screen Controller Input and read welding parameters.





Super hard copper alloy welding wheel
Made of excellent material processing, not afraid of high temperature, not afraid of wear and tear, good electrical conductivity.





Shape structure and welding method
Design the right machine shape and mold according tothe welding product and extended welding arms





Feature Of The Repair Shock Absorber Seam Welding Machine

1. This machine is of reasonable design, beautiful appearance, stable welding performance.

2. It adopts intelligent micro-computer controller which can set different kinds of welding specification. Multi-segment electrification method has the functions of soft start welding and ending welding.It adopts subprime constant current feedback control mode which will do auto compensation when the voltage is unsteady in order to ensure the stable welding current.

3. It adopts high power welding transformer with all-round water cooling, which can complete different kinds of product’s welding efficiently to guarantee welding quality.

4. This welding machine is widely applied to various kinds of stainless steel products and it can achieve multifunction usage.



Technical Data Of The Repair Shock Absorber Seam Welding Machine

Electrode Pressure 9kN(I),1.8kN(II)
Gas Consumption 5m3/h
Cooling Water Consumption 200L/H
Welding Wheel Diameter 200-250mm
Welding Wheel Width 5mm
Welding Wheel Rotate Speed 800-4000mm/min (adjustable)
Welding Wheel Throat Depth Distance 300mm



Application And Samples Of The Repair Shock Absorber Seam Welding Machine

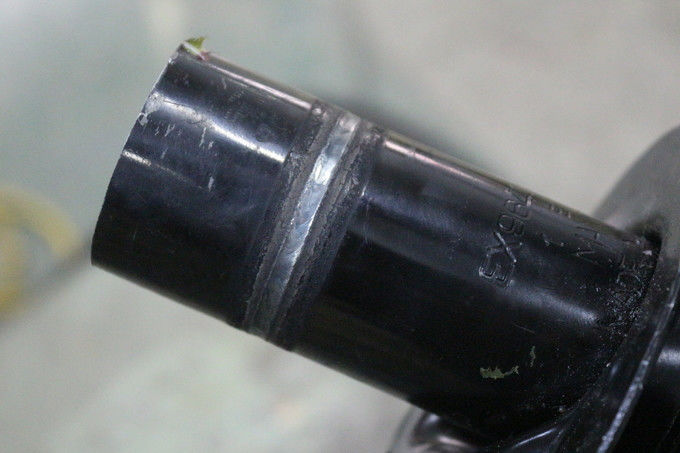

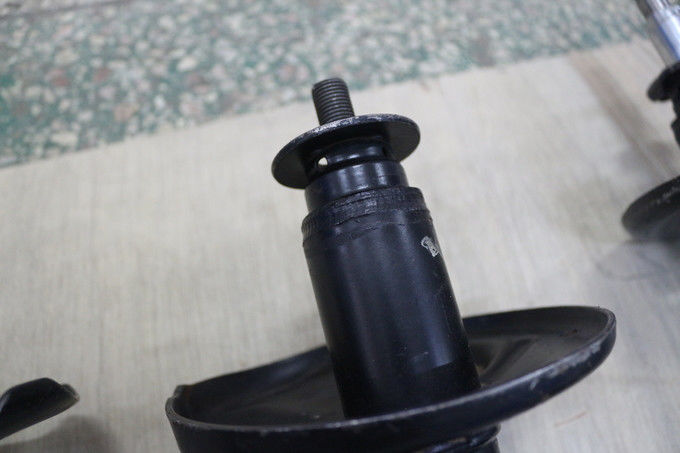

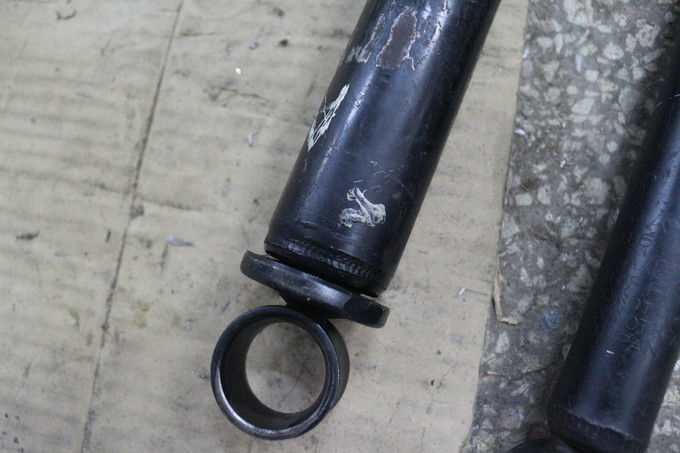

This machine is widely applied to welding motorcycle shock absorber, damper and bumper, etc.

Shock Absorber Roller Seam Welder Machine Intelligent Touch Screen Control 4Shock Absorber Roller Seam Welder Machine Intelligent Touch Screen Control 5Shock Absorber Roller Seam Welder Machine Intelligent Touch Screen Control 6

Shock Absorber Roller Seam Welder Machine Intelligent Touch Screen Control 7Shock Absorber Roller Seam Welder Machine Intelligent Touch Screen Control 8Shock Absorber Roller Seam Welder Machine Intelligent Touch Screen Control 9
