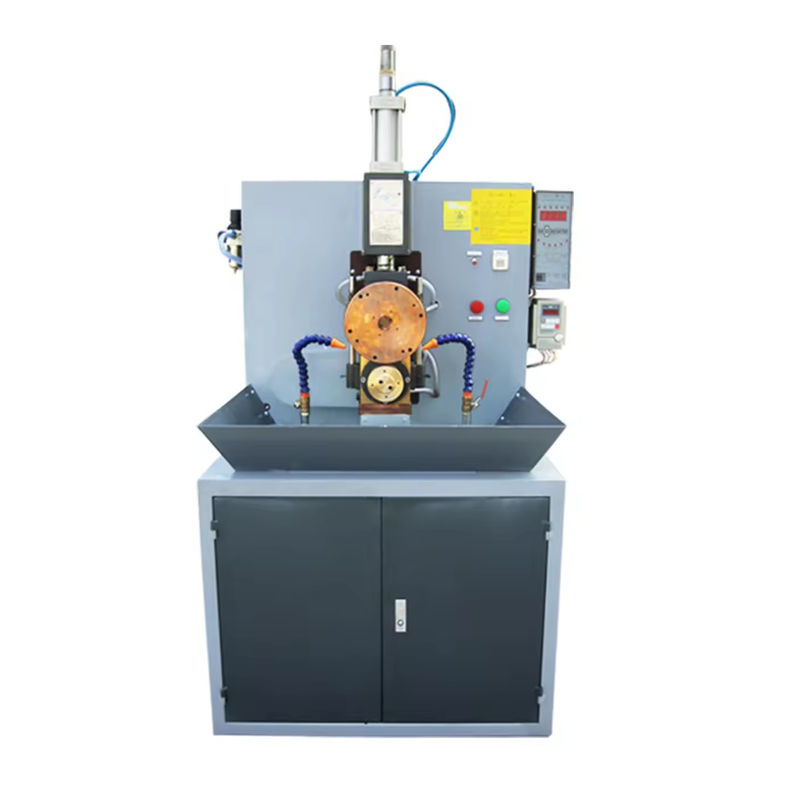

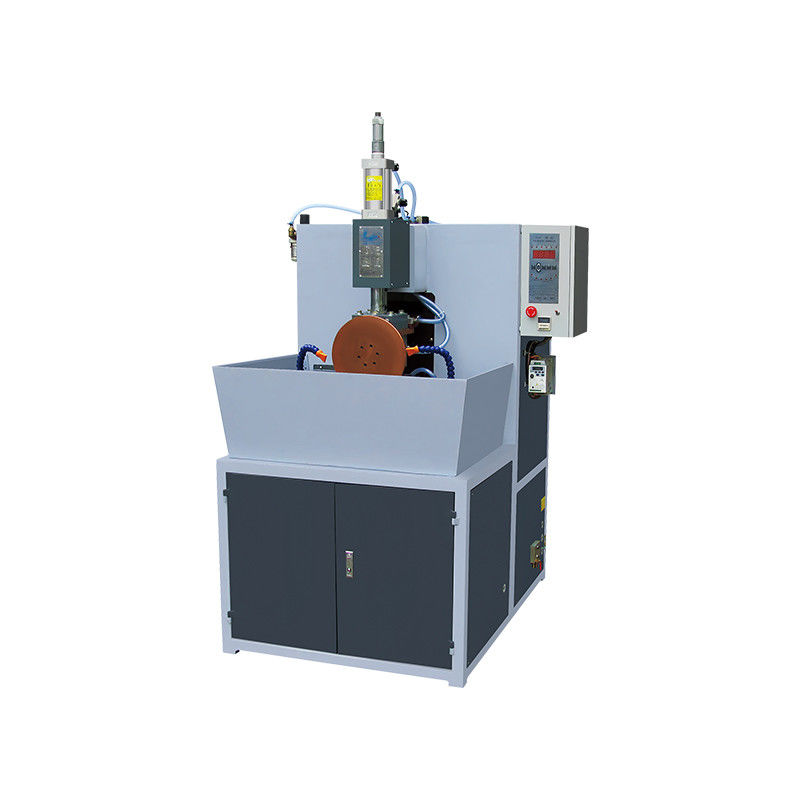

Resistance Seam Welding Machine Steel Wire Basket Seam Welder

Resistance Seam Welding Machine Steel Wire Basket Seam Welder

resistance seam welder

Basket Seam Welder

resistance seam welding machine

Place of Origin:

China

Brand Name:

Hwashi

Certification:

CE,CCC,ISO

Model Number:

WL-FS

Contact Us
Request A Quote
Product Details
Product Name:
Hwashi Steel Wire Basket Seam Welder , Resistance Rolling Welding Machine
Condition:
New
Abrasive Belt Width:
50mm
Welding Speed:
0.5-5m/min
Welding Material:
Carbon Steel/Stainless Steel
Weight:
300kg
Control System:
PLC
Welding Width:
5-20mm
Minimum Welding Thickness:
0.2mm
Voltage:
380V,2 Phase,50/60Hz
Machine Type:
Resistance Welding Machine
Service Life:
8-10 Years
Welding Mode:
Continuous/Intermittent
Duty Cycle Rate:
20%
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
T/T, L/C
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Product Description

Hwashi Steel Wire Basket Seam Welder , Resistance Rolling Welding Machine

Resistance Seam Welding Machine Steel Wire Basket Seam Welder 0Resistance Seam Welding Machine Steel Wire Basket Seam Welder 1Resistance Seam Welding Machine Steel Wire Basket Seam Welder 2

Product Introduction:

The steel wire basket seam welding machine is specifically designed for welding steel wire baskets. It employs advanced welding technology to achieve efficient and precise welding operations. The equipment features the following characteristics:

Tailored for Steel Wire Baskets: This welding machine is specially designed for welding steel wire baskets, meeting the specific requirements of the steel wire basket manufacturing industry.

Seam Welding Technology: Utilizing seam welding technology, it can perform continuous seam welding on steel wire baskets, enhancing welding efficiency and quality.

High Production Capacity: With efficient production capacity, it can meet the demands of large-scale production, improving production efficiency.

Precision Welding: Equipped with advanced control systems and precision welding heads, it achieves high-precision control during the welding process, ensuring welding quality and stability.

Ease of Operation: It features an intuitive operating interface and simple operating procedures, making it easy to operate and maintain, reducing personnel training costs and operational risks.



Resistance Seam Welding Machine Steel Wire Basket Seam Welder 3Resistance Seam Welding Machine Steel Wire Basket Seam Welder 4

Intelligent welding control syste

Intelligent Touch Screen Controller
Input and read welding parameters.

Shape structure and welding method

Design the right machine shape and mold according tothe welding product and extended welding arms.



Resistance Seam Welding Machine Steel Wire Basket Seam Welder 5



Resistance Seam Welding Machine Steel Wire Basket Seam Welder 6



Welding Method of The Seam Welding Machine

Adopt standardized welding electrode. Special electrode molds and welding methods can also be customized according to the product specification.



Features of The Seam Welding Machine

Flexibility: Customizable to meet specific customer requirements, it can accommodate different sizes and shapes of steel wire baskets.

Strong Stability: The equipment has high stability, enabling long-term stable operation and reducing failures and downtime during production.

Reliability: Manufactured with high-quality materials and components, it has a long service life and high reliability, reducing maintenance costs and downtime.

Energy Efficiency and Environmental Protection: Energy-saving power systems and environmentally friendly materials are used in the design and manufacturing process, meeting the requirements of sustainable development in modern industry.



Specification

Model WL-FS-75K WL-FS-100 WL-FS-125 WL-FS-160 WL-FS-200 WL-FS-250
Rated Capacity KVA 75 100 125 160 200 250
Voltage V 380*2 380*2 380*2 380*2 380*2 380*2
Duty Cycle Rate% 50 50 50 50 50 50
No Load Voltage V 1.08-7.02 1.12-7.38 1.26-8 1.3-8.5 2.2-9.0 1.3-9.7
Max. Welding Thickness mm 1.2+1.2 1.5+1.5 1.8+1.8 2+2 2.5+2.5 2.5+3
Upper Wheel Stroke mm 20-80 20-80 30-100 30-100 30-100 30-100
Welding Speed m/min 0.6-4 0.5-3.2 0.5-2.8 0.5-1.5 0.5-1.2 0.5-1.2
Max. Pressure KN 6.3 6.3 8.6 8.6 8.6 8.6
Compressed Air Mpa 0.5 0.5 0.6 0.6 0.6 0.6
Cooling Water Consumption L/h 820 960 1080 1080 1080 1080

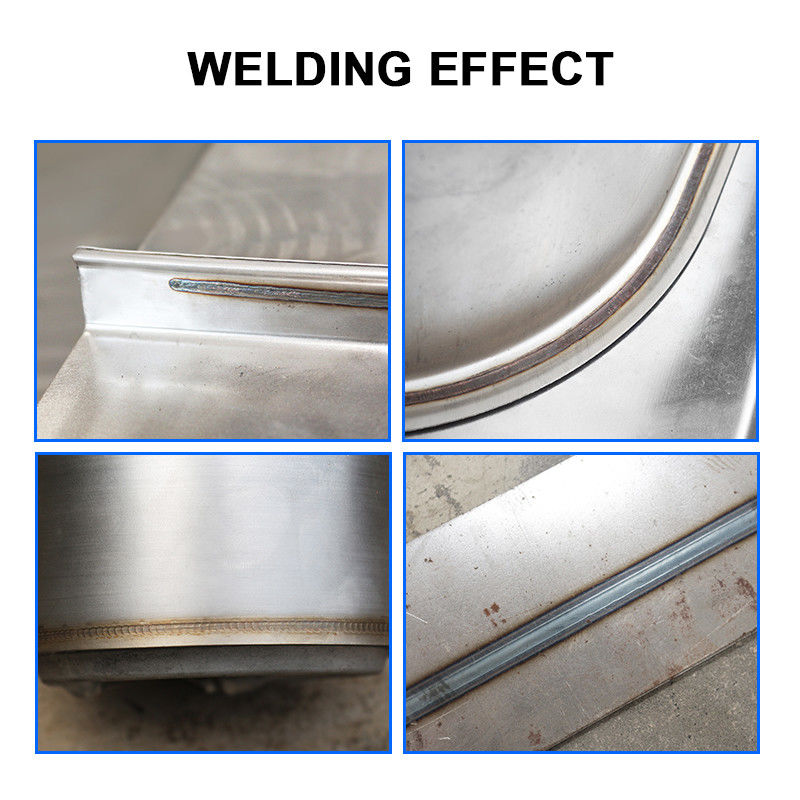

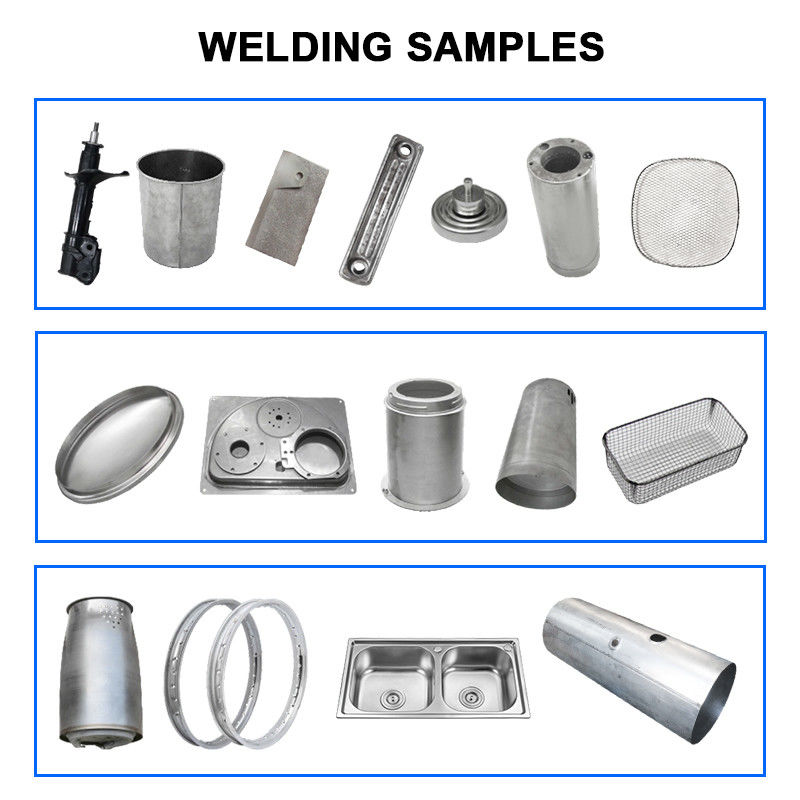

Application and samples

Resistance Seam Welding Machine Steel Wire Basket Seam Welder 7



We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.



Resistance Seam Welding Machine Steel Wire Basket Seam Welder 8Resistance Seam Welding Machine Steel Wire Basket Seam Welder 9

Application Industry of The Seam Welding Machine

Suitable for the welding of sheet, barrel body, box and sealed thin-wall container with different material, such as carbon steel, stainless steel, titanium, nickel and other materials. For fuel tank of automobile, damper of motorcycle, detector of temperature controller, nickel strap of battery, oil heater, power capacitor, sieve iron basket, water pump manufacturing, tin making, coopery industry, etc.
