circular seam welding machine safety Aluminum Alloy Oil Tank Welding Machine

circular seam welding machine safety Aluminum Alloy Oil Tank Welding Machine

circular seam welding machinecircular seam welding machine

seam welding machine safety

Aluminum Alloy Oil Tank Welding Machine

Place of Origin:

China

Brand Name:

Hwashi

Certification:

CE,CCC,ISO

Model Number:

WL-FS

Contact Us
Request A Quote
Product Details
Key Selling Points:
High Efficiency
Condition:
New
Abrasive Belt Width:
50mm
Application:
Fuel Tank
Weight:
300kg
Control System:
PLC
Voltage:
380V,2 Phase,50/60Hz
Machine Type:
Resistance Welding Machine
Service Life:
8-10 Years
Welding Mode:
Continuous/Intermittent
Duty Cycle Rate:
20%
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
T/T, L/C
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

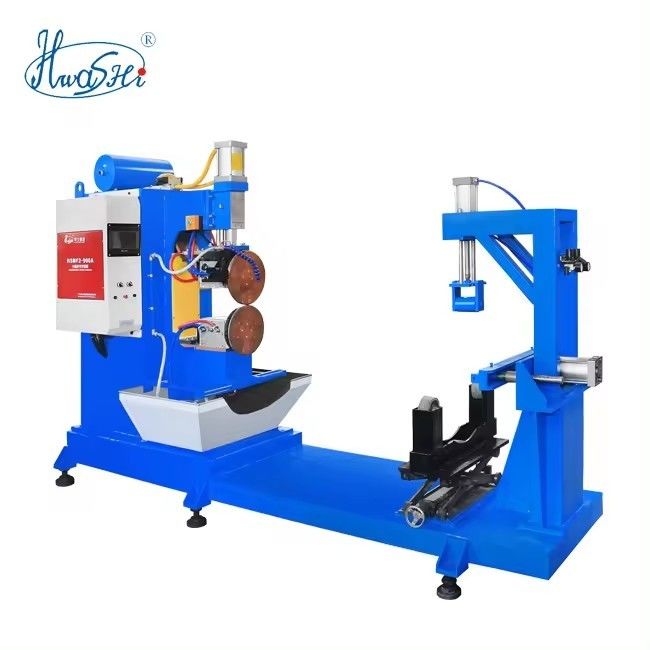

HWASHI Custom High Quality Aluminum Alloy Oil Tank Welding Machine Circular Seam Welding Machine

circular seam welding machine safety Aluminum Alloy Oil Tank Welding Machine 0

Desription Of The Oil Tank Welding Machine

Oil Tank Welding Machine is widely used in automobile, damper of motorcycle, detector of temperature controller, nickel strap of battery, oil heater, power capacitor, sieve iron basket, water pump manufacturing, tin making, coopery industry, etc.
circular seam welding machine safety Aluminum Alloy Oil Tank Welding Machine 1

Features Of Longitudinal Rolling Seam Welding Machine For Fuel Tank

1. seam welding machine use the roller electrode to replace the cylindrical electrode of spot welding.

2. It will generate weld nuggets which will overlap with each other so as to achieve welding effect.

3. AC pulse current or amplitude modulation current will be adopted, but three (single)-phase rectification, medium frequency and high frequency DC are also available.

4. According to different overlap of the melting cores, it could be divided into roll spot welding and air-tight seam welding.

5. There exist three stages in the forming process of welding spots: pressurization, heating fusing and cooling crystallization like spot welding.

6. The welding wheel can be operated in both horizontal and vertical directions. 7. The transformer and the welding wheel adopt the forced water cooling circulation system, which has a high load duration and achieves Continuous and stable welding.

Specification Of Longitudinal Rolling Seam Welding Machine For Fuel Tank

Model Welding Wheel Running Way input Voltage input power output Current
WL-FS- 15K Horizontal 220/380V 15KW 10000A
WL-FS- 35K Circle 220/380V 35KW 12000A
WL-FS- 50K longltudinal 220/380V 50KW 12000A
WL-FS- 75K Horizontal 380V 75KW 16000A
WL-FS- 100K Horizontal 380V 100KW 24000A
WL-FS- MF40K Circle 380V 40KW 19500A
WL-FS- MF150K Horizontal 380V 150KW 40000A
WL-FS- MF250K longltudinal 380V 250KW

50000A



Other machine related to Longitudinal Rolling Seam Welding Machine For Fuel Tank

circular seam welding machine safety Aluminum Alloy Oil Tank Welding Machine 2 Straight Seam Welding Machine(for the straight line welding of the oil tank)

circular seam welding machine safety Aluminum Alloy Oil Tank Welding Machine 3

Long Arm Spot Welding for the Middle Plate

circular seam welding machine safety Aluminum Alloy Oil Tank Welding Machine 4

Pressure Test Machine(for testing if the seal of oil

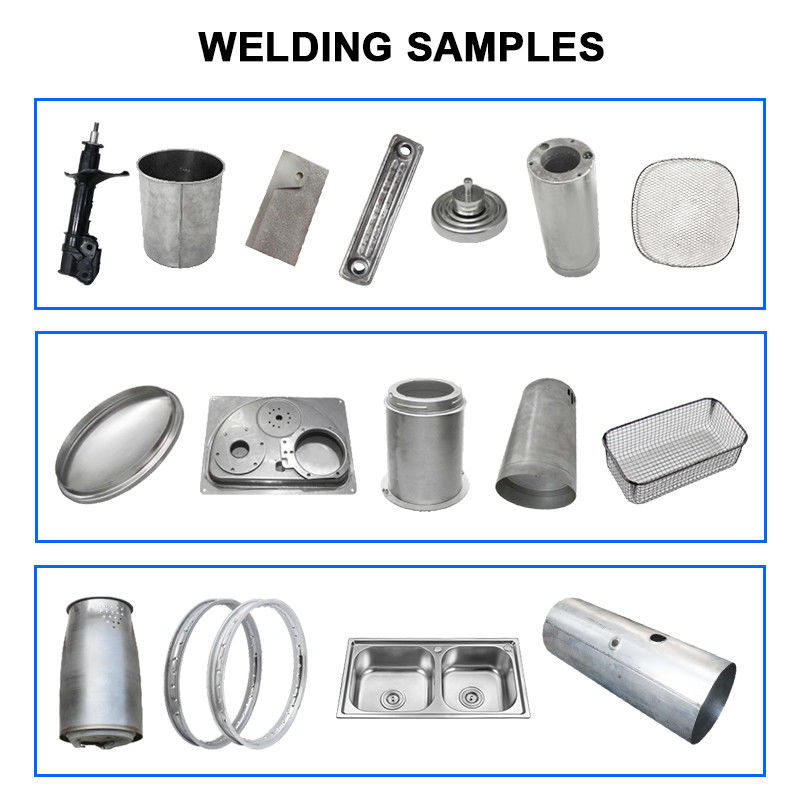

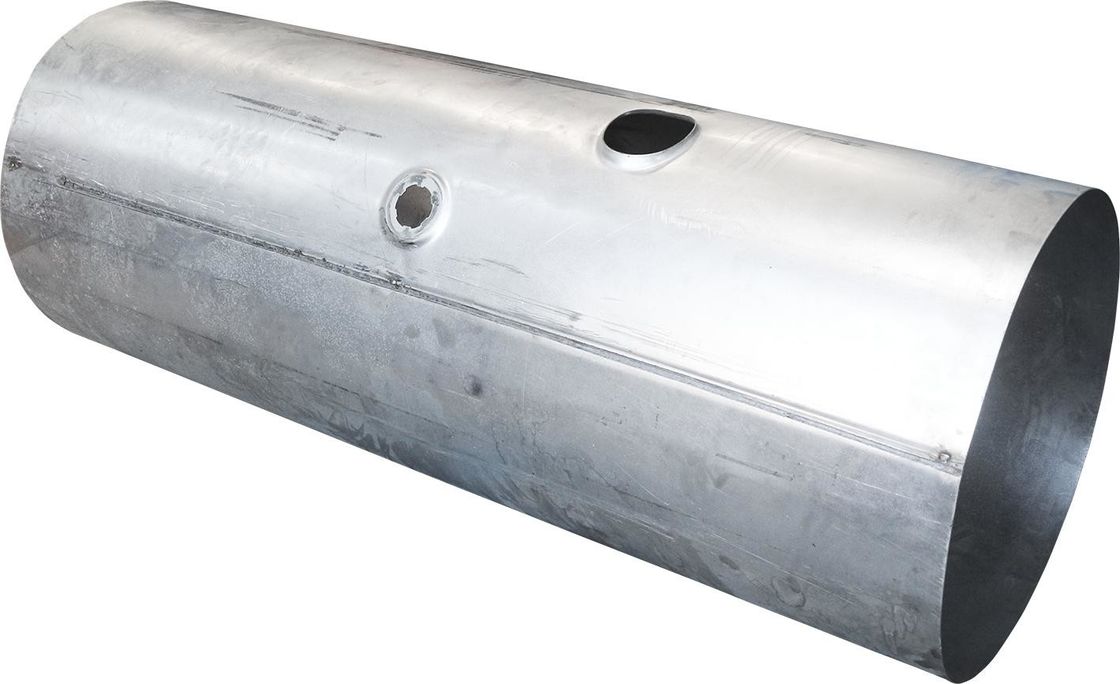

Application and samples Of Longitudinal Rolling Seam Welding Machine For Fuel Tank

circular seam welding machine safety Aluminum Alloy Oil Tank Welding Machine 5

We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.

circular seam welding machine safety Aluminum Alloy Oil Tank Welding Machine 6

Application Industry Of Longitudinal Rolling Seam Welding Machine For Fuel Tank

Suitable for the welding of sheet, barrel body, box and sealed thin-wall container with different material, such as carbon steel, stainless steel, titanium, nickel and other materials. For fuel tank of automobile, damper of motorcycle, detector of temperature controller, nickel strap of battery, oil heater, power capacitor, sieve iron basket, water pump manufacturing, tin making, coopery industry, etc.

circular seam welding machine safety Aluminum Alloy Oil Tank Welding Machine 7

circular seam welding machine safety Aluminum Alloy Oil Tank Welding Machine 8circular seam welding machine safety Aluminum Alloy Oil Tank Welding Machine 9
