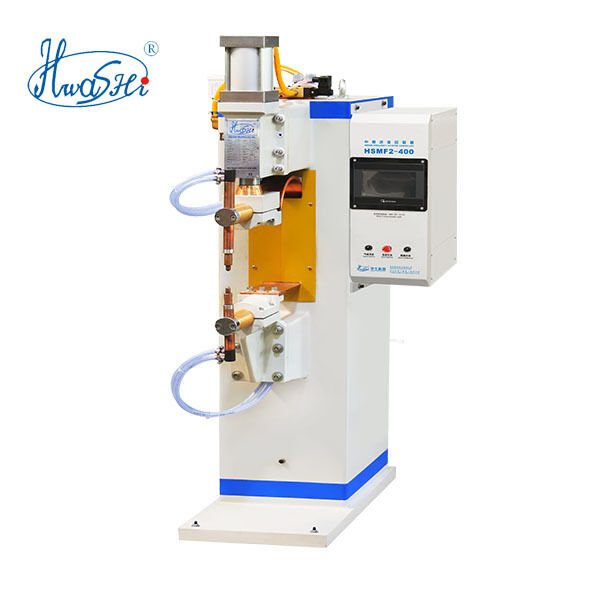

Name: Medium Frequency DC Spot Welding Machine with 1000Hz Inverter Frequency and Intelligent Touch Screen Controller for Copper Relay Welding
Brand: Guangdong Hwashi Technology inc.
SKU: WL-MF-50K
Price: 157,805.00 USD
Availability: InStock

Home > Products > Spot Welding Machine >

Medium Frequency DC Spot Welding Machine with 1000Hz Inverter Frequency and Intelligent Touch Screen Controller for Copper Relay Welding

Medium frequency spot welding machine

DC spot welder with touch screen

Copper relay welding machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-MF-50K

Request A Quote

Product Details

Product Name:

Medium Frequency DC Welding Machine For Electrical Copper Relay / Shunt

Application:

Weld Aluminum, Galvanized And Copper Material Product

Size:

950x490x1675*mm

Condition:

New

Warranty:

12months

Certificate:

CE/CCC/ISO

Service Life:

8-10 Years

Weight:

350kg

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C,T/T

Supply Ability

50 sets per month

Medium Frequency DC Spot Welding Machine with 1000Hz Inverter Frequency Intelligent Touch Screen Controller and 50KVA Rated Power

Get Best Price

Video

Hwashi WL-SP-150k Pneumatic Spot Welding Machine Single Head Mesh Welder 950x490x1680mm CE/CCC/ISO Certified with 8-10 Years Service Life

Get Best Price

Video

Energy Saving Resistance Spot Welder Equipped with Digital Timer and Adjustable Electrode Force Providing Welding Performance

Get Best Price

Video

7KVA Power Multipoint Spot Welding Machine with 4500J Energy Storage and Digital Micro-Controller

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

Medium Frequency DC Spot Welding Machine For Copper Relay / Shunt Electrical

Medium Frequency DC Welding Machine for Electrical Copper Relay / Shunt

Medium Frequency DC Welding Machine Description

MF DC Spot Welder represents the latest advancement in resistance welding technology. This innovative system significantly reduces iron core material energy consumption by increasing the welding transformer frequency from standard 50/60Hz mains supply to 1000Hz.

The transformer's commutation diode converts electrical energy into DC power for welding operations. This configuration dramatically improves the inductance coefficient of the subloop while minimizing production costs, as inductance coefficient-related energy losses are virtually eliminated in DC welding circuits.

Key System Features

Intelligent Welding Control System

Intelligent Touch Screen Controller for input and reading of welding parameters

Premium Raw Materials

Thicker Copper Plate or Copper Belt to ensure stable conductivity during welding

Custom Electrode Processing

Customized electrodes suitable for welding various materials including steel, silver, stainless steel, and nickel steel

Technical Features

Advanced welding machine utilizing MF inverter principle to convert three-phase AC power into DC power
DC welding current eliminates inductance, providing higher heat input/output efficiency and more reliable, stable welding quality
Intelligent digital controller enables precise, rapid control of welding current with adjustment precision 20 times higher than AC machines
Reduces production costs, saves energy, lowers cable requirements and maintenance costs, while improving induction factor
Special inverter energy storage provides better adaptation to power grid fluctuations
Compact welding transformer design with one-third the size and weight of AC machines
Capable of welding aluminum and galvanized materials
Ideal for welding three-layer metal sheets or very thin products

Technical Specifications

Items	Specification
Display	5 Inches Blue Display Screen
Rated Power	50KVA
Input Voltage	AC 380V, 50Hz
Duty Cycle Rate	20%
Maximum Short Circuit Current	25000A
Inverter Frequency	1000Hz
Welding Cycle Period	11
Welding Pulse Times	3
Current Slow Rise And Down Control	Yes
Stored Welding Models	20
Throat Depth	300mm
Cylinder Size	￠100x100mm

Applications & Samples

This welding machine is suitable for various applications including:

Sensors, LEDs and their leads
Copper foil and vanished wire
Relays and watch components
Capacitive slugs and leads
Copper wires and resistance pins
Inductance components
Battery and stabilizer links
Socket connections
Welding lightning with tungsten and molybdenum materials
Silver contacts and copper sheets
