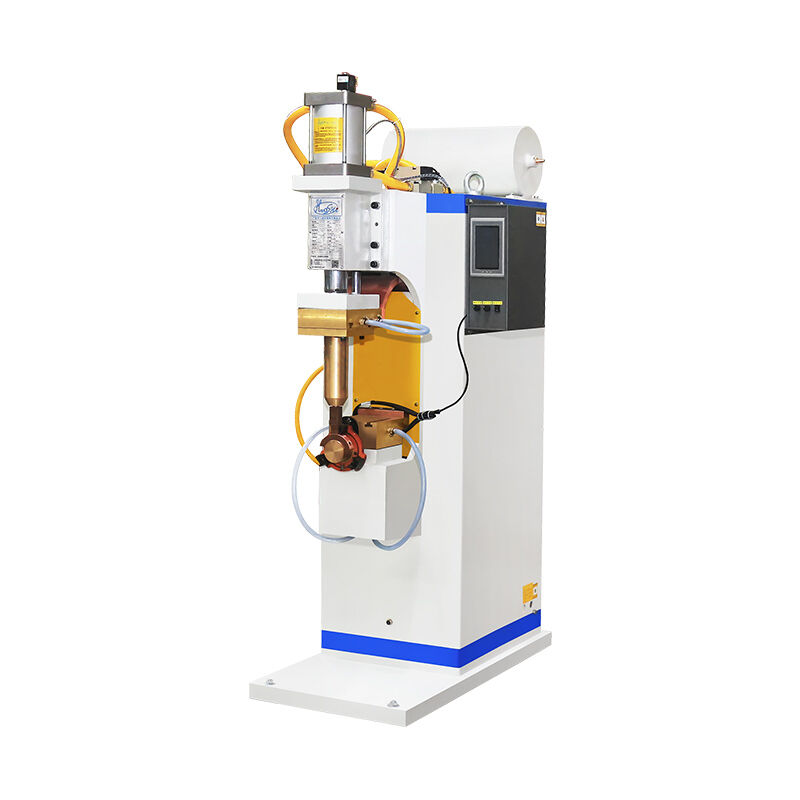

Name: HWASHI WL-PJ-25K High Precision Projection Spot Welding Machine Proportional Valve Control Sheet Metal Assembly
Brand: Guangdong Hwashi Technology inc.
SKU: WL-PJ-25K
Price: 25,500.00 USD
Availability: InStock

Home > Products > Spot Welding Machine >

HWASHI WL-PJ-25K High Precision Projection Spot Welding Machine Proportional Valve Control Sheet Metal Assembly

Proportional Valve Force Control

High Precision Projection Welding

Sheet Metal Assembly Welder

Place of Origin:

Guangdong, China

Brand Name:

HWASHI

Certification:

ISO 9001:2015, CE

Model Number:

WL-PJ-25K

Request A Quote

Product Details

Model:

WL-PJ-25K

Rated Power:

25 KVA

Control System:

Proportional Valve PID

Cooling Method:

Water Cooling

Welding Thickness:

0.5-4.0mm

Input Voltage:

380V 50/60Hz 3-Phase

Electrode Stroke:

80mm

Force Control Accuracy:

±1%

Pressure Stages:

1-5 Programmable

Air Pressure:

0.5-0.8 MPa

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

USD 1000-50000 / Set

Packaging Details

Export-grade wooden case with shock-proof foam insert, moisture-proof vacuum packaging

Delivery Time

15-25 working days after order confirmation

Payment Terms

T/T, L/C, Western Union

Supply Ability

200 Sets per Month

HWASHI WL-CD-03K High Precision Capacitor Discharge Spot Welder Closed Loop Feedback for Medical Device Components

Get Best Price

HWASHI WL-SV-20K Servo Controlled Precision Spot Welder Real-Time Force Monitoring Aerospace Fastener Assembly

Get Best Price

HWASHI WL-DG-15K Digital Precision Spot Welder Real-Time Displacement Monitor Automotive Sensor Bracket Assembly

Get Best Price

HWASHI WL-PJ-25K High Precision Projection Spot Welding Machine Proportional Valve Control Sheet Metal Assembly

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

HWASHI WL-PJ-25K High Precision Projection Spot Welding Machine Proportional Valve Control for Precision Sheet Metal Assembly

Product Overview

HWASHI WL-PJ-25K high precision projection spot welding machine with proportional valve force control for precision sheet metal assembly. Multi-stage pressure profiles ensure optimal projection collapse and consistent weld nugget formation.

Key Features

Precision Engineering: Advanced Proportional Valve PID system ensures consistent and repeatable weld quality across all production batches
Robust Construction: Heavy-duty frame and high-grade components designed for 24/7 industrial operation with minimal maintenance requirements
User-Friendly Operation: Intuitive control panel with digital display allows quick parameter adjustment and real-time monitoring during welding cycles
Safety Certified: Comprehensive safety features including emergency stop, overload protection, and thermal monitoring for operator protection
Versatile Application: Compatible with a wide range of materials and thicknesses for diverse manufacturing requirements

Technical Specifications

Parameter	Specification
Model	WL-PJ-25K
Rated Power	25 KVA
Control	Proportional Valve PID
Force Accuracy	±1%
Cooling	Water Cooling
Thickness	0.5-4.0mm
Voltage	380V 50/60Hz 3-Phase
Stroke	80mm
Pressure Stages	1-5 Programmable
Air	0.5-0.8 MPa

Applications

This spot welding machine is engineered for precision industrial applications across multiple sectors. It excels in electronic component assembly, sheet metal fabrication, automotive parts manufacturing, and general metalworking operations. The advanced control system ensures superior weld quality for both thin and thick material combinations, making it an ideal choice for manufacturers seeking reliable and efficient welding solutions.

Packaging & Delivery

Export-grade wooden case with reinforced steel frame corners
Moisture-proof vacuum-sealed inner packaging with desiccant packets
Foam-cushioned interior compartments for component protection during transit
Complete documentation set including user manual, wiring diagram, and certificate of conformity
Estimated delivery: 15-25 working days after order confirmation

After-Sales Service

12-month standard warranty covering manufacturing defects
Lifetime technical support via email, phone, and video call
Spare parts available for express delivery worldwide
Optional on-site installation and training service available upon request
Free remote diagnostic support with guided troubleshooting

Contact HWASHI today for a customized quotation and discover how our precision spot welding solutions can enhance your manufacturing efficiency.
