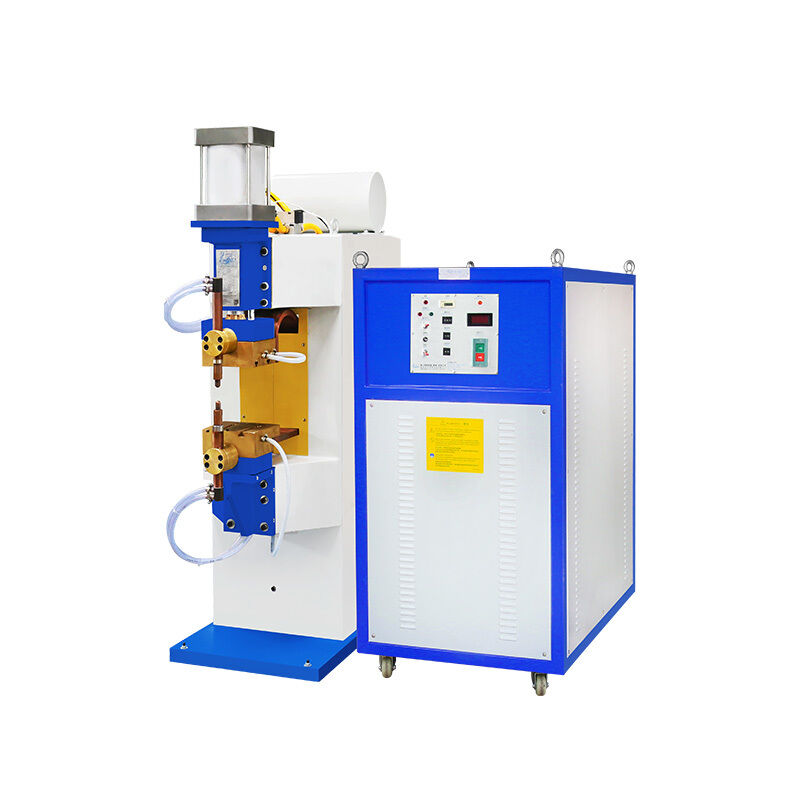

Name: Pneumatic Automatic Spot Welding Machine with Intelligent Touch Screen Controller for Stainless Steel Resistance Welding
Brand: Guangdong Hwashi Technology inc.
SKU: WL-C
Price: 157,805.00 USD
Availability: InStock

Home > Products > Spot Welding Machine >

Pneumatic Automatic Spot Welding Machine with Intelligent Touch Screen Controller for Stainless Steel Resistance Welding

Pneumatic Automatic Spot Welding Machine

Stainless Steel Resistance Welding Machine

Intelligent Touch Screen Controller Foot Pedal Spot Welder

Place of Origin:

CE/CCC/ISO

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-C

Request A Quote

Pneumatic Automatic Spot Welding Machine with Intelligent Touch Screen Controller for Stainless Steel Resistance Welding

Product Details

Product Name:

Pneumatic Automatic Spot Welding Machine Stainless Steel Hwashi Resistance Wire Mesh Provided

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

1 Year

Key Selling Points:

Automatic

Applicable Industries:

Welding Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

T/T,L/C

Supply Ability

50 sets per month

Pneumatic Automatic Spot Welding Machine for Stainless Steel with Foot Pedal Operation

Get Best Price

Video

2KVA Rated Power Capacitor Discharge Spot Welder for Stainless Steel with CE/CCC/ISO Certification

Get Best Price

Video

2KVA Rated Power Capacitor Discharge Spot Welder for Stainless Steel with CE/CCC/ISO Certification

Get Best Price

Video

25KVA Double Side Capacitive Discharge Spot Welder for Stainless Steel Cookware Pot Handle Projection Welding

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

Pneumatic Automatic Spot Welding Machine for Stainless Steel Hwashi Resistance Wire Mesh

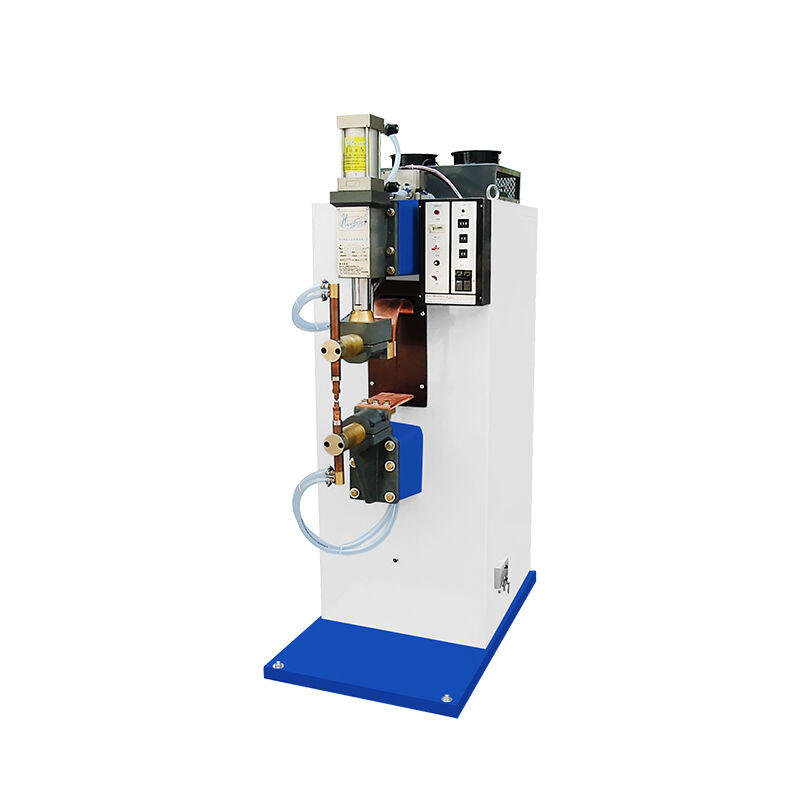

Foot Pedal Operated Spot Welding Machine

This foot pedal operated spot welding machine features a lever pedal type spring pressurized structure for easy operation and quick response. It is suitable for various applications requiring positioning accuracy and complex shape welding.

Operating through a transformer, the machine utilizes standard mains supply to lower voltage and increase electric current. The resulting low voltage, high current is transmitted from the electrode to the connection point of two work pieces. Due to resistance at the linkage point, high temperature occurs, generating sufficient heat to melt the work pieces and achieve secure welding.

Intelligent Welding Control System

Features an intelligent touch screen controller for easy input and reading of welding parameters.

Premium Raw Materials

Constructed with thicker copper plates or copper belts to ensure stable conductivity during welding operations.

Custom Electrode Processing

Customized electrodes designed specifically for welding various materials including steel, aluminum, silver, stainless steel, and nickel steel.

Optimized Shape Structure and Welding Method

Machine shape and molds are designed according to specific welding product requirements.

Pedal lever control circuit - Main engine remains without electricity when pedal is not stepped, providing energy efficiency
Timing control system - Automatically cuts off current on time even while work piece is pressed, reducing human factors and ensuring easier operation
Electronic controller with stepless regulation - Timing range from 0.02 to 2 seconds (typically required time within 0.5 seconds) with accurate repeat selection

Technical Specifications

Model	Input Voltage	Input Power	Output Current	Adjustable Stroke	Electrode Distance	Cooling Water
WL-FT-25K	380V	25KVA	12000A	30mm	100mm	6 Lit/Min
WL-FT-35K	380V	35KVA	14000A	30mm	100mm	6 Lit/Min
WL-FT-50K	380V	50KVA	18000A	30mm	100mm	6 Lit/Min
