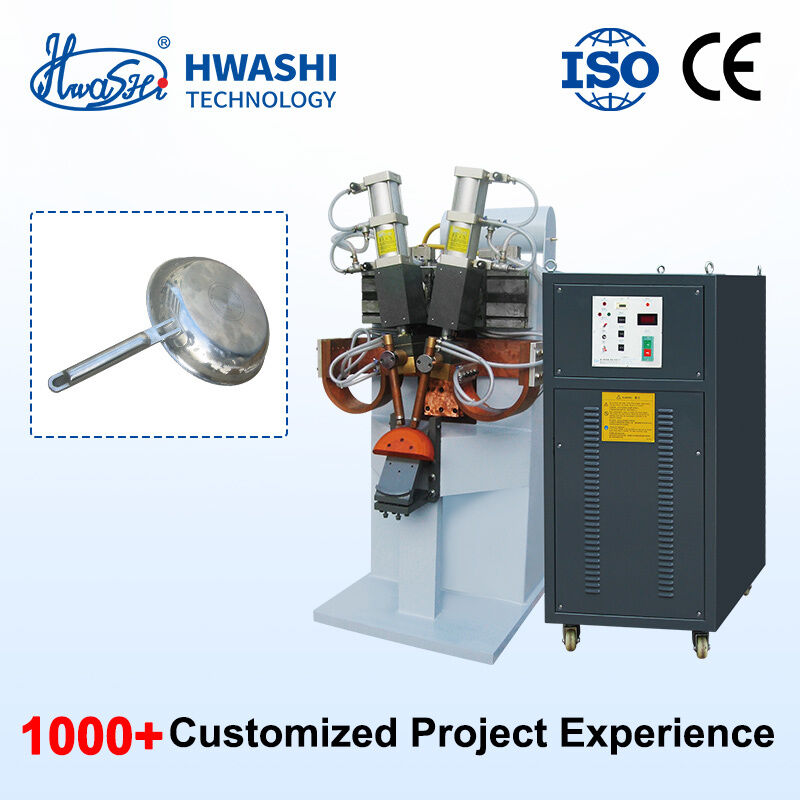

Name: 25KVA Double Side Capacitive Discharge Spot Welder for Stainless Steel Cookware Pot Handle Projection Welding
Brand: Guangdong Hwashi Technology inc.
SKU: WL-B-50K
Price: 157,805.00 USD
Availability: InStock

Home > Products > Spot Welding Machine >

25KVA Double Side Capacitive Discharge Spot Welder for Stainless Steel Cookware Pot Handle Projection Welding

25KVA Power Capacitive Discharge Spot Welder

Double Side Welding Spot Welding Machine

Stainless Steel Cookware Projection Welding Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-B-50K

Request A Quote

Product Details

Product Name:

25K Double Side SS Cookware Pot Handle Projection Welding Capacitive Discharge Spot Welder

Size:

950mm*800mm*1675mm

Application:

Welding Of Stainless Steel,steel Belt. Steel Strip. Cookware

Weight:

350 KG

Power (KW):

Warranty:

12 Months

Standard:

CE/CCC/ISO

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C,T/T

Supply Ability

50 sets per month

25KVA Double Side Capacitive Discharge Spot Welder for Stainless Steel Cookware Pot Handle Projection Welding

Get Best Price

Video

HWASHI 75KVA Power Vertical Type Medium Frequency Inverter Spot Welding Machine CE/CCC/ISO Certified

Get Best Price

Video

HWASHI WL-MF-250K Vertical Type 75KVA Power Medium Frequency Inverter Spot Welding Machine for Metal Sheets

Get Best Price

Video

HWASHI 75KVA Power Spot Welding Machine – CE/CCC/ISO Certified Capacitor Discharge Spot Welder with 8-10 Years Service Life

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

25K Double Side Capacitive Discharge Spot Welder For SS Cookware Pot

25K Double Side SS Cookware Pot Handle Projection Welding Capacitive Discharge Spot Welder. This double side stainless steel cookware pot handle projection welding machine is specifically designed for welding pot handles. It enables simultaneous welding of both handles to significantly increase production efficiency. Using projection welding methodology, this 25KVA machine is equipped with a capacitor discharge welding power source and is suitable for welding pot bodies with 1.2mm thickness and handles with 5mm diameter (with emboss).

Intelligent Welding Control System

Intelligent Touch Screen Controller for input and reading welding parameters. Options include Digital Dial Code Type, Intelligent Microcomputer Type, and Touch Screen Type.

Premium Raw Materials

Thicker Copper Plate or Copper Belt construction to ensure stable conductivity during welding operations.

Custom Processing Electrodes

Customized electrodes suitable for welding various materials including steel, aluminium, silver, stainless steel, and nickel steel.

Optimized Shape Structure

Designed with the right machine shape and mold configuration according to specific welding product requirements.

Key Features of Capacitor Discharge Spot Welding Machine

Low power grid requirements with minimal impact on electrical networks
Short welding process with high instantaneous current and small heat affected zone
Water cooling circulation system effectively reduces electrode and transformer consumption
Minimal welding surface oxidation and deformation, no black coating, eliminating post-welding grinding processes

Technical Specifications

Model	Voltage (V)	Power (KVA)	Output Head (W.S)	Capacitance (UF)	Electrode Force (KG)	Electrode Stroke (MM)	Overall Dimension (MM)
WL-C-1K	220V 1PH	1KVA	300	3000	30	25	545
WL-C-2K	220V 1PH	2KVA	500	4500	100	50	545
WL-C-2.5K	220V 1PH	2.5KVA	1000	9000	100	50	545
WL-C-3K	380V 3PH	3KVA	1500	14000	350	80	950
WL-C-5K	380V 3PH	5KVA	3000	28000	350	80	700
WL-C-7K	380V 3PH	7KVA	4500	42000	800	100	950
WL-C-10K	380V 3PH	10KVA	6000	60000	1000	100	950
WL-C-12K	380V 3PH	12KVA	7000	70000	1000	100	950
WL-C-15K	380V 3PH	15KVA	8000	80000	1000	100	950
WL-C-18K	380V 3PH	18KVA	10000	15000	1000	100	950
WL-C-20K	380V 3PH	20KVA	15000	150000	1500	100	950
WL-C-25K	380V 3PH	25KVA	18000	18000	2000	100	950
WL-C-30K	380V 3PH	30KVA	20000	20000	2000	100	1100
WL-C-40K	380V 3PH	40KVA	25000	25000	2000	100	1100
WL-C-50K	380V 3PH	50KVA	30000	30000	2000	100	1100
WL-C-60K	380V 3PH	60KVA	35000	35000	2000	100	1100

Application Examples and Samples
