Name: Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System
Brand: Guangdong Hwashi Technology inc.
SKU: WL-CD-50K
Price: 225,000.00 USD
Availability: InStock

Home > Products > Automatic Wire Shelf Welding Machine >

Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System

1 Year Warranty Wire Mesh Welder

Double-Layer Feeder Mesh Welding Machine

Automatic Wire Filling System Wire Mesh Welder

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-CD-50K

Request A Quote

Product Details

Product Name:

Hwashi Automobile Gas Storage Tank End Cap Nut Welding Machine

Warranty:

12 Months

Condition:

New

Service Life:

8-10 Years

Electrode Force:

1500KG

Eletrode Stroke:

100mm

Output Heat:

10000

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C,,T/T

Supply Ability

50 sets per month

High Speed Automatic Wire Shelf Welding Machine with Automated Wire Feeding and Precise Welding Control for Shelf Fabrication

Get Best Price

Video

Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System

Get Best Price

Video

Hwashi CNC-Controlled Spot Welding Machine for High-Volume Refrigerator Wire Rack Production with Water Cooling System

Get Best Price

Video

Hwashi Automatic Wire Mesh Spot Welding Machine with 6-16 Independently Controllable Welding Heads, PLC-Based Control System, and IGBT Inverter Power Supply

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

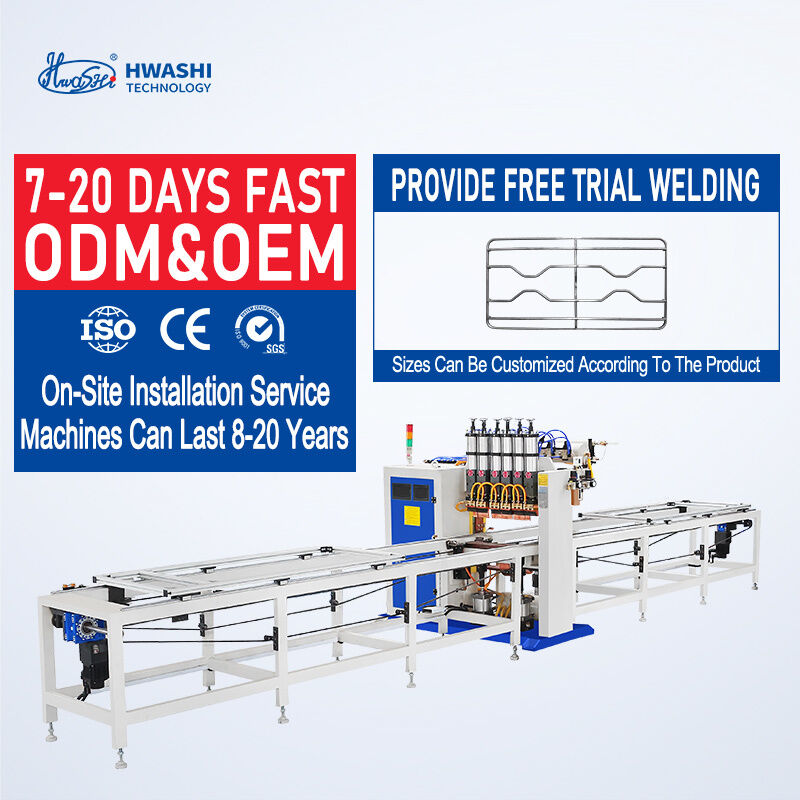

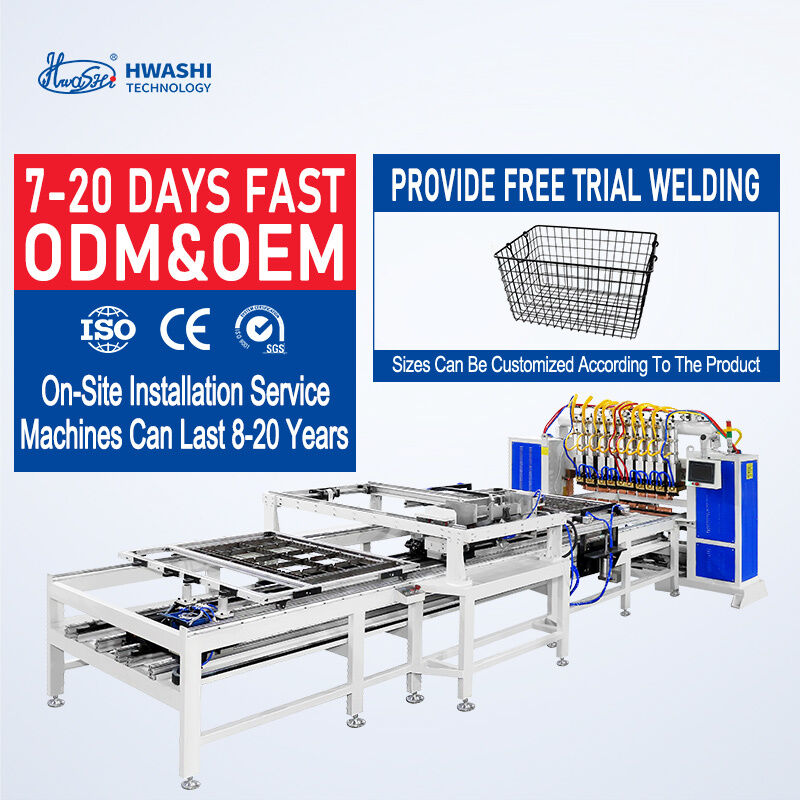

Automatic Wire Mesh Welding Machine with 1 Year Warranty

This advanced wire mesh welding machine features a Three-Phase MF DC Power Supply System designed specifically for industrial wire mesh production. The system delivers precise, stable DC output through three-phase input, ensuring optimal welding performance.

Advanced Welding Technology

The machine features a single-head long arm welding structure with automatic X and Y axis workpiece mold movement. By inputting coordinate data of welding position and current, it achieves fully automatic welding. Operators simply load materials manually and remove finished pieces, allowing preparation of materials for next welding while current work continues.

Technical Specifications

Model	WL-TSP-100/150K
Input Power (V/φ)	380/3
Rated Power (KVA)	100/150
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Electrode Force (KG)	250-400
Welding Thickness (MM)	1-5mm
Warranty	1 year
Mesh Welding Range	1000mm * 1000mm

Key Features

Intelligent welding control system with automatic coordinate and current input
Core components: PLC, Engine, Motor for reliable operation
Wire frame bending capability for square shape wire frames
Dual power options: Three-phase MF DC or two-phase AC supply
Automatic wire filling system for continuous operation
Customizable dimensions to match specific product requirements
1200mm effective welding width for large mesh products
Automatic double-layer feeder for improved productivity

Technical Parameters

Product Name	Wire Mesh Welding Machine
Welding Power Source	Three-phase MF DC or two-phase AC power supply
High Speed Wire Processing	5* normal speed for 2mm to 4mm wires
2D Wire Handle Bending	2-6mm wire bending capability
Welding Heads and Fixtures	Custom designed per product drawings
Wire Frame Double T-Butt Machine	Dual-head cross bar welding design

Applications

Ideal for manufacturing wire mesh fences, cages, grids, and shelves. Capable of welding various wire diameters and mesh sizes with 3000mm effective length and 1200mm width. Features full-automatic stainless steel mesh welding with multiple simultaneous welding heads for high-volume production.

Ordering Information

Delivery: 7-30 working days after payment

Packaging: Sea-worthy wooden case

Capacity: 50 sets/month

Payment: L/C or T/T negotiable
