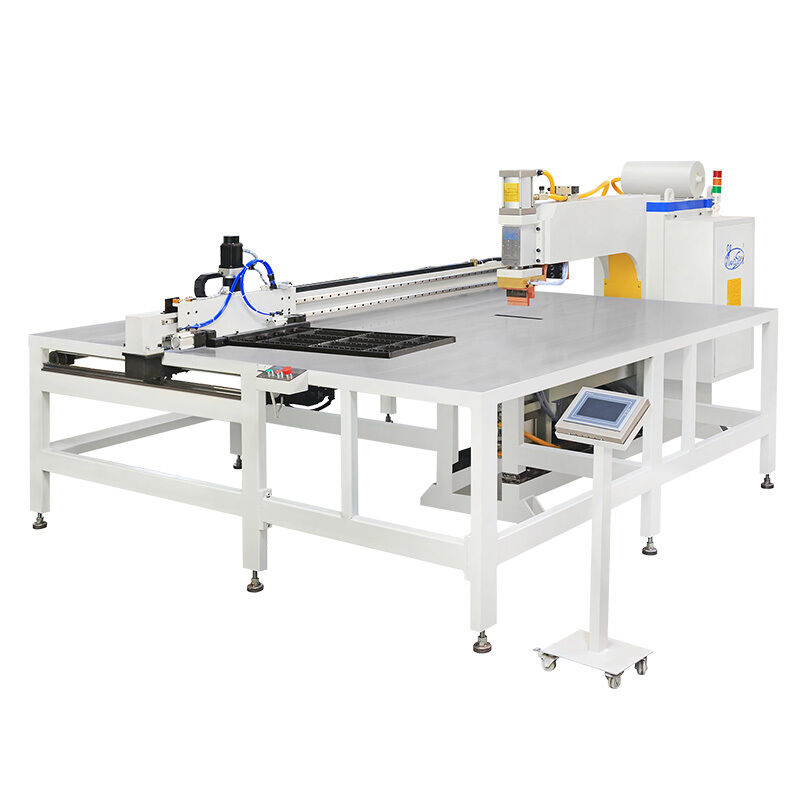

Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range

Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range

Automatic wire mesh welding machine with XY axis

Double-layer feeder wire shelf welding machine

1000mm x 1000mm welding range mesh machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-TSP-MF150K

Contact Us
Request A Quote
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range
Product Details
Application:
Mesh Product
Size:
According To Your Product
Weight (KG):
According To Your Product
Condition:
New
Warranty:
1 Year
Standard:
CE
Welding Material:
Iron Wire
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Sea worthy wooden package or PVC Film for FCL
Delivery Time
30 working days after received your payment
Payment Terms
L/C,T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Good price Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range online Video

Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range

Get Best Price
Good price High Accuracy High Speed Refrigerator Wire Tube Condenser Production Line Machine with Customizable Width and Length online Video

High Accuracy High Speed Refrigerator Wire Tube Condenser Production Line Machine with Customizable Width and Length

Get Best Price
Good price Fully Automated IBC Cage Production Machine with 80 Cages per Hour, Precision Engineering, and CE/CCC Certification online Video

Fully Automated IBC Cage Production Machine with 80 Cages per Hour, Precision Engineering, and CE/CCC Certification

Get Best Price
Good price Automatic Wire Mesh Welding Machine with Adaptive Welding Technology, Multiple Head Configuration, and Quick-Change Clamping System online Video

Automatic Wire Mesh Welding Machine with Adaptive Welding Technology, Multiple Head Configuration, and Quick-Change Clamping System

Get Best Price
Contact Us
+8613380655800
marketing@hwashi.com
Contact Now
Product Description
HWASHI High Quality Automatic Steel Wire Mesh Welding Machine
Product Overview
HWASHI Best price Wire Basket / Wire Shelves / Wire Rack Welded Wire Mesh Welding Machine
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range 0
Key Features
  • Multiple welding electrodes for increased productivity
  • Manual wire loading with automatic feeder and welding
  • Double power supply system for reliable operation
  • Two electrodes can work simultaneously and take turns
  • Double-layer feeder for continuous loading and uninterrupted operation
  • High efficiency and cost-effective performance
  • Suitable for wire mesh up to 1200mm width with unlimited length
Advanced System Components
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range 1
Intelligent welding control system - Automatic welding by inputting coordinate data of welding position, welding current and other parameters
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range 2
Special product molds welding platform - Custom processing and production according to each mesh product size
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range 3
X.Y axis moving device - Automatic movement of workpiece mold along X and Y axes, requiring only manual swinging and removal
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range 4
Single head long arm type welding - Customizable double row or multi-row welding heads based on workpiece requirements
Technical Specifications
Model WL-TSP-100/150K
Input Power (V/φ) 380/3
Rated Power (KVA) 100/150
Applicable Material Stainless Steel, Carbon steel, Aluminum, Metal
Electrode Force (KG) 250-400
Welding Thickness (MM) 1-5mm
Warranty 1 year
Mesh Welding Range 1000mm X 1000mm
XY Axis Automatic Moving Wire Welding Machine
The wire welding machine features a highly efficient servo motor-driven XY axis mold frame, utilizing a synchronous belt drive system. Controlled by the advanced control system, the machine enables precise control over the walking step length and speed. Once the manual material is securely fixed onto the mold frame, the switch is activated, and the industrial control computer takes charge. The product then undergoes automated welding as it alternately moves along the X and Y axes of the mold frame, seamlessly completing the welding process for each joint. Upon completion, the machine automatically returns to the origin without requiring additional manual intervention. This eliminates the need for additional personnel during the welding operation. Meanwhile, the operator can utilize the available time to set up the next material, optimizing efficiency and reducing labor costs. By effectively utilizing the welding time for material setup, the machine ensures maximum productivity and streamlines the overall workflow.
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range 5 Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range 6
Complete Production Line Machines
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range 7
Wire Flattening and Cutting Machine
This machine processes round wire into flat wire with automatic feeding and cutting to required length. Typically processes 8mm wire coil into 12x3mm flat wire strips.
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range 8
High Speed Wire Straightening and Cutting Machine
Batch production of 2mm to 4mm wires with speeds approximately 5 times faster than standard machines, increasing production rates and reducing labor costs.
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range 9
Wire Frame Bending Machine
Bends flat or round wires into square-shaped wire frames, capable of bending multiple wires simultaneously to increase production rates.
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range 10
Wire Frame Butt Welding Machine
Welding head quantity depends on mesh welding width, with different welding heads capable of individual program and current settings.
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range 11
Wire Frame Double T-Butt Machine
Welds cross bars of wire shelves to wire frames with double head design for increased production rates. Automatic moving and welding applications available.
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range 12
Wire Edge Trimming Machine
Trims wire edges from wire frames after welding to create clean, smooth surfaces.
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range 13
2D Wire Handle Bending Machine
Bends wire handles for 2-6mm wires, capable of creating any shape without mold changes.
Automatic Wire Mesh Welding Machine with Double-Layer Feeder and XY Axis Automatic Moving for 1000mm X 1000mm Welding Range 14
3D Wire Bending Machine
Bends wires into 3D shapes for 2-6mm or 3-8mm wires, creating any 3D shape without mold changes.
