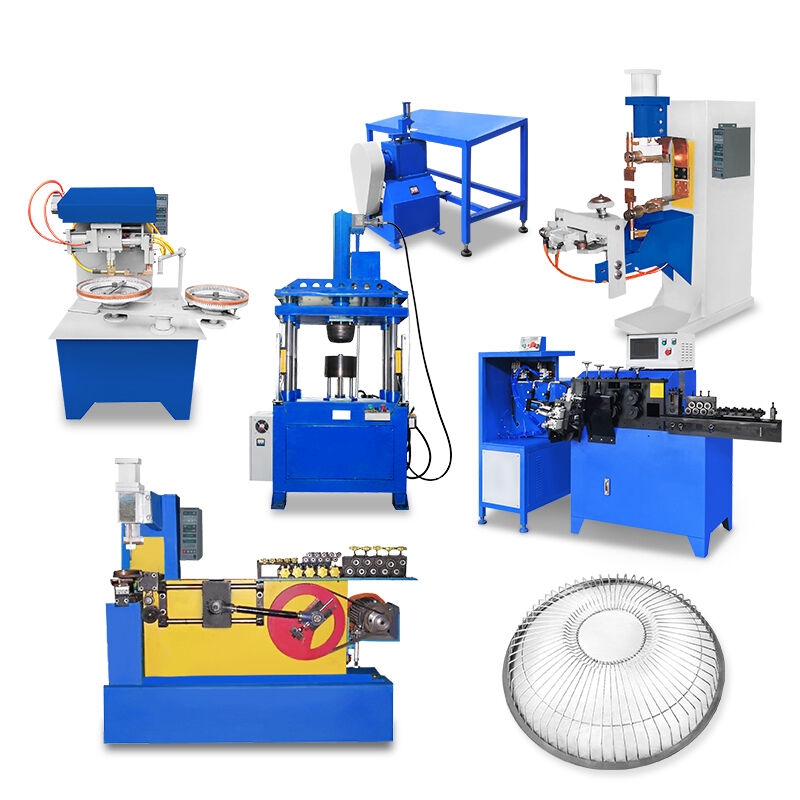

HWASHI Complete Equipment of Fan Guard Production Line
Our fully integrated Fan Guard Manufacturing Production Line delivers end-to-end automation for high-volume production of durable, precision-engineered fan guards. Combining robotic systems, CNC-enabled tooling, and AI-powered quality control, this turnkey solution streamlines the fabrication of wire grilles, mesh screens, and stamped metal guards for industrial, HVAC, and consumer appliance applications.

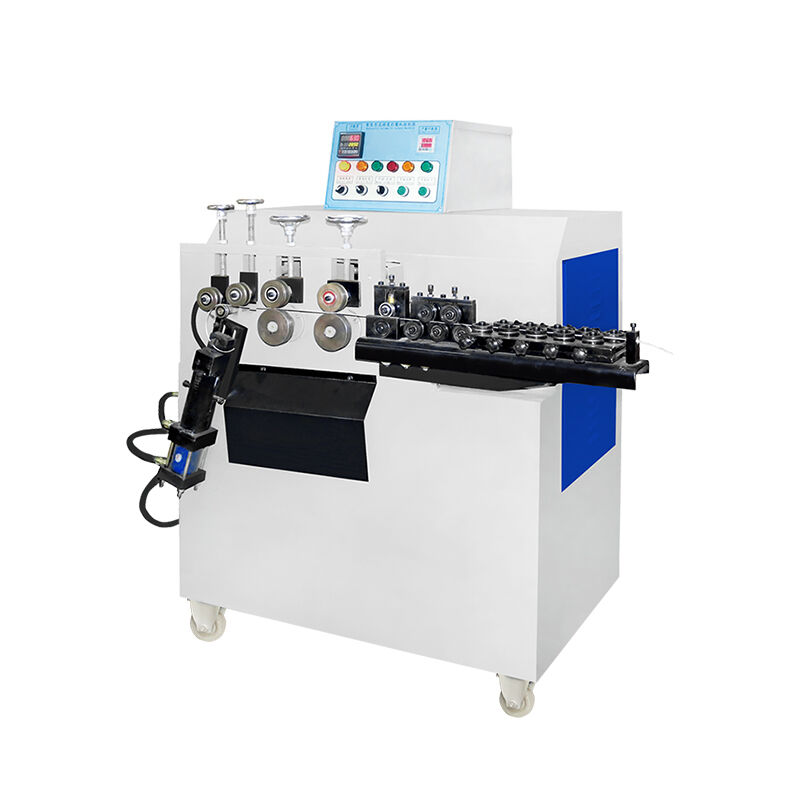

Automatic Wire Ring Making and Butt Welding Machine
This equipment specializes in automatic production of iron rings. When the iron wire enters the hole position set by the equipment, it automatically starts operation based on pre-set perimeter values, quantity specifications, and line speed parameters.
Sample Effect of Ring Machine

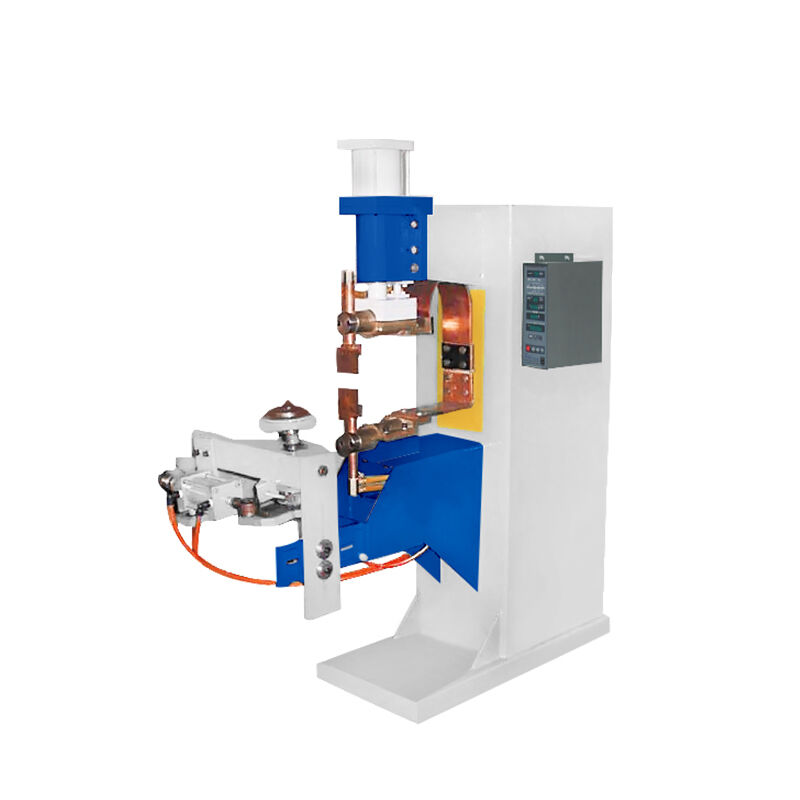

Automatic Spot Welder for Inner Ring
This equipment is used for welding inner rings of fan guards. It features automatic wire feeding, automatic wire cutting, and automatic rotary welding capabilities based on pre-set wire quantity and length parameters.
Welding Heads
Automatic Middle Ring Welding Machine
This machine is specifically designed for welding the middle ring components of fan guards.
Welding Heads

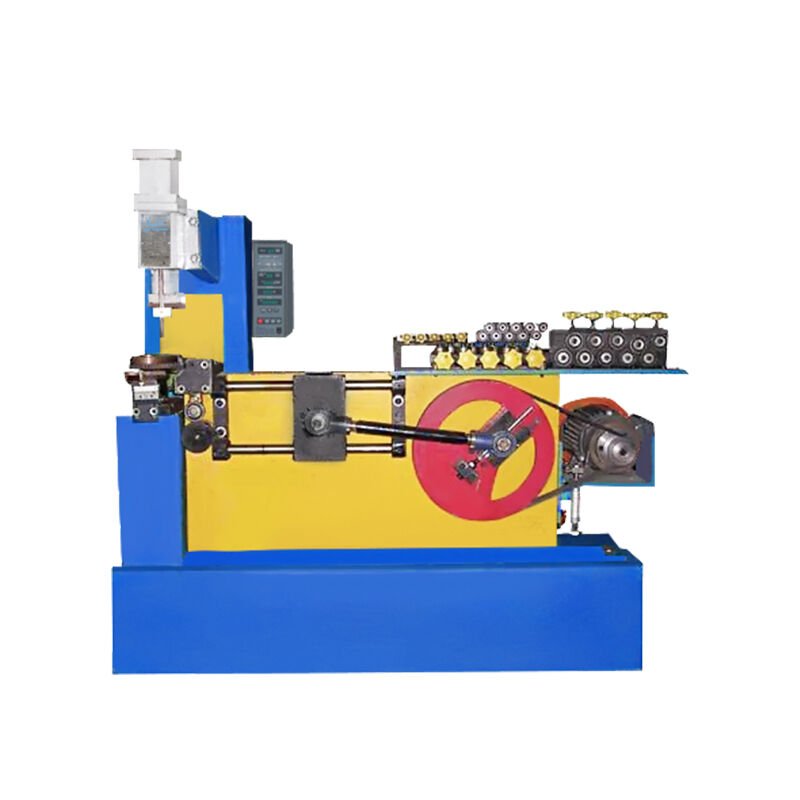

Automatic Outer Ring Welding Machine
This equipment is used for welding the outer ring of fan guards. The welded inner ring and outer ring components are placed on the mold for precise assembly.
Welding Heads
25T Hydraulic Press Machine
This equipment is used for hydraulic forming of inner rings for fan guards.
Hydraulic Forming Molds
Edge Trimming Machine
This equipment is used for trimming fan guards with fast cutting speed and smooth surface finishing.
The Effect After Trimming is Flat
Machine Details
| Specification |
Value |
| Rated Capacity |
10-300KVA |
| Max. Welding Thickness |
900mm × 1150mm × 1750mm |
| Dimensions |
900mm × 1150mm × 1750mm |
| Weight |
450 KG |

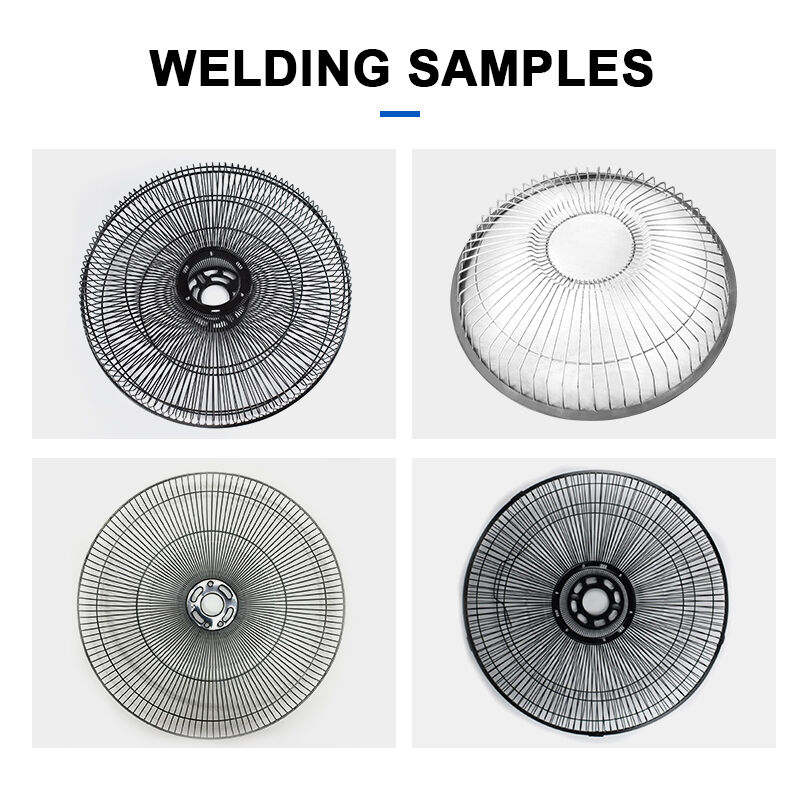

Application and Samples
We can provide customized service for you. Our engineers will discuss specific welding requirements with you and develop suitable technical proposals based on your samples or drawings.
Factory & Certifications
Certifications
We have passed international certifications including CE certification, ISO9001 quality management system certification, Alibaba enterprise certification, and design patents.
After-sales Service & Customer Support
- Spot welding machine 1 year warranty except consumable parts
- Plenty of technical support online is available
- Quick backup parts available & technical assistance
- Training video, instruction book, and operation manual provided
Service Team & Customer Feedback
Professional Team
Over the years, Hwashi has cultivated a large number of talented, dedicated and innovative professionals. We have a specialized team of experts with extensive experience in electrical engineering, mechanical design, and welding technology.
Since its establishment 22 years ago, HWASHI Technology has traveled worldwide, participated in more than 100 exhibitions, and served more than 8,000 customers.
Frequently Asked Questions
Q1: What is the price of your machine?
Our machines are customized for your specific requirements. To receive an appropriate price quote, please provide us with the following information:
- The material and thickness of your product
- The minimum and maximum size of your product
- The welding position of your products
- The automation level you want to achieve
- Providing detailed product drawings allows our engineers to develop suitable technical proposals and pricing.
Q2: What is the warranty period of your machine?
Our standard warranty period is one year after shipment. Extended warranty periods are available at additional cost.
Q3: What if my machine is damaged during the warranty period?
Our engineers will first help diagnose the problem via online guidance. If any parts are damaged during the warranty period, we will send replacement parts free of charge. If the problem persists after part replacement, we will send an engineer to your factory to resolve the issue.
Q4: What is the delivery time of your machine?
Delivery time depends on machine complexity. Most standard machines are in stock and can be shipped within seven days after payment. Customized machines typically require 30-90 days for completion.
Q5: Can we send samples to you for welding tests?
Yes. You can send us samples for welding tests, and we will provide pictures and videos of the results. If needed, we can return tested samples to your country for quality verification before ordering.
Q6: Can you provide machine drawings and technical proposals?
Yes. After receiving your detailed requirements and product drawings, our engineers will develop suitable technical proposals with basic machine concept drawings. After order placement, we provide detailed design drawings for confirmation before manufacturing begins.
Q7: What are your payment terms?
We accept T/T, L/C, Western Union, and Alibaba Trade Assurance. We recommend Alibaba Trade Assurance, which allows complaints for delayed shipping or machine dissatisfaction.
Q8: How can we install the machine?
For simple machines, we provide English operation manuals, operation videos, and online guidance/training. For complex machines, we can send engineers for installation and training, with associated costs (salary, visa, travel, accommodation) covered by the buyer.
