Name: Hwashi IBC Cage Frame Hole Making Machine Automatic Production Line
Brand: Guangdong Hwashi Technology inc.
SKU: WL-SQ-MF160Kx6
Price: 25,000.00 USD
Availability: InStock

Home > products > IBC Tote Cage Welding Machine >

Hwashi IBC Cage Frame Hole Making Machine Automatic Production Line

Place of Origin:

CHINA

Brand Name:

Hwashi

Certification:

CE/CCC/ISO

Model Number:

WL-SQ-MF160Kx6

Request A Quote

Product Details

Certification:

ISO9001

Type:

Tank Container

Weight:

2000kg

Water Pipe Size:

G1 1/4

Warranty:

12 Months

Specification:

CE/CCC

HS Code:

Standard Export Packing

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

USD $20000-30000

Packaging Details

sea worthy wooden package

Delivery Time

30 - 60 working days after received your payment

Payment Terms

negotiation

Supply Ability

50 sets per month

Hwashi IBC Cage Frame Hole Making Machine Automatic Production Line

Get Best Price

Video

Hwashi IBC Tank Bottom Frame Welding Machine IBC Cage Automatic Welding Machine

Get Best Price

Video

Bulk Container IBC Cage Tank Frame Production Line Welding Equipment Machine

Get Best Price

Video

Electric IBC Tote Cage Welding Machine 50Hz PLC Control 225KVA

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

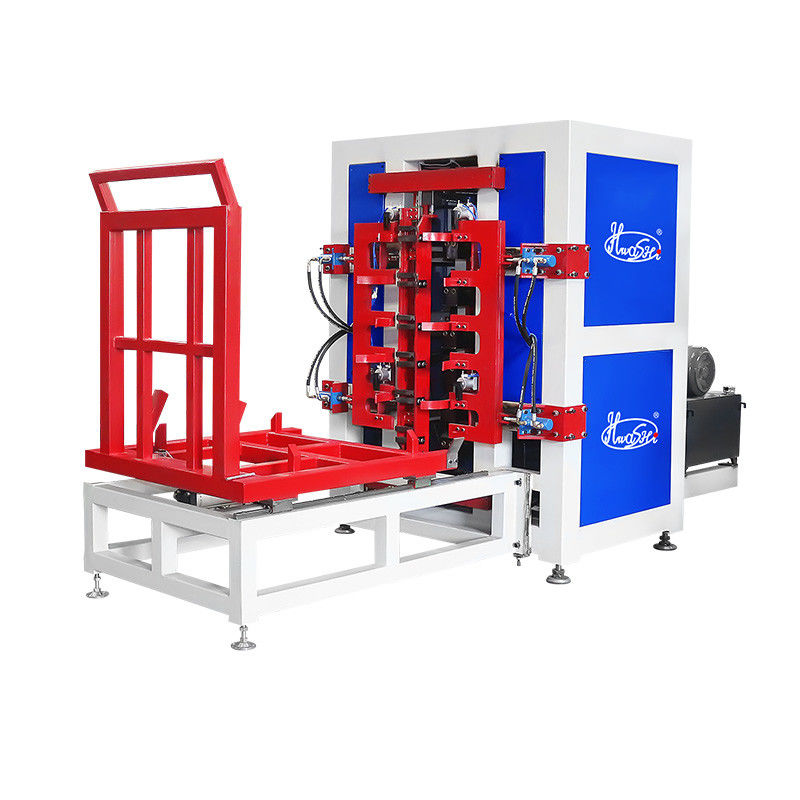

Hwashi IBC Cage Frame Automatic Hole Making Machine Automatic Production Line

Hwashi IBC Cage Frame Automatic Hole Making Machine Automatic Production Line. It is used to do punching and hole making at the bottom of the IBC cage frame. The machine frame is processed as a whole, with high insertion precision, large fastness to locking, stable and efficient operation.

1. IBC cage frame punching and hole making machine is processed as a whole, with high insertion precision, large fastness to locking, stable and efficient operation.
2. The machine is controlled by human-machine interface +PLC programming control mode, with high degree of automation.
3. Manipulator can be configured to automatically load and unload materials to reduce personnel configuration.
4. Only by changing the mold block, the requirements of different locking pipes can be met, and the mold can be replaced easily.
5. The servo hydraulic system has the characteristics of fast response, small inertia and high precision.
6. High degree of modularization of each part of the equipment, which can be configured to improve the degree of automation according to customer requirements.

Hwashi IBC Cage Frame Hole Making Machine Automatic Production Line 1
Production Capacity: 25-30sec/pc

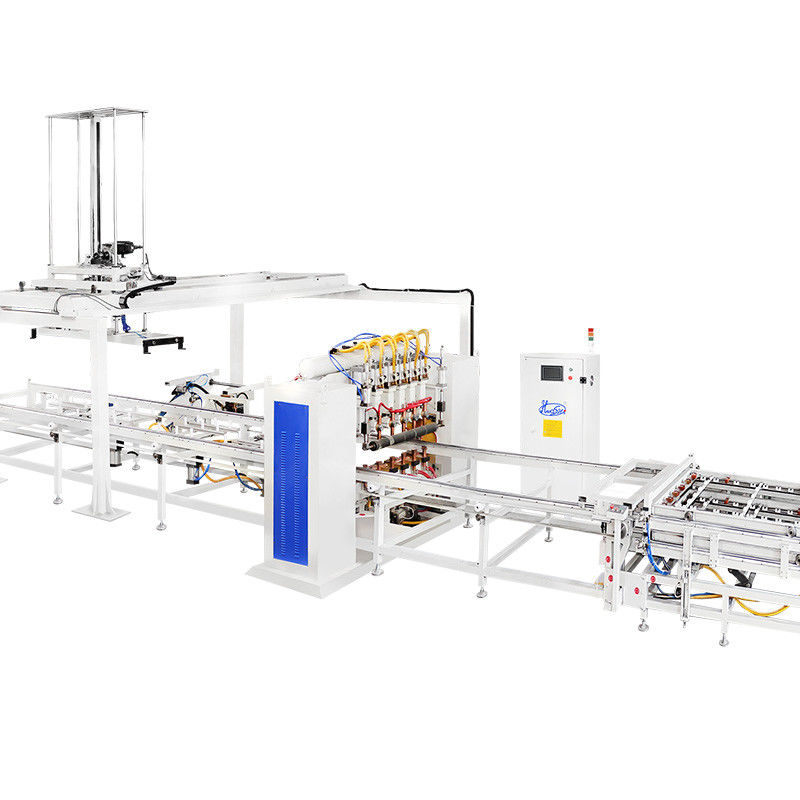

IBC Tank Cage Frame Production Line Machine
This automatic production line is mainly used to manufacturing the IBC cage frame. It is composed of cage frame automatic welding, mesh unloading mechanical arm, mesh turnover structure, automatic frame bending machine, locking machine, hole making and punching machine, automatic production line moving mechanical arm. The complete line requires only 3-4 person. Operator only need to do the material loading to the frame welding machine, and do unloading at the end of the line. Also we can equip the line with automatic base frame welding machine and automatic unloading mechanical arm for the base frame.

Running process:
Frame welding——bending——locking——hole punching——unloading——base frame welding——base frame loading——manual screw for base frame and outer frame
Inner tank loading——automatic valve welding——leakage detection——automatic cover tightening——put the tank into the frame——manual assembly of the pull rod——complete product stacking

Hwashi IBC Cage Frame Hole Making Machine Automatic Production Line 3
