Automatic Spot Welding Machine for Inner Ring with Accurate Wire Distribution

automatic welding machine for sale

Fan Guard Automatic Welding Machine

Bird Cage Automatic Welding Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Request A Quote

Product Details

Product Name:

HWASHI Automatic Outer Ring Welding Machine For Fan Guard / Bird Cage

Size:

900mmX1150mmX1750mm

Warranty:

12 Months

Standard:

CE/CCC/ISO

Condition:

New

Output Heat:

18000J

Service Life:

8-10 Years

Highlight:

automatic welding machine for sale

Fan Guard Automatic Welding Machine

Bird Cage Automatic Welding Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C, , T/T

Supply Ability

50 sets per month

HWASHI WL-CD-03K High Precision Capacitor Discharge Spot Welder Closed Loop Feedback for Medical Device Components

Get Best Price

HWASHI WL-SV-20K Servo Controlled Precision Spot Welder Real-Time Force Monitoring Aerospace Fastener Assembly

Get Best Price

HWASHI WL-DG-15K Digital Precision Spot Welder Real-Time Displacement Monitor Automotive Sensor Bracket Assembly

Get Best Price

HWASHI WL-PJ-25K High Precision Projection Spot Welding Machine Proportional Valve Control Sheet Metal Assembly

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

Automatic Spot Welding Machine for Inner Ring with Accurate Wire Distribution

After the inner-ring is welded and formed by hydraulic press, put them into the mould on this outer ring welding machine, distribute those 120 wires evenly, start the machine and the outer ring can be welded. Different size of guard needs different welding mould. There are two mould holders. During one is welding, another can be prepared.

Code	XW-WP-40K
Suitable wire diameter for middle ring	3-4mm
Rated welding power	40KVA
Size of guard	8”-20”
Productivity	1000-1500 pieces
Air consumption	l 0.4M3/min

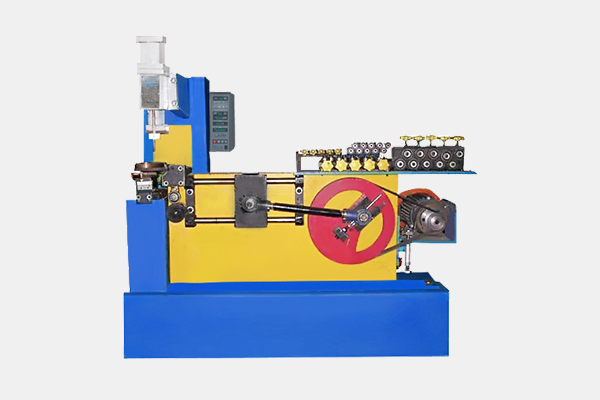

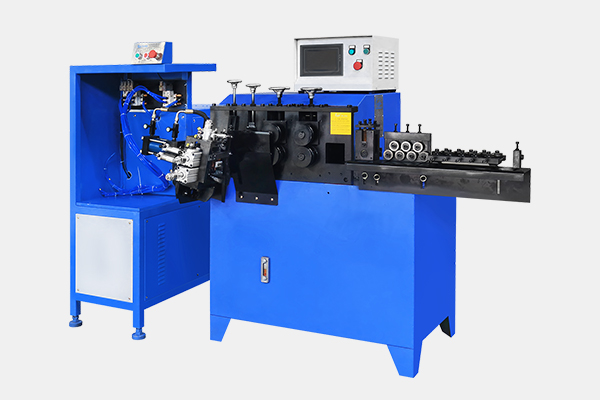

Automatic Wire Ring Making and Butt Welding Machine

The equipment specializes in automatic production of iron ring. When the iron wire enters the hole position set by the equipment, start the equipment automatically by setting the perimeter value, quantity and line speed according to the specification.

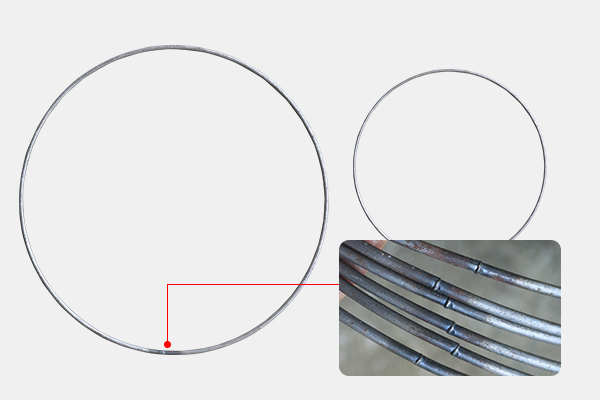

Sample effect of ring machine

Automatic spot welder for inner ring

After the inner-ring is welded and formed by hydraulic press, put them into the mould on this outer ring welding machine, distribute those 120 wires evenly, start the machine and the outer ring can be welded. Different size of guard needs different welding mould. There are two mould holders. During one is welding, another can be prepared

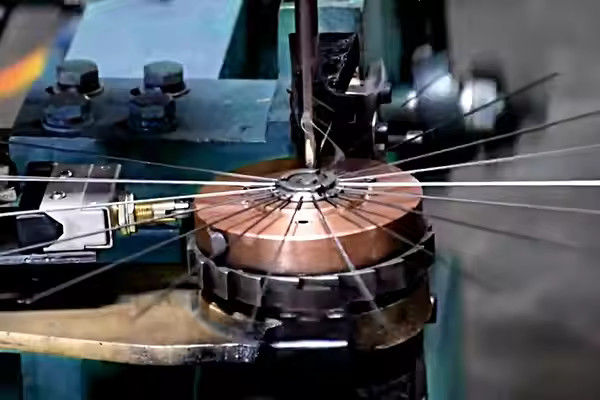

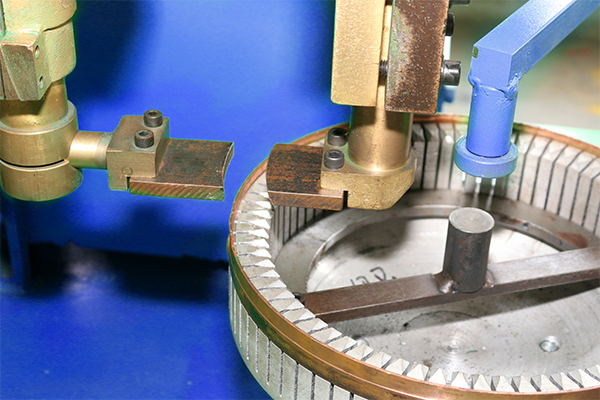

Welding Heads

Suitable wire diameter of the outer ring: 3-4mm

Rated welding power: 40KVA

Size of guard: 8”-20”

Productivity: 1000-1500 pieces (16”, 120 pieces radial wires)

Air consumption: 0.4M3/min

Welding current: 10A per time

Dimension: 1200 x 950 x 1550mm

Weight: about 500kg

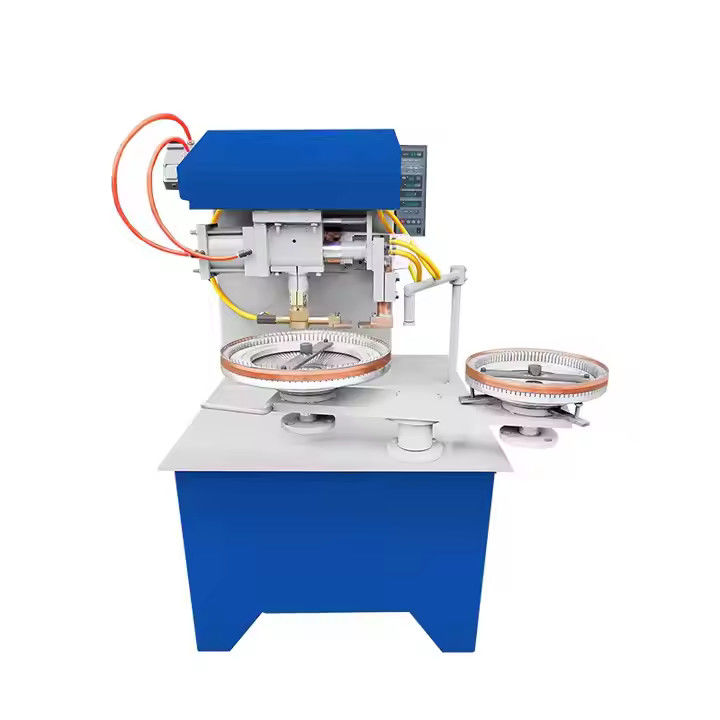

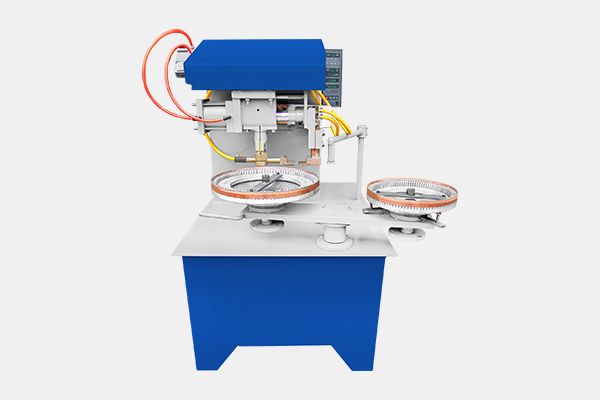

Automatic Outer Ring Welding Machine

After the inner-ring is welded and formed by hydraulic press, put them into the mould on this outer ring welding machine, distribute those 120 wires evenly, start the machine and the outer ring can be welded. Different size of guard needs different welding mould. There are two mould holders. During one is welding, another can be prepared.

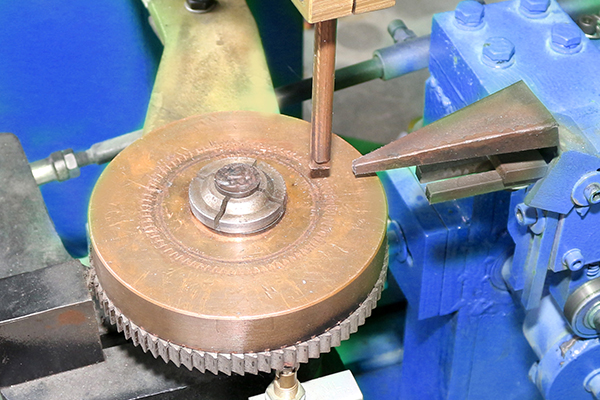

Welding Heads

Suitable wire diameter of the outer ring: 3-4mm Rated welding power: 40KVA Size of guard: 8”-20” Productivity: 1000-1500 pieces (16”, 120 pieces radial wires) Air consumption: 0.4M3/min Welding current: 10A per time Dimension: 1200 x 950 x 1550mm Weight: about 500k

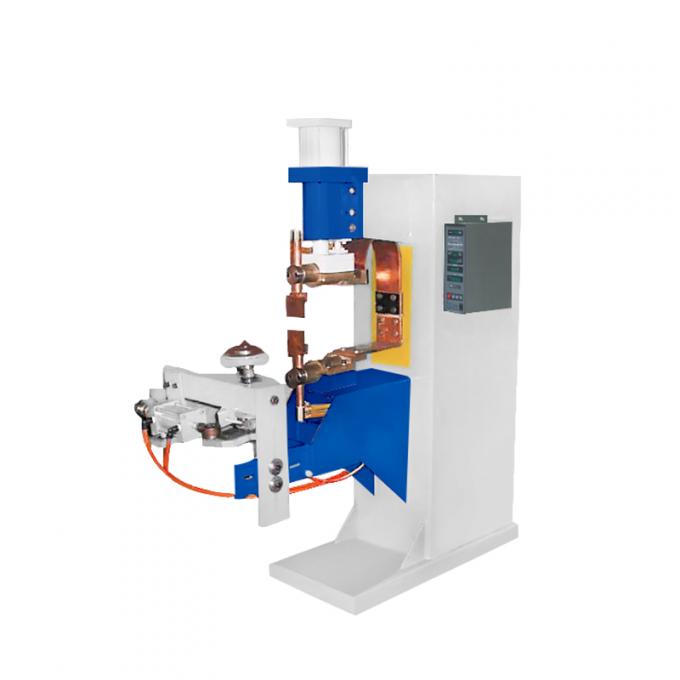

Automatic Middle Ring Welding Machine

This machine is used for welding the middle ring of the fan guard.

Welding Heads

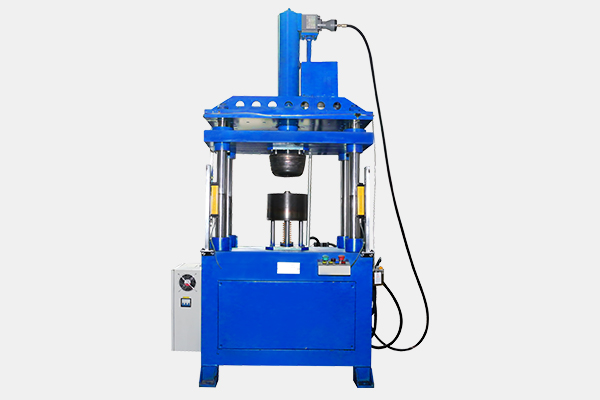

25T Hydraulic Press Machine

This equipment is used for hydraulic forming of inner ring of fan guard.

Hydraulic forming molds

Hydraulic rolling and cutting, quick and accurate (length tolerance less than 1%). Suitable diameter: 1.0-6.0mm Suitable ring diameter: 60-600mm Main driving power: 1.5kW Linear wire feeding speed: about 30m/min Productivity: 8000-10000 pieces per 8 hours shift Dimension: 1350 x 700 x 1450mm Weight: about 350kg

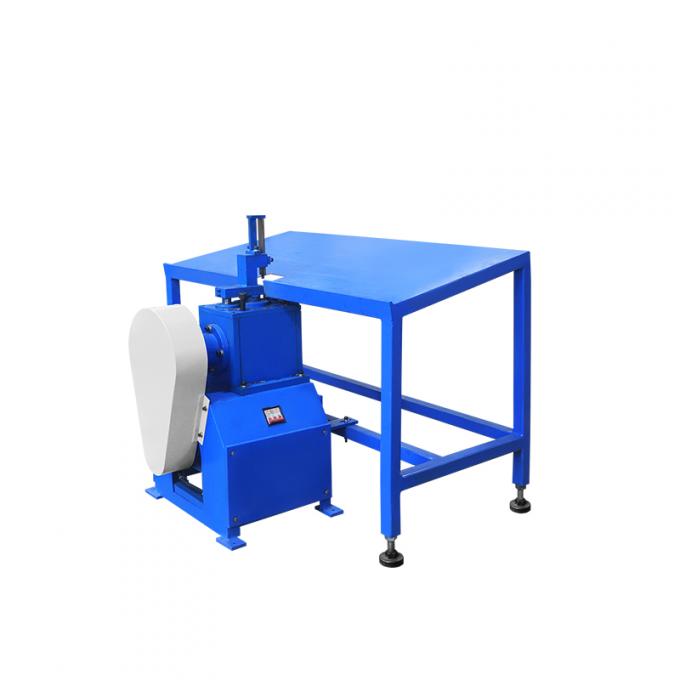

Edge Trimming Machine

This equipment is used for trimming of fan guard with fast cutting speed, and smooth surface.

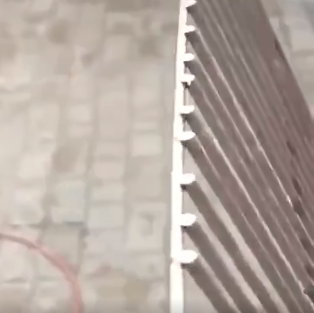

The effect after trimming is flat
