Intermediate Bulk Container IBC Grid Cage Frame Automatic Production Line,ibc Steel Frame For Ibc Tanks

ibc steel frame production line

ibc grid Cage Frame production line

Bulk Container Automatic Production Line

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-SQ-MF160Kx6

Request A Quote

Product Details

Surface Treatment:

Galvanized

Size:

According To Your Products

Vibration Testing Time:

0 To 1 Hour

Power Source:

Electric

Water Pipe Size:

G1 1/4

Warranty:

12 Months

Service Life:

8-10 Years

Welding Method:

Resistance Welding

Material:

Steel

Punching Efficiency:

15-25sec

Welding Power:

225KVA X 4

Type:

Tank Container

Weight:

3000kg

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

60 working days after received your payment

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

New Full Automatic IBC Cage Making Machine 1oool Capacity Frequency Steel Grating Welding Production Line Reliable Pump Pressure

Get Best Price

Video

marketing@hwashi.com

Contact Now

Product Description

Intermediate bulk container IBC grid IBC Cage Frame automatic production line,ibc steel frame for ibc tanks

IBC tank welding machine

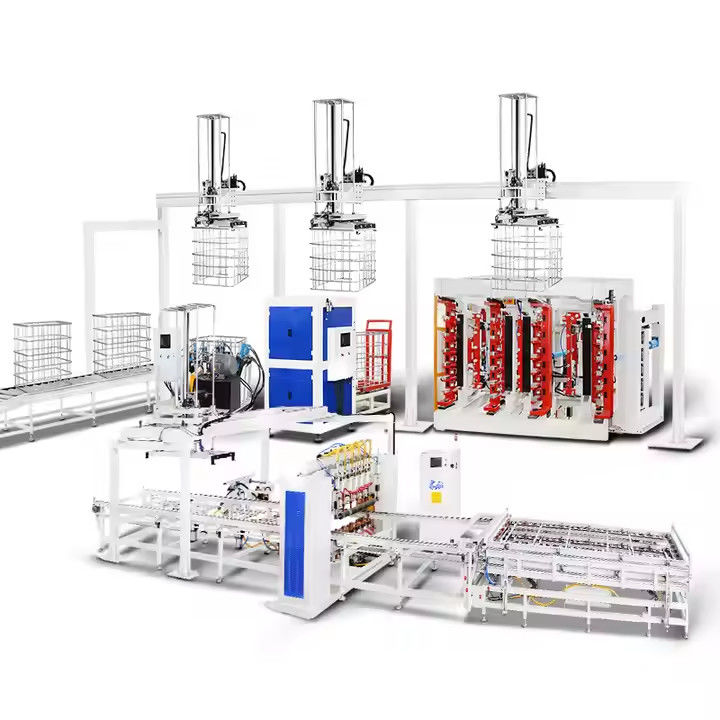

Hwashi IBC Cage Frame Automatic Welding Machine Automatic Production Line is a special designed production line for IBC cage frame. The whole line machine includes cage frame automatic welding, mesh unloading mechanical arm, mesh turnover structure, automatic frame bending machine, locking machine, hole making and punching machine, automatic production line moving mechanical arm. The complete line requires only 2-3 person. Operator only need to do the material loading to the frame welding machine, and do unloading at the end of the line. Also we can equip the line with automatic base frame welding machine and automatic unloading mechanical arm for the base frame.

Running Process

Production Capacity: 90 sec/pc
(including welding, bending, locking, and hole punching process)

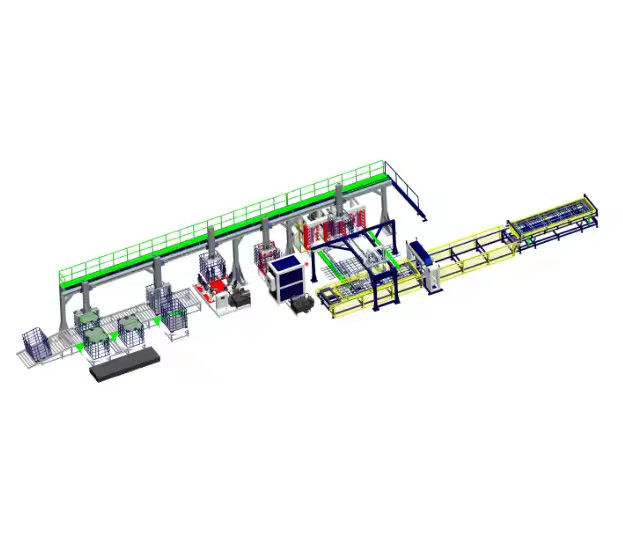

IBC tank welding machine Production line equipment

IBC tank frame welding machine,bending machine,locking machine,hole punching machine,base frame welding machine the full set of production equipment.

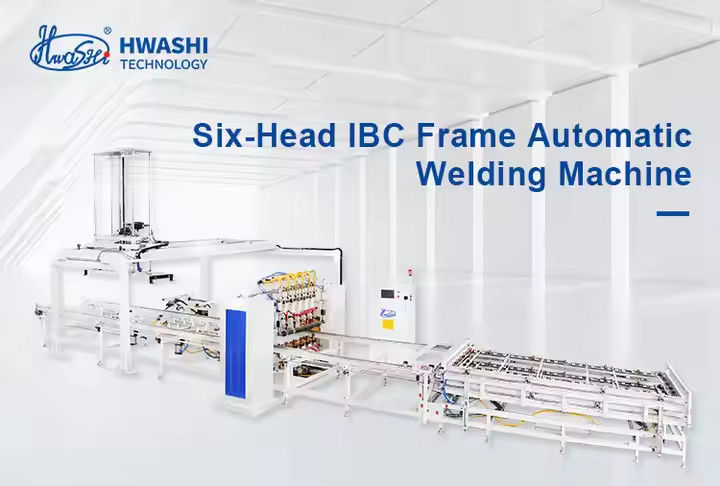

Six-Head IBC Frame Automatic Welding Machine

The welding power is designed with 4 sets of MF DC power source. It can do 6 spots welding at one time. Double layer fixture feeder. When one fixture is under welding, another fixture can be loaded with material.

Flat Tube Mesh and Firm Welding Quality

The welding machine will weld the tube into flat mesh type. Firm and strong welding quality. It will take about 60sec to complete the welding process.

Vertical Double Station IBC Frame Bending Machine

IBC cage frame double station bending machine is processed as a whole to ensure high bending precision, stable operation and high efficiency.

Bend the Flat Mesh into Square Shape

The bending machine will bend the flat mesh into square frame. It will takes about 20- 25sec to complete the bending process.

IBC Cage Frame Locking Machine

IBC cage frame locking machine is processed as a whole, with high insertion precision, large fastness to locking, stable and efficient operation.

Locking Efficiency and Quality

The locking machine will lock the ends of the tube frame using hydraulic force. It will takes about 25-30sec to complete the locking process.

IBC Cage Frame Hole Making and Punching Machine

IBC cage frame hole making and punching machine is used to form the hole on the frame, so the complete frame can be fixed on the base frame.

Hole Making Efficiency and Quality

The hole making and punching machine is using hydraulic force. It will takes about 25-30sec to complete the complete process.

IBC Cage Base Frame Welding Machine

The base frame welding machine design adopts horizontal structure and 7 welding heads for completing the welding of base frame. The operator only need to load and unload the product. The machine will do the welding automatically.

Final Product of Base Frame

We can add the automatic loading and unloading device for the base frame welding machine as per your requirement.The welding efficiency is about 15-20 sec/pc.

Techincal parameters

Items	Data
Application	1000L IBC cage frame manufacturing
Rated Capacity	160KVAx6
Duty Cycle Rate	50％
Max. Output Voltage	DC11V
Warranty	12 months
Standard	CE/CCC/ISO
