HWASHI CNC 3 Axis 2D Wire Bending and and Welding Machine Hot Product CE Provided Carbon Steel Automatic Metal Wire

2D Wire Bending Machine

Bending and and Welding Machine

Automatic Metal Wire Bending Machine

Place of Origin:

CHINA

Brand Name:

Hwashi

Certification:

CE/CCC/ISO

Request A Quote

Product Details

Certification:

ISO9001

Type:

Tank Container

Weight:

200kg

Warranty:

12 Months

Specification:

CE/CCC

HS Code:

Standard Export Packing

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

30 - 60 working days after received your payment

Payment Terms

L/C, T/T, MoneyGram

Supply Ability

50 sets per month

Hwashi Computer Case Spot Welding Machine

Get Best Price

Video

Hwashi Glasses Frame Capacitive Energy Storage Spot Welder

Get Best Price

Video

High-Efficiency Spot Welding Machine for Kettle Spout Caps

Get Best Price

Video

Efficient Capacitor Energy Storage Spot Welding Machine for Welding Filter Screens and Mesh

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

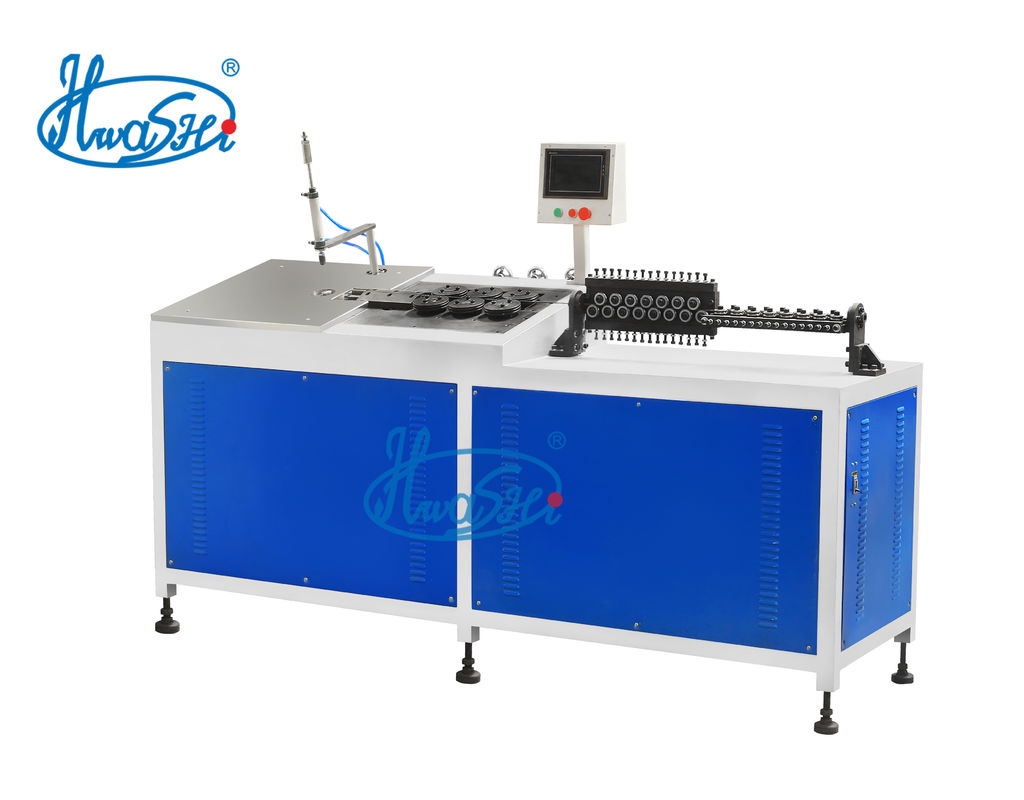

HWASHI CNC 3 Axis 2D Wire Bending and Welding Machine

2D Bending and Butt welding Machine

2D Bending, Welding and Grinding Machine

Product description

Automatic 2D bending Machine design three-axis structure which includes the wire straightening mechanism, cutting mechanism, line pressing mechanism and forming mechanism; The straightening mechanism adopts multiple sets of rollers to press up and down and left and right for straightening. The structure ensures light scratches on the surface of the metal wire, and ensures the straightening of the metal wire and the base formed by bending in half. By using servo Drive wire feeding wheel to move the wire forming position, it can move forward and backward according to the program; Forming mechanism through the folding Angle of the bend, with the work of the wire feeding mechanism, the wire bending into a plane shape; Automatic operation of the equipment after loading. The equipment structure is reasonable, stable and reliable, simple operation, high degree of automation, operators can manage multiple machines at the same time, greatly improve the production efficiency, hardware, network cable manufacturers and other necessary special equipment.

Intelligent Bending Control System

Automatic bending by inputting coordinate data of bending position. Easy operation.

Straightening Roller

Use to straightening the feeding wire. Be able to process the wire diameter 2mm to 12mm.


Automatic Welding Structure

Be able to install the automatic welding device, so as to achieve automatic bending and welding at the same time. Especially suitable for wire frame making. High efficiency.

Automatic Grinding Structure

Be able to grind the joint edges after welding. So no need second time processing. Automatic bending, welding, and grinding at the same time.

Technical Data of 2D Bending Machine
Machine Model	2-6	3-8	5-12
Wire diameter range	Φ2.3-6mm iron wire	Φ4-8mm iron wire	Φ5-12mm iron wire
Input Voltage	380V 50Hz/60Hz
Servo motor power	Total 2.6KW	Total 4.5KW	Total 7.5KW
Cylinder Cutting force	Φ7.0 iron wire	Φ9.0 iron wire	Φ12.0 iron wire
Oil pressure range	0.3-0.6Mpa	0.3-1Mpa	0.3-1Mpa
Hydraulic oil model	46#/68#
Wire Range	Round, square, flat wire (suitable for any material wire)
length of wire feeding wire	According to the user setting
Store data	50 sets of data, a set of 300 actions
Max. Wire Feed Speed	50M/Min	20M/Min	11M/Min
max. bending speed	300 rpm /Min Angle±180º
Bending accuracy	±0.5mm
Wire feeding accuracy	±0.5mm		±1.0mm

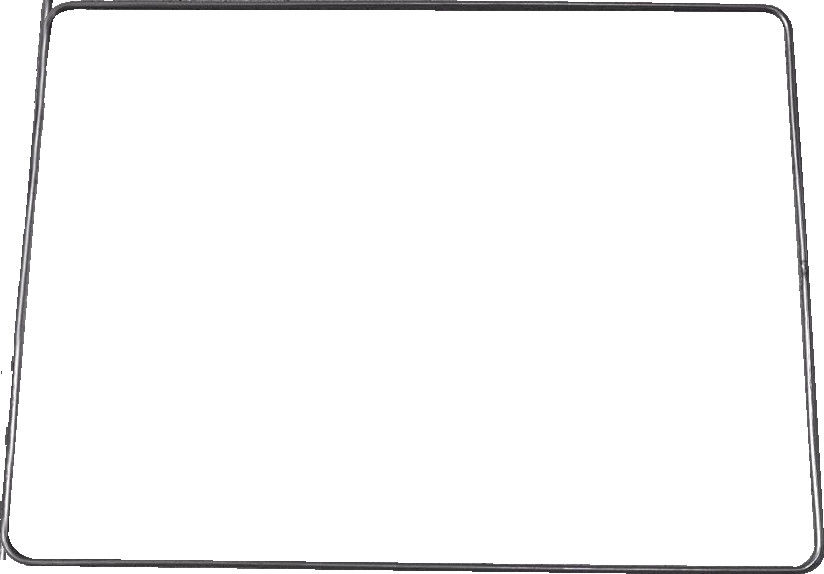

Application and samples

We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.

Production Line Machines

Wire Flattening and Cutting Machine

This machine is able to process the round wire into flat wire. It will automatically feed the round wire and cut it into required length.Normally you will need to prepare the 8mm wire coil, and make it into 12x3mm flat wire strip.

High Speed Wire Straightenign and Cutting Machine

This machine will help to make batch production of 2mm to 4mm wires. This machine speed is almost 5 times than the normal speed wire cutting machine. It helps to increase production rate and reduce labor cost.

Wire Frame Bending Machine

This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate.

Wire Frame Butt Welding Machine

The number of welding heads is depends on the welding width of the mesh. Different welding head can be set different welding programs and current respectively.

Wire Frame Double T-Butt Machine

This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. Easy Operation. We can also design the automatic moving and welding application.

Wire Edge Trimming Machine

After Welding, we need the trimming machine to cut off the edge of wire from the wire frame. To make the surface clean and smooth.

2D Wire Handle Bending Machine

This machine is used to bend the wire handle. It is suitable for 2-6mm wire bending. And you can bend any shape of the wire without changing mould.

3D Wire Bending Machine

This machine is used to bend the wire into 3D shape. It is suitable for 2-6mm or 3-8mm wire bending. And you can bend any 3D shape of the wire without changing mould.
