IBC Tote Tube Production Line

Products

IBC Tote Tube Production Line 0

IBC Tote Tube Production Line 1

The IBC tote frame tube production line is an automated system designed specifically for the production of 1000L IBC tote frame tubes. It includes automatic round tube welding and forming, automatic long tube pressing and forming, automatic short tube pressing and forming, and automatic pressing and bending of the bottom frame tubes.

If you need to purchase finished tube accessories, we can also provide a full set of frame component supply services, including complete tube accessories (or pre-welded tube mesh), bottom frame components, valves, nameplates, matching screws, etc.

Process Flow:

Tube Forming:
Raw Material (Coil Steel) → Unwinding → Shearing and Butt Welding → Material Storage Reel → Feeding → Straightening → Forming → High-Frequency Welding → Deburring → Cooling Tank → Sizing → Straightening → Length Cutting → Tube Drop Platform (Packing) → Inspection and Storage.

Long Tube Pressing and Forming:
Automatic Tube Feeding → Automatic End Shrinking → Automatic Pressing and Forming → Automatic Discharge.

Short Tube Pressing and Forming:
Automatic Tube Feeding → Automatic Pressing and Cutting to Short Tubes → Automatic Discharge.

Bottom Frame Tube Automatic Pressing and Bending Machine:
Automatic Tube Feeding → Automatic End Shrinking → Automatic Pressing and Forming → Automatic Bending → Automatic Discharge.

Main Composition:

Machine Picture

IBC Tote Tube Production Line 4

FX28 Automatic High-Frequency Straight Seam Welded Pipe Production Line

essential information

This production line is specialized equipment for the manufacturing of straight seam welded tubes. Using steel strip as raw material, the line employs cold bending and high-frequency welding techniques to produce round tubes with diameters of 18mm and 22mm, as well as 18x18mm square tubes required for IBC frame production. The equipment incorporates advanced hole-shaping technology, ensuring stable operation and ease of maintenance. It achieves an advanced level of structural design and precision, comparable to the leading standards in the industry.

Key parameters

Steel Strip Width: 26–160mm

Steel Strip Thickness: 0.3–1.8mm

Round Tube Diameter: Φ8–Φ50.8mm

Square Tube Size: 5x10–30x50mm

Welding Method: High-Frequency Induction Welding, High-Frequency Power: 100kW

Tube Production Speed: Max 120m/min

Machine Picture

IBC Tote Tube Production Line 5

IBC Tote Tube Production Line 6

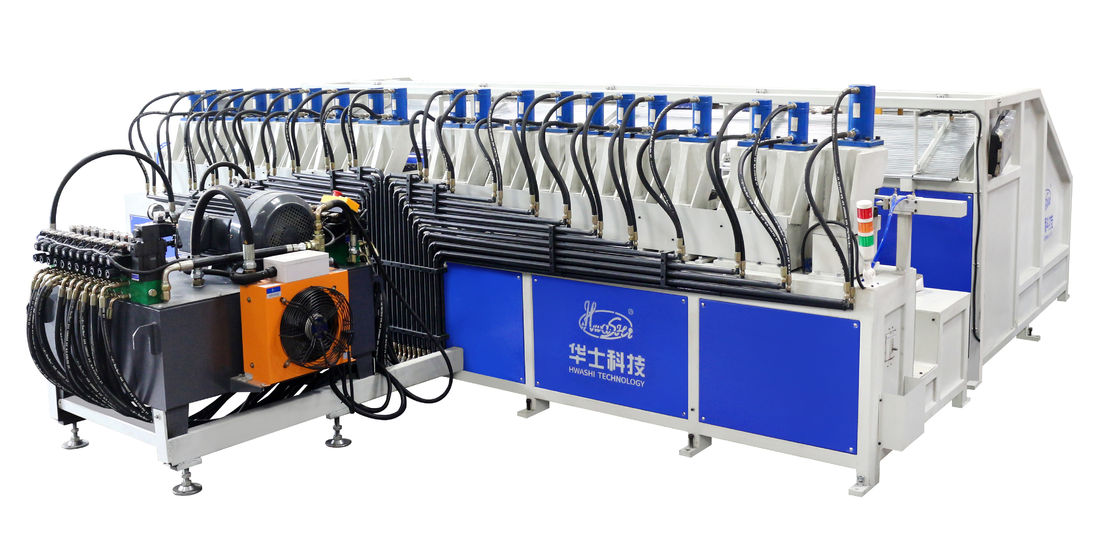

IBC Long Tube Automatic Pressing and Forming Machine

essential information

IBC Long Tube Automatic Pressing and Forming Machine is a special customized machine for IBC tube processing. It can achieve full automatic pipe feeding, pipe end shrinking, pipe hydraulic pressing, and automatic unloading process. No operator needed. It helps to greatly increase the production rate, and save manpower.

Key parameters

Production Efficiency: 12-15 seconds per 2 pieces

Processing Tube Size: 18mm x 4200mm

Forming Method: Hydraulic

Number of Forming Dies: 20

Number of Tubes Processed at One Time: 2 tubes

Machine Picture

IBC Tote Tube Production Line 7

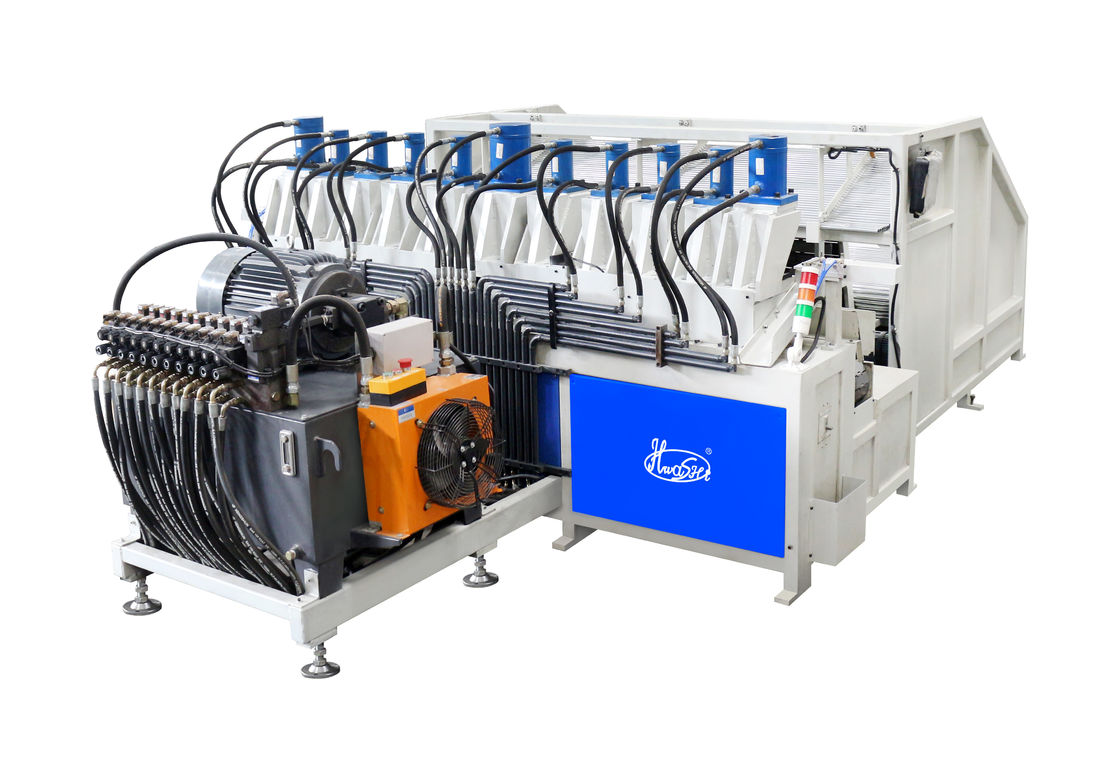

IBC Short Tube Automatic Pressing and Forming Machine

essential information

IBC Short Tube Automatic Pressing and Forming Machine is a special customized machine for IBC tube processing. It can achieve full automatic pipe feeding, pipe end forming and cutting, pipe hydraulic pressing, and automatic unloading process. No operator needed. It helps to greatly increase the production rate, and save manpower.

Key parameters

Production Efficiency: 12-15 seconds per 2 pieces
Processing Tube Size: 18mm x 2200mm
Forming Method: Hydraulic
Number of Forming Dies: 8
Number of Tubes Processed at One Time: 2 long tubes formed into 4 short tubes

Machine Picture

IBC Tote Tube Production Line 9

IBC Tote Tube Production Line 10

Automatic tube pressing shrinking and double bending for IBC TOTES frame

essential information

Automatic pipe pressing shrinking and double bending for IBC TOTES frame is a special customized machine for IBC base pipe processing. It can achieve full automatic pipe feeding, pipe end shrinking, pipe hydraulic pressing, double head pipe bending, and automatic unloading process. No operator needed. It helps to greatly increase the production rate, and save manpower.

Key parameters

框尺寸: 1160x960mm

Production Efficiency: 20-25 seconds per piece

Pipe Diameter: 20-22mm

Forming Method: Hydraulic forming

Number of Forming Dies: 8

Pipes Processed per Cycle: 1

Frame Dimensions: 1160x960mm
