ISO DC Spot Welding Machine Automatic 2 Electrode For Hoop

ISO DC Spot Welding Machine Automatic 2 Electrode For Hoop

Automatic Spot Welding Machine

Hoop Spot Welding Machine

ISO Spot Welding Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-MF-100K

Contact Us
Request A Quote
ISO DC Spot Welding Machine Automatic 2 Electrode For Hoop
ISO DC Spot Welding Machine Automatic 2 Electrode For Hoop ISO DC Spot Welding Machine Automatic 2 Electrode For Hoop ISO DC Spot Welding Machine Automatic 2 Electrode For Hoop
Product Details
Product Name:
DC Spot Welding Machine Automatic 2-electrode Welding Machine For Hoop
Application:
Welding Of Metal Sheet Nuts
Size:
850x900x1850*mm
Weight:
450kg
Condition:
New
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Highlight:

Automatic Spot Welding Machine

,

Hoop Spot Welding Machine

,

ISO Spot Welding Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Good price HWASHI WL-CD-03K High Precision Capacitor Discharge Spot Welder Closed Loop Feedback for Medical Device Components online

HWASHI WL-CD-03K High Precision Capacitor Discharge Spot Welder Closed Loop Feedback for Medical Device Components

Get Best Price
Good price HWASHI WL-SV-20K Servo Controlled Precision Spot Welder Real-Time Force Monitoring Aerospace Fastener Assembly online

HWASHI WL-SV-20K Servo Controlled Precision Spot Welder Real-Time Force Monitoring Aerospace Fastener Assembly

Get Best Price
Good price HWASHI WL-DG-15K Digital Precision Spot Welder Real-Time Displacement Monitor Automotive Sensor Bracket Assembly online

HWASHI WL-DG-15K Digital Precision Spot Welder Real-Time Displacement Monitor Automotive Sensor Bracket Assembly

Get Best Price
Good price HWASHI WL-PJ-25K High Precision Projection Spot Welding Machine Proportional Valve Control Sheet Metal Assembly online

HWASHI WL-PJ-25K High Precision Projection Spot Welding Machine Proportional Valve Control Sheet Metal Assembly

Get Best Price
Contact Us
+8613380655800
marketing@hwashi.com
Contact Now
Product Description

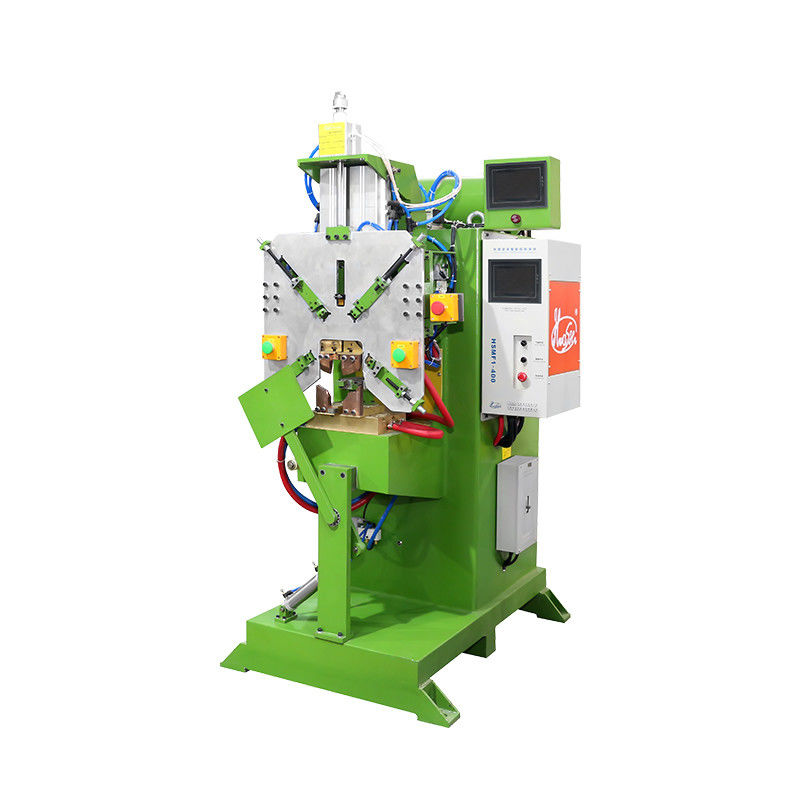

DC Spot Welding Machine Automatic 2-electrode welding machine for Hoop



​ISO DC Spot Welding Machine Automatic 2 Electrode For Hoop

Equipped with

1) Welding head for different product

2) Adopt two sets of 90 kva Medium Frequency DC welding powe . It adopts the latest generation of medium frequency inverter welding controller, it has many advantages such as short power-on time, high thermal efficiency, three-phase DC output, high working frequency and small transformer loss.

3) Double heads design

4) Tooling for holding of the hoop



Detailed Photos





ISO DC Spot Welding Machine Automatic 2 Electrode For Hoop





Tooling (Jig) to fix the hoop Customized welding head





ISO DC Spot Welding Machine Automatic 2 Electrode For Hoop





Welding Controller PLC Controller





SPECIFICATIONS

Model WL-MF-90Kx2
Input Power (V/φ) 380/3
Rated Power (KVA) 90 kvax2
Applicable Material Welding of hoop
Max Short Circuit Current (KA) 21
Electrode Force (KG) 1000
Electrode Stroke (MM) 100
Dimension(L*W*H) 1210mm*950mm*2000mm
Warranty 1 years

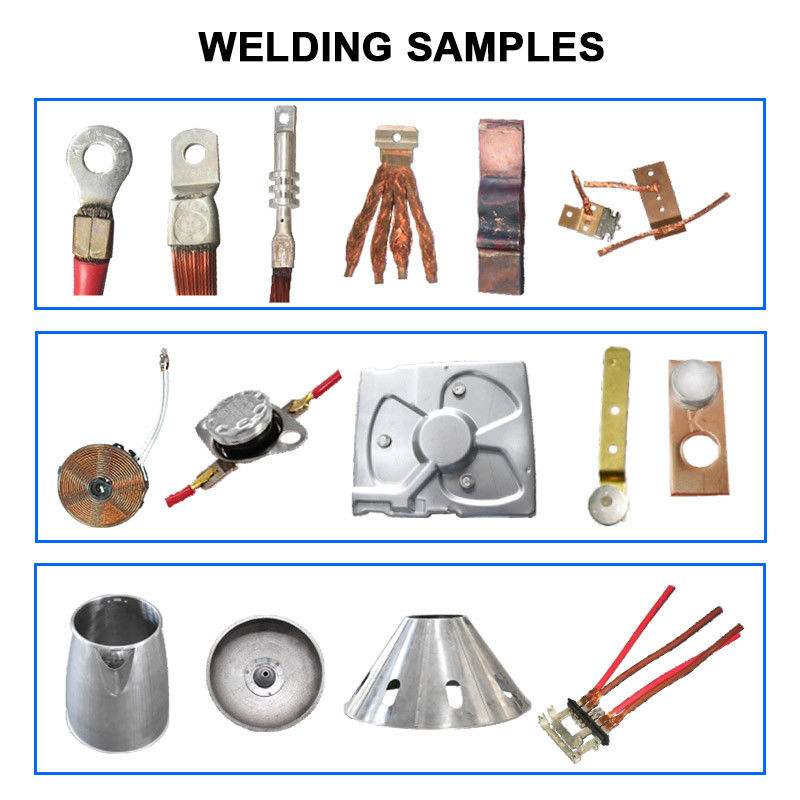

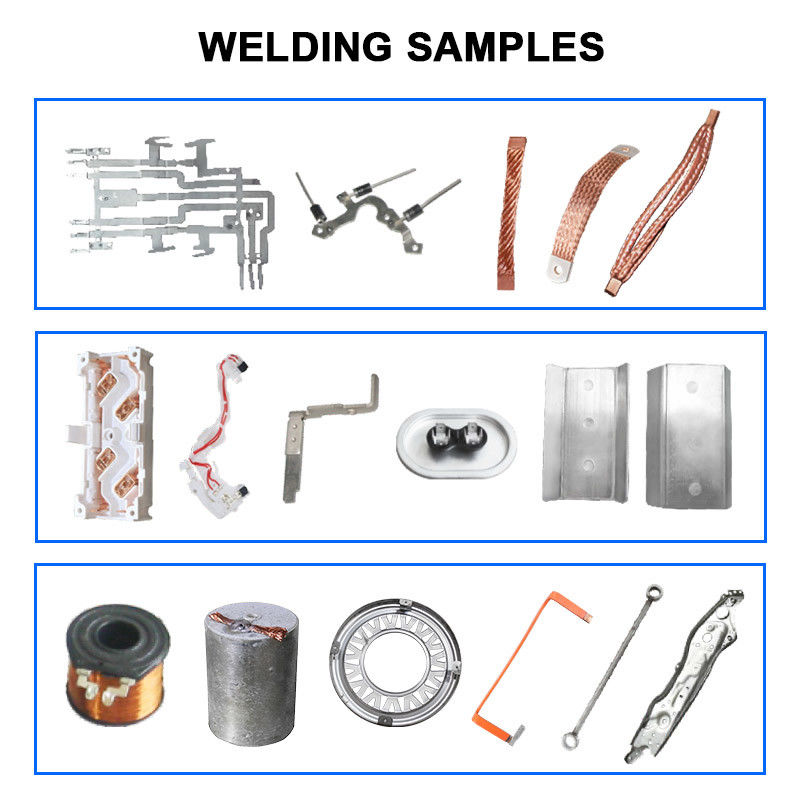

APPLICATION AND SAMPLES

ISO DC Spot Welding Machine Automatic 2 Electrode For Hoop



ISO DC Spot Welding Machine Automatic 2 Electrode For Hoop

ISO DC Spot Welding Machine Automatic 2 Electrode For HoopISO DC Spot Welding Machine Automatic 2 Electrode For Hoop
