China Supplier Automatic Welded Wire Mesh Machine Stainless Steel Wire Shelf Spot Welding Machine

China Supplier Automatic Welded Wire Mesh Machine Stainless Steel Wire Shelf Spot Welding Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-SQ-MF100K

Contact Us
Request A Quote
Product Details
Product Name:
China Supplier Automatic Welded Wire Mesh Machine Stainless Steel Wire Shelf Spot Welding Machine
Condition:
New
Warranty:
12 Months
Service Life:
8-10 Years
Application:
Welding Of Refrigerator Condenser
Weight:
2888kg
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
T/T, L/C
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Product Description

China Supplier Automatic Welded Wire Mesh Machine Stainless Steel Wire Shelf Spot Welding Machine

China Supplier Automatic Welded Wire Mesh Machine Stainless Steel Wire Shelf Spot Welding Machine 0


Description of China Supplier Automatic Welded Wire Mesh Machine Stainless Steel Wire Shelf Spot Welding Machine

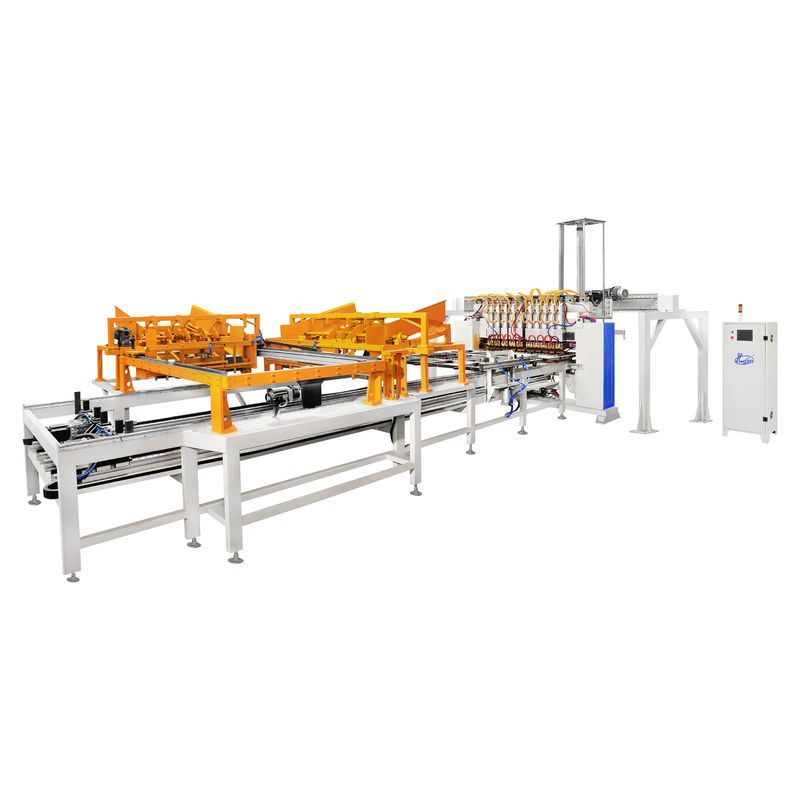

Refrigerator Wire Shelf Production Line Machine Steel Wire Mesh Spot Welding Machine is H-type wire mesh multi-head automatic welding machine. It adopts ten electrodes and equips with automatic feeding system. The wire will be dropped to the fixture automatically to achieve full automatic loading. After that it will automatically execute the feeding and welding. Its one-way and double-layer feeding device can move forward and back automatically to finish the welding and the welding distance can be set at random .It is suitable for the batch production of wire mesh with multiple-points welding.
The welding manner is one-way double-layer automatic stepping feeding with 10 welding heads. The effective welding width is 1200mm while the effective welding length is 1000mm. This machine is composed of main machine body, welding transformer, pneumatic drive device, upper and lower electrodes, automatic wire filling device, electrical control system, cooling system, and PLC operation control system.


China Supplier Automatic Welded Wire Mesh Machine Stainless Steel Wire Shelf Spot Welding Machine 1China Supplier Automatic Welded Wire Mesh Machine Stainless Steel Wire Shelf Spot Welding Machine 2

Intelligent welding control system
Automatic welding by inputting coordinate data of welding position, welding current and other data.
Welding Heads and Fixtures
Processing and design according to the drawings of each wire shelf product. (customized)

China Supplier Automatic Welded Wire Mesh Machine Stainless Steel Wire Shelf Spot Welding Machine 3China Supplier Automatic Welded Wire Mesh Machine Stainless Steel Wire Shelf Spot Welding Machine 4

Automatic Wire Filling System
You can put the precut straight wires into the hopper, then the wire filling machine will do the wire filling into the fixture automatically. It helps to increase the working efficiency and reduce labor force.
Automatic Double-layer Feeder
When one fixture is under welding process, the wire filling system will load the wires onto the other fixture at the same time. When finish welding, the feeder will automatically exchange the fixture. So the efficiency can be increased.

Design Concept of China Supplier Automatic Welded Wire Mesh Machine Stainless Steel Wire Shelf Spot Welding Machine

1.The second-generation intermediate frequency power supply is adopted, which is more power-saving, stable and has better welding effect.

2. PLC control. Human-machine interface operation to set parameters.

3.The welding head is designed with independent air pressure adjusting program.

4.The transmission part has been changed from chain to gear rack.

China Supplier Automatic Welded Wire Mesh Machine Stainless Steel Wire Shelf Spot Welding Machine 5



Parameter:

Input Power

Three-phase four-wire 440V±10% 50HZ

Rated Capacity

200KVA

Rated Duty-cycle

50%

Storage of Welding Models

32kinds

Effective Welding Width

1000mm(Adjustable)

Effective Welding Length

1300mm(Adjustable)



Application Range:

This equipment is suitable for welding Bondi tube condensers on water dispenser condensers, freezers, refrigerators and other refrigeration equipment.

China Supplier Automatic Welded Wire Mesh Machine Stainless Steel Wire Shelf Spot Welding Machine 6China Supplier Automatic Welded Wire Mesh Machine Stainless Steel Wire Shelf Spot Welding Machine 7

China Supplier Automatic Welded Wire Mesh Machine Stainless Steel Wire Shelf Spot Welding Machine 8China Supplier Automatic Welded Wire Mesh Machine Stainless Steel Wire Shelf Spot Welding Machine 9China Supplier Automatic Welded Wire Mesh Machine Stainless Steel Wire Shelf Spot Welding Machine 10
