Automatic Seam Welding Machine For Hotel Double Bowl Sink Process

Automatic Seam Welding Machine For Hotel Double Bowl Sink Process

seam welding process

Seam Welding Machine For Bowl Sink

Automatic Seam Welding Machine

Place of Origin:

China

Brand Name:

Hwashi

Certification:

CE,CCC,ISO

Model Number:

WL-FS

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI Automatic Moving Seam Welding Machine For Hotel Double Bowl Sink
Condition:
New
Abrasive Belt Width:
50mm
Welding Speed:
0.5-5m/min
Welding Material:
Carbon Steel/Stainless Steel
Weight:
300kg
Control System:
PLC
Welding Width:
5-20mm
Minimum Welding Thickness:
0.2mm
Voltage:
380V,2 Phase,50/60Hz
Machine Type:
Resistance Welding Machine
Service Life:
8-10 Years
Welding Mode:
Continuous/Intermittent
Duty Cycle Rate:
20%
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
T/T, L/C
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Product Description

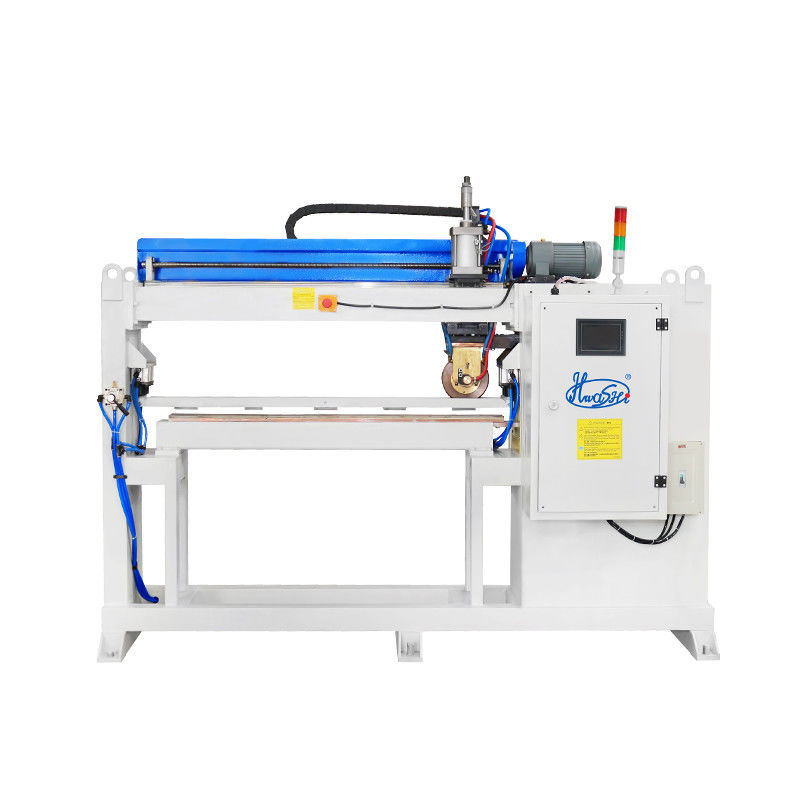

HWASHI Automatic Moving Seam Welding Machine For Hotel Double Bowl Sink

Automatic Seam Welding Machine For Hotel Double Bowl Sink Process 0

Product Introduction:

The seam (roll) welding special machine is the evolution of spot welder. It uses the roller electrode to replace the cylindrical electrode of spot welding and as the welding work piece moves between the rolling plates, the seal welding will generate weld nuggets which will overlap with each other so as to achieve welding effect. We adopts the AC converter type seam welding system with easy operation and stable welding. It can solve the disadvantages of the normal AC and MFDC welding power source.

Automatic Seam Welding Machine For Hotel Double Bowl Sink Process 1Automatic Seam Welding Machine For Hotel Double Bowl Sink Process 2Automatic Seam Welding Machine For Hotel Double Bowl Sink Process 3

Intelligent welding control syste

Intelligent Touch Screen Controller
Input and read welding parameters.

super hard copper alloy welding wheel

Made of excellent material processing, not afraid of high temperature, not afraid of wear and tear, good electrical conductivity.

Shape structure and welding method

Design the right machine shape and mold according tothe welding product and extended welding arms.

Automatic Seam Welding Machine For Hotel Double Bowl Sink Process 4

Automatic Seam Welding Machine For Hotel Double Bowl Sink Process 5

Welding Method of The Seam Welding Machine

Adopt standardized welding electrode. Special electrode molds and welding methods can also be customized according to the product specification.



Features of The Seam Welding Machine

Flexibility: Customizable to meet specific customer requirements, it can accommodate different sizes and shapes of wheel rim strips.

Strong Stability: High equipment stability enables long-term stable operation, reducing failures and downtime during production.

Reliability: Manufactured with high-quality materials and components, it has a long service life and high reliability, reducing maintenance costs and downtime.

Energy Efficiency and Environmental Protection: Energy-saving power systems and environmentally friendly materials are used in the design and manufacturing process, meeting the requirements of sustainable development in modern industry.



Specification

Model WL-FS-75K WL-FS-100 WL-FS-125 WL-FS-160 WL-FS-200 WL-FS-250
Rated Capacity KVA 75 100 125 160 200 250
Voltage V 380*2 380*2 380*2 380*2 380*2 380*2
Duty Cycle Rate% 50 50 50 50 50 50
No Load Voltage V 1.08-7.02 1.12-7.38 1.26-8 1.3-8.5 2.2-9.0 1.3-9.7
Max. Welding Thickness mm 1.2+1.2 1.5+1.5 1.8+1.8 2+2 2.5+2.5 2.5+3
Upper Wheel Stroke mm 20-80 20-80 30-100 30-100 30-100 30-100
Welding Speed m/min 0.6-4 0.5-3.2 0.5-2.8 0.5-1.5 0.5-1.2 0.5-1.2
Max. Pressure KN 6.3 6.3 8.6 8.6 8.6 8.6
Compressed Air Mpa 0.5 0.5 0.6 0.6 0.6 0.6
Cooling Water Consumption L/h 820 960 1080 1080 1080 1080

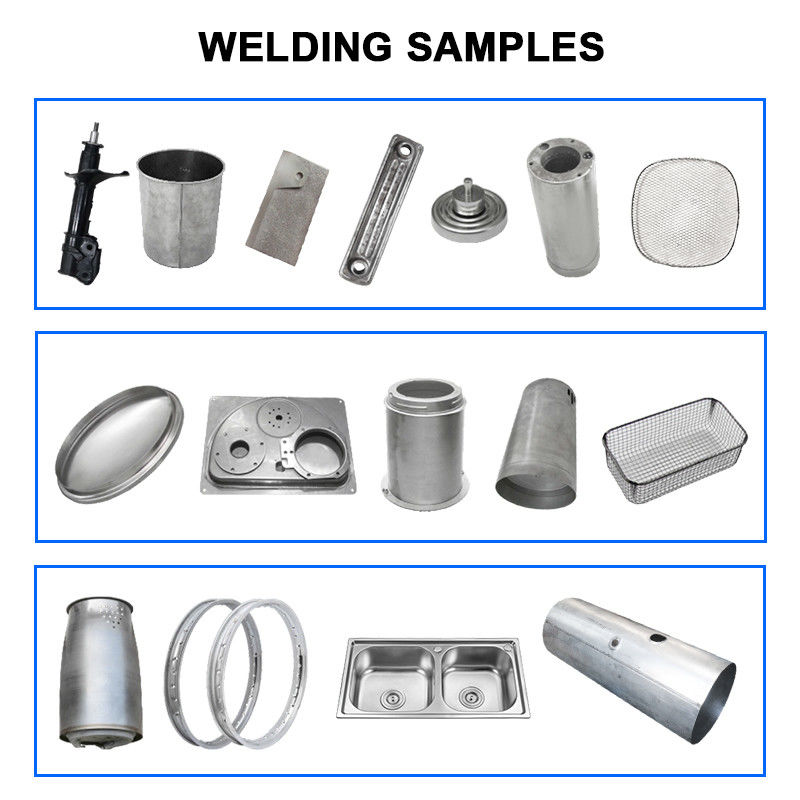

Application and samples

Automatic Seam Welding Machine For Hotel Double Bowl Sink Process 6



We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.



Automatic Seam Welding Machine For Hotel Double Bowl Sink Process 7Automatic Seam Welding Machine For Hotel Double Bowl Sink Process 8

Application Industry of The Seam Welding Machine

Suitable for the welding of sheet, barrel body, box and sealed thin-wall container with different material, such as carbon steel, stainless steel, titanium, nickel and other materials. For fuel tank of automobile, damper of motorcycle, detector of temperature controller, nickel strap of battery, oil heater, power capacitor, sieve iron basket, water pump manufacturing, tin making, coopery industry, etc.
