CNC X Y Axis Longitudinal Seam Welding Machine For Stainless Steel Flange

CNC X Y Axis Longitudinal Seam Welding Machine For Stainless Steel Flange

Longitudinal Seam Welding Machine

CNC Seam Welding Machine

CNC Seam Welder

Place of Origin:

China

Brand Name:

Hwashi

Certification:

CE,CCC,ISO

Model Number:

WL-FS

Contact Us
Request A Quote
Product Details
Product Name:
Hwashi CNC X,Y Axis Square Tank Cover Seam Welding Machine Welding For Stainless Steel Flange
Condition:
New
Abrasive Belt Width:
50mm
Welding Speed:
0.5-5m/min
Welding Material:
Carbon Steel/Stainless Steel
Weight:
300kg
Control System:
PLC
Welding Width:
5-20mm
Minimum Welding Thickness:
0.2mm
Voltage:
380V,2 Phase,50/60Hz
Machine Type:
Resistance Welding Machine
Service Life:
8-10 Years
Welding Mode:
Continuous/Intermittent
Duty Cycle Rate:
20%
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
T/T, L/C
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Product Description

Hwashi CNC X,Y Axis Square Tank Cover Seam Welding Machine Welding For Stainless Steel Flange

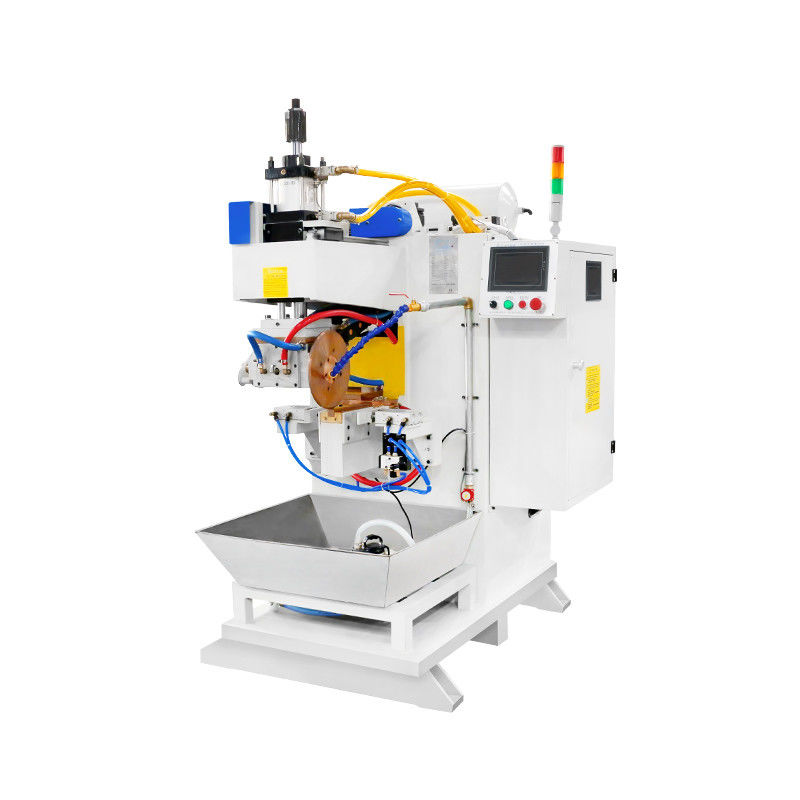

CNC X Y Axis  Longitudinal Seam Welding Machine For Stainless Steel Flange 0

Product Introduction:

CNC X, Y Axis Square Tank Cover Seam Welding Machine utilizes the seam welding principle to replace the spot welding electrode with circle welding wheel. Adopt the rotation table for work piece, as long as inputting the data like coordinate data of the position of welding products, welding current, etc., then after turning on the machine, the welding track will automatically finish welding product within the preset procedure. The workers only need to put the work piece onto certain place and then take it away when finishing welding. Adopt AC power source of welding and large flat platform of lower electrode. Use the servo motor to drive X axis and Y axis to operate under the preset program. It could store 16 sets of welding models at most.



According to the stored position of welding seam, the welding product will move horizontally along the X direction and the moving area should be no more than 500mm. The welding electrode will be designed to move vertically along the Y direction and the moving area should be no more than 300mm.Suitable for welding the tank within the range of 500x300mm. Welding material thickness is 0.5-1.5mm.Total welding thickness is 1-3mm.



CNC X Y Axis  Longitudinal Seam Welding Machine For Stainless Steel Flange 1CNC X Y Axis  Longitudinal Seam Welding Machine For Stainless Steel Flange 2

Intelligent welding control syste

Intelligent Touch Screen Controller
Input and read welding parameters.

Shape structure and welding method

Design the right machine shape and mold according tothe welding product and extended welding arms.



CNC X Y Axis  Longitudinal Seam Welding Machine For Stainless Steel Flange 3



CNC X Y Axis  Longitudinal Seam Welding Machine For Stainless Steel Flange 4



Welding Method of The Seam Welding Machine

Adopt standardized welding electrode. Special electrode molds and welding methods can also be customized according to the product specification.



Features of The Seam Welding Machine

Flexibility: Customizable to meet specific customer requirements, it can accommodate different sizes and shapes of steel wire baskets.

Strong Stability: The equipment has high stability, enabling long-term stable operation and reducing failures and downtime during production.

Reliability: Manufactured with high-quality materials and components, it has a long service life and high reliability, reducing maintenance costs and downtime.

Energy Efficiency and Environmental Protection: Energy-saving power systems and environmentally friendly materials are used in the design and manufacturing process, meeting the requirements of sustainable development in modern industry.



Specification

Model WL-FS-75K WL-FS-100 WL-FS-125 WL-FS-160 WL-FS-200 WL-FS-250
Rated Capacity KVA 75 100 125 160 200 250
Voltage V 380*2 380*2 380*2 380*2 380*2 380*2
Duty Cycle Rate% 50 50 50 50 50 50
No Load Voltage V 1.08-7.02 1.12-7.38 1.26-8 1.3-8.5 2.2-9.0 1.3-9.7
Max. Welding Thickness mm 1.2+1.2 1.5+1.5 1.8+1.8 2+2 2.5+2.5 2.5+3
Upper Wheel Stroke mm 20-80 20-80 30-100 30-100 30-100 30-100
Welding Speed m/min 0.6-4 0.5-3.2 0.5-2.8 0.5-1.5 0.5-1.2 0.5-1.2
Max. Pressure KN 6.3 6.3 8.6 8.6 8.6 8.6
Compressed Air Mpa 0.5 0.5 0.6 0.6 0.6 0.6
Cooling Water Consumption L/h 820 960 1080 1080 1080 1080

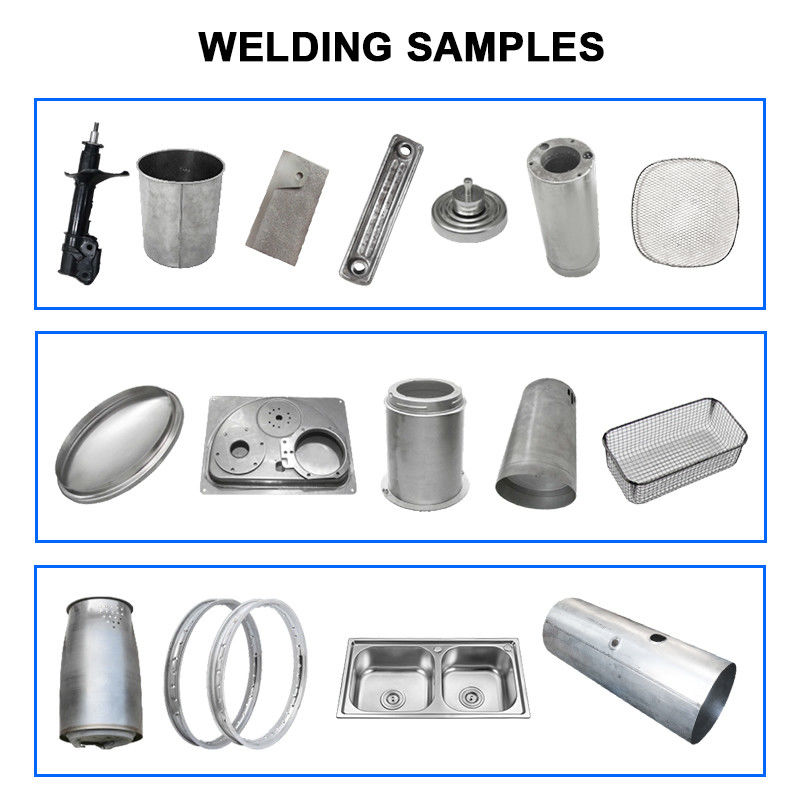

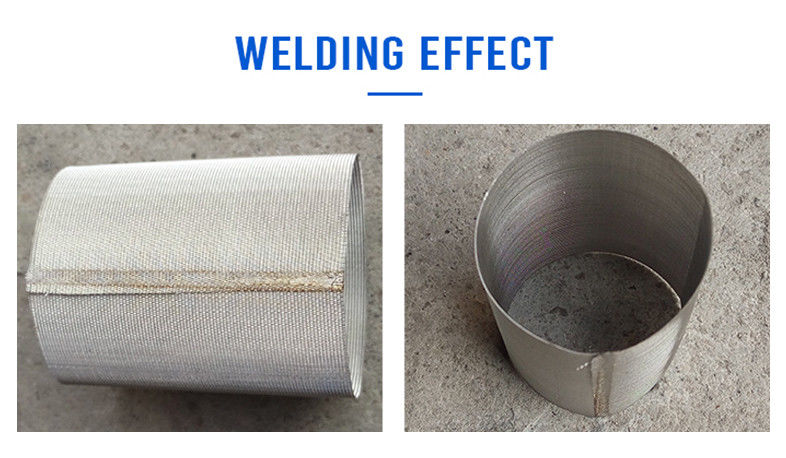

Application and samples

CNC X Y Axis  Longitudinal Seam Welding Machine For Stainless Steel Flange 5



We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.



CNC X Y Axis  Longitudinal Seam Welding Machine For Stainless Steel Flange 6CNC X Y Axis  Longitudinal Seam Welding Machine For Stainless Steel Flange 7

Application Industry of The Seam Welding Machine

Suitable for the welding of sheet, barrel body, box and sealed thin-wall container with different material, such as carbon steel, stainless steel, titanium, nickel and other materials. For fuel tank of automobile, damper of motorcycle, detector of temperature controller, nickel strap of battery, oil heater, power capacitor, sieve iron basket, water pump manufacturing, tin making, coopery industry, etc.
