100KVA Semi-Automatic Sink Seam Welder Machine For 304 Stainless Steel

100KVA Semi-Automatic Sink Seam Welder Machine For 304 Stainless Steel

100KVA Seam Welder

Semi-Automatic Sink Seam Welder

Sink Seam Welder Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-FS-MF160K

Contact Us
Request A Quote
Product Details
Product Name:
Hwashi Cheap Price 100KVA Semi-Automatic Sink Seam Welder Machine For 304 Stainless Steel
Grinding Wheel Diameter:
50mm
Abrasive Belt Width:
50mm
A Axle Moving Range:
360 Angle
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T, MoneyGram
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Product Description

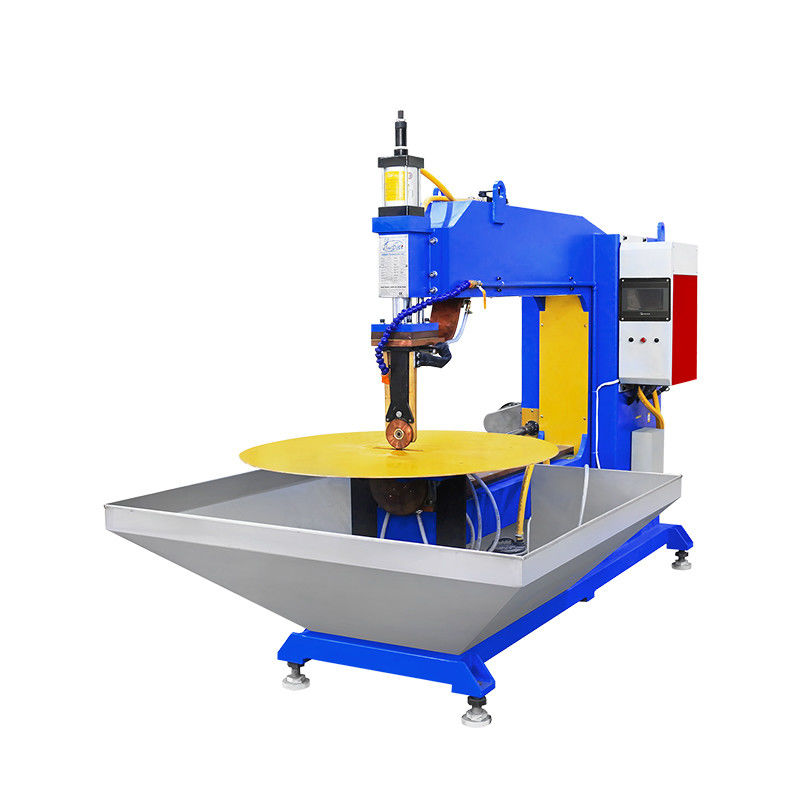

Hwashi Cheap Price 100KVA Semi-Automatic Sink Seam Welder Machine for 304 Stainless Steel



100KVA Semi-Automatic Sink Seam Welder Machine For 304 Stainless Steel 0

Description of the Sink Seam Welder Machine:
The sink seam welding machine represents a significant advancement from traditional spot welders. It utilizes roller electrodes in lieu of cylindrical electrodes, allowing for a more efficient welding process. As the workpiece passes between the rolling plates, the seam welding mechanism generates weld nuggets that seamlessly overlap, ensuring a robust welding effect. AC pulse current is employed in this process. Roll welding finds extensive application in the fabrication of lightweight sealed containers such as oil drums, cans, heating radiators, aircraft and fuel tanks, as well as in the production of rockets and missiles.

Features of the Sink Seam Welder Machine:

This machine boasts a sleek design, ensuring both aesthetic appeal and stable welding performance.
Equipped with an intelligent micro-computer controller, it offers the flexibility to set various welding specifications. The multi-segment electrification method facilitates soft start and end welding, while the subprime constant current feedback control mode automatically compensates for voltage fluctuations, ensuring consistent welding current.
Its high-power welding transformer features comprehensive water cooling, enabling efficient welding of diverse products and guaranteeing welding quality.
Widely applicable to various stainless steel products, this welding machine offers multifunctional utility.

Technical Data Of The Sink Seam Welder Machine

Model WL-FS-MF160K
Input Power Three-phase 380V±10% 50Hz
Rated Capacity 160KVA
Rated Duty Cycle 50%
Secondary Voltage 11V
Maximum Secondary Circuit Current 32000A
Insulation Grade Of Welding Transformer Grade F
Welding Wheel Diameter 100-120mm
Welding Wheel Width 3-5mm
Welding Material Thickness 0.5-1.2mm
Welding Arm Length 500-1000mm (customized)
Welding Wheel Speed 1800-4000mm/min adjustable

Applicaion Area Of The Sink Seam Welder Machine
Suitable for sink welding within the range of 1600mmx600mm (adjustable according to your needs)

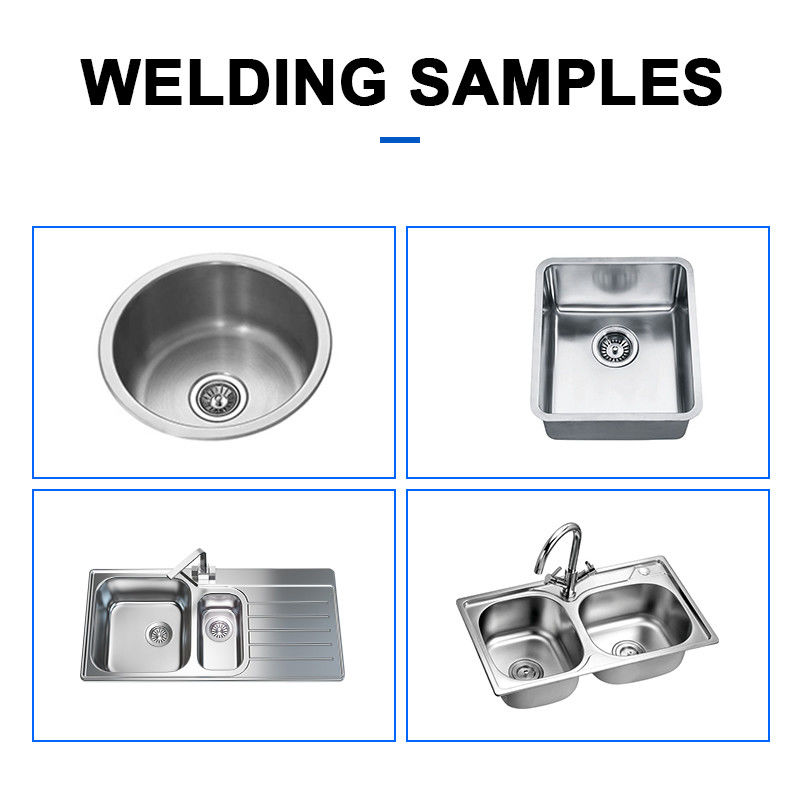

Samples Of The Sink Seam Welder Machine

       100KVA Semi-Automatic Sink Seam Welder Machine For 304 Stainless Steel 1

Machines Related to The CNC Sink Edges Grinding and Polishing Machine

Description Of Automatic Seam Welding Machine
This automatic seam welding machine replaces the spot welding electrode with circle welding wheel, which is high efficiency and high quality. It basically achieves automation and completely meet the intelligent requirement of human-machine conversation.

 100KVA Semi-Automatic Sink Seam Welder Machine For 304 Stainless Steel 2

Japan Mitsubishi CNC Control System
Adopts three sets of Japan Mitsubishi servo motor to control axis X (movement of sink mould), axis Y (vertical movement of welding wheel), and axis A (360° rotation of welding wheel).

   100KVA Semi-Automatic Sink Seam Welder Machine For 304 Stainless Steel 3

Auto Moving Welding Table

Specially designed electrode large table, more stable conductivity, to ensure the effectiveness of welding.

100KVA Semi-Automatic Sink Seam Welder Machine For 304 Stainless Steel 4

Big Copper Flat Table Electrode and Fixture
We will design the fixture according to the design of your sink bowl.
Different sizes may require different fixtures. Be able to do welding of single bowl, double-bowl, or three-bowl product.

100KVA Semi-Automatic Sink Seam Welder Machine For 304 Stainless Steel 5

Welding electrode

Synchronized operation of welding electrodes and Moving Welding Table

Automatic welding of sink, Uniform and beautiful welding seam.



Technical Parameter Of The Seam Welding Machine

Item Data
Control Mode PLC
Effective Welding Length 1600mm
Effective Welding Width 600mm
Table Size 1600x600mm
Feeder Driving Force Servo System
Max. Running Speed 300mm/s(without welding)
Welding Speed 25-35mm/s
Fixture Driving Force Cylinder
Machine Covering Space L5000mmxW3000mm
Rated Capacity 160KVA
Duty Cycle Rated 50%
Frequency 1000HZ
Control Heating Adjusting Range 15%~99%
Max. Output Voltage DC9.8V
Secondary Max. Short Circuit Current 23KA
Time Adjustment 0~999ms
Control Mode PLC
Effective Welding Length 1600mm
Effective Welding Width 600mm
Table Size 1600x600mm
Feeder Driving Force Servo System
Max. Running Speed 300mm/s(without welding)
Welding Speed 25-35mm/s
Fixture Driving Force Cylinder
Machine Covering Space L5000mmxW3000mm
Rated Capacity 160KVA
Duty Cycle Rated 50%
Frequency 1000HZ
Control Heating Adjusting Range 15%~99%
Max. Output Voltage DC9.8V
Secondary Max. Short Circuit Current 23KA
Time Adjustment 0~999ms



Application Of The Seam Welding Machine

Welding and grinding different shapes of kitchen sink.



Samples Of The Seam Welding Machine

100KVA Semi-Automatic Sink Seam Welder Machine For 304 Stainless Steel 6

100KVA Semi-Automatic Sink Seam Welder Machine For 304 Stainless Steel 7100KVA Semi-Automatic Sink Seam Welder Machine For 304 Stainless Steel 8100KVA Semi-Automatic Sink Seam Welder Machine For 304 Stainless Steel 9
