Industrial Seam Welder Equipment Manual Type For Stainless Steel Kitchen Sing Sink Bowl

Industrial Seam Welder Equipment Manual Type For Stainless Steel Kitchen Sing Sink Bowl

seam welding equipment

industrial seam welder

seam welding machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-FS-MF160K

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI Stainless Steel Sink CNC Sink Edges Grinding And Polishing Machine
Grinding Wheel Diameter:
50mm
Abrasive Belt Width:
50mm
A Axle Moving Range:
360 Angle
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T, MoneyGram
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

HWASHI High Quality Manual Type Sink Seam Welding Machine For Tainless Steel Kitchen Sing Sink Bowl

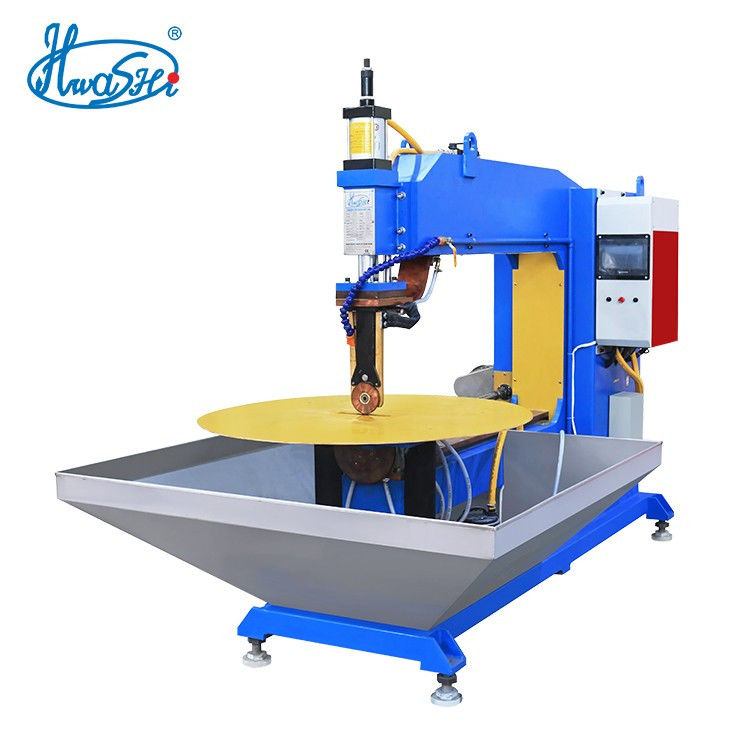

Industrial Seam Welder Equipment Manual Type  For Stainless Steel Kitchen Sing Sink Bowl 0

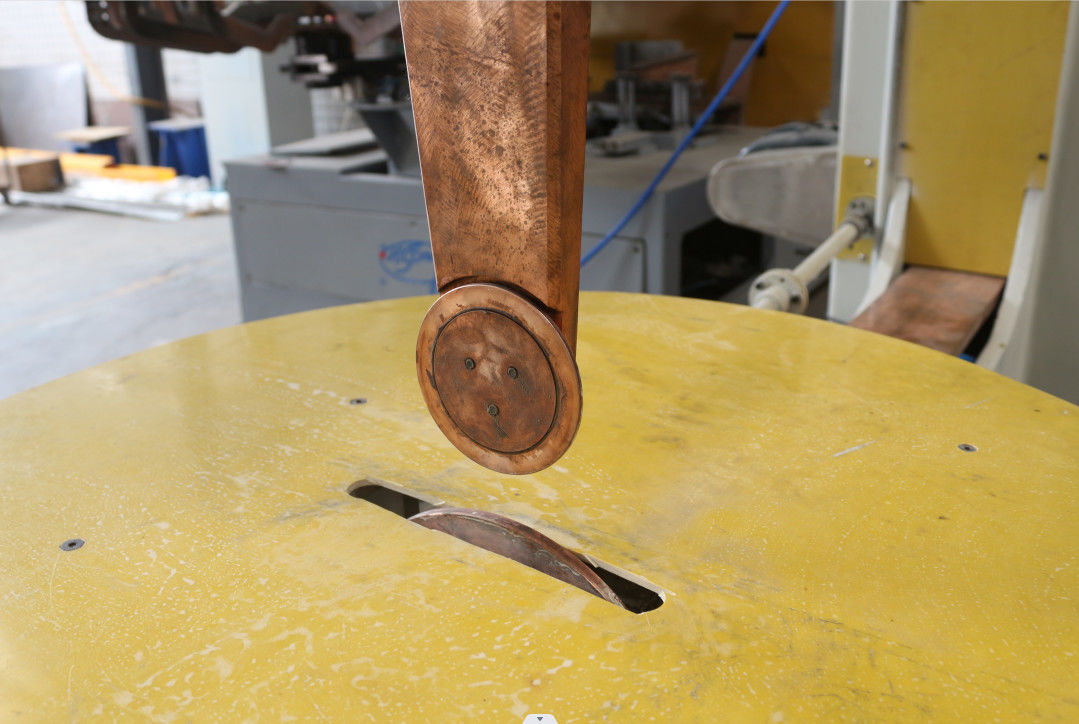

Description Of The Sink Seam Welder Machine

The sink seam welding machine is the evolution of spot welder. It uses the roller electrode to replace the cylindrical electrode of spot welding and as the welding work piece moves between the rolling plates, the seal welding will generate weld nuggets which will overlap with each other so as to achieve welding effect. AC pulse current will be adopted. Roll welding is widely applied to light gauge welding of sealed container of oil drum, can, heating radiator, airplane and fuel tank, rocket and missile.

Features Of The Sink Seam Welder Machine

1.This machine is of reasonable design, beautiful appearance, stable welding performance.

2.It adopts intelligent micro-computer controller which can set different kinds of welding specification. Multi-segment electrification method has the functions of soft start welding and ending welding.It adopts subprime constant current feedback control mode which will do auto compensation when the voltage is unsteady in order to ensure the stable welding current.
3.It adopts high power welding transformer with all-round water cooling, which can complete different kinds of product's welding efficiently to guarantee welding quality.
4.This welding machine is widely applied to various kinds of stainless steel products and it can achieve multifunction usage.

Technical Data Of The Sink Seam Welder Machine

Model WL-FS-MF160K
Input Power Three-phase 380V±10% 50Hz
Rated Capacity 160KVA
Rated Duty Cycle 50%
Secondary Voltage 11V
Maximum Secondary Circuit Current 32000A
Insulation Grade Of Welding Transformer Grade F
Welding Wheel Diameter 100-120mm
Welding Wheel Width 3-5mm
Welding Material Thickness 0.5-1.2mm
Welding Arm Length 500-1000mm (customized)
Welding Wheel Speed 1800-4000mm/min adjustable

Applicaion Area Of The Sink Seam Welder Machine
Suitable for sink welding within the range of 1600mmx600mm (adjustable according to your needs)

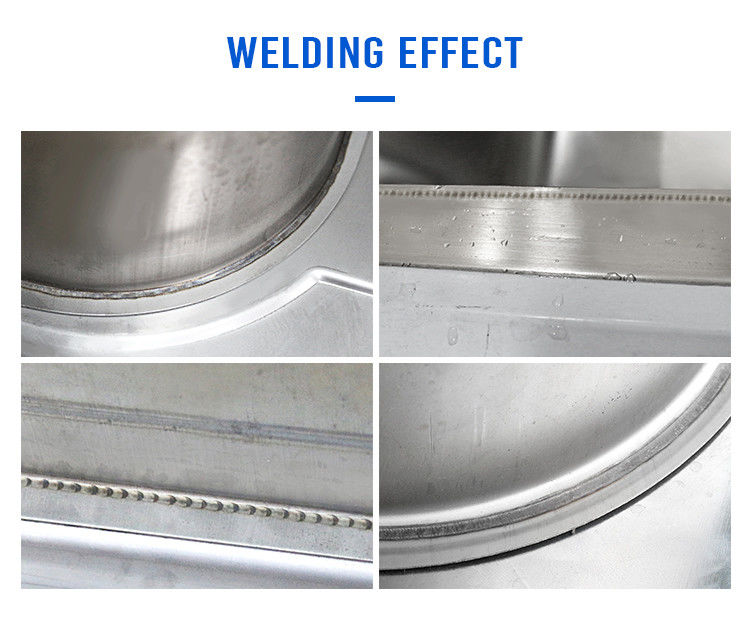

Samples Of The Sink Seam Welder Machine

       Industrial Seam Welder Equipment Manual Type  For Stainless Steel Kitchen Sing Sink Bowl 1

Machines Related to The CNC Sink Edges Grinding and Polishing Machine

Description Of Automatic Seam Welding Machine
This automatic seam welding machine replaces the spot welding electrode with circle welding wheel, which is high efficiency and high quality. It basically achieves automation and completely meet the intelligent requirement of human-machine conversation.

 Industrial Seam Welder Equipment Manual Type  For Stainless Steel Kitchen Sing Sink Bowl 2

Japan Mitsubishi CNC Control System
Adopts three sets of Japan Mitsubishi servo motor to control axis X (movement of sink mould), axis Y (vertical movement of welding wheel), and axis A (360° rotation of welding wheel).

   Industrial Seam Welder Equipment Manual Type  For Stainless Steel Kitchen Sing Sink Bowl 3

Auto Moving Welding Table

Specially designed electrode large table, more stable conductivity, to ensure the effectiveness of welding.

Industrial Seam Welder Equipment Manual Type  For Stainless Steel Kitchen Sing Sink Bowl 4

Big Copper Flat Table Electrode and Fixture
We will design the fixture according to the design of your sink bowl.
Different sizes may require different fixtures. Be able to do welding of single bowl, double-bowl, or three-bowl product.

Industrial Seam Welder Equipment Manual Type  For Stainless Steel Kitchen Sing Sink Bowl 5

Welding electrode

Synchronized operation of welding electrodes and Moving Welding Table

Automatic welding of sink, Uniform and beautiful welding seam.



Technical Parameter Of The Seam Welding Machine

Item Data
Control Mode PLC
Effective Welding Length 1600mm
Effective Welding Width 600mm
Table Size 1600x600mm
Feeder Driving Force Servo System
Max. Running Speed 300mm/s(without welding)
Welding Speed 25-35mm/s
Fixture Driving Force Cylinder
Machine Covering Space L5000mmxW3000mm
Rated Capacity 160KVA
Duty Cycle Rated 50%
Frequency 1000HZ
Control Heating Adjusting Range 15%~99%
Max. Output Voltage DC9.8V
Secondary Max. Short Circuit Current 23KA
Time Adjustment 0~999ms
Control Mode PLC
Effective Welding Length 1600mm
Effective Welding Width 600mm
Table Size 1600x600mm
Feeder Driving Force Servo System
Max. Running Speed 300mm/s(without welding)
Welding Speed 25-35mm/s
Fixture Driving Force Cylinder
Machine Covering Space L5000mmxW3000mm
Rated Capacity 160KVA
Duty Cycle Rated 50%
Frequency 1000HZ
Control Heating Adjusting Range 15%~99%
Max. Output Voltage DC9.8V
Secondary Max. Short Circuit Current 23KA
Time Adjustment 0~999ms



Application Of The Seam Welding Machine

Welding and grinding different shapes of kitchen sink.



Samples Of The Seam Welding Machine

Industrial Seam Welder Equipment Manual Type  For Stainless Steel Kitchen Sing Sink Bowl 6

Industrial Seam Welder Equipment Manual Type  For Stainless Steel Kitchen Sing Sink Bowl 7Industrial Seam Welder Equipment Manual Type  For Stainless Steel Kitchen Sing Sink Bowl 8Industrial Seam Welder Equipment Manual Type  For Stainless Steel Kitchen Sing Sink Bowl 9
