Automatic Double Head Seam Welding Machine For Oil Tank

Automatic Double Head Seam Welding Machine For Oil Tank

Double Head Seam Welding Machine

Seam Welding Machine for Oil Tank

Automatic Seam Welder

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE,CCC,ISO

Model Number:

WL-FS-200K

Contact Us
Request A Quote
Product Details
Key Selling Points:
High Efficiency
Condition:
New
Application:
Suitable For Different Size Of Oil Tank And Water Tanks.
Weight:
According To Your Product
Control System:
PLC
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
T/T, L/C
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

HWASHI Automatic Double Head Seam Welding Machine for Oil Tank

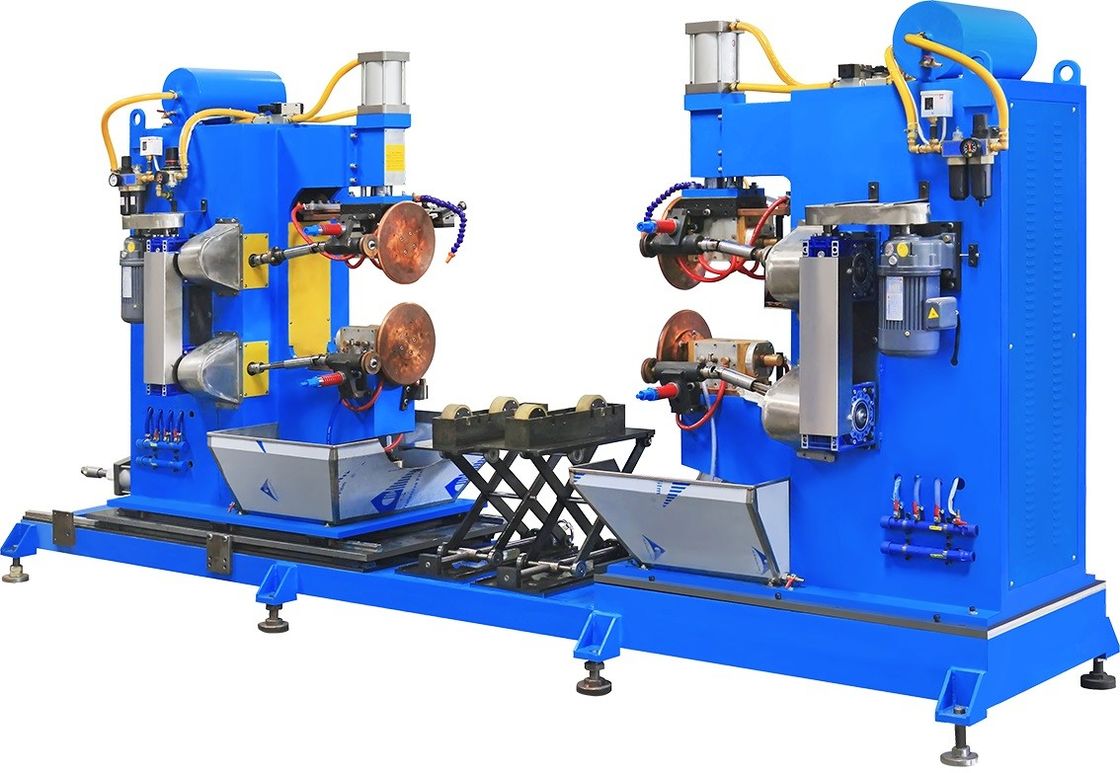

Automatic Double Head Seam Welding Machine For Oil Tank 0

Description Of The  Double Head Seam Welding Machine

When welding, welding pressure, between two welding wheel spin welding wheel drives the weldment and electricity, welding current by welding and local heating, forming successively overlapping to form a continuous weld joint and realize the permanent welding.Light reaction for casing, such as automobile, motorcycle fuel tank; Barrel, such as cans, and sheet forming artifacts, such as wheels, seam welding of muffler, radiator, etc.



Features Of The Double Head Seam Welding Machine

1. Adopt intelligent microcomputer single piece controller which achieve pure digital setting. Online computer programming, LED digital display, stable performance, convenient modification of the program online.

2. Adopt intelligent microcomputer control welding system. When the voltage fluctuates, it will compensate the welding current automatically to ensure the stability of welding.

3. Adopt digital circuit control; select the components from famous factories in the world to ensure the equipment could operate steadily in the long run.

4. Adopt SEMIKRON from West Germany, IXYS and IR silicon controlled from United States. High precision, long operating life, achieve high stability control of the magnitude of current.

5. Welding mold and the connection of the whole machine uses the mosaic connection. Easy to be assembled and disassembled.

6. AC pulse, secondary rectifying and three-phase medium frequency type of welding power source are available.



Technical Data Of The Double Head Seam Welding Machine

Model WL-FS-200K WL-FS-MF160K
Input Voltage 380V±10% 50Hz 380V±10% 50Hz
Input Power 200KW 160KW
Max Short Circuit Current 38000A 40000A
Rated Duty Cycle Rate 25% 50%
Welding Stored Models 16 types 101 types
Electrode Pressure 9kN(I),1.8kN(II) 9kN(I),1.8kN(II)
Rated Bleed Pressure 0.6MPa 0.6MPa
Gas Consumption 5m3/h 5m3/h
Water Source Pressure 0.2Mpa 0.2Mpa
Cooling Water Consumption 200L/H 200L/H
Welding Wheel Diameter 200mm 200mm
Welding Wheel Width 3mm 3mm
Welding Wheel Rotate Speed 800-4000mm/min (adjustable) 800-4000mm/min (adjustable)
Welding Wheel Throat Depth Distance 1000mm 1000mm
Upper and Lower Welding Wheel Distance 100mm 100mm
Feeding Rack Rotate Speed 500-1000mm/min (adjustable) 500-1000mm/min (adjustable)

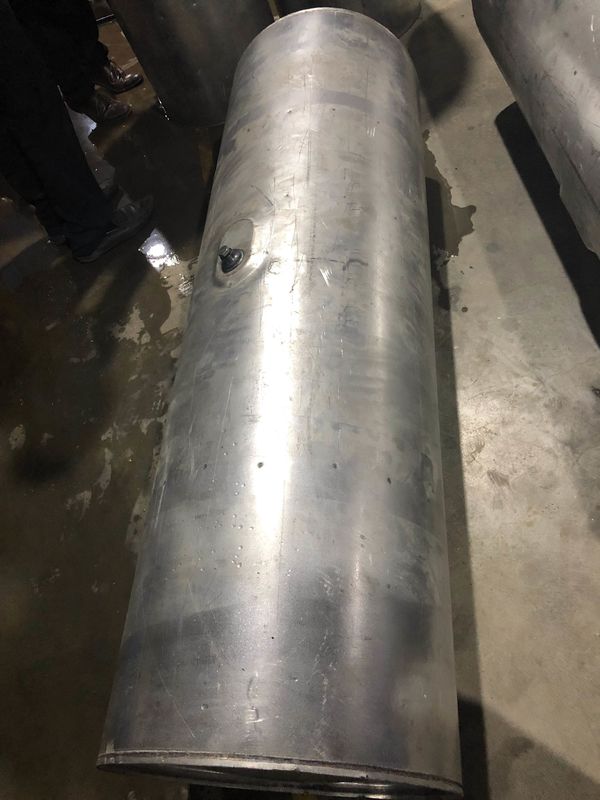

Applications And Samples Of The Double Head Seam Welding Machine

The double head seam welding machine is widely applied to welding of differnt size of oil tanks, sealed container of oil drum, can, heating radiator, airplane and fuel tank, rocket and missile. Can customzied accoridng to your product size and requirement.

Automatic Double Head Seam Welding Machine For Oil Tank 1Automatic Double Head Seam Welding Machine For Oil Tank 2Automatic Double Head Seam Welding Machine For Oil Tank 3
