Seam Welder For Sale Intelligent Controller

Seam Welder For Sale Intelligent Controller

seam welder for sale

seam welder

weld seam machine

Place of Origin:

China

Brand Name:

Hwashi

Certification:

CE,CCC,ISO

Model Number:

WL-FS-MF50K

Contact Us
Request A Quote
Product Details
Key Selling Points:
High Efficiency
Condition:
New
Application:
Fry Basket
Weight:
Ccording To Your Product
Control System:
PLC
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
T/T, L/C
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
HWASHI High Quality Seam Welding Machine Nickle Seam Welder WL-FS-MF50K With Intelligent Controller

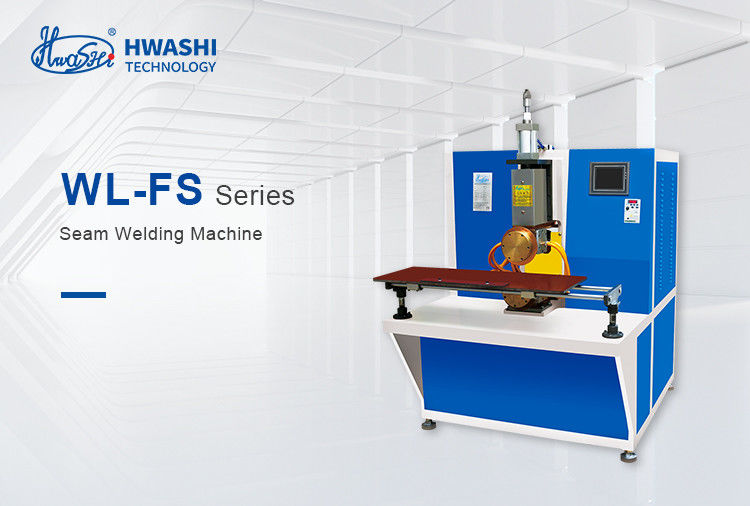

Seam Welder For Sale Intelligent Controller 0
Description Of The Nickle Seam Welding Machine
The nickle seam welding machine is the evolution of spot welder. It uses the roller electrode to replace the cylindrical electrode of spot welding and as the welding work piece moves between the rolling plates, the seal welding will generate weld nuggets which will overlap with each other so as to achieve welding effect. AC pulse current or amplitude modulation current will be adopted, but three-phase medium frequency DC are also available.

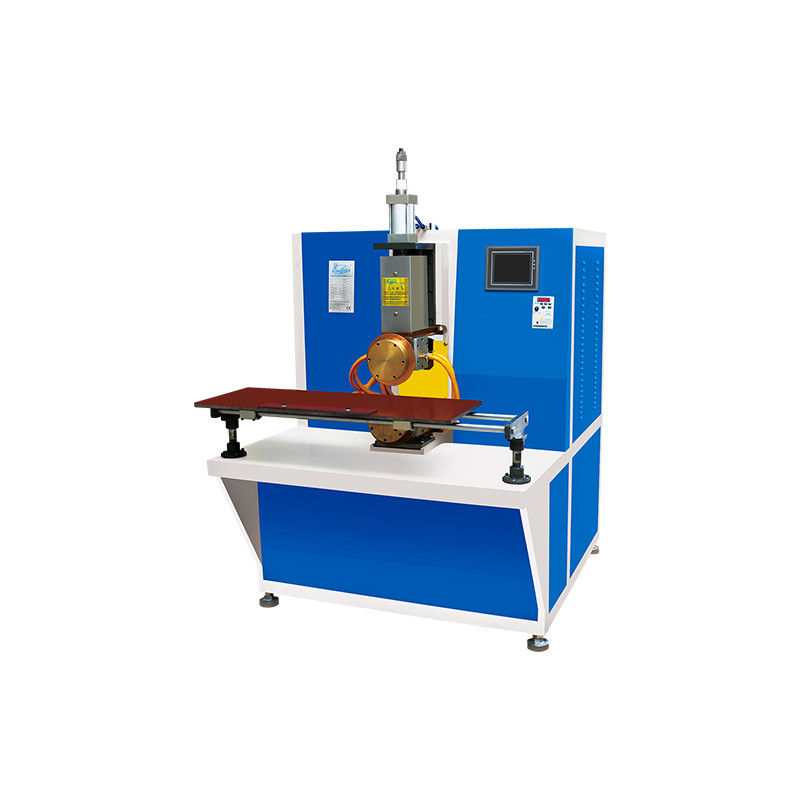

Seam Welder For Sale Intelligent Controller 1

Intelligent Touch Screen
Controller Input and read welding parameters.



Seam Welder For Sale Intelligent Controller 2 Super hard copper alloy welding wheel
Made of excellent material processing, not afraid of high temperature, not afraid of wear and tear, good electrical conductivity.



Features Of The Nickle Seam Welding Machine
1. This machine is of reasonable design, beautiful appearance, stable welding performance.
2. It adopts intelligent micro-computer controller which can set different kinds of welding specification. Multi-segment electrification method has the functions of soft start welding and ending welding.It adopts subprime constant current feedback control mode which will do auto compensation when the voltage is unsteady in order to ensure the stable welding current.
3. It adopts high power welding transformer with all-round water cooling, which can complete different kinds of product’s welding efficiently to guarantee welding quality.
4. This welding machine is widely applied to various kinds of stainless steel products and it can achieve multifunction usage.

Technical Data Of The Nickle Seam Welding Machine

Model WL-FS-MF50K
Input Voltage Three-phase 380V±10% 50Hz
Input Power 50KVA
Secondary Max Short Circuit Current 18000A
Welding Wheel Rotating Speed 800-4000mm/min (adjustable)
Upper Welding Wheel Throat Depth Distance 400mm
Lower Welding Wheel Throat Depth Distance 400mm
Upper and Lower Welding Wheel Distance 50mm
Air Pressure 0.6MPa
Gas Consumption 10m3/h
Water Pressure 0.2Mpa
Water Temperature 10-20℃

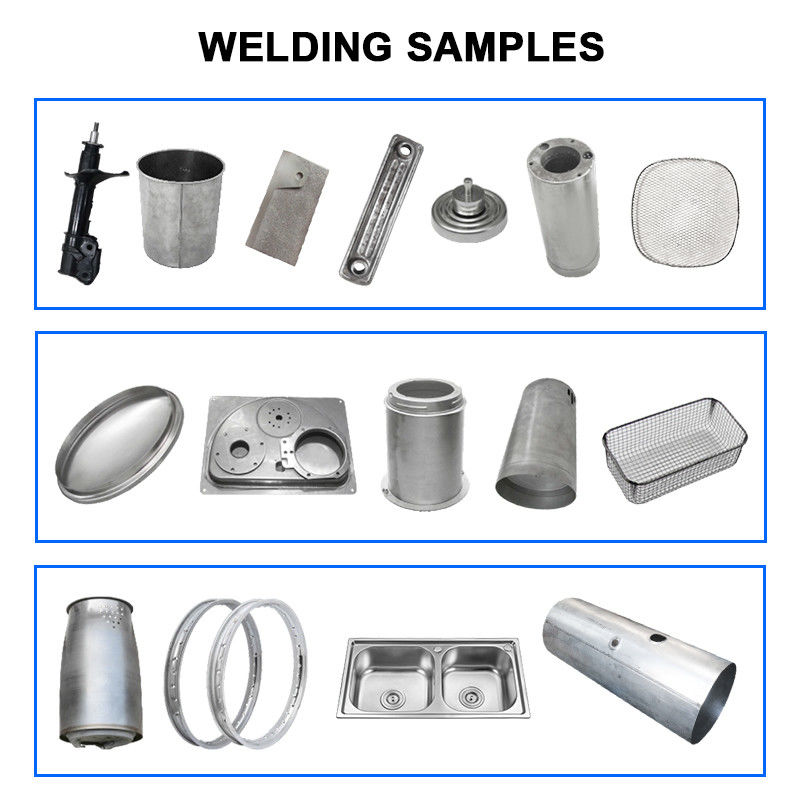

Application And Samples Of The Nickle Seam Welding Machine
This machine is widely applied to welding nickle.

Seam Welder For Sale Intelligent Controller 3

Seam Welder For Sale Intelligent Controller 4Seam Welder For Sale Intelligent Controller 5Seam Welder For Sale Intelligent Controller 6
