Fry Basket Seam Welding Machine With Intelligent Touch Screen Controller

Fry Basket Seam Welding Machine With Intelligent Touch Screen Controller

Fry Basket Seam Welding Machine

Seam Welding Machine Intelligent

seam welding machine for sale

Place of Origin:

China

Brand Name:

Hwashi

Certification:

CE,CCC,ISO

Model Number:

WL-FS-AC100K/WL-FS-MF75K

Contact Us
Request A Quote
Product Details
Key Selling Points:
High Efficiency
Condition:
New
Application:
Fry Basket
Weight:
Ccording To Your Product
Control System:
PLC
Service Life:
8-10 Years
Duty Cycle Rate:
20%
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
T/T, L/C
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

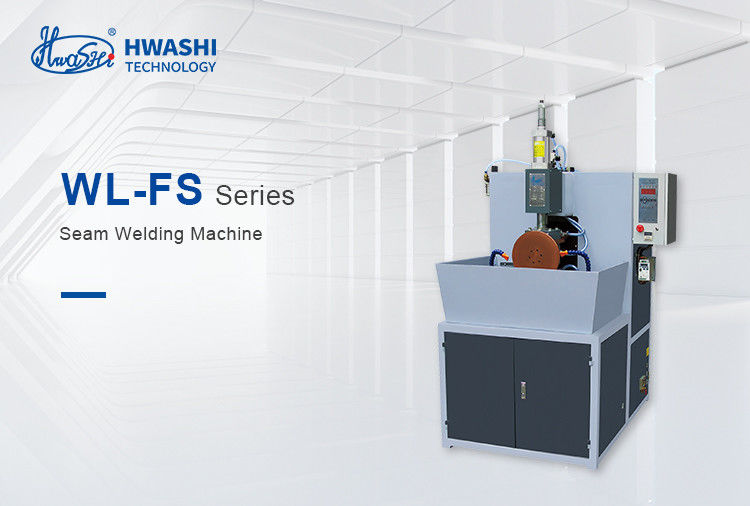

HWASHI Fry Basket Seam Welding Machine with Intelligent Touch Screen Controller

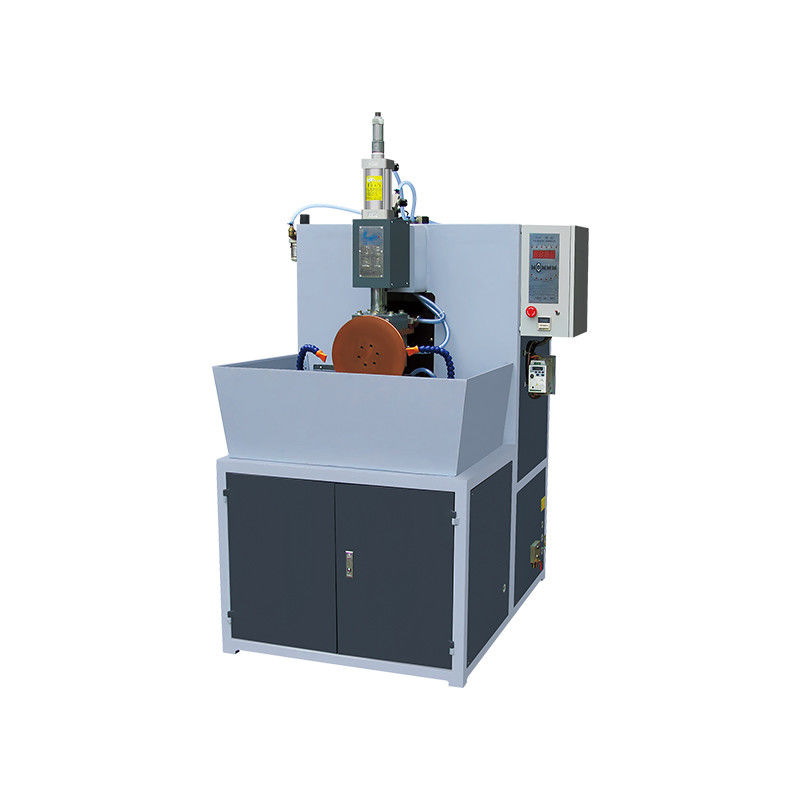

Fry Basket Seam Welding Machine With Intelligent Touch Screen Controller 0
Description Of The Fry Basket Seam Welding Machine
The fry basket seam welding special machine is the evolution of spot welder. It uses the roller electrode to replace the cylindrical electrode of spot welding and as the welding work piece moves between the rolling plates, the seal welding will generate weld nuggets which will overlap with each other so as to achieve welding effect. AC pulse current or amplitude modulation current will be adopted, but three-phase medium frequency DC are also available.

Fry Basket Seam Welding Machine With Intelligent Touch Screen Controller 1

Intelligent Touch Screen
Controller Input and read welding parameters.



Fry Basket Seam Welding Machine With Intelligent Touch Screen Controller 2 Super hard copper alloy welding wheel
Made of excellent material processing, not afraid of high temperature, not afraid of wear and tear, good electrical conductivity.



Features Of The Fry Basket Seam Welding Machine
1. This machine is of reasonable design, beautiful appearance, stable welding performance.
2. It adopts intelligent micro-computer controller which can set different kinds of welding specification. Multi-segment electrification method has the functions of soft start welding and ending welding.It adopts subprime constant current feedback control mode which will do auto compensation when the voltage is unsteady in order to ensure the stable welding current.
3. It adopts high power welding transformer with all-round water cooling, which can complete different kinds of product’s welding efficiently to guarantee welding quality.
4. This welding machine is widely applied to various kinds of stainless steel products and it can achieve multifunction usage.

Technical Data Of The Fry Basket Seam Welding Machine

Model WL-FS-AC100K WL-FS-MF75K
Input Voltage Two-phase 380V±10% 50Hz Three-phase 380V±10% 50Hz
Input Power 100KVA 75KVA
Rated Input Current 265A 115A
Rated Duty Cycle Rate 25% 50%
Max Secondary Floating Voltage 5.75VAC 9.75VDC
Secondary Max Short Circuit Current 21500A 26500A
Upper Welding Wheel Diameter 280mm
Lower Welding Wheel Diameter 40mm
Welding Wheel Width 3mm
Welding Wheel Rotating Speed 800-4000mm/min (adjustable)
Upper Welding Wheel Throat Depth Distance 400mm
Lower Welding Wheel Throat Depth Distance 400mm
Upper and Lower Welding Wheel Distance 50mm
Air Pressure 0.6MPa
Gas Consumption 10m3/h
Water Pressure 0.2Mpa
Water Temperature 10-20℃

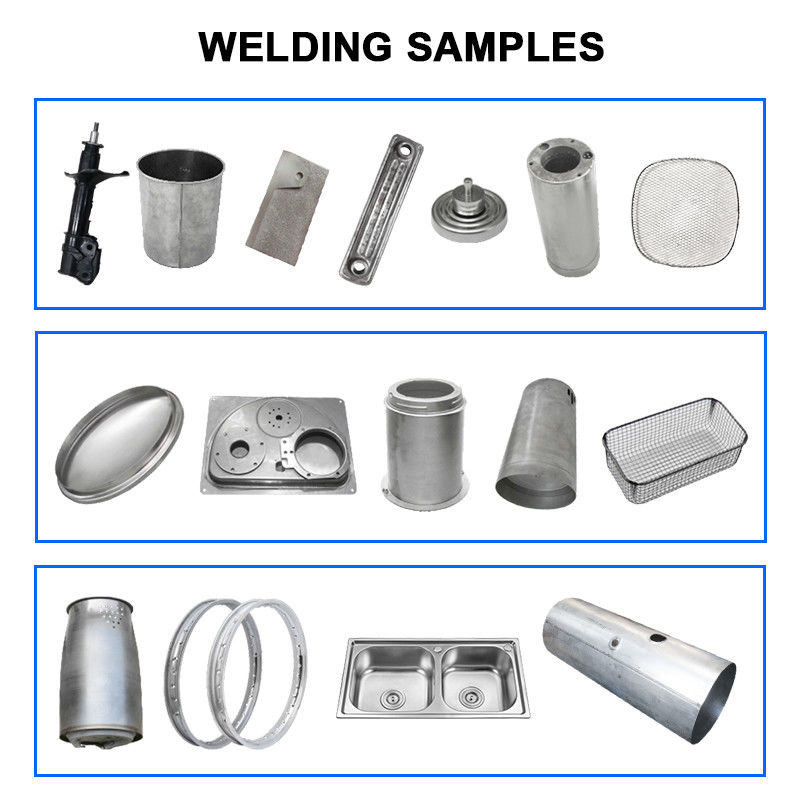

Application And Samples Of The Fry Basket Seam Welding Machine
This machine is widely applied to welding basket.

Fry Basket Seam Welding Machine With Intelligent Touch Screen Controller 3

Fry Basket Seam Welding Machine With Intelligent Touch Screen Controller 4Fry Basket Seam Welding Machine With Intelligent Touch Screen Controller 5Fry Basket Seam Welding Machine With Intelligent Touch Screen Controller 6
