Standing Roof Seam Welding Machine Resistance Welding Machines

Standing Roof Seam Welding Machine Resistance Welding Machines

Standing Roof Resistance Welding Machines

Standing Roof Seam Welding Machine

Resistance Welding Machines

Place of Origin:

China

Brand Name:

Hwashi

Certification:

CE,CCC,ISO

Model Number:

WL-FS

Contact Us
Request A Quote
Product Details
Key Selling Points:
High Efficiency
Condition:
New
Weight:
300kg
Voltage:
380V
Machine Type:
Seam Welding Machine
Service Life:
8-10 Years
Welding Mode:
Continuous/Intermittent
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
T/T, L/C
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

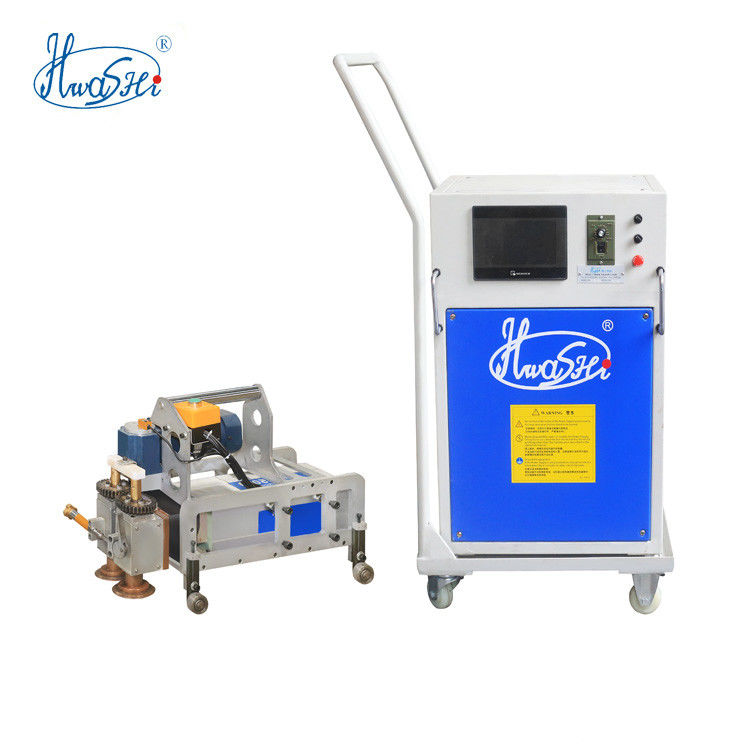

HWASHI High Quality Standing Roof Seam Welding Machine

Standing Roof Seam Welding Machine Resistance Welding Machines 0

Description Of Standing Roof Seam Welding Machine

Standing roof seam welding machine can be apply to stainless steel and titanium based material. The excellent corrosion resistance performance suit for harsh environments long service life and environmental pollution. The automatic roof welding system simplify the process for seams connections. The entire roof will be covered by the seamless metal roofing. Less concern on water penetration and air leakage. Extreme performance under strong wind and uplift resistance.



​Features Of Standing Roof Seam Welding Machine

  • Compatible with double standing, angled & standing seam
  • 50 mm – 22 mm profile heights
  • Compatible with stainless steel and titanium
  • Corrosion resistance
  • Strong wind and uplift resistance
  • MF DC Welding technology with 1000 hz for a perfect welding image
  • Through cooling and  integral metal core cooling of the rollers
  • Automatic welding by simply press the start button
  • Excellent performance under expansion and contraction

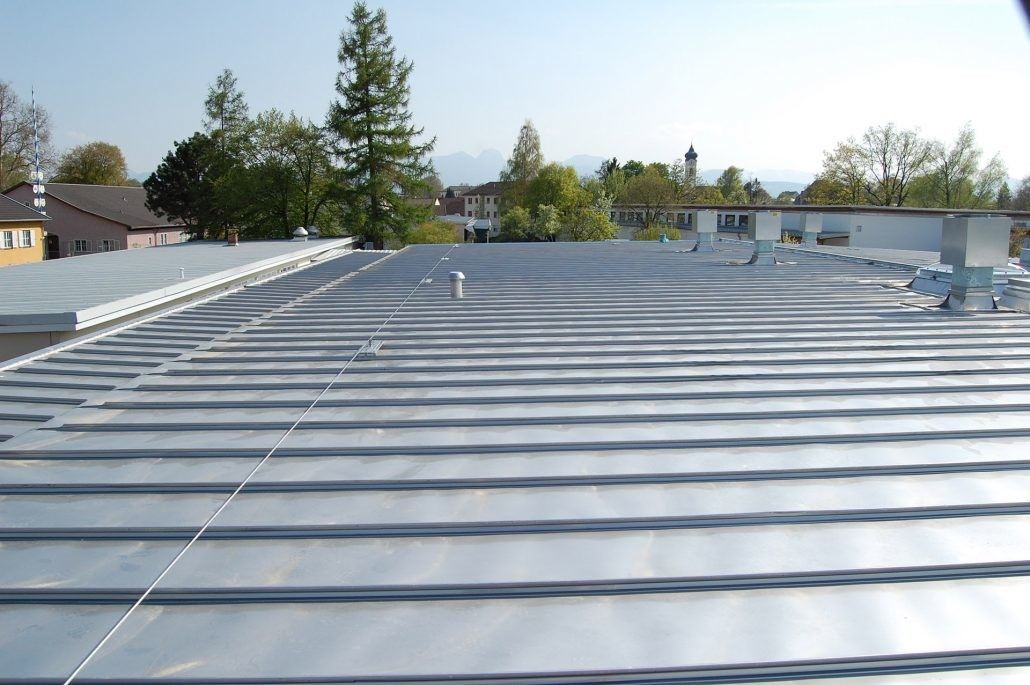

Application And Samples Of Standing Roof Seam Welding Machine

Wide span structural with large cladding surface and for structure located in regions of harsh climate (heat rain,strong winds and snowfall)

Standing Roof Seam Welding Machine Resistance Welding Machines 1

Technical Data Of Standing Roof Seam Welding Machine

Items Data
Welding Power MF DC 20K
Input Voltage Three-phase 380V±10%
Duty Cycle Rate 50%
Frequency 1000HZ
Max. Short Circuit Current 8000A
Welding Schedules 32 types
Max. Welding Pressure 150kg
Welding Wheel Diameter Min.φ85mm
Motor Power 90W
Wheel Max. Rotating Speed 50mm/sec
Welding Cable Length 35 meter
Welding Thickness 0.5+0.2+0.5mm
Machine Dimension 540mmx 300mmx 420mm
Machine Weight 40kg
Controller+Chiller Dimension 550mmX500mmX500mm
Controller+Chiller Weight 60kg
Water Proof Grade IPX1
Environment Temperature 3-55︒C



Application Industry

Suitable for the welding of sheet, barrel body, box and sealed thin-wall container with different material, such as carbon steel, stainless steel, titanium, nickel and other materials. For fuel tank of automobile, damper of motorcycle, detector of temperature controller, nickel strap of battery, oil heater, power capacitor, sieve iron basket, water pump manufacturing, tin making, coopery industry, etc.

Standing Roof Seam Welding Machine Resistance Welding Machines 2

Standing Roof Seam Welding Machine Resistance Welding Machines 3Standing Roof Seam Welding Machine Resistance Welding Machines 4
