Name: Rolling Automatic Longitudinal Seam Welding Machine For Fuel Tank
Brand: Guangdong Hwashi Technology inc.
SKU: WL-FS
Price: 225,000.00 USD
Availability: InStock

Home > products > Seam Welding Machine >

Rolling Automatic Longitudinal Seam Welding Machine For Fuel Tank

longitudinal seam welding machine

long seam welding machine

automatic longitudinal seam welding machine

Place of Origin:

China

Brand Name:

Hwashi

Certification:

CE,CCC,ISO

Model Number:

WL-FS

Request A Quote

Product Details

Product Name:

Hwashi High Quality Longitudinal Rolling Seam Welding Machine For Fuel Tank

Condition:

New

Abrasive Belt Width:

50mm

Welding Speed:

0.5-5m/min

Welding Material:

Carbon Steel/Stainless Steel

Weight:

300kg

Control System:

PLC

Welding Width:

5-20mm

Minimum Welding Thickness:

0.2mm

Voltage:

380V,2 Phase,50/60Hz

Machine Type:

Resistance Welding Machine

Service Life:

8-10 Years

Welding Mode:

Continuous/Intermittent

Duty Cycle Rate:

20%

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

T/T, L/C

Supply Ability

50 sets per month

Hwashi High Quality Stainless Steel Automatic Double Station Circular Rolling Seam Welding Machine Manufacturer for Oil Tank

Get Best Price

Video

Hwashi Automobile Shock Absorber Automatic Seam Welding Machine

Get Best Price

Video

Automatic Circular Seam Welding Machine For Aluminum Fuel Tank

Get Best Price

Video

Hwashi Shock Absorber Automatic Seam Welding Machine Manufacturers Minimum Thickness 0.2mm

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

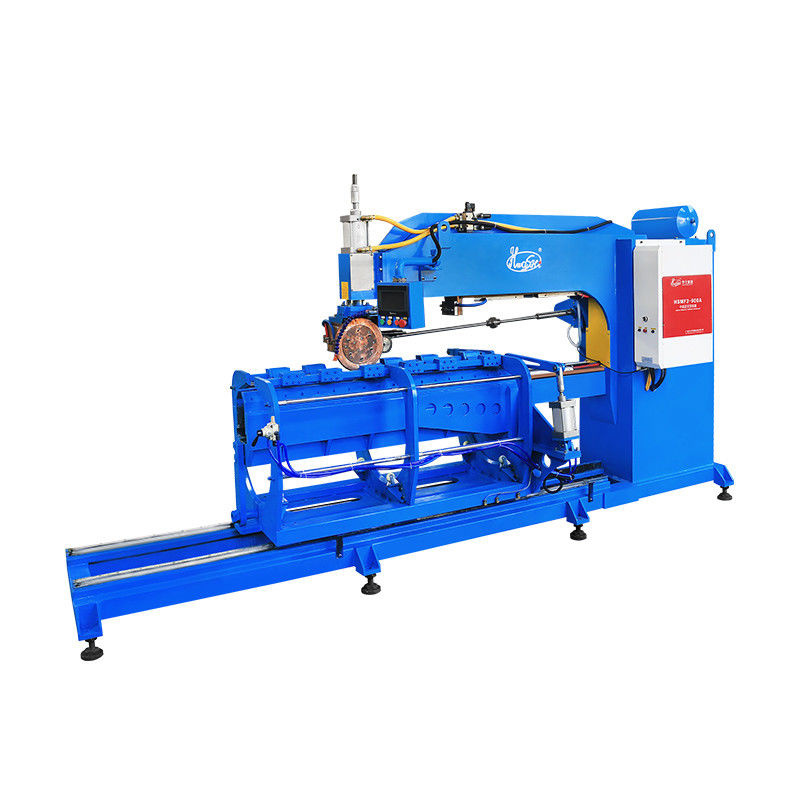

Hwashi High Quality Longitudinal Rolling Seam Welding Machine for Fuel Tank

Longitudinal rolling seam welding machine manufacturers for longitudinal rolling seam welding machine for fuel tank uses the roller electrode to replace the cylindrical electrode of spot welding and as the welding work piece moves between the rolling plates, the seam welding will generate weld nuggets which will overlap with each other so as to achieve welding effect. Hwashi Straight Seam Welding Machine generally use AC pulse power source or three phase (single phase) rectifying ,medium frequency and high frequency DC power source.

Rolling Automatic Longitudinal Seam Welding Machine For Fuel Tank 1

Intelligent welding control syste

Intelligent Touch Screen Controller
Input and read welding parameters.

super hard copper alloy welding wheel

Made of excellent material processing, not afraid of high temperature, not afraid of wear and tear, good electrical conductivity.

Shape structure and welding method

Design the right machine shape and mold according tothe welding product and extended welding arms.

Rolling Automatic Longitudinal Seam Welding Machine For Fuel Tank 4

Welding Method of The Seam Welding Machine

Adopt standardized welding electrode. Special electrode molds and welding methods can also be customized according to the product specification.

Rolling Automatic Longitudinal Seam Welding Machine For Fuel Tank 5

Features of The Seam Welding Machine
1.Intelligent microcomputer controller with digital setting. Online computer programming, LED digital display, stable performance, convenient modification of the program online.
2.Digital circuit control; the components are imported from famous factories in the world to ensure the equipment could operate steadily in the long run.
3.SEMIKRON and IXYS silicon controlled from West Germany, IR silicon controlled from United States.
4.The transmission tile axis adopts the latest silver tile conductive technology from abroad.
5.Welding roll wheel adopts the alloy copper material from Japan.
6.The transformer adopts the high pure silicon steel sheet from Japan, good performance in magnet and electricity conductivity. Low consumption of electricity. Stronger and more stable power.

Specification

Model	WL-FS-75K	WL-FS-100	WL-FS-125	WL-FS-160	WL-FS-200	WL-FS-250
Rated Capacity KVA	75	100	125	160	200	250
Voltage V	380*2	380*2	380*2	380*2	380*2	380*2
Duty Cycle Rate%	50	50	50	50	50	50
No Load Voltage V	1.08-7.02	1.12-7.38	1.26-8	1.3-8.5	2.2-9.0	1.3-9.7
Max. Welding Thickness mm	1.2+1.2	1.5+1.5	1.8+1.8	2+2	2.5+2.5	2.5+3
Upper Wheel Stroke mm	20-80	20-80	30-100	30-100	30-100	30-100
Welding Speed m/min	0.6-4	0.5-3.2	0.5-2.8	0.5-1.5	0.5-1.2	0.5-1.2
Max. Pressure KN	6.3	6.3	8.6	8.6	8.6	8.6
Compressed Air Mpa	0.5	0.5	0.6	0.6	0.6	0.6
Cooling Water Consumption L/h	820	960	1080	1080	1080	1080

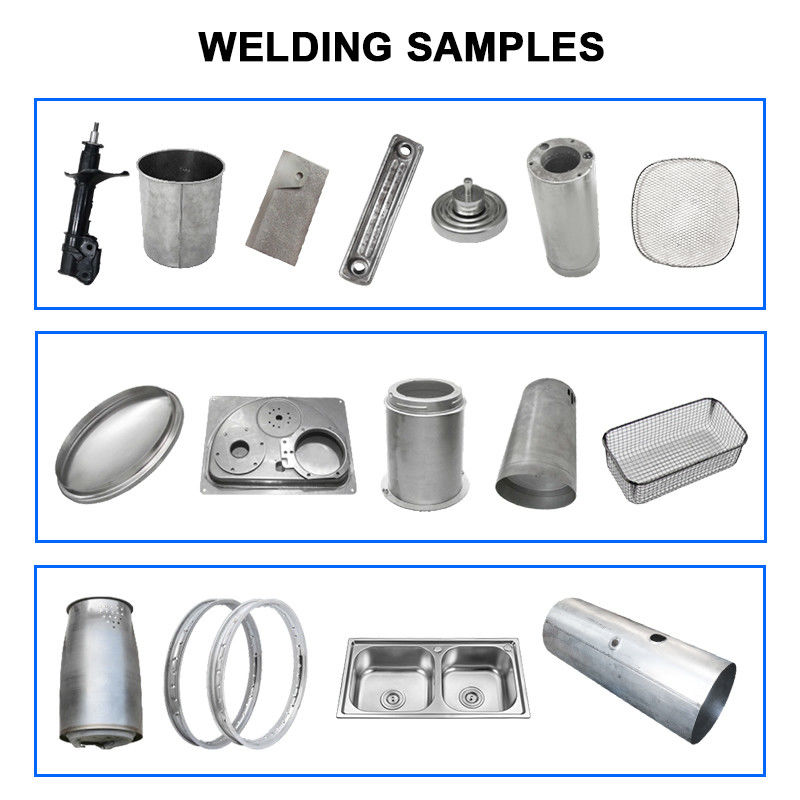

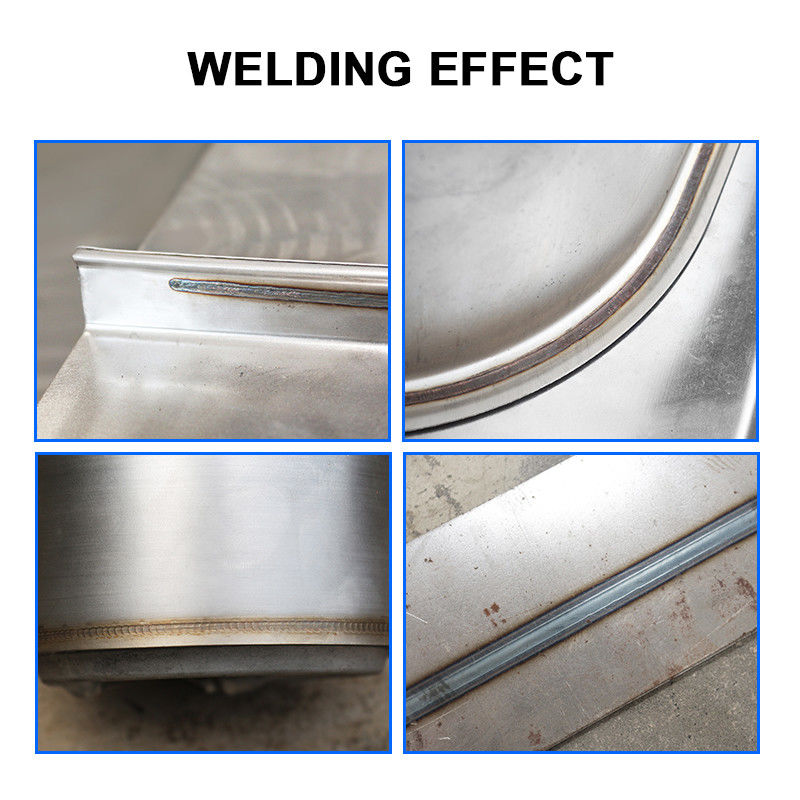

Application and samples

Rolling Automatic Longitudinal Seam Welding Machine For Fuel Tank 6

We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.

Rolling Automatic Longitudinal Seam Welding Machine For Fuel Tank 7

Application Industry of The Seam Welding Machine

Longitudinal rolling seam welding machine for fuel tank is widely used in automobile, damper of motorcycle, detector of temperature controller, nickel strap of battery, oil heater, power capacitor, sieve iron basket, water pump manufacturing, tin making, coopery industry, etc.

Rolling Automatic Longitudinal Seam Welding Machine For Fuel Tank 9

Rolling Automatic Longitudinal Seam Welding Machine For Fuel Tank 10
