Circular Seam Welder Round Copper Longitudinal Welding Machine Wheel Seam Welding Center

Circular Seam Welder Round Copper Longitudinal Welding Machine Wheel Seam Welding Center

longitudinal welding machine

Circular Seam Welder

Wheel Seam Welding Center

Place of Origin:

China

Brand Name:

Hwashi

Certification:

CE,CCC,ISO

Model Number:

WL-FS

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI Circular Seam Welder Longitudinal & Round Copper Seam Welding Wheel Seam Welding Center
Condition:
New
Abrasive Belt Width:
50mm
Welding Speed:
0.5-5m/min
Welding Material:
Carbon Steel/Stainless Steel
Weight:
300kg
Control System:
PLC
Welding Width:
5-20mm
Minimum Welding Thickness:
0.2mm
Voltage:
380V,2 Phase,50/60Hz
Machine Type:
Resistance Welding Machine
Service Life:
8-10 Years
Welding Mode:
Continuous/Intermittent
Duty Cycle Rate:
20%
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
T/T, L/C
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Product Description

HWASHI Circular Seam Welder Longitudinal & Round Copper Seam Welding Wheel Seam Welding Center

Circular Seam Welder Round Copper Longitudinal Welding Machine Wheel Seam Welding Center 0

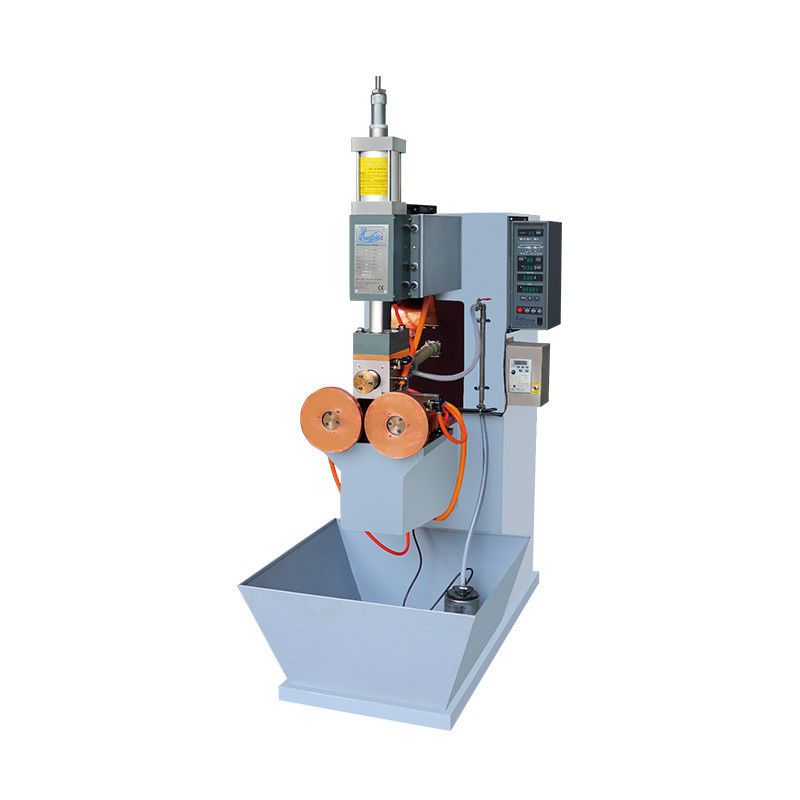

This machine is specially customized for seam welding steel flange.It adopts three welding wheels. We will specially design the welding fixture according to your CAD drawing of samples.
1. It adopts high-quality cylinder and pneumatic components to guarantee the reliable and stable running of pneumatic system.
2. The new generation of digital controller is simple and reliable.
3. Welding machine types:lingitudinal welding,horizontal welding,fixed or vertically and horizontally.

Circular Seam Welder Round Copper Longitudinal Welding Machine Wheel Seam Welding Center 1Circular Seam Welder Round Copper Longitudinal Welding Machine Wheel Seam Welding Center 2Circular Seam Welder Round Copper Longitudinal Welding Machine Wheel Seam Welding Center 3

Intelligent welding control syste

Intelligent Touch Screen Controller
Input and read welding parameters.

super hard copper alloy welding wheel

Made of excellent material processing, not afraid of high temperature, not afraid of wear and tear, good electrical conductivity.

Shape structure and welding method

Design the right machine shape and mold according tothe welding product and extended welding arms.



Circular Seam Welder Round Copper Longitudinal Welding Machine Wheel Seam Welding Center 4

Welding Method of The Seam Welding Machine

Adopt standardized welding electrode. Special electrode molds and welding methods can also be customized according to the product specification.

Circular Seam Welder Round Copper Longitudinal Welding Machine Wheel Seam Welding Center 5

Features of The Seam Welding Machine

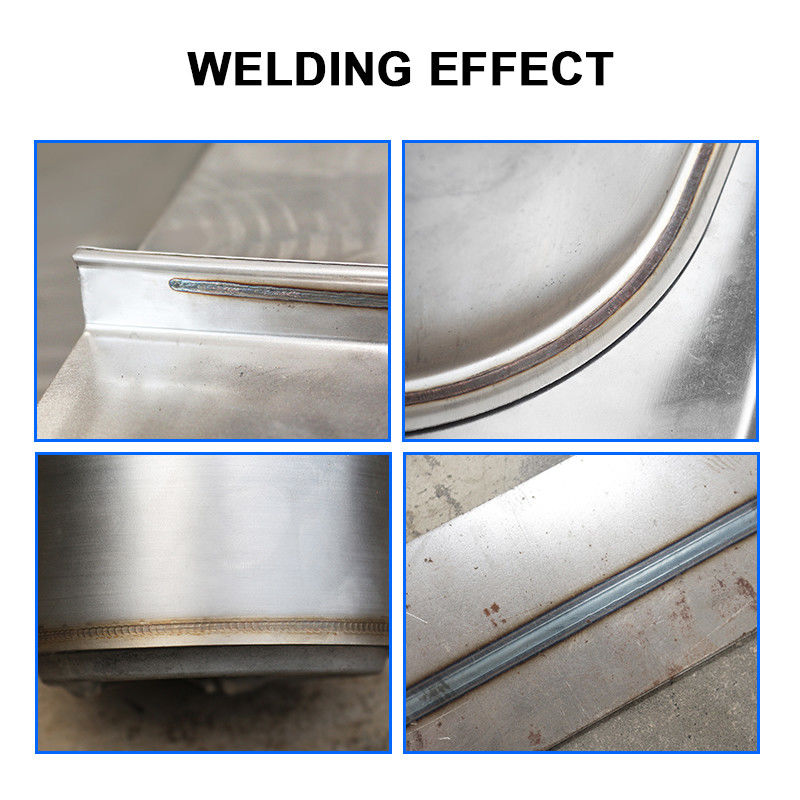

1. seam welding machine use the roller electrode to replace the cylindrical electrode of spot welding.

2. It will generate weld nuggets which will overlap with each other so as to achieve welding effect.

3. AC pulse current or amplitude modulation current will be adopted, but three (single)-phase rectification, medium frequency and high frequency DC are also available.

4. According to different overlap of the melting cores, it could be divided into roll spot welding and air-tight seam welding.

5. There exist three stages in the forming process of welding spots: pressurization, heating fusing and cooling crystallization like spot welding.

6. The welding wheel can be operated in both horizontal and vertical directions. 7. The transformer and the welding wheel adopt the forced water cooling circulation system, which has a high load duration and achieves Continuous and stable welding.



Specification

Model WL-FS-75K WL-FS-100 WL-FS-125 WL-FS-160 WL-FS-200 WL-FS-250
Rated Capacity KVA 75 100 125 160 200 250
Voltage V 380*2 380*2 380*2 380*2 380*2 380*2
Duty Cycle Rate% 50 50 50 50 50 50
No Load Voltage V 1.08-7.02 1.12-7.38 1.26-8 1.3-8.5 2.2-9.0 1.3-9.7
Max. Welding Thickness mm 1.2+1.2 1.5+1.5 1.8+1.8 2+2 2.5+2.5 2.5+3
Upper Wheel Stroke mm 20-80 20-80 30-100 30-100 30-100 30-100
Welding Speed m/min 0.6-4 0.5-3.2 0.5-2.8 0.5-1.5 0.5-1.2 0.5-1.2
Max. Pressure KN 6.3 6.3 8.6 8.6 8.6 8.6
Compressed Air Mpa 0.5 0.5 0.6 0.6 0.6 0.6
Cooling Water Consumption L/h 820 960 1080 1080 1080 1080

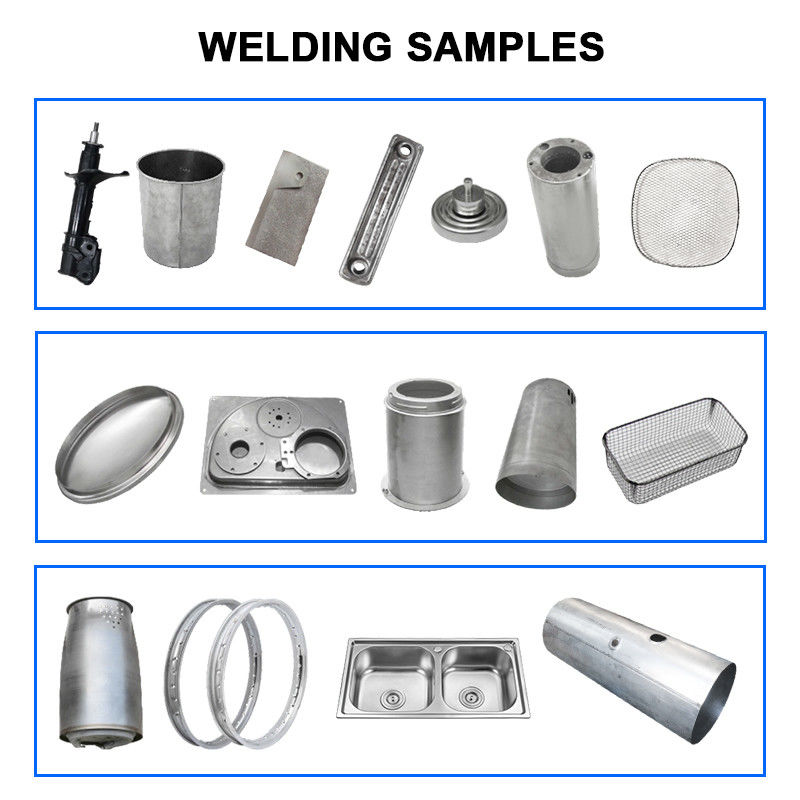

Application and samples

Circular Seam Welder Round Copper Longitudinal Welding Machine Wheel Seam Welding Center 6



We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.



Circular Seam Welder Round Copper Longitudinal Welding Machine Wheel Seam Welding Center 7Circular Seam Welder Round Copper Longitudinal Welding Machine Wheel Seam Welding Center 8

Application Industry of The Seam Welding Machine

Suitable for the welding of sheet, barrel body, box and sealed thin-wall container with different material, such as carbon steel, stainless steel, titanium, nickel and other materials. For fuel tank of automobile, damper of motorcycle, detector of temperature controller, nickel strap of battery, oil heater, power capacitor, sieve iron basket, water pump manufacturing, tin making, coopery industry, etc.

Circular Seam Welder Round Copper Longitudinal Welding Machine Wheel Seam Welding Center 9

Circular Seam Welder Round Copper Longitudinal Welding Machine Wheel Seam Welding Center 10Circular Seam Welder Round Copper Longitudinal Welding Machine Wheel Seam Welding Center 11
