Robotic Arm 6 Axis Industrial Robot Widely Used In The Automotive Industry

Robotic Arm 6 Axis Industrial Robot Widely Used In The Automotive Industry

Robotic Arm 6 Axis

6 axis robotic arm

6 axis industrial robot arm

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Contact Us
Request A Quote
Product Details
Product Name:
Hwashi High Quality Robotic Arm 6 Axis Industrial Robot Manufacturer Widely Used In The Automotive Industry
Condition:
New
Warranty:
12 Months
Service Life:
8-10 Years
Voltage:
220/380v
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
T/T, L/C
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Product Description

Hwashi High Quality Robotic Arm 6 Axis Industrial Robot Manufacturer Widely Used In The Automotive Industry

Robotic Arm 6 Axis Industrial Robot Widely Used In The Automotive Industry 0

Description

Six-axis robots provide maximum working range and can be installed from multiple angles to improve the flexibility of the system. The mechanical arm can install various types of welding torches. Various welding power sources can be matched to meet different welding requirements and realize various welding processes.

  • 01. The further development of programmable production automation is flexible start-up. Industrial robots can be reprogrammed according to the change of their working environment. Therefore, it can play a good role in the flexible manufacturing process of small batch and multi variety, and it is an important part of flexible manufacturing system;
  • 02. Anthropomorphic industrial robots have human like walking, waist turning, big arms, small arms, wrists and claws in mechanical structure, and computers in control. In addition, intelligent industrial robots also have many "biosensors" similar to human beings, such as skin type contact sensors, force sensors, load sensors, visual sensors, acoustic sensors, language functions, etc . The sensor improves the adaptive ability of the industrial robot to the surrounding environment;
  • 03. Generality in addition to specially designed industrial robots, general industrial robots have good versatility in performing different tasks. For example, replacing the end effector (claw, tools, etc.) of industrial robots can perform different tasks.

P​arameters

Model HS-R6-08 HS-R6-10 HS-R6-20 HS-R6-50 HS-R6-165
DOF 6
Driving Mode AC Servo Driving
Effective Load 8KG 10KG 20KG 50KG 165KG
Repeat Accuracy ±0.05mm
Working radius 1400mm 1589mm 1595mm 1950mm 2483mm
Weight 180KG 180KG 290KG 600KG 1300KG
Motion Range(°) J1 ±170 ±170 ±170 ±180 ±180
J2 ±120~-85 ±120~-80 ±132~-95 ±130~-90 ±80~-60
J3 ±85~-165 ±85~-165 ±73~-163 ±75~-210 ±80~-190
J4 ±180 ±180 ±180 ±360 ±360
J5 ±135 ±135 ±133 ±115 ±115
J6 ±360 ±360 ±360 ±360 ±360
Max Speed(°/s) J1 130 130 147 158 100
J2 130 130 100 149 90
J3 130 130 135 130 104
J4 270 270 300 215 144
J5 170 170 198 251 160
J6 455 455 194 365 215
Power 4KVA 4KVA 6KVA 14KVA 31KVA
Voltage 380V or 220V
Frequency 50Hz or 60Hz

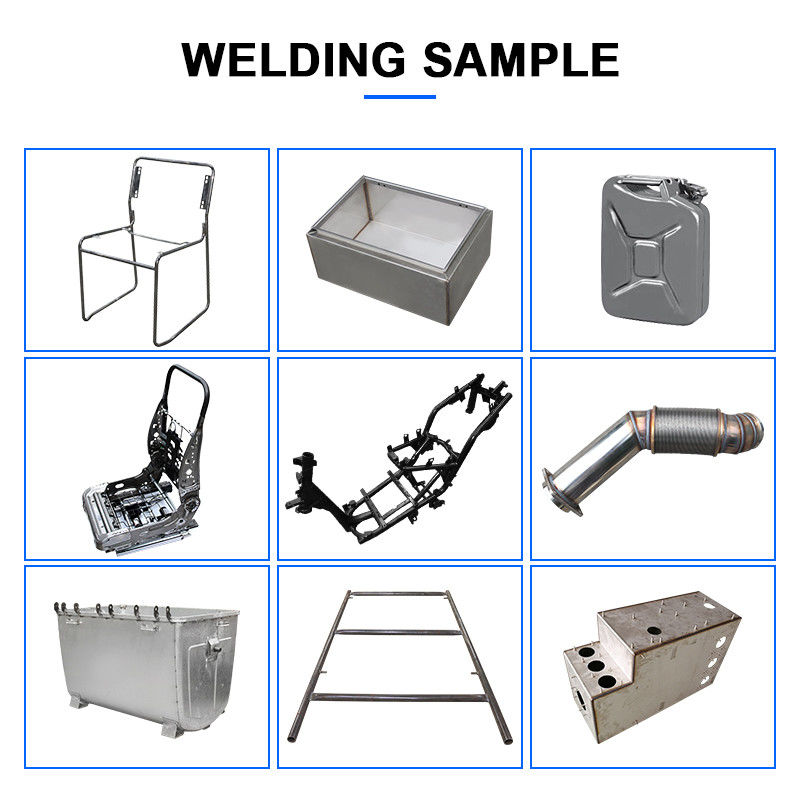

Application and Samples

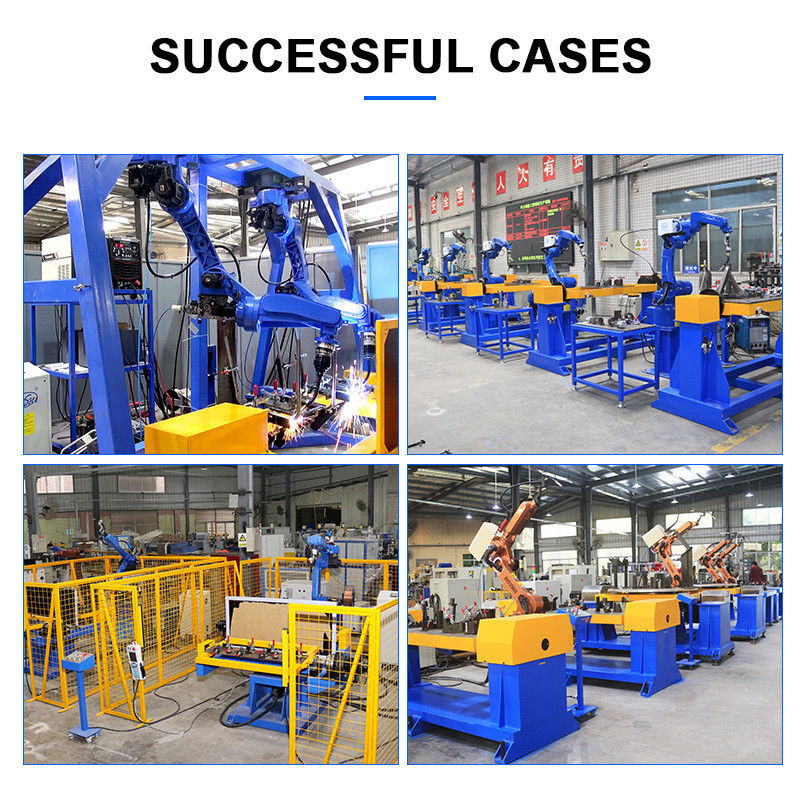

The application fields of industrial robots include aerospace, automobile and parts, electronics and 3C manufacturing, food and beverage and medicine, warehousing and logistics, rubber and plastics - handling and processing, stone and wood products - processing and carving, casting and pressing - forging and casting, metal processing - welding and loading and unloading, and other non-standard applications.

Robotic Arm 6 Axis Industrial Robot Widely Used In The Automotive Industry 1

Robotic Arm 6 Axis Industrial Robot Widely Used In The Automotive Industry 2

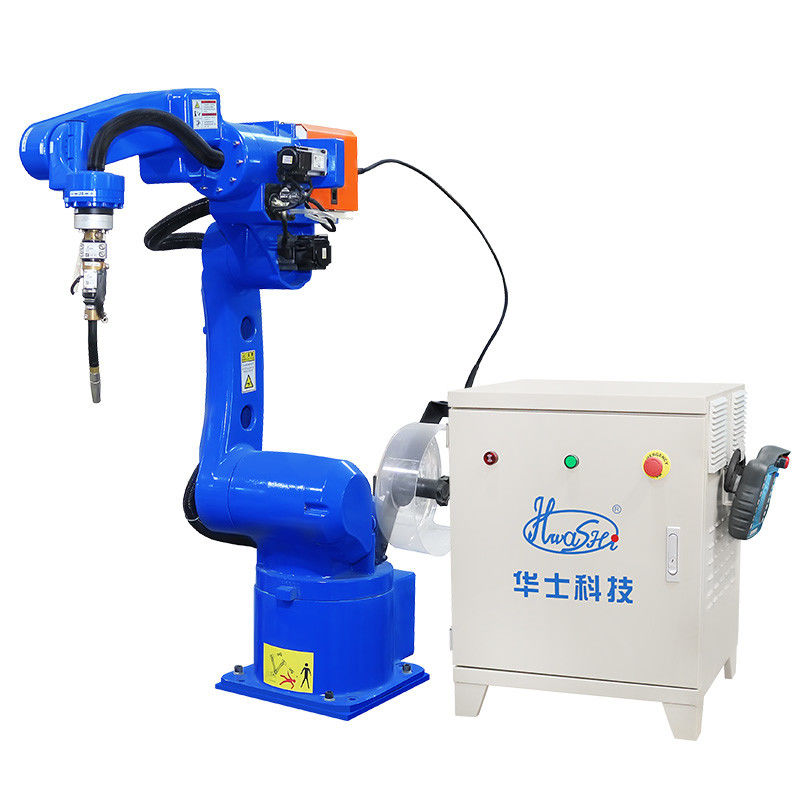

Robot Welding Processes

HWASHI robots provide maximum workina range and canbe installed from multiple andles to improve the flexibility of the system, The mechanical arm can instal various types of welding torches. arious welding power sources can be matched to meet diferent weldingrequirements and realize various welding processes.

Robotic Arm 6 Axis Industrial Robot Widely Used In The Automotive Industry 3

Provide different types of welding positioner
1. it can work in coordination with the robot to ensure constant welding speed and attitude and provide higher welding quality.

2. Use imported servo motor with high precision reducer, high rotary accuracy, accurate positioning, and strong bearing capacity.

3. By turning the workpiece fixed on the worktable to the required welding angle.
