Hwashi New Condition Battery Energy Storage Cabinet Automatic Welding And Grinding Station Robot Case

Hwashi Grinding Station Robot Case

Automatic Welding Grinding Station Robot Case

New Condition Battery Energy Storage Cabinet

Place of Origin:

CHINA

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Request A Quote

Product Details

Color:

Blue

DOF:

Driving Mode:

AC Servo Driving

Effective Load (kg):

Repeat Positioning Accuracy (mm):

±0.05

Motion Range (°):

±360

Max Speed (°/S):

270

Moving Radius (mm):

893

Service Life:

8-10 Year

Name:

Hwashi New Condition Battery Energy Storage Cabinet Automatic Welding And Grinding Station Robot Case

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

US $12800.00 / Set

Packaging Details

sea wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

Blue HWASHI Welding Robot Station Compact Small Size Dedicated Arc Welding Robot

Get Best Price

Video

HWASHI 165KG Payload Robot for Mild Steel Drawer Resistance Spot Welding Equipment

Get Best Price

Video

TIG Welding Robot Unit For Stainless Steel Cabinet Welding Machine

Get Best Price

Video

Industrial Welding Robots 6 Axis Robot Mig Tig Robotic Welding Machine For Exhaust Pipe

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

Hwashi Battery Energy Storage Cabinet Welding Robot Case,Control Enclosure Cabinet Robot Automatic Welding and Grinding Station

Hwashi New Condition Battery Energy Storage Cabinet Automatic Welding And Grinding Station Robot Case 0

HWASHI welding robot is compact, with small size, which is a dedicated arc welding robot. This robot equipped with international Brands welding power, can achieve a stable welding, access to high-precision welding path, shorten the welding cycle, with high repeat positioning accuracy, fast running, welding process stability, high consistency of the weld, and can shorten the product replacement cycle, The corresponding equipment investment. Widely used in automotive and accessories, motorcycles and accessories, engineering machinery and other metal welding field.

1. Improve the labor intensity of workers, can work in harmful environment.

2. Shorten the production preparation cycle, reduce enterprise investment.

3. Stabilize and improve the welding quality of work pieces.

4. Reduced requirements for workers to operate skills.

5. Simple operation, convenient for users.

◆ Proposal Introduction◆

This proposal includes two sets of robot station. One station for welding robot (including MIG welder and TIG welder), one station for grinding robot which is equipped with force control grinder. In such design, worker only need to do manual loading and unloading of product, the machine will do welding and grinding automatically. For No. 4 drawing product, since the size is too big, we do not suggest to weld or grind it in this system.

Condition

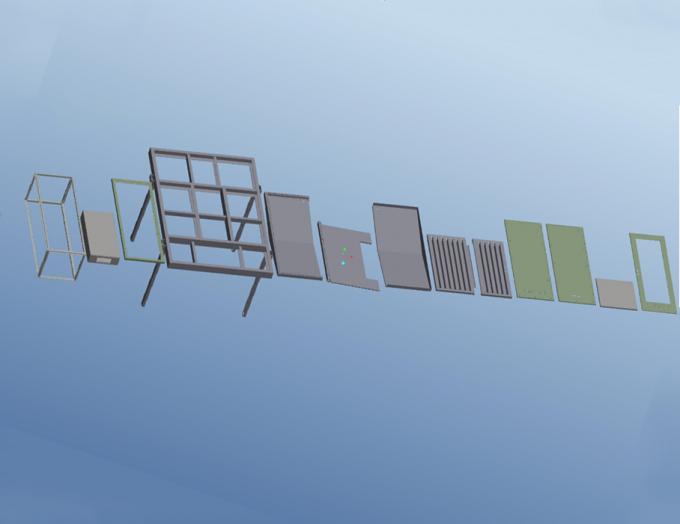

1.There are 13 different type of product in total(as per the picture from left to right, 13 samples in total.)

2.Except for No. 4 product, the size is 3100mmx2100mm,The rest of products size is within 2300mmx1000mm.

Welding Robot

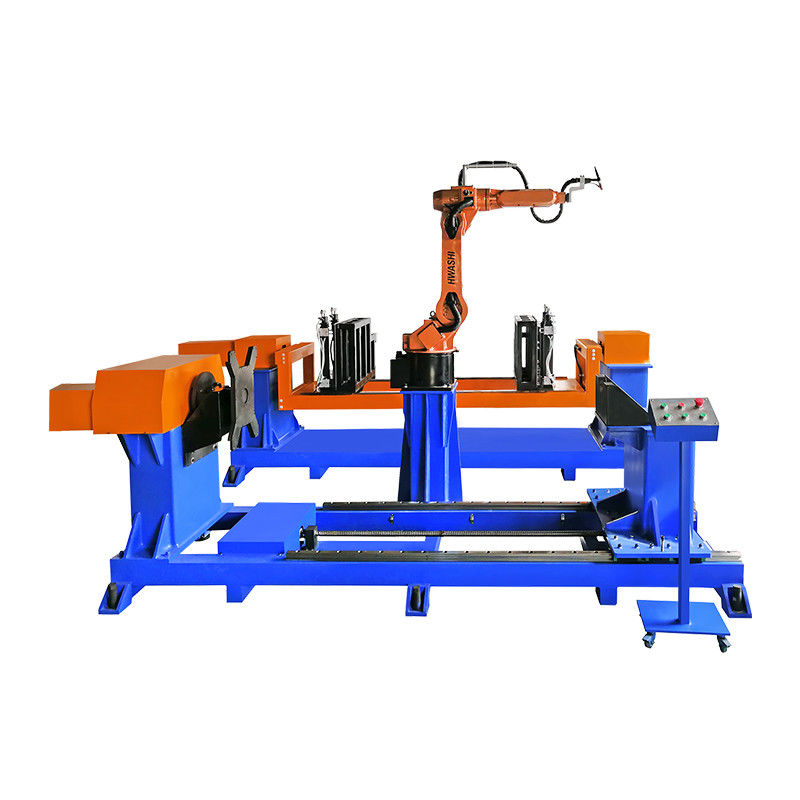

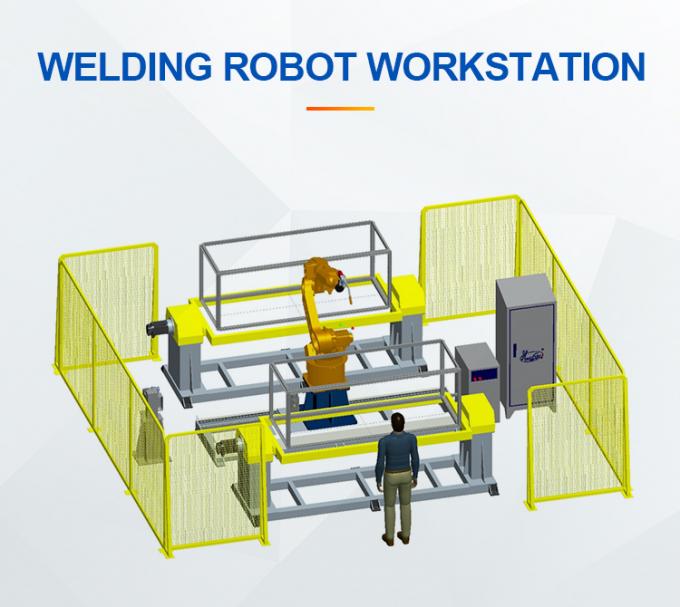

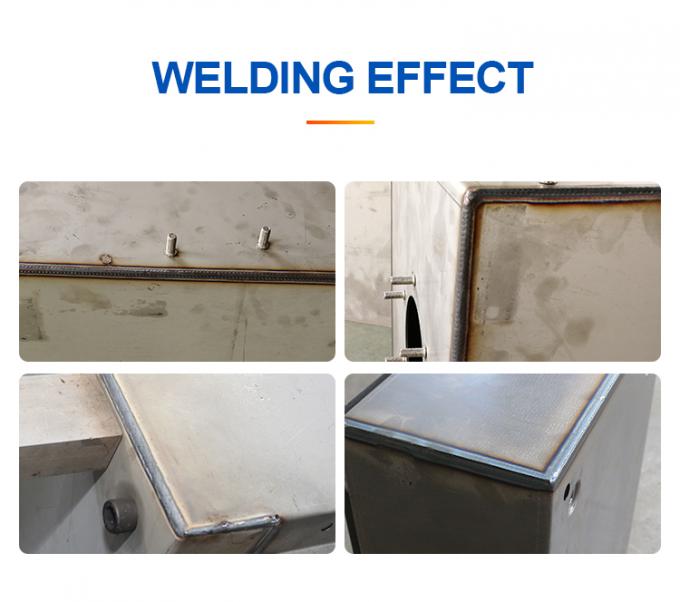

The welding station is composed of welding robot and MIG welder and TIG welder. The sliding rail will help robot to move to ensure each angle can be welded .

Composition 1.HS-R6-08 6-Axis Welding Robot: 1 set 2.Robot Controller: 1 set 3.OTC MIG Welder: 1 set 4.Panasonic TIG Welder: 1 set 5.3m Sliding Rail: 1 set 6.One Axis Rotation Positioner: 2 sets 7.Anti-Collision Sensor for Welding Gun: 1 set 8.Welding Gun Cleaner: 1 set 9.Fixtures(According to the drawings provided, it will require 9 sets of fixture. 18 pcs of fixture in total.)

Grinding Robot

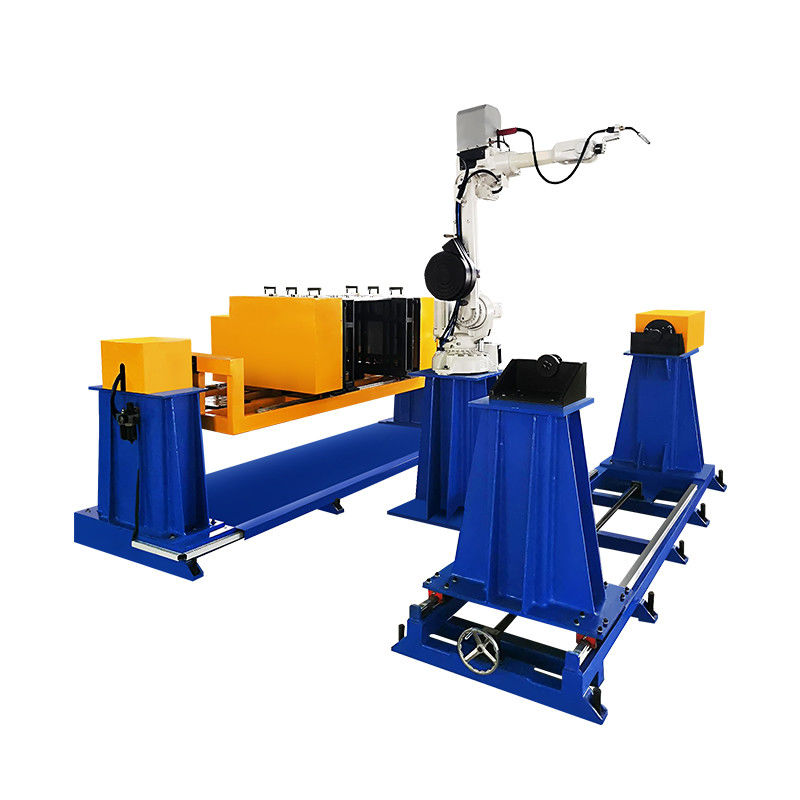

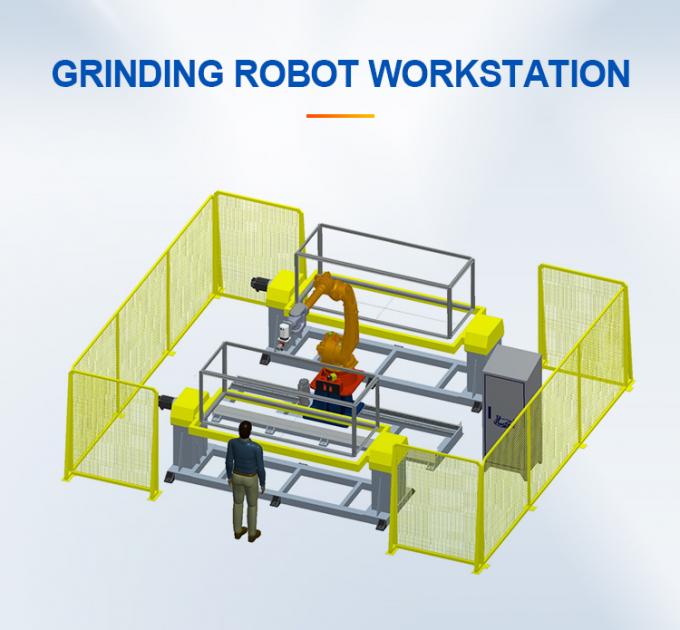

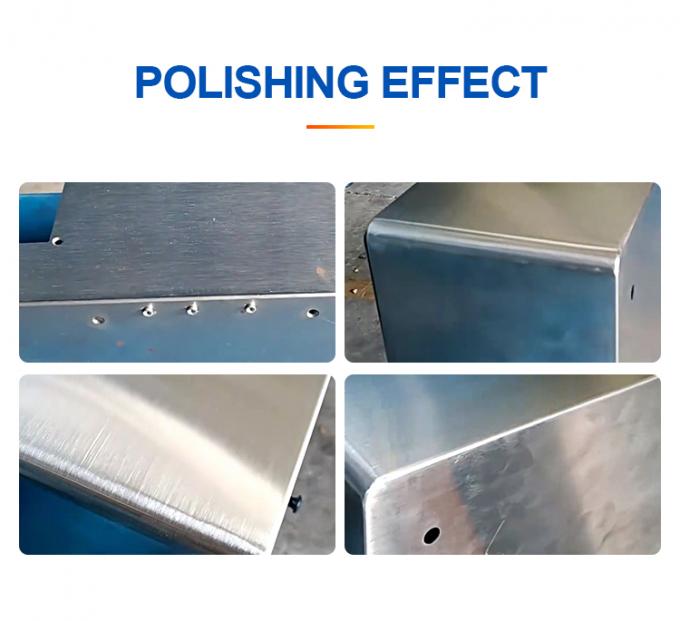

The grinding station is composed of 1 set of HS-R6-20 robot which is equipped with grinder. The grinding force can be controlled to ensure different grinding situation. Also it will decrease the difficulty in programing. The robot will move on the sliding rail to ensure each angle can be grinded.

Composition1.HS-R6-20 6 Axis Robot: 1 set 2.Robot Controller: 1 set 3.Force Controlled Grinder: 1 set 4.3m Sliding Rail: 1 set 5.One Axis Rotation Positioner: 2 sets 6.Anti-Collision Sensor: 1 set 7.Fixtures: (According to the drawings provided , it will require 9 sets of fixture. 18 pcs of fixture in total.)

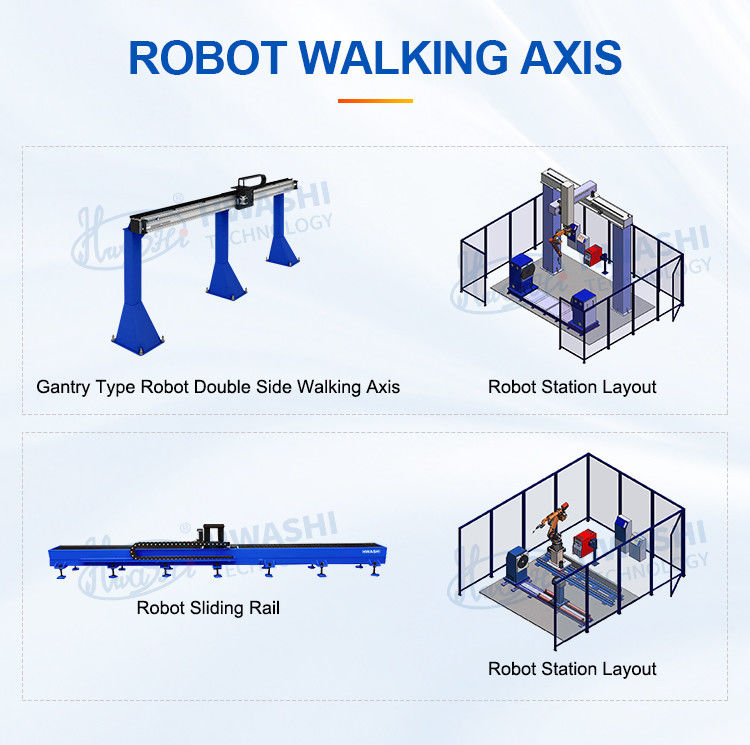

Provide the 7th axis of the customized machine

1. Increase the working range of the robot to solve the disadvantages of limited working range caused by limited movement range of the robot. 2. Robot slide rail installation: the robot can walk alone or walk with matching welding power supply and robot control cabinet as a whole according to the on-site working conditions of customers. 3. Special protective mechanism to prevent welding spatter or dust in the air which will cause bad impact of precision parts. 4. In order to adapt to the different conditions of different customers, be able to do different configuration and installation for customer.

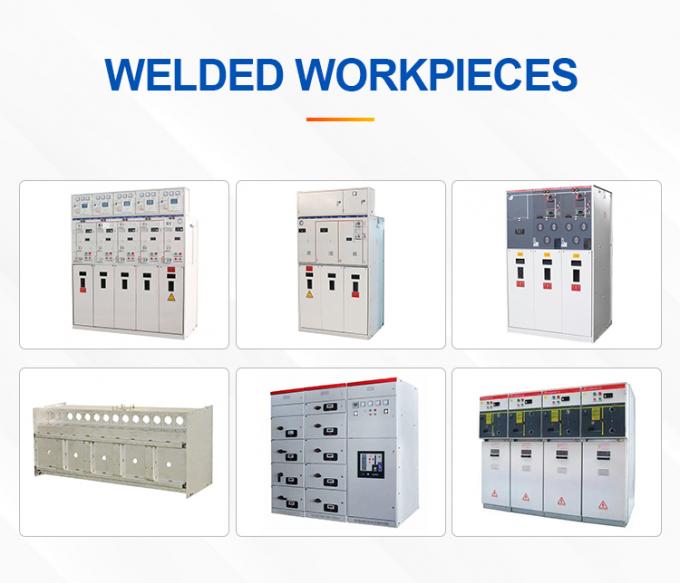

Product application scenario

Workflow

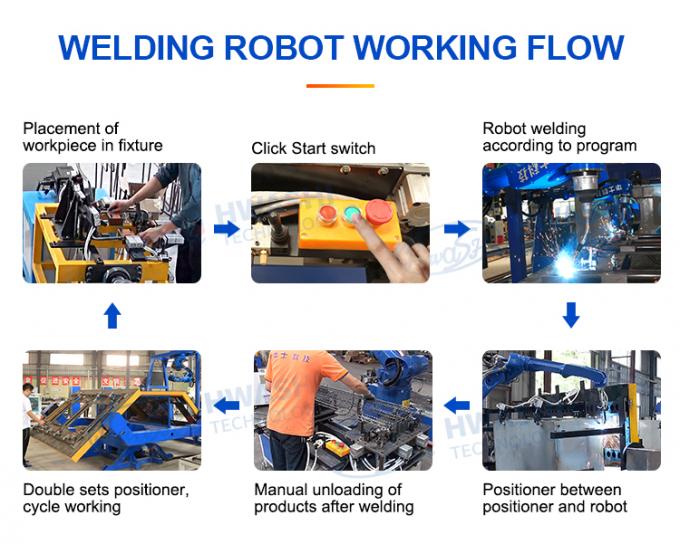

1) Manual loading of the workpiece to the fixture in Station 1 positioner; 2) Start welding; 3) The robot and welding machine will do welding on the workpiece according to the presetting program; 4) Welding completed; 5) While the station 1 is being welded, station 2 is being loaded and fixed the work piece synchronously. Two stations work alternately. 6) Cycle working

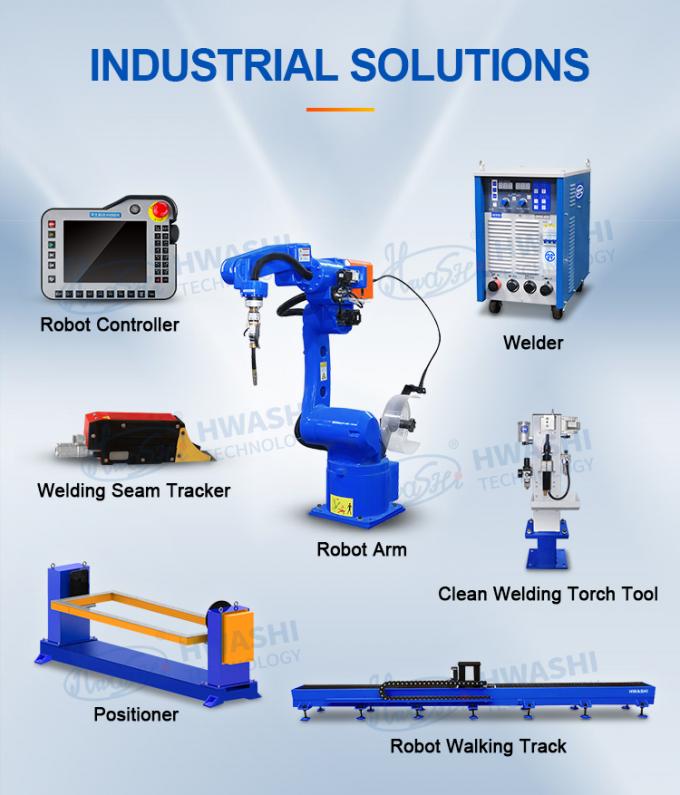

MAIN FEATURES

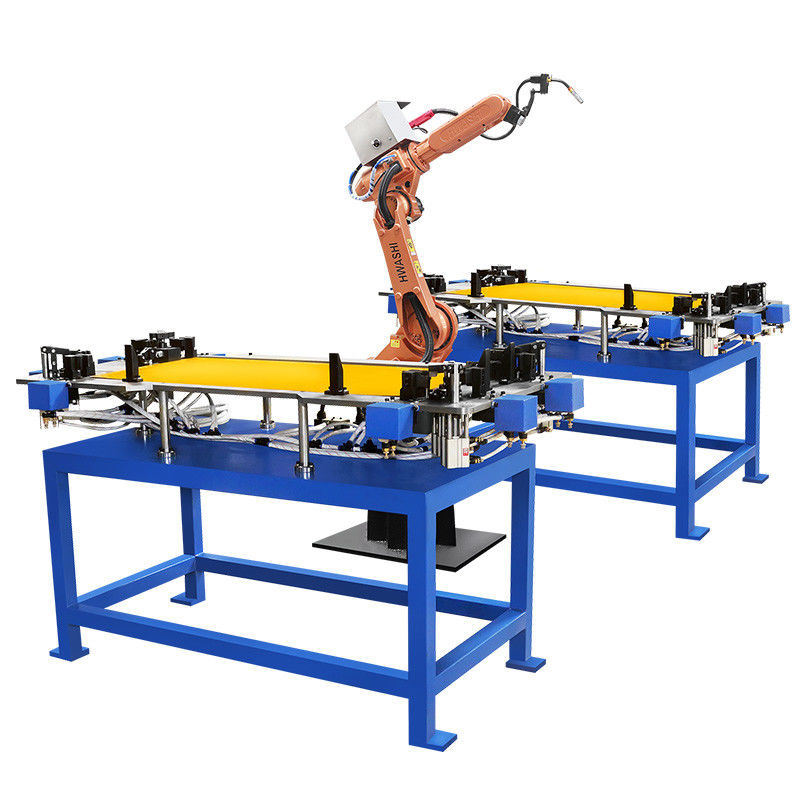

Six-axis robots provide maximum working range and can be installed from multiple angles to improve the flexibility of the system. The mechanical arm can install various types of welding torches. Various welding power sources can be matched to meet different welding requirements and realize various welding processes.

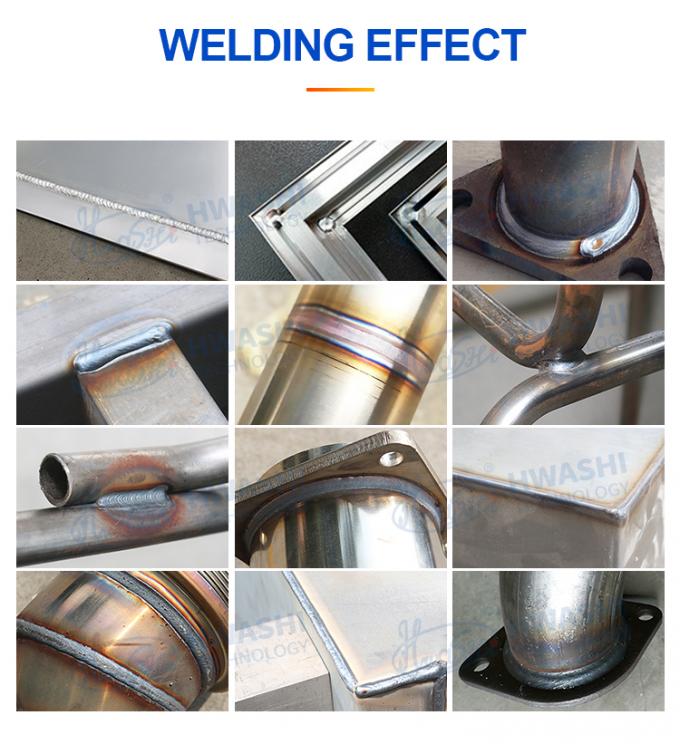

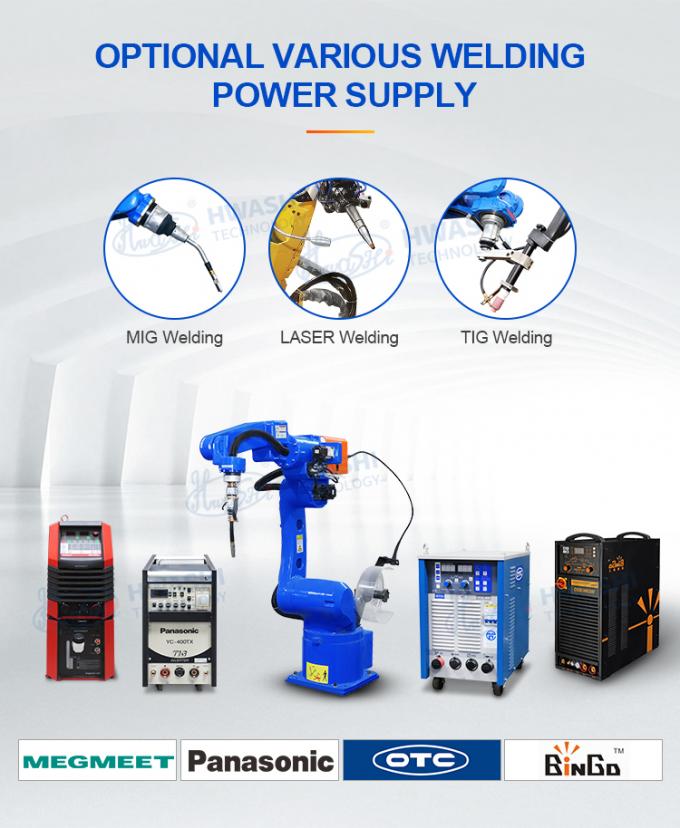

Robot Welding Processes

HWASHI robots provide maximum workina range and canbe installed from multiple andles to improve the flexibility of the system, The mechanical arm can instal various types of welding torches. arious welding power sources can be matched to meet diferent weldingrequirements and realize various welding processes.

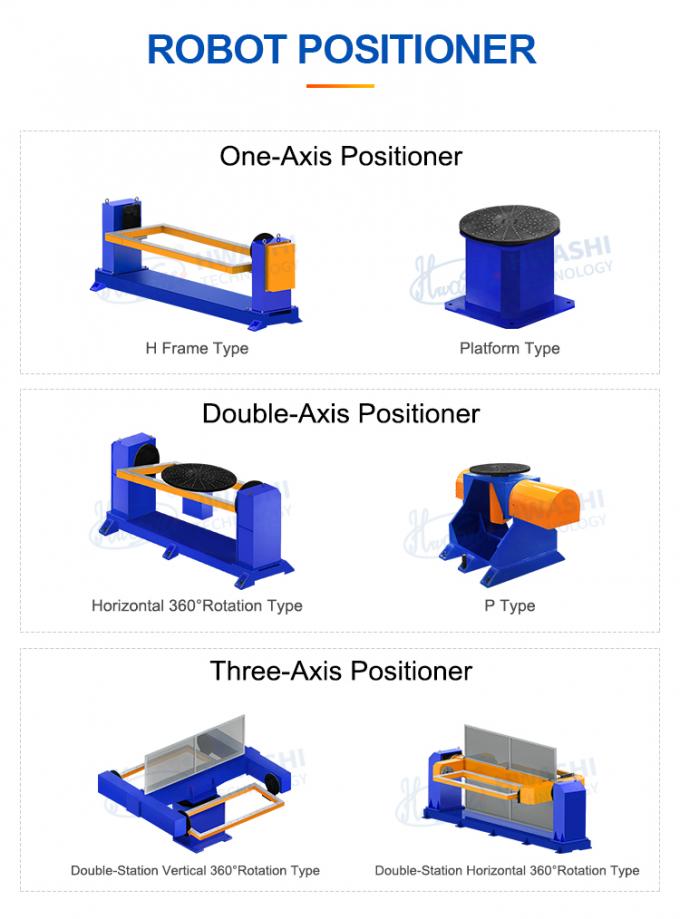

Provide different types of welding positioner

1. it can work in coordination with the robot to ensure constant welding speed and attitude and provide higher welding quality.

2. Use imported servo motor with high precision reducer, high rotary accuracy, accurate positioning, and strong bearing capacity.

3. By turning the workpiece fixed on the worktable to the required welding angle.

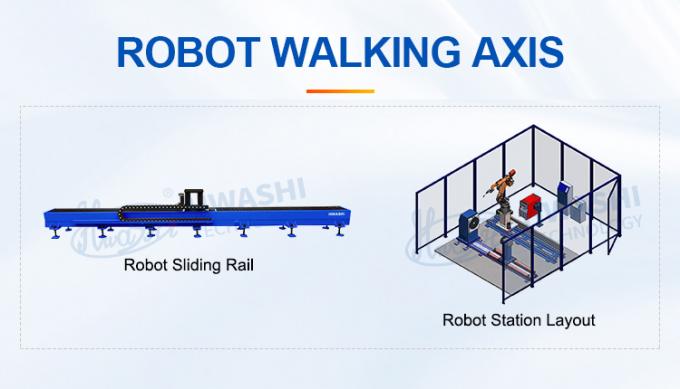

Provide the 7th axis of the customized machine

1. Increase the working range of the robot to solve the disadvantages of limited working range caused by limited movement range of the robot.

2. Robot slide rail installation: the robot can walk alone or walk with matching welding power supply and robot control cabinet as a whole according to the on-site working conditions of customers.

3. Special protective mechanism to prevent welding spatter or dust in the air which will cause bad impact of precision parts.

4. In order to adapt to the different conditions of different customers, be able to do different configuration and installation for customer.

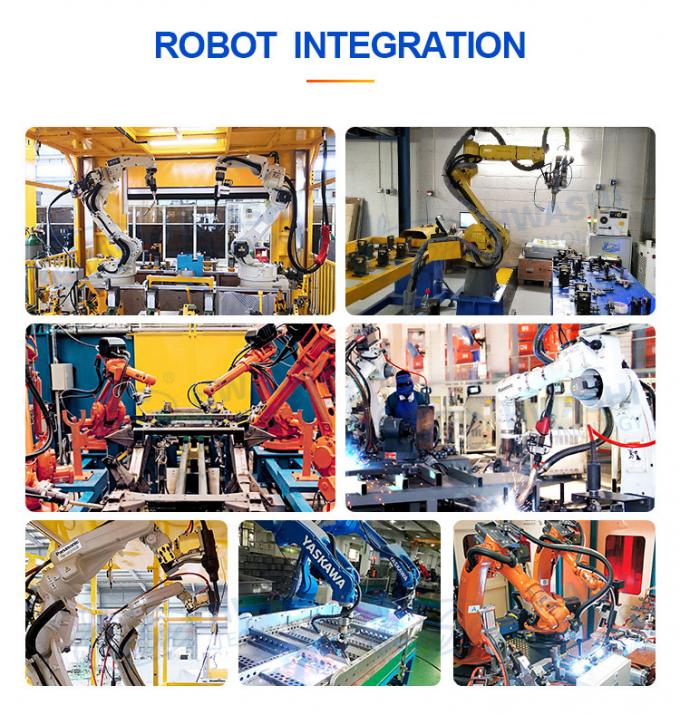

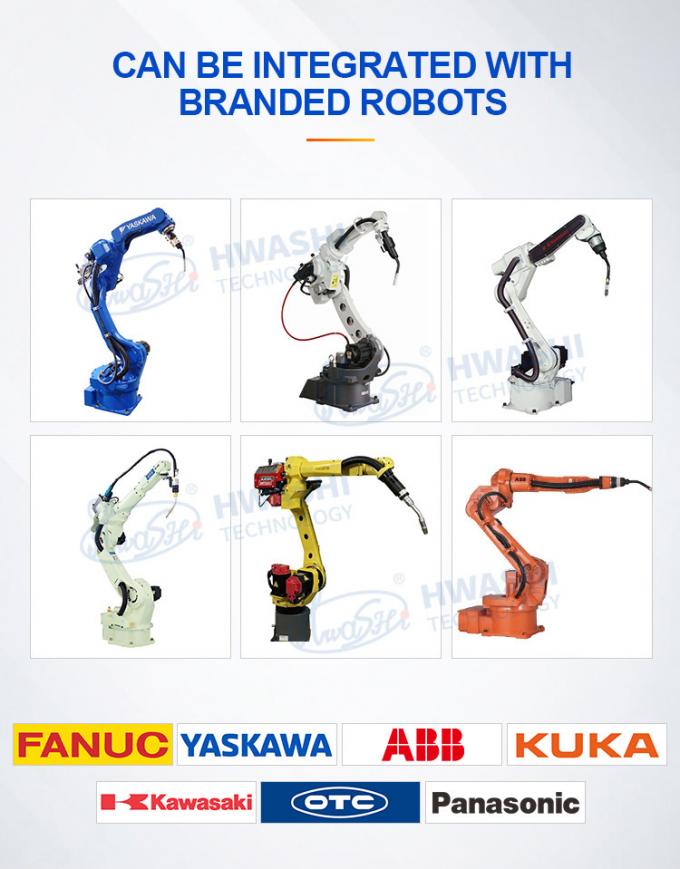

Robot Integration

In addition to HWASHI robot systems, we can also integrate with international brands of robot to provide complete welding robot solutions.

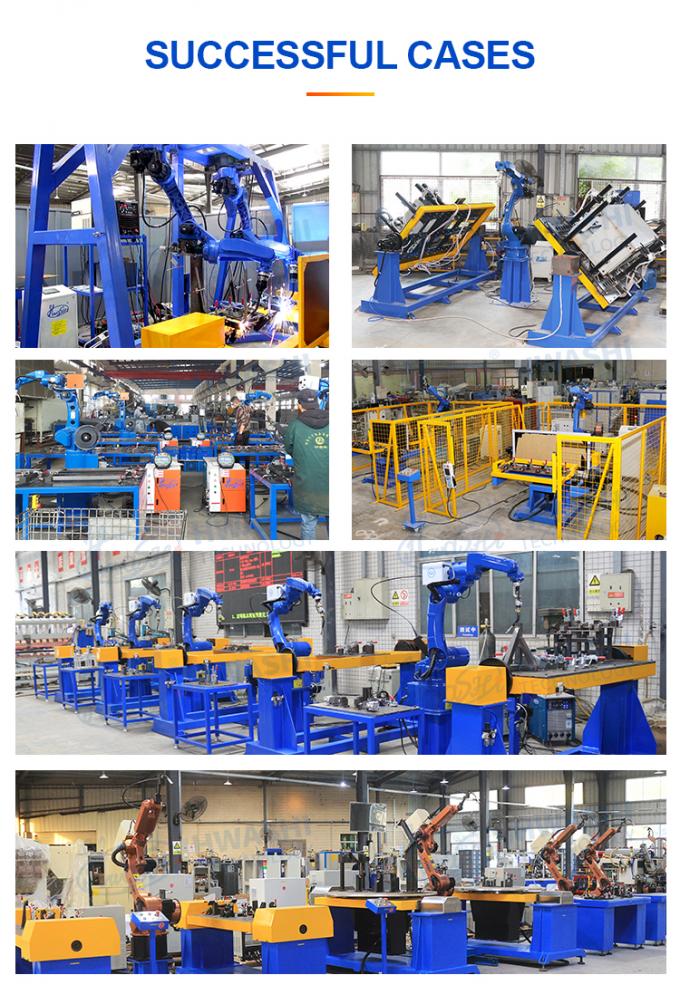

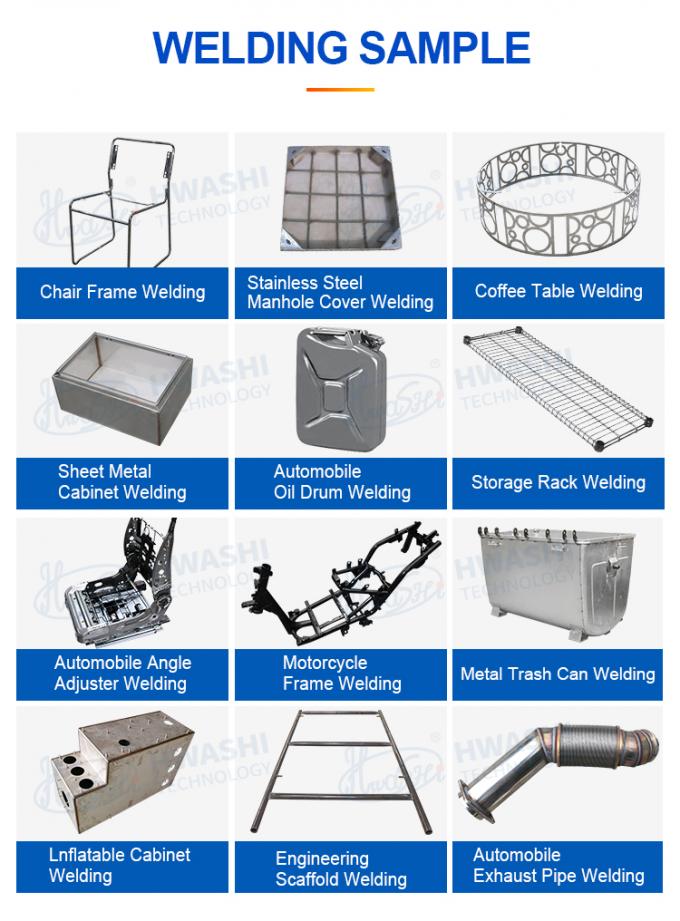

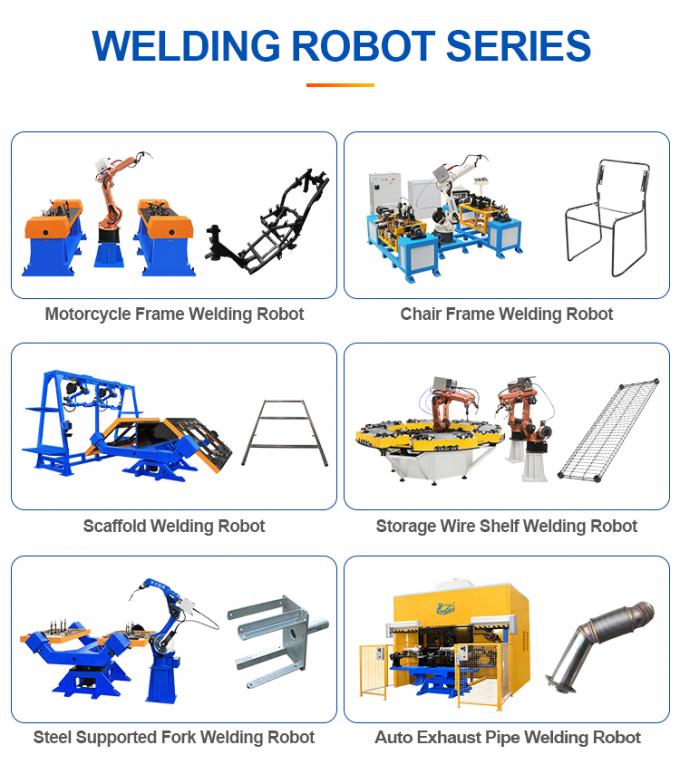

Robot Cases and Welding Samples

We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.
