TIG Welding Robot Unit For Stainless Steel Cabinet Welding Machine

Hwashi TIG Welding Robot Unit Suitable For Stainless Steel Cabinet Welding

Description

HWASHI welding robot is compact, with small size, which is a dedicated arc welding robot. This robot equipped with international brands welding power, can achieve a stable welding, access to high-precision welding path, shorten the welding cycle, with high repeat positioning accuracy, fast running, welding process stability, high consistency of the weld, and can shorten the product replacement cycle, The corresponding equipment investment. Widely used in automotive and accessories, motorcycles and accessories, engineering machinery and other metal welding field.

1. Improve the labor intensity of workers, can work in harmful environment.
2. Shorten the production preparation cycle, reduce enterprise investment.
3. Stabilize and improve the welding quality of work pieces.
4. Reduced requirements for workers to operate skills.
5. Simple operation, convenient for users.

P​arameters

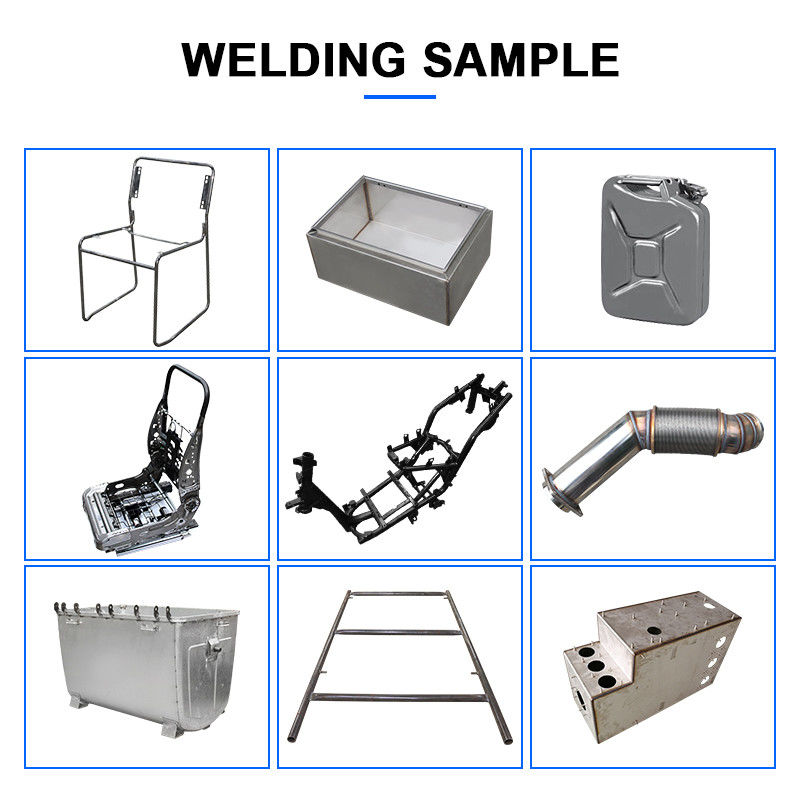

Application and Samples

1. The Six-station positioner layout can realize long time continuous welding, welding efficiency and welding quality has been significantly improved;
2. The positioner realizes the workpiece clamping at one time, and automatically realizes the alternating welding of the four corners of product, the deformation is effectively controlled.
3. This machine can achieve automatic welding with manually loading material. It can also improve the welding quality and welding efficiency. What’s more, it can reduce the production cost. The problem of unstable quality and low production efficiency caused by pure manual operation has been solved.
4. Robot replace manual welding. Welding industry is a high-risk industry, high temperature, arc light and welding smoke have a certain impact on the physical and mental health of workers;
5. It is an inevitable trend to use robots to replace welding robots in welding, which is not only the promotion of the market, but also the requirement of technological upgrading.

Welding Solutions

1. The complete welding robot system includes 4 sets of HS-R6-08 1.4m arm length robot, 4 sets of 350A MIG welding machine, 4 sets of automatic anti-collision welding gun, 1 set of one-axis horizontal rotation positioner, 2 sets of welding gun cleaner, and 6 sets of welding fixtures, etc.
2. In order to guarantee the stability and consistency of welding quality, we suggest to equip with welding gun cleaner device.
3. Automatic welding is carried out by the six-axis robot MIG welder. The cylinders or fast clamps are used to fix the position of the product with the lever principle to ensure the positioning requirements of automatic welding of the robot, so as to ensure that it can be welded to each part of the product. According to the requirements of production efficiency, 1 big rotary table positioner with six stations are designed, 4 fixtures for loading of the workpiece, 1 fixture for welding, and 1 for unloading.

Working Process

1) Manual loading of the workpiece to the fixture in Station 1 fixed table;

2) Start welding;

3) The robot and welding machine will do welding on the workpiece according to the presetting program;

4) Welding completed;

5) While the station 1 is being welded, station 2 is being loaded and fixed the work piece synchronously. Two stations work alternately.

6) Cycle working
