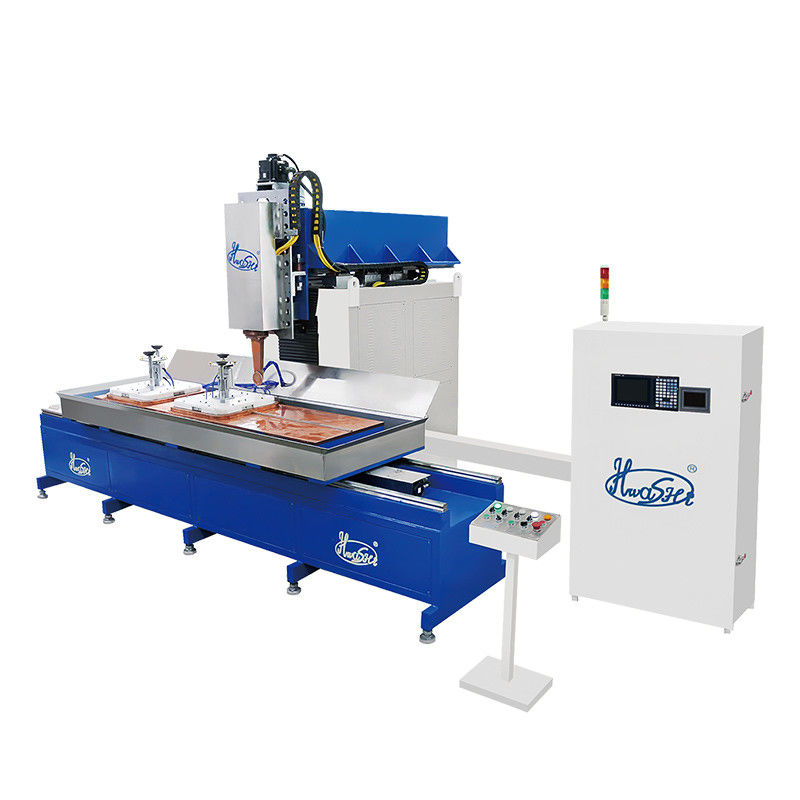

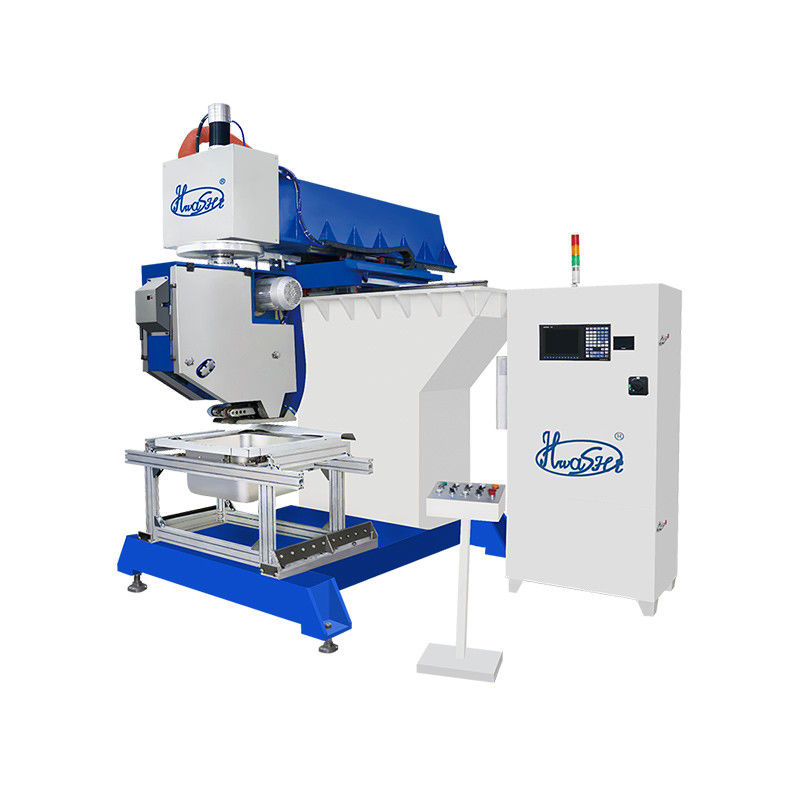

Stainless Steel Sink Welding Machine R Corner Sink Automatic Polishing Machine

Description of HWASHI Stainless Steel Sink R Corner Sink Automatic Polishing Machine
This specialized CNC sink grinding machine operates on the innovative principle of abrasive belt polishing. The electric motor propels the abrasive belt, enabling precision polishing on the welded sink's edge. The polishing process involves two distinct stages. Initially, the coarse abrasive belt efficiently grinds away excess cutting edges and eliminates projection welding spots. Subsequently, the fine abrasive belt is employed for meticulous polishing. The combination of these processes ensures the sink undergoes optimal grinding and polishing treatment.
Distinguished by its utilization of the Mitsubishi professional automatic control system, this machine simplifies operation. By inputting the product's coordinate data and initiating the machine, the abrasive belt seamlessly executes grinding and polishing following a preset program. This automated process allows the worker to focus on placing and retrieving the sink, streamlining the overall operation.

Special Design Grinding Belt Brown belt (fine abrasive belt) DEERFOS RA631 150# Blue belt (coarse abrasive belt) 577F P80Y The movement and control system will be the same as the sink seam welding machine	Auto Moving Table and Fixture Structure For sink bowl within 1500mm, we can choose to use fixed table with adjustable fixture. For sink bowl over the limit, we can design the automatic moving feeder to achieve full automatic grinding and polishing.

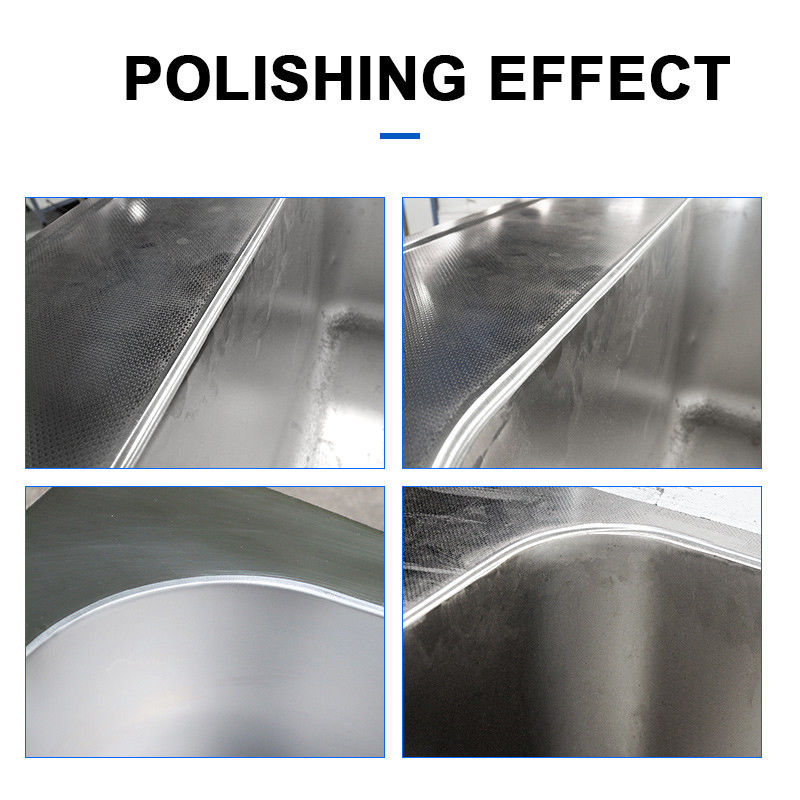

R-Corner Polishing Effect	Straight Seam Polishing Effect


Features

• Fully automatic.
• Utilizes the principle of seam welder with round welding wheel.
• Save labor cost: only one worker required put the sink into the platform and then take it away when finishing the grinding process
• Medium frequency inverter power source which is electricity saving.
• Enhanced function: memorize 16 sets of welding way . If you need more , we could design for you.
• Adopt the professional automatic control system from Mitsubishi
• Use the servo motor to drive axis X (locate mould) and axis Y (welding electrode) to operate under the preset procedure of PLC data.
