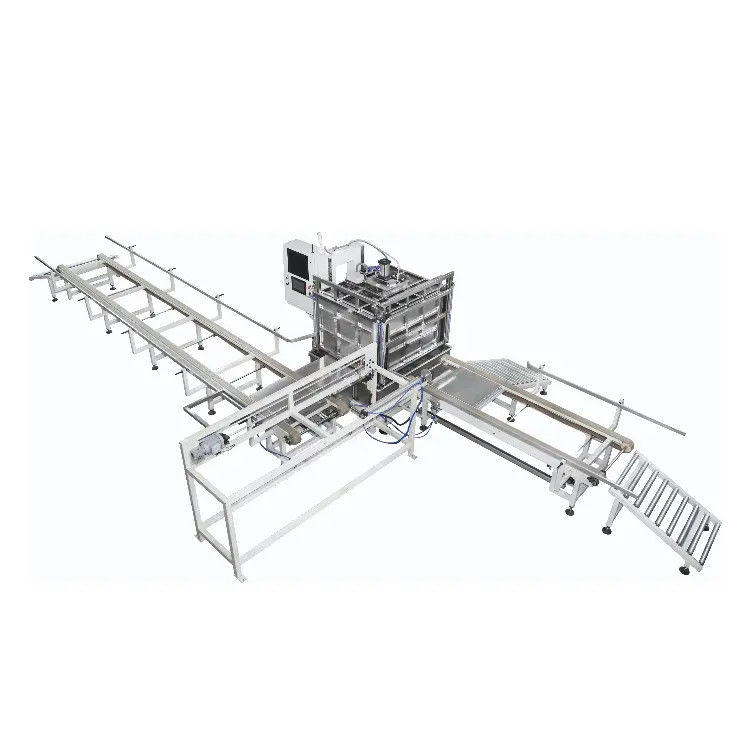

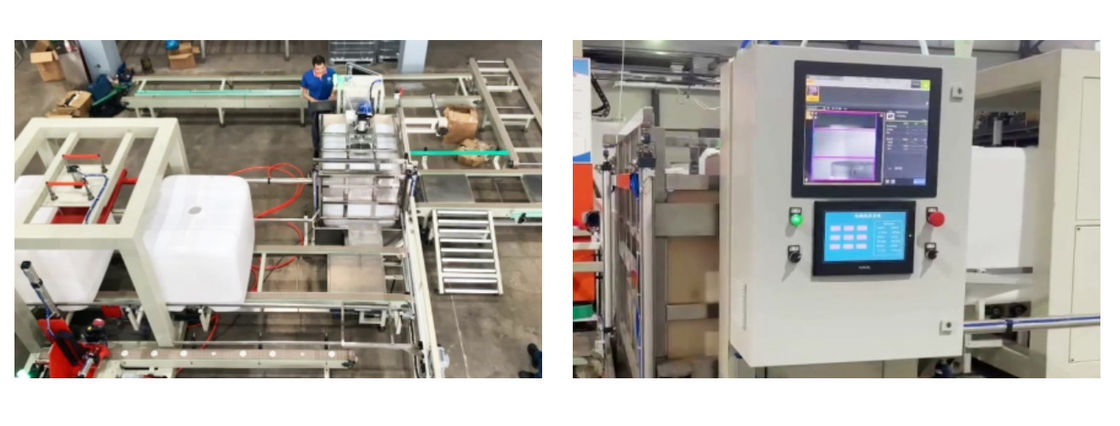

Automatic IBC Tank Leakage Testing Machine With Visual Detection
Description of Automatic IBC Tank Leakage Testing Machine With Visual Detection
The dual detection method of differential pressure detection and visual detection is adopted to ensure the acuracy of leak detection and reduce manpower. Use high precession visual detection system, differential pressure detection and visual detection. Only qualified tank will be loaded to the assembly station. Unqualified product will be kicked out of the line.
Technical Parameters of Automatic IBC Tank Leakage Testing Machine With Visual Detection
| Item | Technical Data |
| Power Requirement | 380V 50H z 12KW |
| Feeding Method | Automatic/Manual |
| Detection Method | Differential pressure detection + visual detection |
| Pressure Source | Air Pressure |
| Detection Efficiency | 55-75s |
Features of automatic IBC tank leakage testing machine with visual detection
>> The dual detection method of differential pressure detection and visual detection is adopted to ensure the accuracy of leak detection and reduce manpower.
>> The machine adopts man-machine interface +PLC programming control mode, high degree of automation.
>> Automatic conveyance of the inner tank through the conveyor line and the propulsion device. Reduce manpower.
FAQ--IBC tank detection line
It consists of automatic valve machine, automatic leakage testing machine and automatic stacking line.
According to the IBC tank production requirement, we use the automatic valve feeding and hot melting method to install the valve to the tank.Through the visual identity leakage testing and second time pressure difference detection, you can check if the inner tank is qualified or not. And make sure the unqualified product will not enter into the line.
Use mechanical arm to pick up the inner tank and put it into the complete frame. It will enter into the rotary table. The operator will do the manual pull rod and cover assembly. Finally the product will enter into the stacking station. Then the whole detection process will be completed.
Production line
| Six-Head IBC Frame Automatic Welding Machine The welding power is designed with 4 sets of MF DC power source. It can do 6 spots welding at one time. Double layer fixture feeder. When one fixture is under welding, another fixture can be loaded with material. |
Flat Tube Mesh and Firm Welding Quality The welding machine will weld the tube into flat mesh type. Firm and strong welding quality. It will take about 60sec to complete the welding process. |
| Vertical Double Station IBC Frame Bending Machine IBC cage frame double station bending machine is processed as a whole to ensure high bending precision, stable operation and high efficiency. |
Bend the Flat Mesh into Square Shape The bending machine will bend the flat mesh into square frame. It will takes about 20- 25sec to complete the bending process.
|
| IBC Cage Frame Locking Machine IBC cage frame locking machine is processed as a whole, with high insertion precision, large fastness to locking, stable and efficient operation. |
Locking Efficiency and Quality
|
| IBC Cage Frame Hole Making and Punching Machine IBC cage frame hole making and punching machine is used to form the hole on the frame, so the complete frame can be fixed on the base frame. |
Hole Making Efficiency and Quality The hole making and punching machine is using hydraulic force. It will takes about 25-30sec to complete the complete process. |
| IBC Cage Base Frame Welding Machine The base frame welding machine design adopts horizontal structure and 7 welding heads for completing the welding of base frame. The operator only need to load and unload the product. The machine will do the welding automatically. |
Final Product of Base Frame We can add the automatic loading and unloading device for the base frame welding machine as per your requirement. The welding efficiency is about 15-20 sec/pc. |
