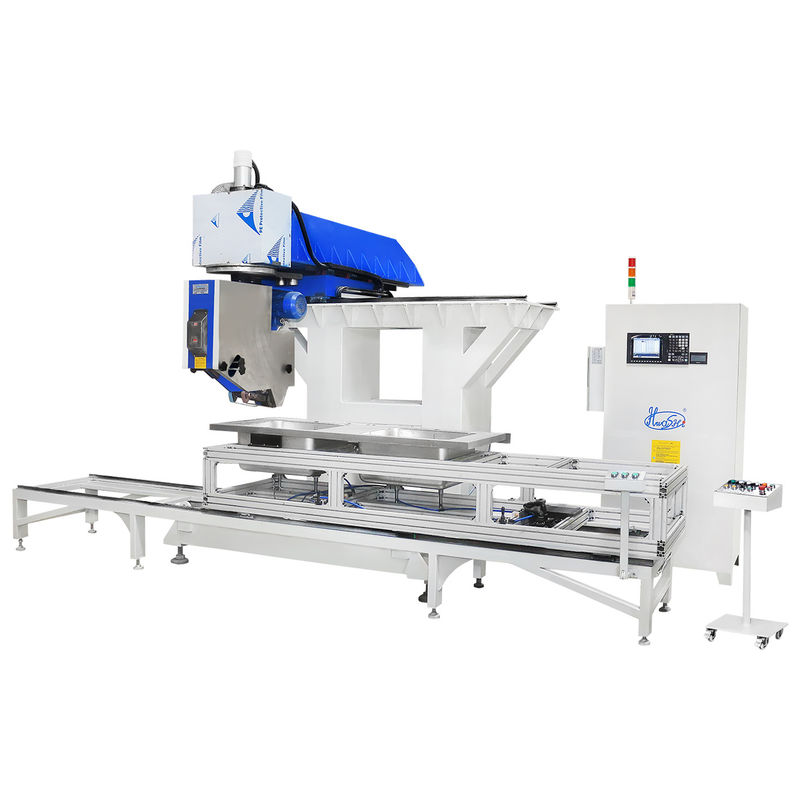

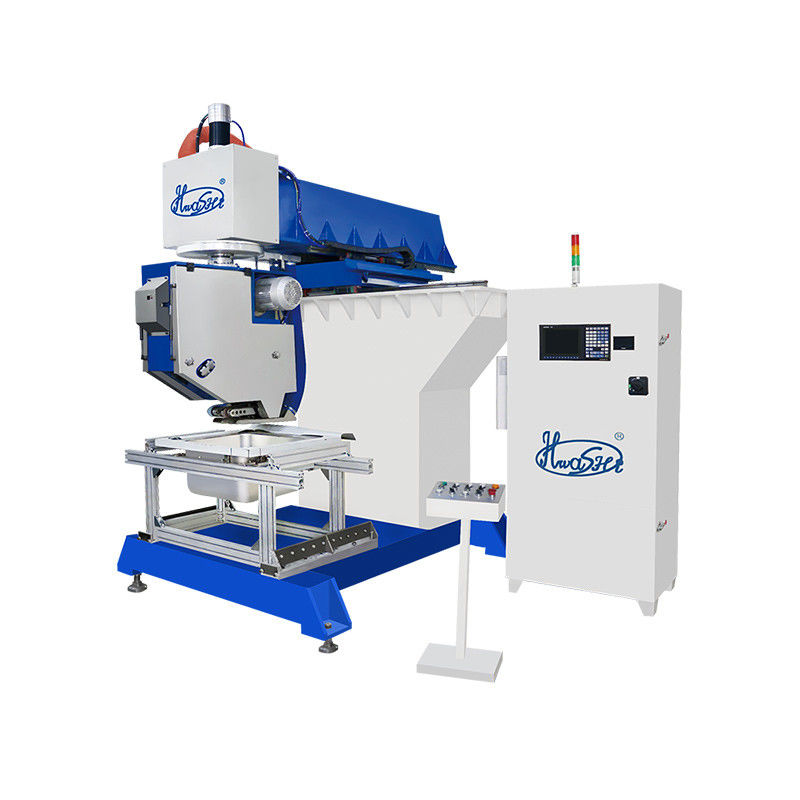

Stainless Steel Sink CNC Sink Edges Grinding And Polishing Machine

Stainless Steel Sink CNC Sink Edges Grinding And Polishing Machine

Sink Edges Grinding Machine

Sink Edges Polishing Machine

Sink Edges Grinding and Polishing Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-AT-PM1200

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI Stainless Steel Sink CNC Sink Edges Grinding And Polishing Machine
Grinding Wheel Diameter:
50mm
Abrasive Belt Width:
50mm
Abrasive Belt Rotating Speed:
1400-2800mm/min (adjustable)
X Axle Moving Range:
≥1220mm
Y Axle Moving Range:
≥620mm
Z Axle Moving Range:
≥250mm
A Axle Moving Range:
360 Angle
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T, MoneyGram
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Product Description

HWASHI Stainless Steel Sink CNC Sink Edges Grinding and Polishing MachineStainless Steel Sink CNC Sink Edges Grinding And Polishing Machine 0

Description Of The CNC Sink Edges Grinding and Polishing Machine

This is the special designed machine for grinding and polishing the seam after welding. Normally customer will choose to buy these two machines together so as to complete the production of kitchen sink. This CNC sink grinding special machine utilizes abrasive belt polishing principle. The abrasive belt is driven by electric motor to conduct polishing on the edge of the welded sink. There are two processes for polishing. Firstly, use the coarse abrasive belt to grind the redundant cutting edge and the projection welding spots. Then use the fine abrasive belt to conduct polishing treatment. After these two processes can meet the requirement of sink grinding and polishing treatment.

Stainless Steel Sink CNC Sink Edges Grinding And Polishing Machine 1

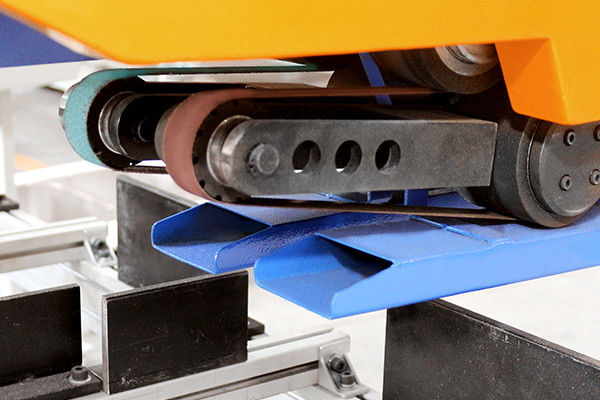

Brown belt (fine abrasive belt)   Blue belt (coarse abrasive belt)

Stainless Steel Sink CNC Sink Edges Grinding And Polishing Machine 2

                                                        Auto Moving Table and Fixture Structure

For sink bowl within 1500mm, we can choose to use fixed table with adjustable fixture. For sink bowl over the limit, we can design the automatic moving feeder to achieve full automatic grinding and polishing.



Features Of The CNC Sink Edges Grinding and Polishing Machine

Save labor cost: only one worker required put the sink into the platform and then take it away when finishing the grinding process.

Medium frequency inverter power source which is electricity saving.

Enhanced function: memorize 16 sets of welding way . If you need more , we could design for you.

Use the servo motor to drive axis X (locate mould) and axis Y (welding electrode) to operate under the preset procedure of PLC data.

Technical Data Of The CNC Sink Edges Grinding and Polishing Machine


CNC Sink Edge Grinding and Polishing Machine
Max. Moving Speed 500mm/sec
Belt Rotation Speed 1200R/min
Min. Radius R40
Rated Air Pressure 0.6MPa
Grinding Efficiency about 2min/bowl (depend on the size of bowl)

Applicaion Area Of The CNC Sink Edges Grinding and Polishing Machine

Suitable for sink welding within the range of 1600mmx600mm (adjustable according to your needs)

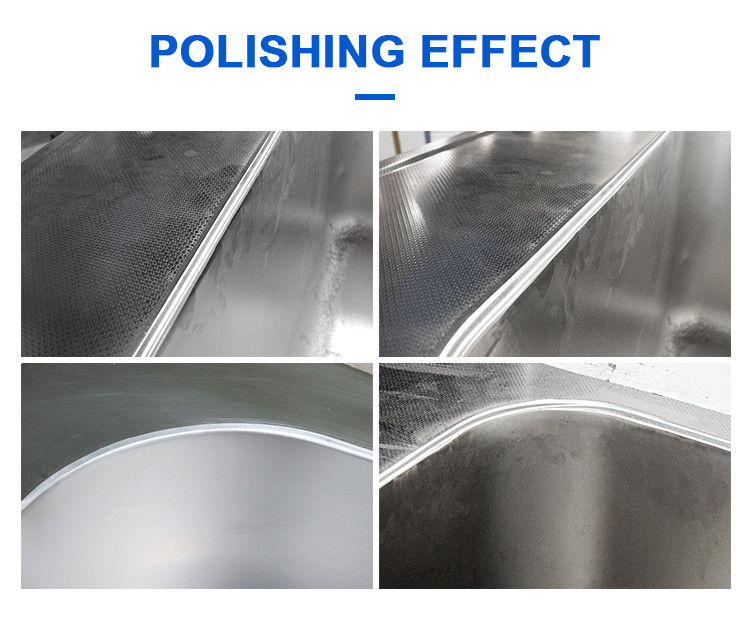

Samples Of The CNC Sink Edges Grinding and Polishing Machine

Stainless Steel Sink CNC Sink Edges Grinding And Polishing Machine 3

Machines Related to The CNC Sink Edges Grinding and Polishing Machine

Description Of The Seam Welding Machine
This seam welding machine replaces the spot welding electrode with circle welding wheel, which is high efficiency and high quality. It basically achieves automation and completely meet the intelligent requirement of human-machine conversation.

 Stainless Steel Sink CNC Sink Edges Grinding And Polishing Machine 4

Japan Mitsubishi CNC Control System
Adopts three sets of Japan Mitsubishi servo motor to control axis X (movement of sink mould), axis Y (vertical movement of welding wheel), and axis A (360° rotation of welding wheel).

   Stainless Steel Sink CNC Sink Edges Grinding And Polishing Machine 5

Auto Moving Welding Table

Specially designed electrode large table, more stable conductivity, to ensure the effectiveness of welding.

Stainless Steel Sink CNC Sink Edges Grinding And Polishing Machine 6

Big Copper Flat Table Electrode and Fixture

We will design the fixture according to the design of your sink bowl. Different sizes may require different fixtures.

Be able to do welding of single bowl, double-bowl, or three-bowl product.

Stainless Steel Sink CNC Sink Edges Grinding And Polishing Machine 7

Welding electrode

Synchronized operation of welding electrodes and Moving Welding Table,

Automatic welding of sink, Uniform and beautiful welding seam.



Technical Parameter Of The Seam Welding Machine

Item Data
Control Mode PLC
Effective Welding Length 1600mm
Effective Welding Width 600mm
Table Size 1600x600mm
Feeder Driving Force Servo System
Max. Running Speed 300mm/s(without welding)
Welding Speed 25-35mm/s
Fixture Driving Force Cylinder
Machine Covering Space L5000mmxW3000mm
Rated Capacity 160KVA
Duty Cycle Rated 50%
Frequency 1000HZ
Control Heating Adjusting Range 15%~99%
Max. Output Voltage DC9.8V
Secondary Max. Short Circuit Current 23KA
Time Adjustment 0~999ms



Application Of The Seam Welding Machine

Welding and grinding different shapes of kitchen sink.

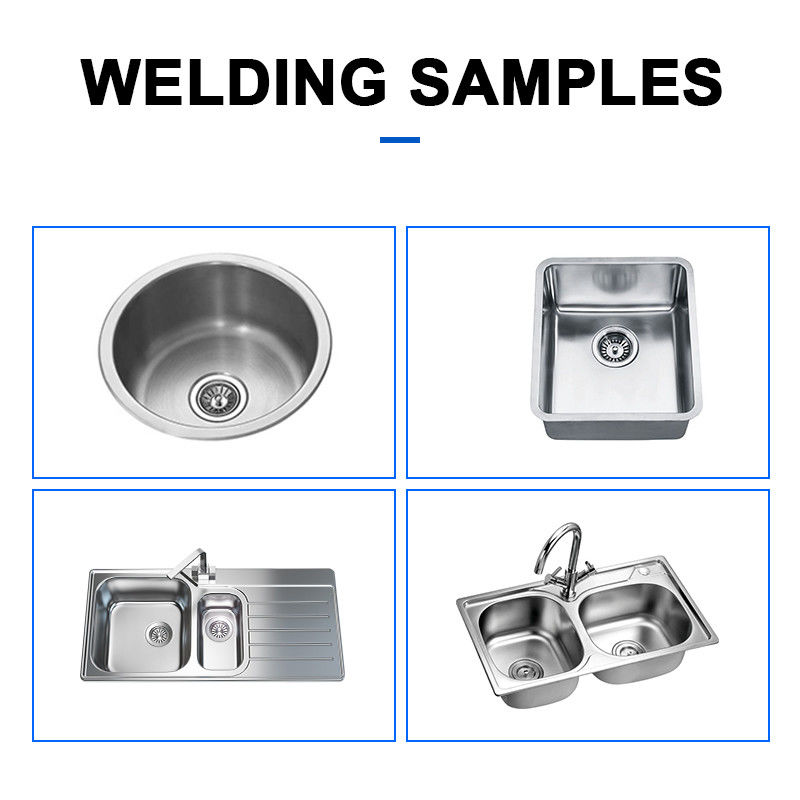

Samples Of The Seam Welding Machine

Stainless Steel Sink CNC Sink Edges Grinding And Polishing Machine 8    Stainless Steel Sink CNC Sink Edges Grinding And Polishing Machine 9

Stainless Steel Sink CNC Sink Edges Grinding And Polishing Machine 10Stainless Steel Sink CNC Sink Edges Grinding And Polishing Machine 11Stainless Steel Sink CNC Sink Edges Grinding And Polishing Machine 12
