Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-AMF-160K

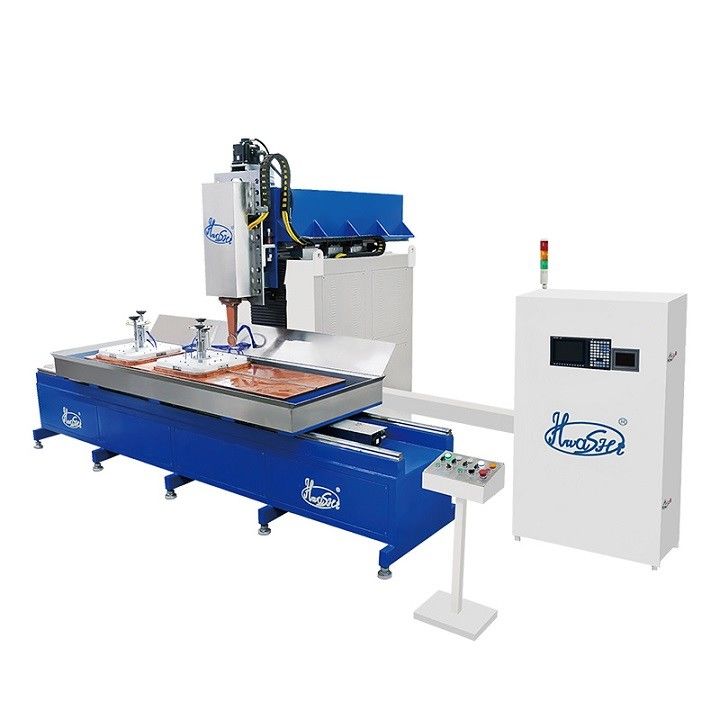

HWASHI Automatic Seam Welding Machine for Italian Type Stainless Steel Kitchen Double Sink Bowl
Description Of The Seam Welding Machine
This seam welding machine replaces the spot welding electrode with circle welding wheel, which is high efficiency and high quality. It basically achieves automation and completely meet the intelligent requirement of human-machine conversation.
Japan Mitsubishi CNC Control System
Adopts three sets of Japan Mitsubishi servo motor to control axis X (movement of sink mould), axis Y (vertical movement of welding wheel), and axis A (360° rotation of welding wheel).
Auto Moving Welding Table
Specially designed electrode large table, more stable conductivity, to ensure the effectiveness of welding.
Big Copper Flat Table Electrode and Fixture
We will design the fixture according to the design of your sink bowl. Different sizes may require different fixtures. Be able to do welding of single bowl, double-bowl, or three-bowl product.
Welding electrode
Synchronized operation of welding electrodes and Moving Welding Table

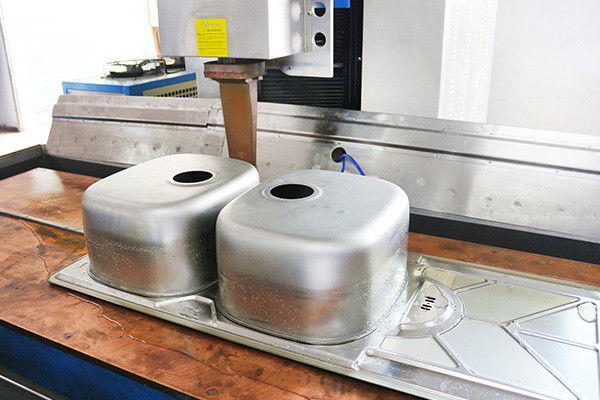

Automatic welding of sink, Uniform and beautiful welding seam.
Technical Parameter Of The Seam Welding Machine
|
Application Of The Seam Welding Machine
Welding and grinding different shapes of kitchen sink.

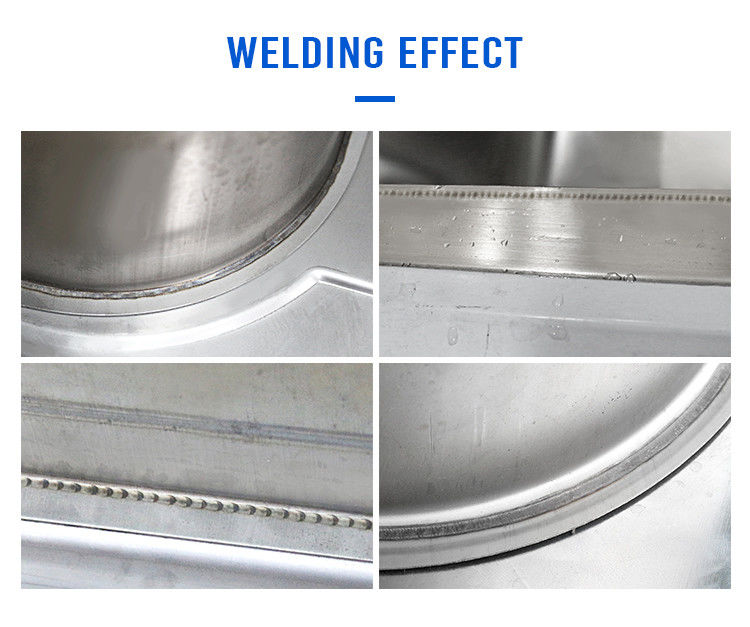

Samples Of The Seam Welding Machine
Related machine to Seam Welding Machine
Brown belt (fine abrasive belt) Blue belt (coarse abrasive belt)
Auto Moving Table and Fixture Structure
For sink bowl within 1500mm, we can choose to use fixed table with adjustable fixture. For sink bowl over the limit, we can design the automatic moving feeder to achieve full automatic grinding and polishing.
|
|
Model | WL-AMF-160K |
| Input Power (V/φ) | 380V 3φ | |
| Rated Power (KVA) | 160/250KVA (as per material thickness) | |
| Applicable Material | Stainless Steel 304/201 | |
| Material Thickness | 0.8~1.5mm (customized) | |
| Effective Welding Length | 1600-3000mm (customized) | |
| Effective Welding Width | 600-800mm (customized) | |
| Sink Bowl Shape | Square/Rectangular/Round | |
| Welding Efficiency | about 2min/bowl (depend on the size of bowl) | |
|
|
Max. Moving Speed | 500mm/sec |
| Belt Rotation Speed | 1200R/min | |
| Min. Radius | R40 | |
| Rated Air Pressure | 0.6MPa | |
| Grinding Efficiency | about 2min/bowl (depend on the size of bowl) |
