HWASHI Vibration Testing Machine For IBC Tank

HWASHI Vibration Testing Machine For IBC Tank

HWASHI Vibration Testing Machine

IBC Tank Testing Machine

Vibration Testing Machine For IBC Tank

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-AF-160K

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI Vibration Testing Machine For IBC Cage
Application:
IBC Tank
Size:
According To Your Products
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T, MoneyGram
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

HWASHI Vibration Testing Machine For IBC Tank

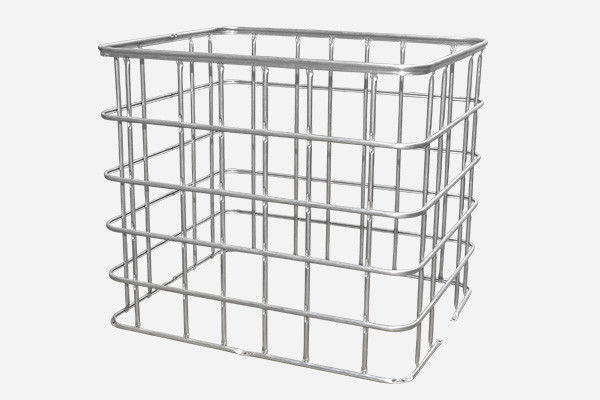

Description Of The IBC Cage Frame Automatic Production Line

The IBC cage frame automatic production line is mainly used to manufacturing the IBC cage frame. It is composed of cage frame automatic welding machine, mesh unloading mechanical arm, turnover table, automatic frame bending machine, locking machine, hole making and punching machine, automatic production line moving mechanical arm. The complete line requires only 3-4 person. Operator only need to do the material loading to the frame welding machine, and do unloading at the end of the line. Also we can equip the line with automatic base frame welding machine and automatic unloading mechanical arm for the base frame.

HWASHI Vibration Testing Machine For IBC Tank 0



Running Process Of The IBC Cage Frame Automatic Production Line :
Frame welding——bending——locking——hole punching——unloading——base frame welding——base frame loading——manual screw for base frame and outer frame

           HWASHI Vibration Testing Machine For IBC Tank 1

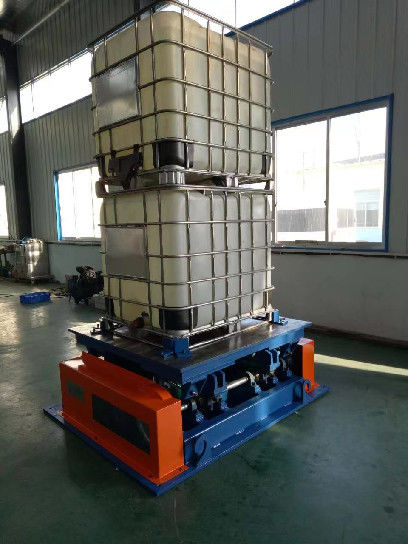

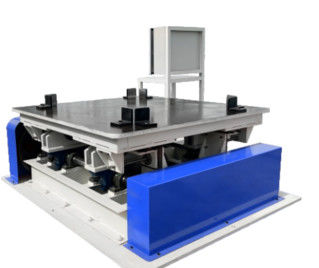

Description Of Vibration Testing Machine

The IBC tank vibration testing machine can simulate the test environment by driving the platform to vibrate up and down through the motor. It can place two IBC to simulate the maximum load of 3 Tons.

HWASHI Vibration Testing Machine For IBC Tank 2

Vibration Testing Machine



Features Of The Vibration Testing Machine :
1) The up and down vibration simulation test was adopted.
2) The machine adopts man-machine interface+PLC programming control mode, high degree of automation.
3) You can set testing time and vibration frequency according to your needs.



Technical Data Of The Vibration Testing Machine :

Itiems Technical Data
Power Requirement 380V 50Hz 18KW
Motor Power 15KW
Max. Testing Frame Number 2 pieces (2000kg)
Testing Time 0 to 1 hour
Amplitude Range25 25mm ± 5%
Frequency Range 2-5Hz (100-300 turns/min)
Platform Size 1200x1200mm



Appliation And Samples  Of The Vibration Testing Machine :

To do the vibration testing for IBC tank.
HWASHI Vibration Testing Machine For IBC Tank 3





HWASHI Vibration Testing Machine For IBC Tank 4HWASHI Vibration Testing Machine For IBC Tank 5

HWASHI Vibration Testing Machine For IBC Tank 6
