Product Description

HWASHI IBC Tube Milling Machine Composition For P-Tube And Round Tube


Description Of The IBC Tube Milling Machine
This machine can produce round tube, square tube, rectangular tube, oval tube, ect. It also can produce half pipe, plum pipe and different shaped tube. The IBC cage frame is composed of P tube, round tube, half round tube or square tube. It will need to use the tube milling machine to produce the tubes into required shape for welding purpose. Normally one machine can be used to produce P tube, round tube or half round tube. Only need to change the moulds.

Main applications including:

  • Furniture industry: Steel table tubes, Steel chair tubes, Steel bed tubes, Steel towel racks, etc.
  • Construction industry: Steel guardrail, steel door, steel handrail and steel window, etc.
  • Industrial pipe production: liquid transportation: milk, water transportation; automobile exhaust pipe; sanitary pipe,chimney etc.

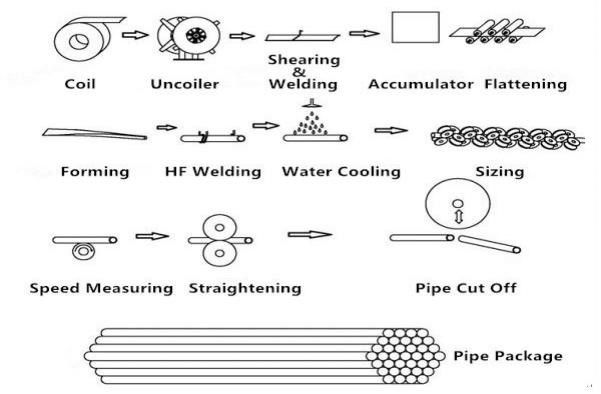

Composition And Process Of Tube Milling Machine
IBC Tube Milling Machine Composition For P-Tube And Round Tube 0



 IBC Tube Milling Machine Composition For P-Tube And Round Tube 1

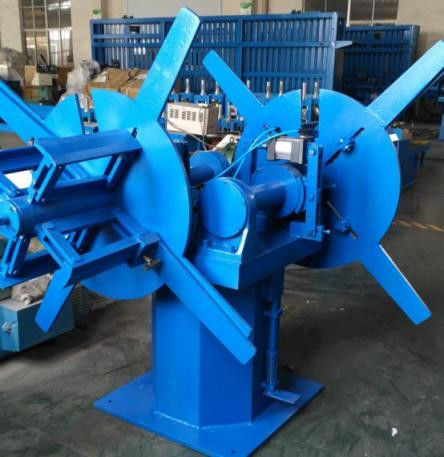

 1. Raw Material Decoiler



  • Double working station



  • Material coil diameter: 1600mm



  • Center height: 1000mm



  • Loading capacity: 2000kg



IBC Tube Milling Machine Composition For P-Tube And Round Tube 2

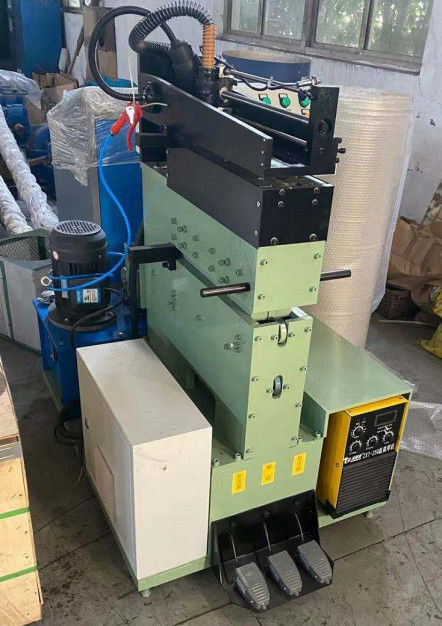

2. Strip shearing and welding machine
It’s used to cut the tail of former coil and head of next coil and make preparation for welding them together.



  • Hydraulic cutting



  • Max welding thickness: 2mm

  • Welding source: TIG welding



  IBC Tube Milling Machine Composition For P-Tube And Round Tube 3



 3. Vertical material accumulator
It’s used to store and feed raw materials for forming machine so that the machine can work continuously.



  • Max storage capacity: 150-200m



  • Power of driving motor: 5.5KW



  • Max material feeding speed: 150m/min


  IBC Tube Milling Machine Composition For P-Tube And Round Tube 4

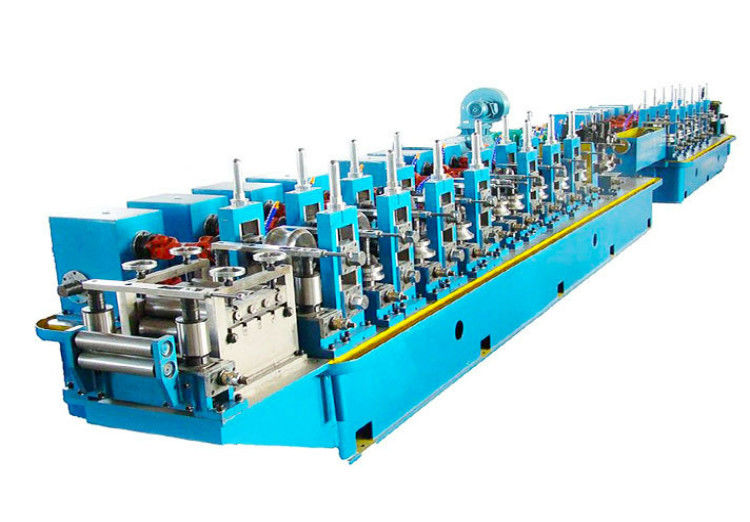

 4. Forming and sizing machine
It’s the main equipment of the production line. Rollers can make steel strip form into pipes of variety shapes. It consists of forming part , welding part and sizing part.

       IBC Tube Milling Machine Composition For P-Tube And Round Tube 5

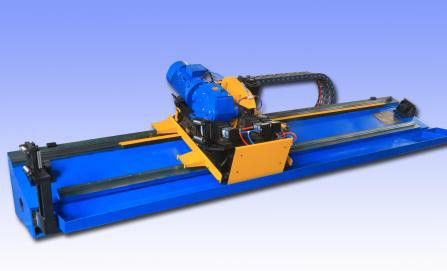

 5. Cold Cutting Saw
With the high precision servo control system and quick reaction of mechanical system, the computer cutting saw has reliable synchronization performance and high precision cutting length.

  • Error rate: ±2mm
  • Power of cutting motor: 11KW AC
  • Power of driving motor: 11KW servo
  • Power of feeding motor: 1.8KW servo



IBC Tube Milling Machine Composition For P-Tube And Round Tube 6


 6. High Frequency Induction Appliances
Using the current skin effect and proximity effect of high frequency to make both edges of the material rapidly heated to soldering temperature and then weld them together. Using computer to monitor the process can provide the machine with reliable quality.





IBC Tube Milling Machine Composition For P-Tube And Round Tube 7

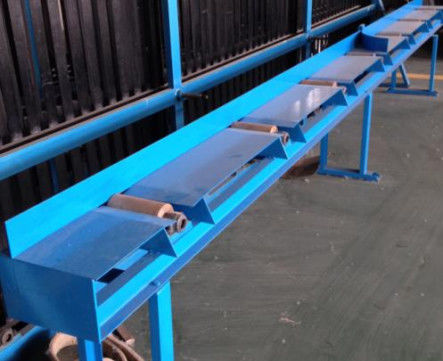

 7. Automatic pipe unloading platform
 Hydraulic cutting
It is an unloading platform of pipes cut by computerized saw. After the pipes falling down, workers can quickly check the quality and package them for preparation of transportation.


Technical Data Of Tube Milling Machine

Raw material Carbon steel coil, galvanized steel coil, other hotorcoldrolledsteelcoil.
Pipe size Width of rawmaterial 38 -160mm
Round pipe outsidediameter Φ12.7 -Φ50.8mm
Round pipe thickness 0.5 -2.5mm
Square and rectangularpipesize 10x10 - 40x40mm5x15 -30x50mm
Square and rectangularpipe thickness 0.5 -2.0mm
High frequency induction welderpower 150Kw
Production speed 20 -120m/min


Application Of Tube Milling Machine

To produce round tube, square tube, rectangular tube, oval tube,etc..


Samples Of Tube Milling Machine

IBC Tube Milling Machine Composition For P-Tube And Round Tube 8

IBC Tube Milling Machine Composition For P-Tube And Round Tube 9IBC Tube Milling Machine Composition For P-Tube And Round Tube 10IBC Tube Milling Machine Composition For P-Tube And Round Tube 11
