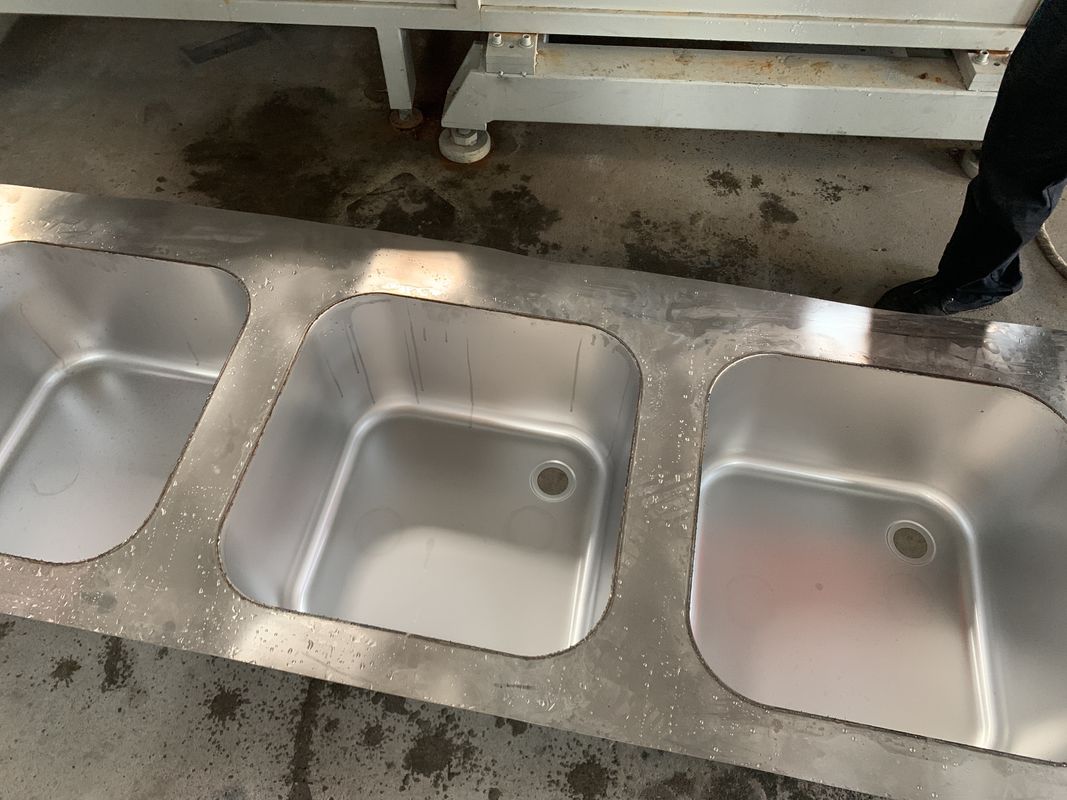

Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Triple Sink Bowl

Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Triple Sink Bowl

Automatic Seam Welding Machine

Sink Bowl Welding Machine

Sink Bowl Welding Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-AMF-160K

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Triple Sink Bowl
Application:
Welding For Kitchen Sink
Size:
According To Your Products
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T, MoneyGram
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

HWASHI Automatic Seam Welding Machine for Italian Type Stainless Steel Kitchen Triple Sink Bowl

Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Triple Sink Bowl 0

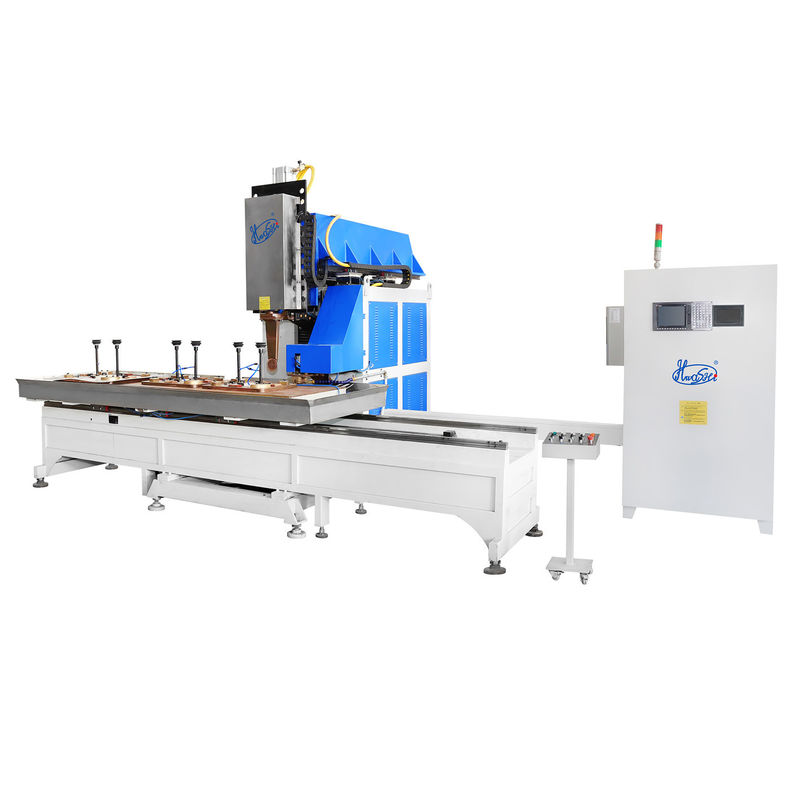

Description Of The Seam Welding Machine
This seam welding machine replaces the spot welding electrode with circle welding wheel, which is high efficiency and high quality.  It basically achieves automation and completely meet the intelligent requirement of human-machine conversation.

Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Triple Sink Bowl 1
Japan Mitsubishi CNC Control System
Adopt three sets of Japan Mitsubishi servo motor to control axis X (movement of sink mould), axis Y (vertical movement of welding wheel), and axis A (360° rotation of welding wheel).

Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Triple Sink Bowl 2

Auto Moving Welding Table
Specially designed electrode large table, more stable conductivity, to ensure the effectiveness of welding.

Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Triple Sink Bowl 3

Big Copper Flat Table Electrode and Fixture
We will design the fixture according to the design of your sink bowl. Different sizes may require different fixtures.

Be able to do welding of single bowl, double-bowl, or three-bowl product.

Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Triple Sink Bowl 4

Welding electrode

Synchronized operation of welding electrodes and Moving Welding Table,

Automatic welding of sink, Uniform and beautiful welding seam.



Technical Parameter Of The Seam Welding Machine

Item Data
Control Mode PLC
Effective Welding Length 1600mm
Effective Welding Width 600mm
Table Size 1600x600mm
Feeder Driving Force Servo System
Max. Running Speed 300mm/s(without welding)
Welding Speed 25-35mm/s
Fixture Driving Force Cylinder
Machine Covering Space L5000mmxW3000mm
Rated Capacity 160KVA
Duty Cycle Rated 50%
Frequency 1000HZ
Control Heating Adjusting Range 15%~99%
Max. Output Voltage DC9.8V
Secondary Max. Short Circuit Current 23KA
Time Adjustment 0~999ms



Application Of The Seam Welding Machine

Welding and grinding different shapes of kitchen sink.

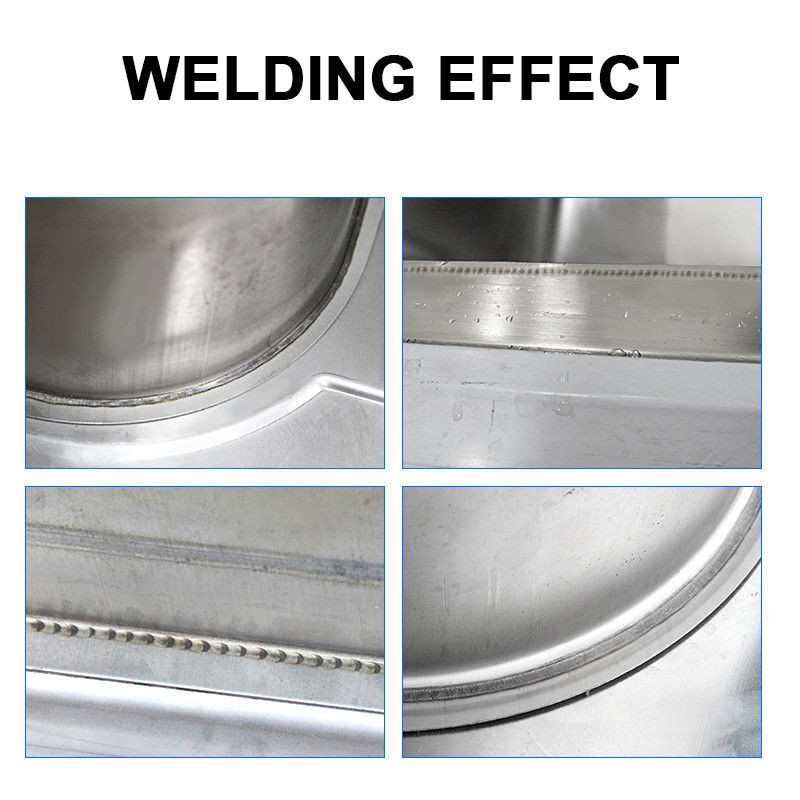

Samples Of The Seam Welding Machine

Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Triple Sink Bowl 5Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Triple Sink Bowl 6



Machines Related to The Seam Welding Machine


Description Of The CNC Sink Edges Grinding and Polishing Machine
This is the special designed machine for grinding and polishing the seam after welding. Normally customer will choose to buy these two machines together so as to complete the production of kitchen sink. This CNC sink grinding special machine utilizes abrasive belt polishing principle. The abrasive belt is driven by electric motor to conduct polishing on the edge of the welded sink. There are two processes for polishing. Firstly, use the coarse abrasive belt to grind the redundant cutting edge and the projection welding spots. Then use the fine abrasive belt to conduct polishing treatment. After these two processes can meet the requirement of sink grinding and polishing treatment.
Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Triple Sink Bowl 7
Brown belt (fine abrasive belt)   Blue belt (coarse abrasive belt) Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Triple Sink Bowl 8

Auto Moving Table and Fixture Structure

For sink bowl within 1500mm, we can choose to use fixed table with adjustable fixture. For sink bowl over the limit, we can design the automatic moving feeder to achieve full automatic grinding and polishing.



Samples Of The CNC Sink Edges Grinding and Polishing Machine

Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Triple Sink Bowl 9

Technical Data Of The CNC Sink Edges Grinding and Polishing Machine





CNC Sink Seam Welding Machine
Model WL-AMF-160K
Input Power (V/φ) 380V 3φ
Rated Power (KVA) 160/250KVA (as per material thickness)
Applicable Material Stainless Steel 304/201
Material Thickness 0.8~1.5mm (customized)
Effective Welding Length 1600-3000mm (customized)
Effective Welding Width 600-800mm (customized)
Sink Bowl Shape Square/Rectangular/Round
Welding Efficiency about 2min/bowl (depend on the size of bowl)

CNC Sink Edge Grinding and Polishing Machine
Max. Moving Speed 500mm/sec
Belt Rotation Speed 1200R/min
Min. Radius R40
Rated Air Pressure 0.6MPa
Grinding Efficiency about 2min/bowl (depend on the size of bowl)

Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Triple Sink Bowl 10Automatic Seam Welding Machine For Italian Type Stainless Steel Kitchen Triple Sink Bowl 11
