HWASHI IBC Cage Frame Production Line IBC Cage Base Frame Welding Machine

HWASHI IBC Cage Frame Production Line IBC Cage Base Frame Welding Machine

HWASHI IBC Cage Frame Production Line

IBC Cage Base Frame Welding Machine

Frame Welding Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-SQ-MF160Kx6

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI IBC Cage Base Frame Welding Machine
Application:
IBC Cage
Size:
According To Your Products
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T, MoneyGram
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

HWASHI IBC Cage Frame Production Line IBC Cage Base Frame Welding Machine

Description Of The IBC Cage Base Frame Welding Machine

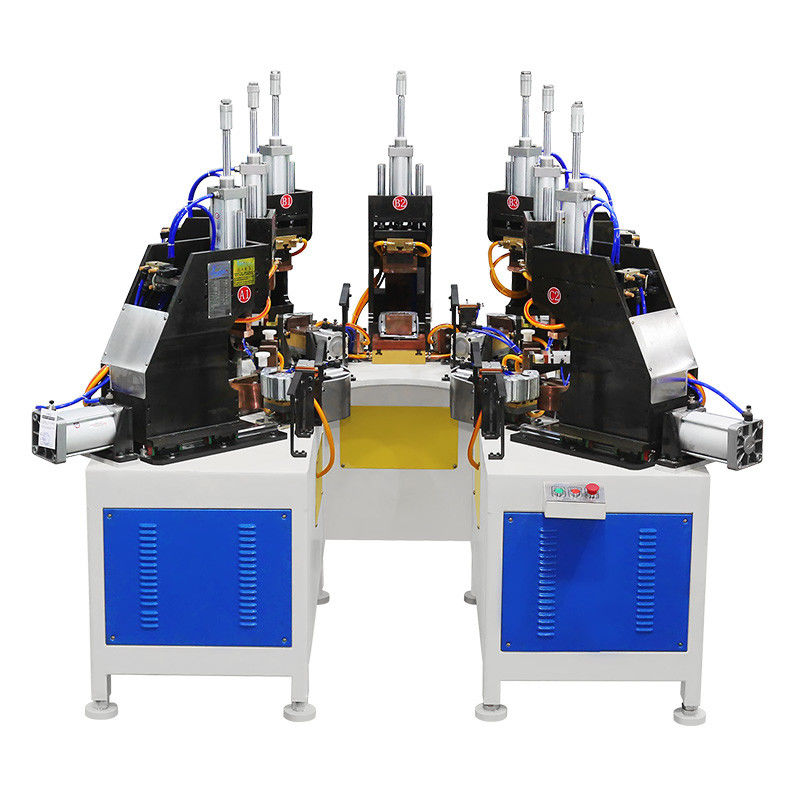

The base frame welding machine design adopts horizontal structure and 7 welding heads for completing the welding of base frame.The operator only need to load and unload the product. The machine will do the welding automatically.

HWASHI IBC Cage Frame Production Line IBC Cage Base Frame Welding Machine 0

Features Of The IBC Cage Base Frame Welding Machine:

1. The design adopts horizontal structure and 7 welding heads for completing the welding of base frame. The operator only need to load.
2. Welded pallet will be unload automatically. The machine will do the welding automatically.
3. It adopts 3 sets of MF DC 250KVA power. The machine helps to increase product quality and production rate, lower the production cost.
4. Solve the problem of unstable welding quality caused by manual work. Higher production rate and automation level.

Applications Of The IBC Cage Base Frame Welding Machine:

Mainly used for bending IBC pipe based frame.

Sample Of The IBC Cage Base Frame Welding Machine

HWASHI IBC Cage Frame Production Line IBC Cage Base Frame Welding Machine 1

IBC tank welding machine Production line equipment

Description Of The IBC Cage Frame Automatic Production Line

The IBC cage frame automatic production line is mainly used to manufacturing the IBC cage frame. It is composed of cage frame automatic welding machine, mesh unloading mechanical arm, turnover table, automatic frame bending machine, locking machine, hole making and punching machine, automatic production line moving mechanical arm. The complete line requires only 3-4 person. Operator only need to do the material loading to the frame welding machine, and do unloading at the end of the line. Also we can equip the line with automatic base frame welding machine and automatic unloading mechanical arm for the base frame.



HWASHI IBC Cage Frame Production Line IBC Cage Base Frame Welding Machine 2HWASHI IBC Cage Frame Production Line IBC Cage Base Frame Welding Machine 3

Six-Head IBC Frame Automatic Welding Machine
The welding power is designed with 4 sets of MF DC power source. It can do 6 spots welding at one time. Double layer fixture feeder. When one fixture is under welding, another fixture can be loaded with material.
Flat Tube Mesh and Firm Welding Quality
The welding machine will weld the tube into flat mesh type. Firm and strong welding quality. It will take about 60sec to complete the welding process.

HWASHI IBC Cage Frame Production Line IBC Cage Base Frame Welding Machine 4HWASHI IBC Cage Frame Production Line IBC Cage Base Frame Welding Machine 5

Vertical Double Station IBC Frame Bending Machine
IBC cage frame double station bending machine is processed as a whole to ensure high bending precision, stable operation and high efficiency.

Bend the Flat Mesh into Square Shape

The bending machine will bend the flat mesh into square frame. It will takes about 20- 25sec to complete the bending process.



HWASHI IBC Cage Frame Production Line IBC Cage Base Frame Welding Machine 6HWASHI IBC Cage Frame Production Line IBC Cage Base Frame Welding Machine 7

IBC Cage Frame Locking Machine
IBC cage frame locking machine is processed as a whole, with high insertion precision, large fastness to locking, stable and efficient operation.

Locking Efficiency and Quality
The locking machine will lock the ends of the tube frame using hydraulic force. It will takes about 25-30sec to complete the locking process.



HWASHI IBC Cage Frame Production Line IBC Cage Base Frame Welding Machine 8HWASHI IBC Cage Frame Production Line IBC Cage Base Frame Welding Machine 9

IBC Cage Frame Hole Making and Punching Machine
IBC cage frame hole making and punching machine is used to form the hole on the frame, so the complete frame can be fixed on the base frame.
Hole Making Efficiency and Quality
The hole making and punching machine is using hydraulic force. It will takes about 25-30sec to complete the complete process.

HWASHI IBC Cage Frame Production Line IBC Cage Base Frame Welding Machine 10HWASHI IBC Cage Frame Production Line IBC Cage Base Frame Welding Machine 11

IBC Cage Base Frame Welding Machine
The base frame welding machine design adopts horizontal structure and 7 welding heads for completing the welding of base frame. The operator only need to load and unload the product. The machine will do the welding automatically.

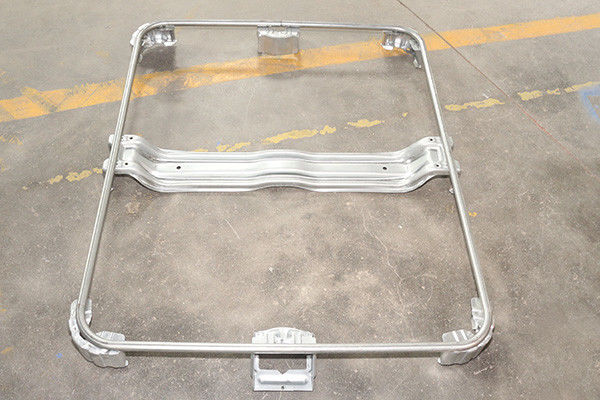

Final Product of Base Frame
We can add the automatic loading and unloading device for the base frame welding machine as per your requirement. The welding efficiency is about 15-20 sec/pc.

HWASHI IBC Cage Frame Production Line IBC Cage Base Frame Welding Machine 12HWASHI IBC Cage Frame Production Line IBC Cage Base Frame Welding Machine 13

Technical parameter Of The IBC Cage Base Frame Welding Machine

Product Name IBC frame production line Style single row /double row
Max welding width 1200mm Max welding length 4250mm
Brand Hwashi Colour blue/yelllow/custom
Equipped Power 350kVA/400kVA Place of Product Zhejiang Province,China
Voltage 3p 380V Material Galvanized Pipe
Tickness of the pipe 1-2mm duty cylce 20%
Diameter of the pipe 14-20mm Frequency 50HZ/60HZ
pipe loading method manual/2 labors Cable size ≥70mm3
working capacity 350-450(480-550) pcs/8 hours air pipe size G1
labor demand 2-3 labors Water pipe size G1 1/4



Running Process Of The IBC Cage Frame Automatic Production Line:
Frame welding——bending——locking——hole punching——unloading——base frame welding——base frame loading——manual screw for base frame and outer frame

HWASHI IBC Cage Frame Production Line IBC Cage Base Frame Welding Machine 14
