Wire Shelf Edge Wire Trimming Machine Cutting Diameter 2-6mm

Wire Shelf Edge Wire Trimming Machine Cutting Diameter 2-6mm

Wire Trimming Machine

Edge Wire Trimming Machine

wire edge machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-TM-6

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI Wire Shelf Edge Wire Trimming Machine Cutting Diameter 2-6mm
Application:
Mesh Product
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

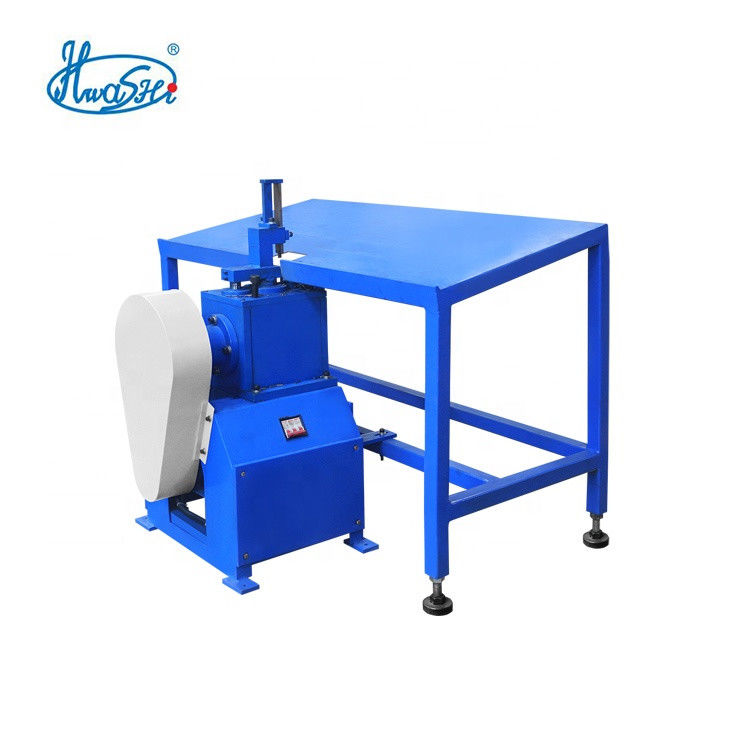

HWASHI Wire Shelf Edge Wire Trimming Machine Cutting Diameter 2-6mm



Wire Shelf Edge Wire Trimming Machine Cutting Diameter 2-6mm 0

Product description Of The Edge Wire Trimming Machine



HWASHI wire shelf edge wire trimming machine is mainly used for trimming the edge of steel wire, which can do the cutting of wire diameter ranging from 2mm to 6mm. The size of the mesh is not limited, work can be done easily and quickly with the help of the table. This machine provides fast cutting speed, even trimming end and it is very easy to use. Utilizing high quality shaft and bearings, not only meet the requirement of normal working, also increases the stability and reliability, and make it durable.



Parameter Of The Edge Wire Trimming Machine



1
Rated Voltage
380V, 50Hz
2
Cutting Diameter
2-6mm
3
Cutting Speed
2300RPM
4
Machine Sized (L x W x H)
470X400X740 mm
5
Machine Weight
100KG

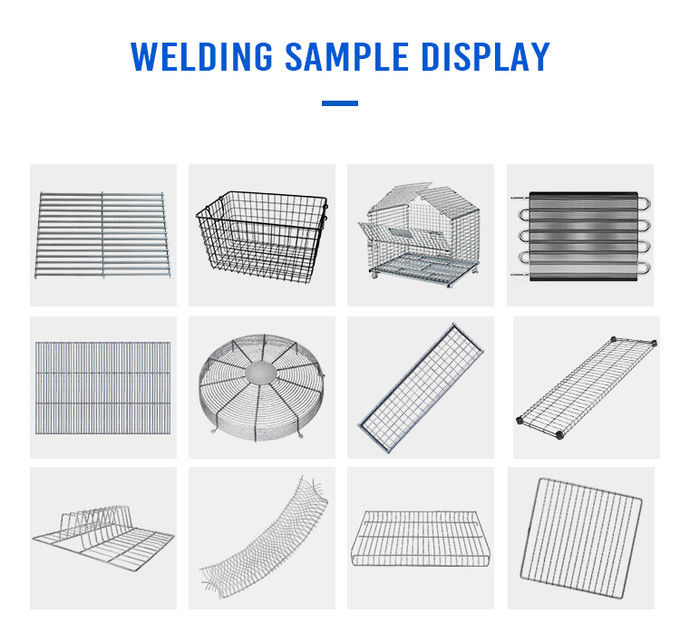

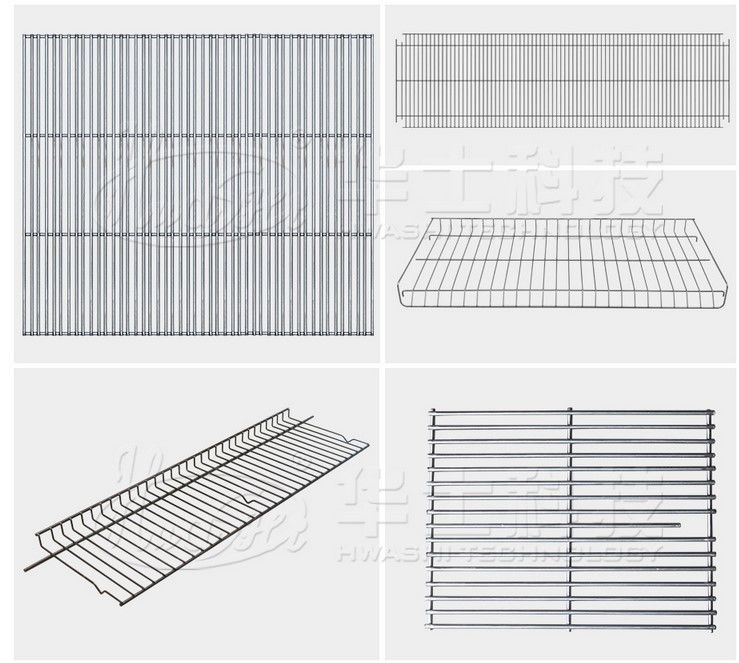

Application and Samples Of The Edge Wire Trimming Machine



Wire Shelf Edge Wire Trimming Machine Cutting Diameter 2-6mm 1

Specification Of The Edge Wire Trimming Machine



Other Machines Related to Wire Shelf Production Line Composition

We can design the complete full automatic or semi automatic production line machine for refrigerator wire shelf. You may provide us the detailed product drawings and efficiency requirement. Then our engineering team will prepare the customized proposal for you.



Wire Shelf Edge Wire Trimming Machine Cutting Diameter 2-6mm 2 Wire Shelf Edge Wire Trimming Machine Cutting Diameter 2-6mm 3



Wire Flattening and Cutting Machine

This machine is able to process the round wire into flat wire. It will automatically feed the round wire and cut it into required length. Normally you will need to prepare the 8mm wire coil, and make it into 12x3mm flat wire strip.

High Speed Wire Straightening and Cutting Machine

This machine will help to make batch production of 2mm to 4mm wires. This machine speed is almost 5 times than the normal speed wire cutting machine. It helps to increase production rate and reduce labor cost.

Wire Shelf Edge Wire Trimming Machine Cutting Diameter 2-6mm 4 Wire Shelf Edge Wire Trimming Machine Cutting Diameter 2-6mm 5

Wire Frame Bending Machine

This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate.

Wire Frame Butt Welding Machine

The number of welding heads is depends on the welding width of the mesh. Different welding head can be set different welding programs and current respectively.

Wire Shelf Edge Wire Trimming Machine Cutting Diameter 2-6mm 6 Wire Shelf Edge Wire Trimming Machine Cutting Diameter 2-6mm 7

Wire Frame Double T-Butt Machine

This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. Easy Operation. We can also design the automatic moving and welding application.

Wire Edge Trimming Machine

After Welding, we need the trimming machine to cut off the edge of wire from the wire frame. To make the surface clean and smooth.





Wire Shelf Edge Wire Trimming Machine Cutting Diameter 2-6mm 8 Wire Shelf Edge Wire Trimming Machine Cutting Diameter 2-6mm 9

2D Wire Handle Bending Machine

This machine is used to bend the wire handle. It is suitable for 2-6mm wire bending. And you can bend any shape of the wire without changing mould.



3D Wire Bending Machine

This machine is used to bend the wire into 3D shape. It is suitable for 2-6mm or 3-8mm wire bending. And you can bend any 3D shape of the wire without changing mould.

Wire Shelf Edge Wire Trimming Machine Cutting Diameter 2-6mm 10Wire Shelf Edge Wire Trimming Machine Cutting Diameter 2-6mm 11Wire Shelf Edge Wire Trimming Machine Cutting Diameter 2-6mm 12
