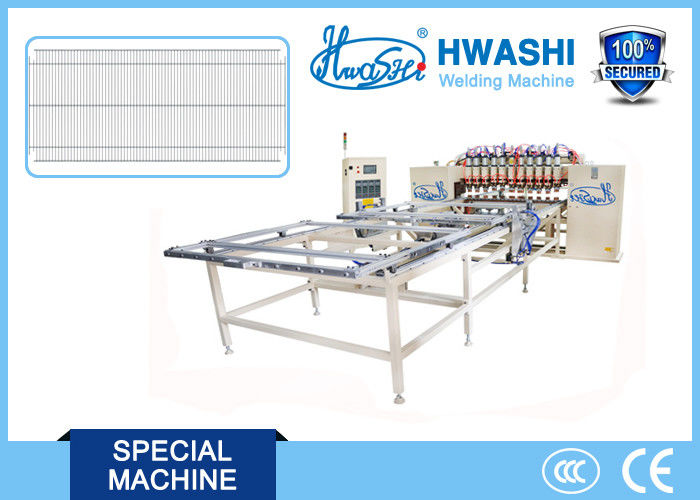

Detailed Information Of The Multi Head Point Welder Wire Shelf Gantry Spot Welding Machine

• The multi head point welder wire shelf gantry spot welding machine uses medium frequency inverter DC square wave output, and the welding heat is concentrated and the solder joints are symmetrical. It is especially suitable for the welding of non-ferrous metal materials and some difficult-to-weld materials. The welding process is stable, the welding quality is significantly improved, the production efficiency is rapidly improved, and the scope of use of the equipment is also expanded.

Welding Heads and Fixtures
                      Processing and design according to the drawings of each wire shelf product. (customized)

• The welding transformer used in the intermediate frequency inverter power supply is small in size and has a large output energy, which greatly reduces the weight of the iron core material. In addition, the rectifier diode in the secondary circuit of the transformer converts the electric energy into a DC power supply for welding.

• The value of the secondary loop inductance prevents large energy losses, thereby reducing production costs. Using microcomputer control, it can store multiple sets of welding specifications, and the user can edit the cylinder action sequence, the number of cylinder actions and the corresponding welding specifications to realize the welding of different products.

​

• The integrated ultra-wide gantry frame is welded by high-quality steel. The elastic deformation is small and there is no deformation. Ensure the deformation of the whole fuselage when the welding cylinder is pressed down at the same time, and also prevent product misalignment caused by the instability of the fuselage during welding.

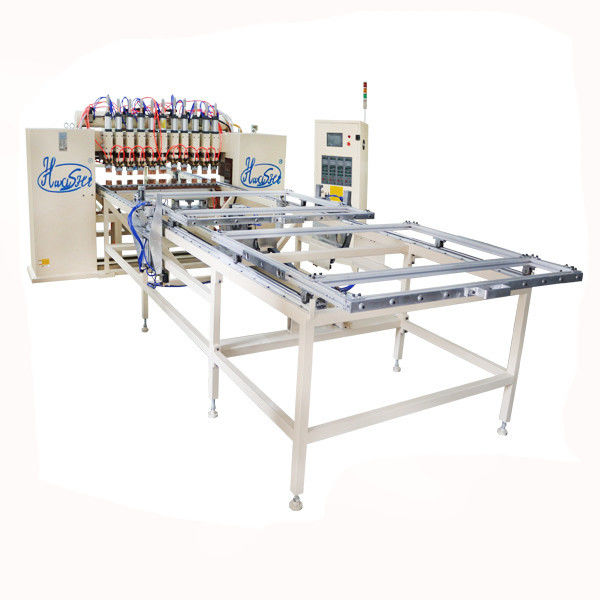

Automatic Double-layer Feeder

• When one fixture is under welding process, the wire filling system will load the wires onto the other fixture at the same time. When finish welding, the feeder will automatically exchange the fixture. So the efficiency can be increased.​

Automatic Wire Filling System

You can put the precut straight wires into the hopper, then the wire filling machine will do the wire filling into the fixture automatically. It helps to increase the working efficiency and reduce labor force.

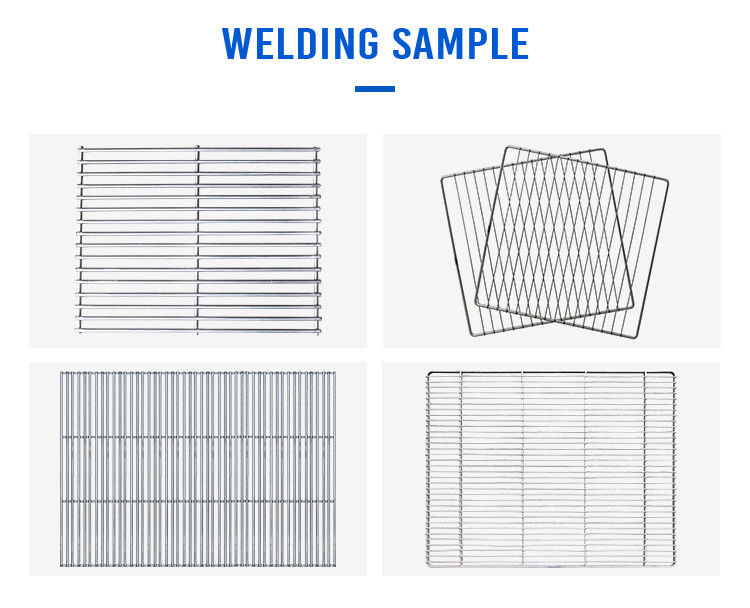

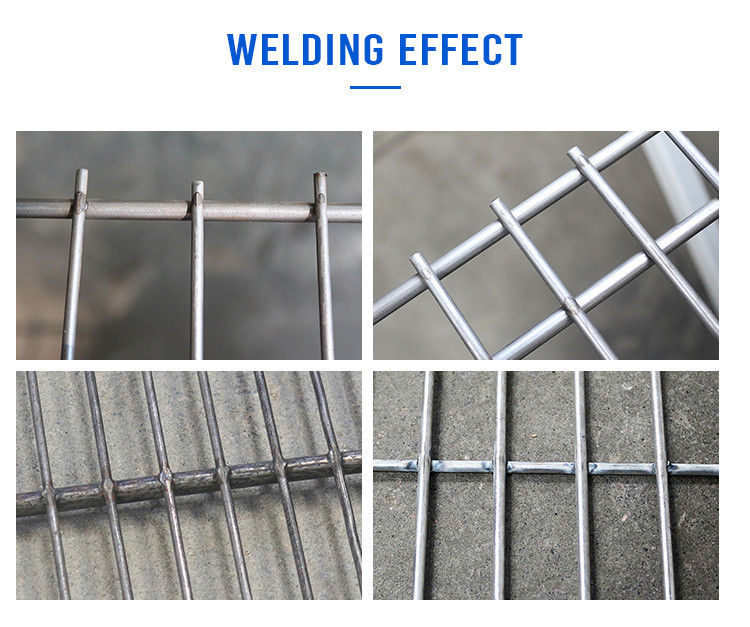

Application And Samples Of The Multi Head Point Welder Wire Shelf Gantry Spot Welding Machine

Production Line Machines

Wire Flattening and Cutting Machine This machine is able to process the round wire into flat wire. It will automatically feed the round wire and cut it into required length. Normally you will need to prepare the 8mm wire coil, and make it into 12x3mm flat wire strip.	High Speed Wire Straightening and Cutting Machine This machine will help to make batch production of 2mm to 4mm wires. This machine speed is almost 5 times than the normal speed wire cutting machine. It helps to increase production rate and reduce labor cost.

Wire Frame Bending Machine This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate.	Wire Frame Butt Welding Machine The number of welding heads is depends on the welding width of the mesh. Different welding head can be set different welding programs and current respectively.

Wire Frame Double T-Butt Machine This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. Easy Operation. We can also design the automatic moving and welding application.	Wire Edge Trimming Machine After Welding, we need the trimming machine to cut off the edge of wire from the wire frame. To make the surface clean and smooth.

2D Wire Handle Bending Machine This machine is used to bend the wire handle. It is suitable for 2-6mm wire bending. And you can bend any shape of the wire without changing mould.	3D Wire Bending Machine This machine is used to bend the wire into 3D shape. It is suitable for 2-6mm or 3-8mm wire bending. And you can bend any 3D shape of the wire without changing mould.
